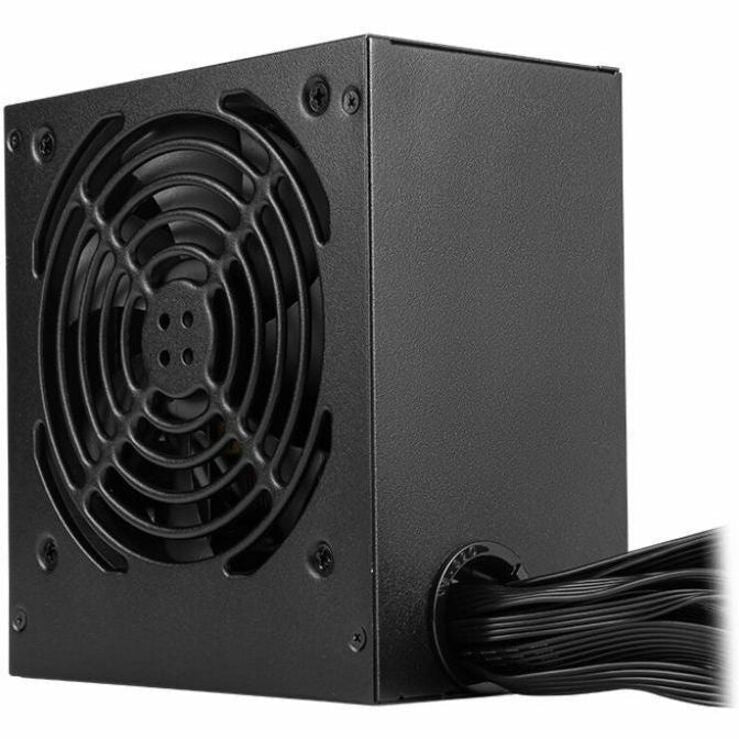

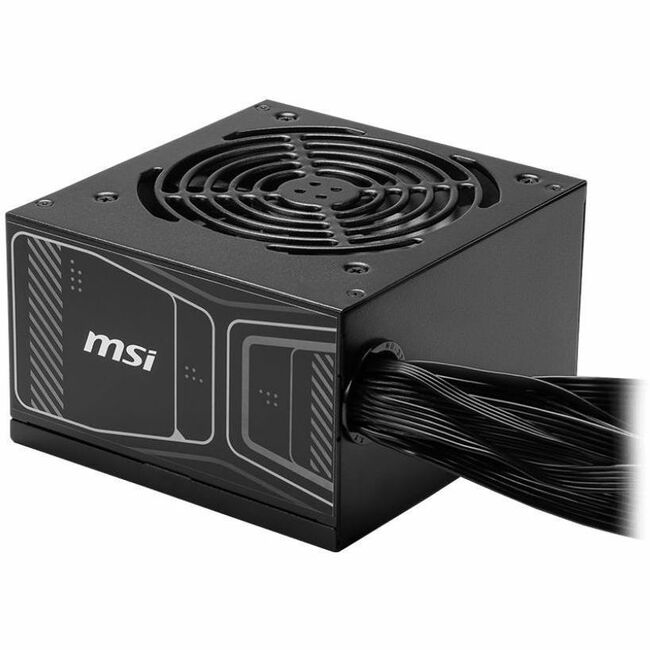

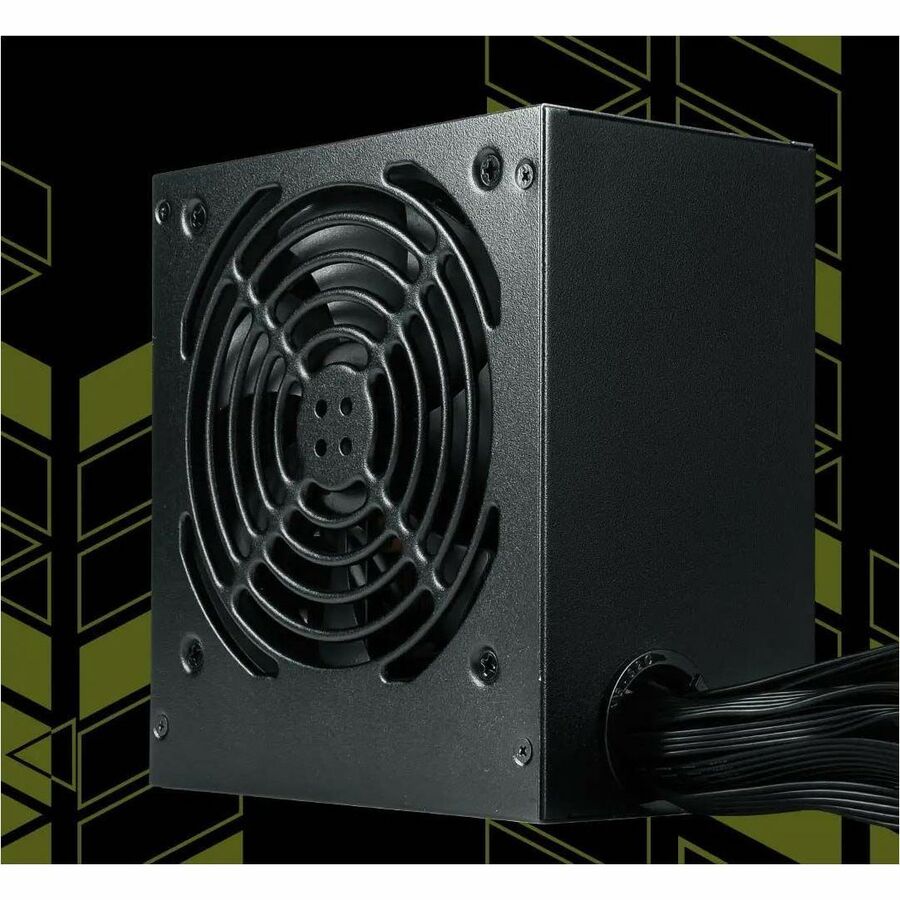

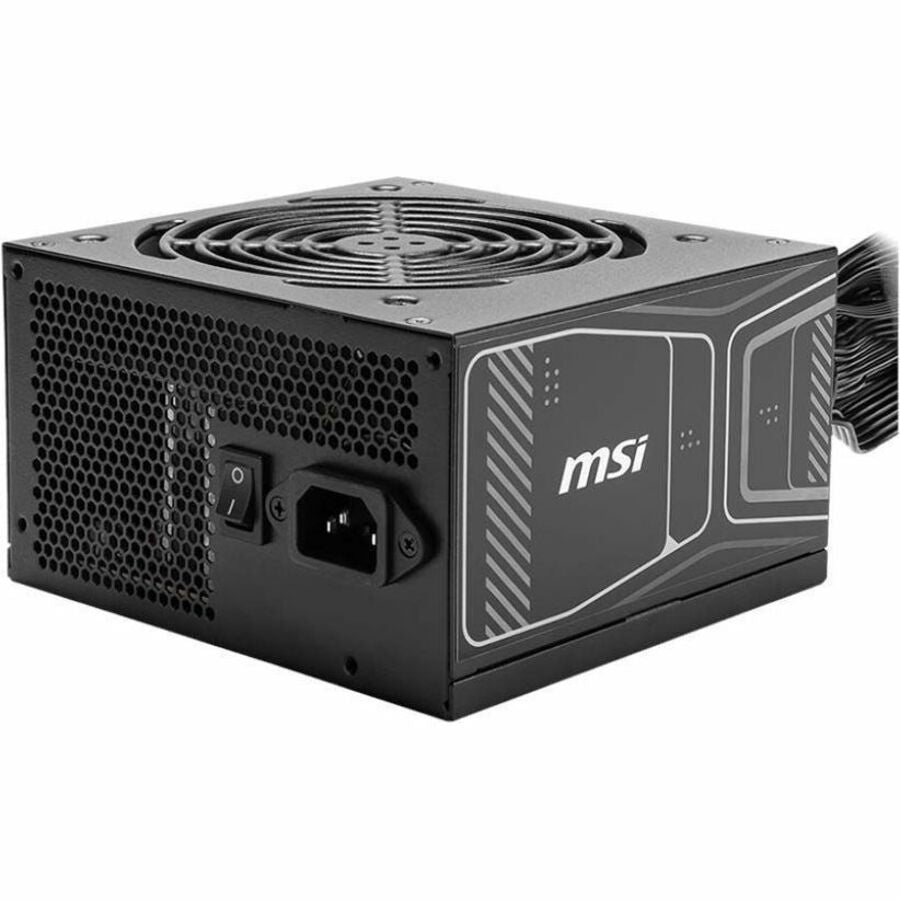

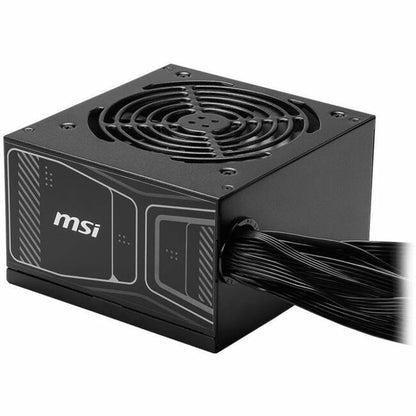

MSI MAG 750W Power Supply - MAGA750GNPCIE5
Key Features
- 105°C main capacitor
- 120 mm Sleeve Bearing Fan
- 80 Plus Gold certified for high efficiency with Active PFC design
- ATX 3.1 ready, native PCIe 5.1 connector
- Full Bridge Topology with DC-DC module design
- Industrial level protection with OVP, OCP, OPP, OTP, SCP
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
Product Overview
MAG UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ATX 3.1 Ready
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.
POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.
SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.

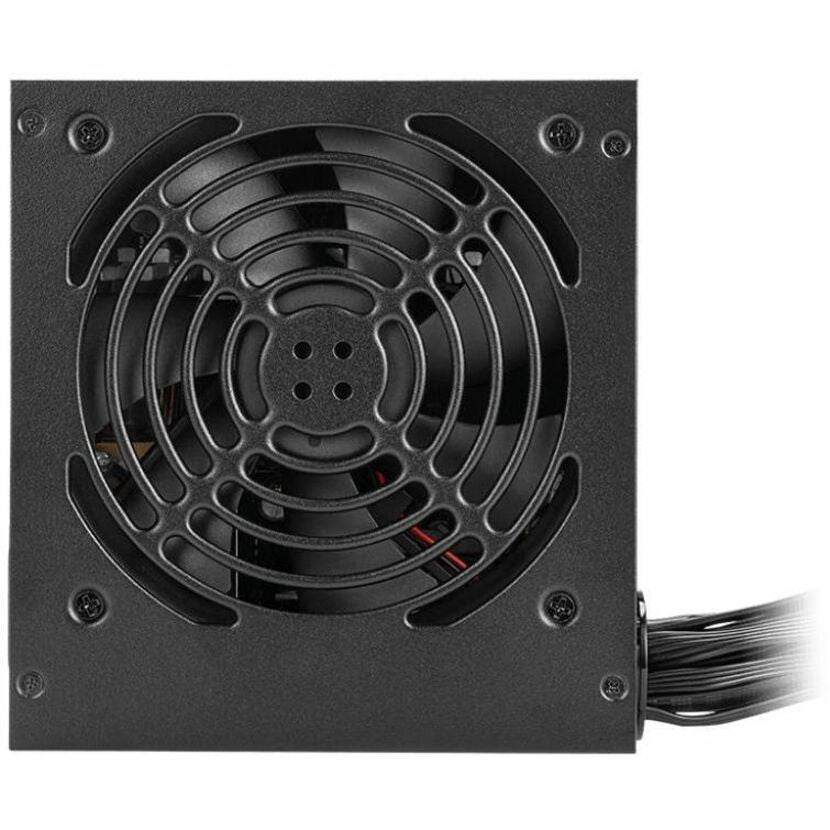

FAN
The fan curve is designed to prioritize low noise output while maintaining effective cooling. When the power supply operates at 70% load, the resulting noise level is kept below 20 dBA.
Capacitors You Can Trust
The 105°C main capacitor is designed to perform reliably in handling high temperatures and peak voltage fluctuations. It ensures stable performance, providing your system with dependable reliability.
CERTIFIED CABLE
This power supply comes equipped with certified cables and connector made of copper alloy terminals. This provides greater safety than typical phosphor bronze connectors, especially during high current surges.
PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
- OCP Over Current Protection
- OTP Over Temperature Protection
- OVP Over Voltage Protection
- OPP Over Power Protection
- SCP Short Circuit Protection
CONNECTORS
This power supply equipped with black, flat cables that are soft, and easy to bend, making cable management a breeze.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: MAGA750GNPCIE5
- Brand Name: MSI
- Product Series: MAG
- Product Name: MAG 750W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX 3.1
- Efficiency: 90%
- Power Factor Correction (PFC): Active
- Number of Fans: 1
- Fan Bearing Type: Sleeve Bearing
- Fan Diameter: 120 mm
- Protection Type:
- Over Current
- Over Temperature
- Over Voltage
- Over Power
- Under Voltage
- Short Circuit
- Modular: Yes
- NVIDIA SLI Supported: Yes
- Features: Compact
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 5 V DC
- 3.3 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail:
- 5 V DC @ 20 A
- 3.3 V DC @ 20 A
- 12 V DC @ 62 A
- -12 V DC @ 0.3 A
- 5 V SB @ 2.5 A
- Output Power: 750 W
Interfaces/Ports
- Number of SATA Power Connectors: 4
- PCI Express Connector: Yes
- Number of (6+2 pin) PCI Express Power Connectors: 2
- Number of (4+4 pin) CPU Power Connectors: 2
- Number of 4-pin Molex Power Connectors: 2
Physical Characteristics
- Form Factor: Internal
- Height: 5.5"
- Width: 5.9"
- Depth: 3.4"
