MSI MAG B650 TOMAHAWK WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX - B650TOMAHAWKWIFI
Key Features
- 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
- Audio Boost 5: Isolated audio with a high quality audio processor for the most immersive gaming experience
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Lightning Gen4 Solution: Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
- M.2 Shield FROZR: M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Product Overview
HARDWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: B650TOMAHAWKWIFI
- Brand Name: MSI
- Product Line: MAG
- Product Model: B650 TOMAHAWK WIFI
- Product Name: MAG B650 TOMAHAWK WIFI Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: B650
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 5
- Ryzen 7
- Ryzen 9
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- UDIMM
- DIMM
- Maximum Memory Supported: 128 GB
- Memory Speed Supported:
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
- 6600 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.3
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 2
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 3.0

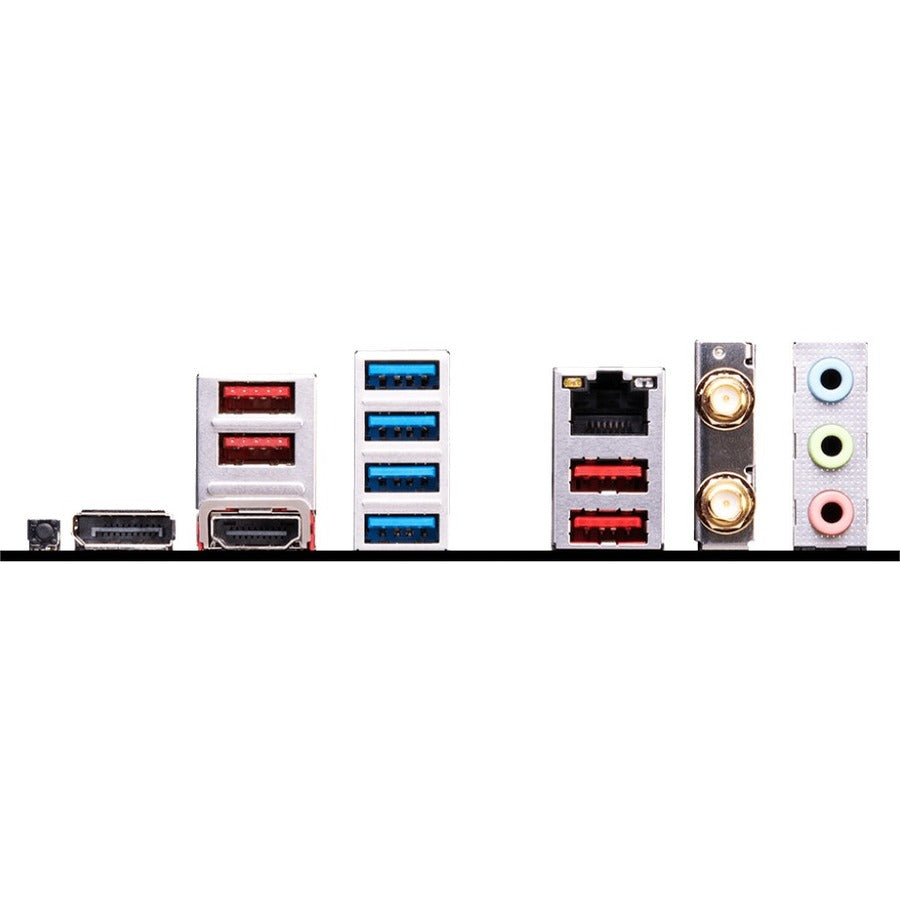

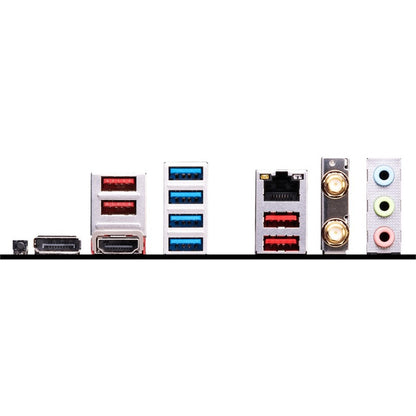

Interfaces/Ports
- Total Number of USB Ports: 10
- Number of USB 2.0 Ports: 2
- Number of USB 3.2 Ports: 1
- Number of USB 3.2 Gen 1 Ports: 4
- Number of USB 3.2 Gen 2 Type-A Ports: 3
- S/PDIF: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 6
- Number of M.2 Interfaces: 3
- Total Number of Onboard USB Ports: 7
- Number of Onboard USB 2.0 Ports: 4
- Number of Onboard USB 3.2 Ports: 3
Physical Characteristics
- Form Factor: ATX
- Width: 12"
- Depth: 9.6"
Miscellaneous
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
