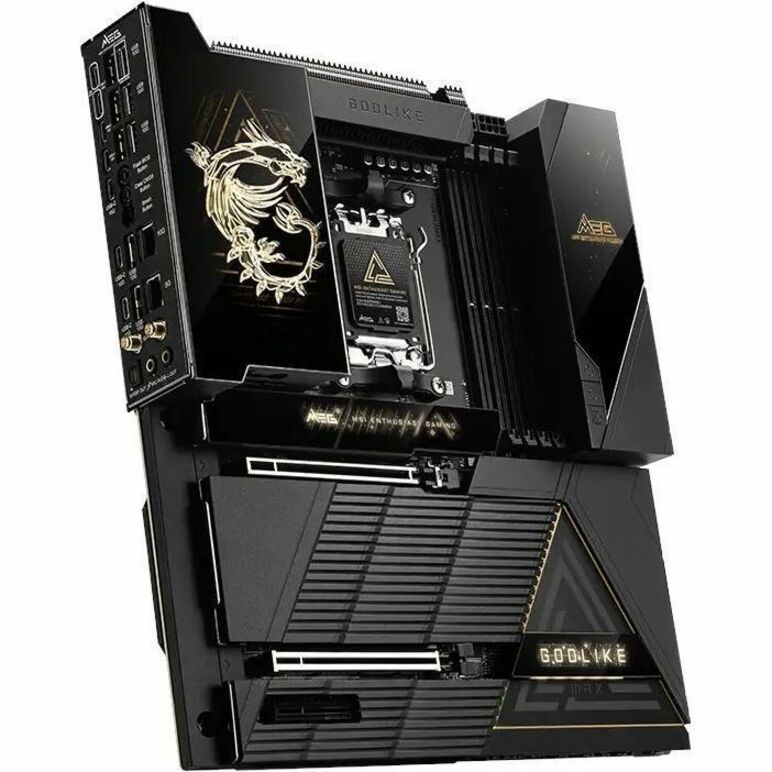

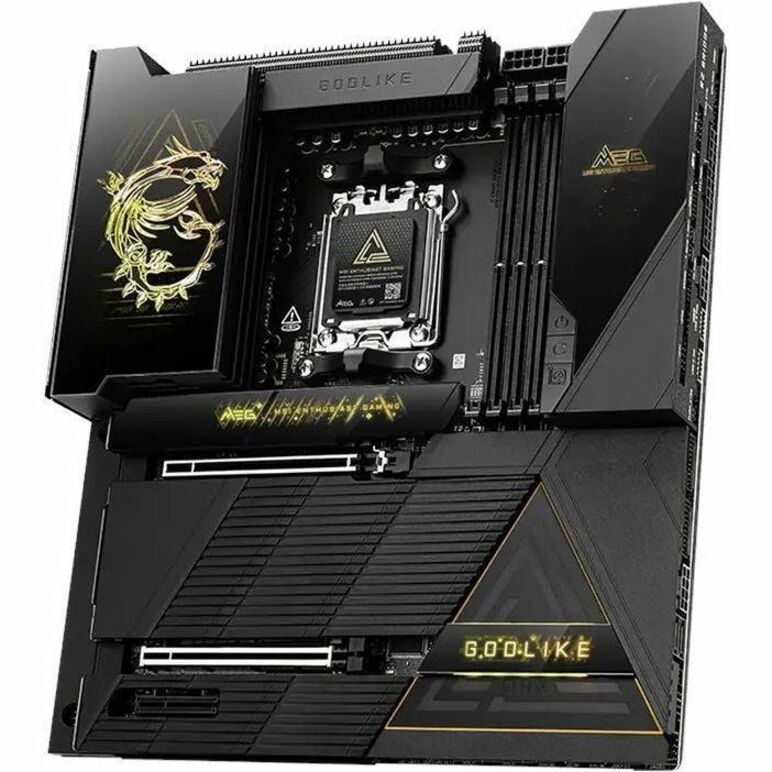

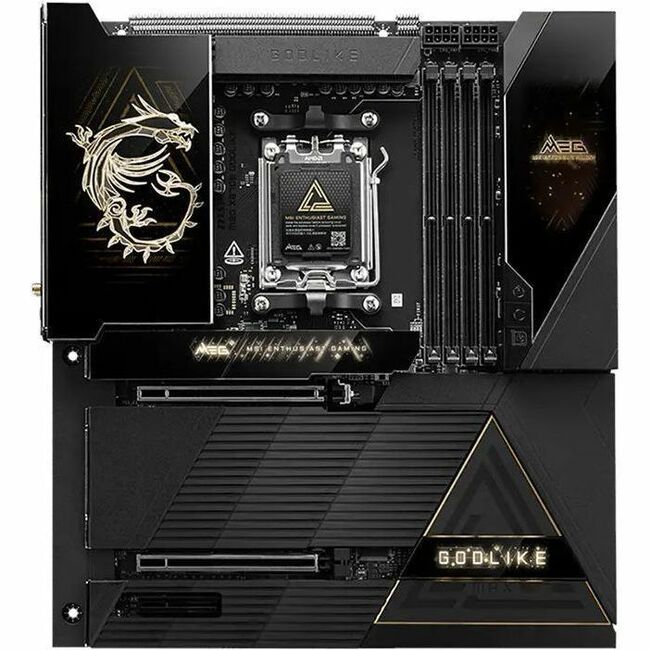

MSI MEG X870E GODLIKE MAX - X870EGODLIKE MAX - EATX Gaming Motherboard - AM5 - X870E Chipset - X870EGODLIKE MAX
Key Features
- Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.

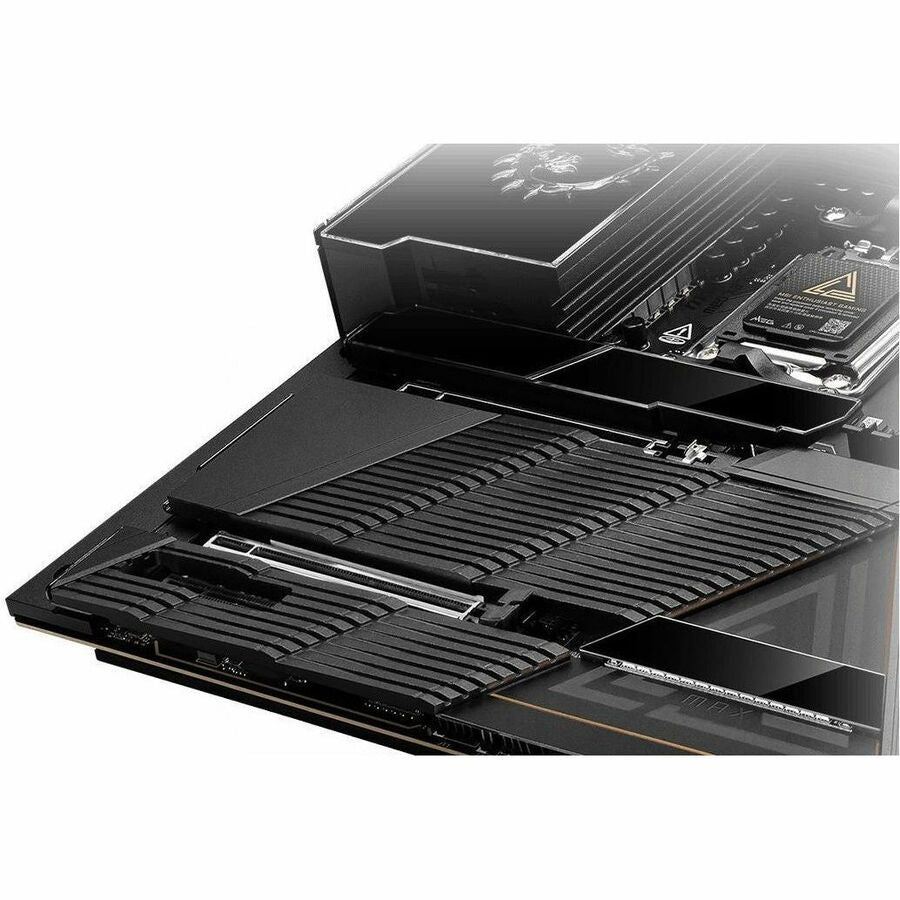

- M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 9200+MT/s (OC)
Product Overview
Built for maximum performance and compatibility on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE MAX equips OC Engine, 64MB BIOS ROM, true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE MAX.General Information
- Manufacturer: MSI
- Manufacturer Part Number: X870EGODLIKE MAX
- Brand Name: MSI
- Product Line: MEG
- Product Model: X870E GODLIKE MAX
- Product Name: MEG X870E GODLIKE MAX Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: X870E
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 7
- Ryzen 9
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- CUDIMM
- Maximum Memory Supported: 256 GB
- Memory Speed Supported:
- 9200 MHz
- 8400 MHz
- 6400 MHz
- 5600 MHz
- 4800 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- 10Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x4 Slots: 1
- Number of PCI Express x8 Slots: 1
- Number of PCI Express x16 Slots: 1
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 5.0

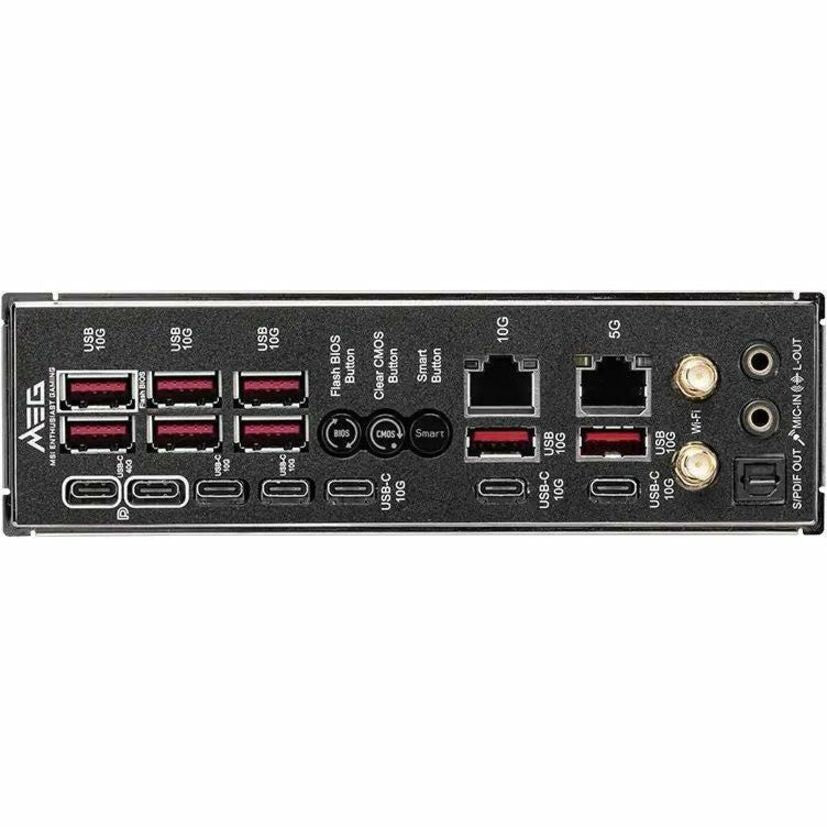

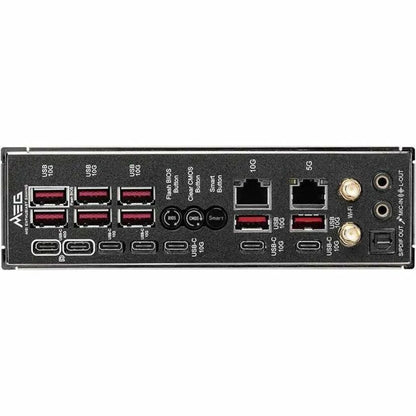

Interfaces/Ports
- Total Number of USB Ports: 15
- S/PDIF: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 2
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 7
- Total Number of Onboard USB Ports: 10
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: Extended ATX
- Width: 12"
- Depth: 10.9"
Miscellaneous

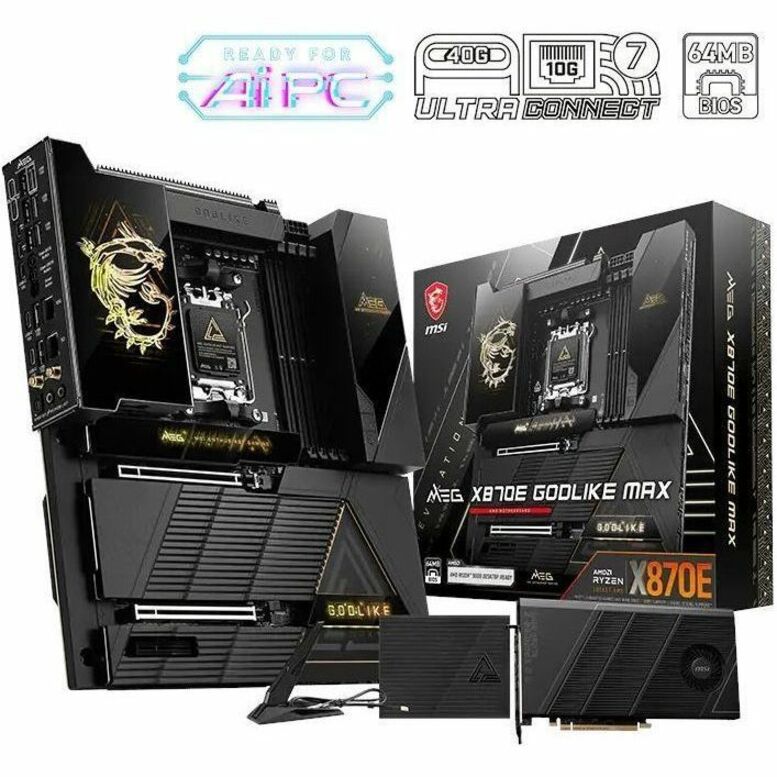

- Package Contents:
- MEG X870E GODLIKE MAX Gaming Desktop Motherboard
- M.2 XPANDER-Z SLIDER (Gen 5)

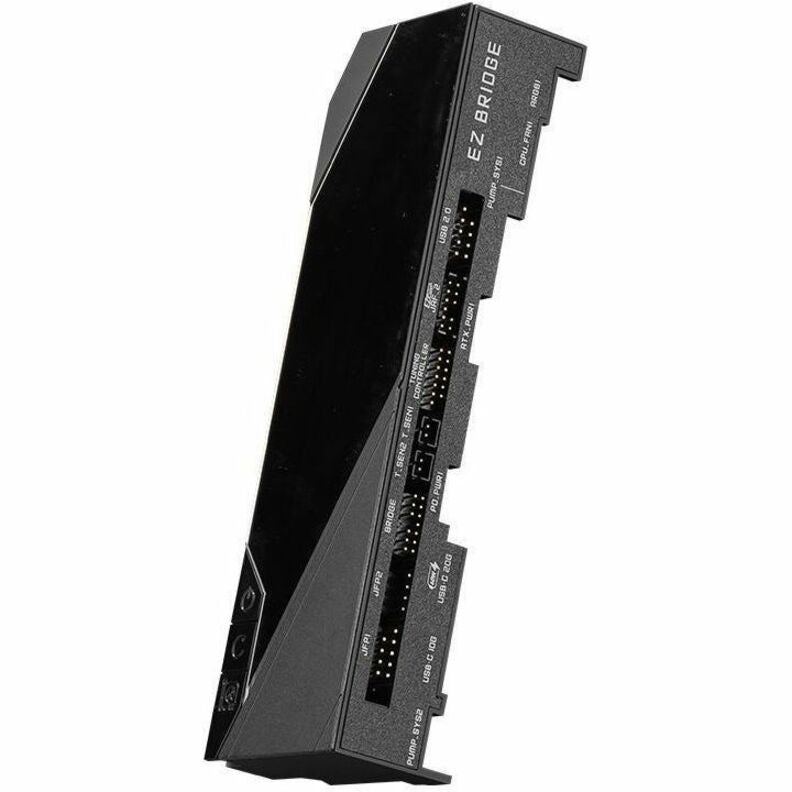

- EZ Control Hub
- EZ Wi-Fi Antenna
- USB Drive
- 1-to-3 ARGB Gen 2 Extension Cable
- ARGB Extension Cable
- 1-to-3 EZ Conn-Cable (V2)
- EZ Link Cable
- EZ Control Hub SATA Power Cable
- M.2 XPANDER Card Fan Control Cable
- EZ Front Panel Cable
- 4 × SATA Cables
- 2 × Thermistor Cables
- M.2 XPANDER Card Thermal Pads
- EZ M.2 Clips II Remover
- EZ Control Hub Screw Sets
- Cable Stickers
- Quick Installation Guide
- European Union Regulatory Notice
- Compatibility:
- Processor: Socket AM5 (LGA 1718), compatible with AMD Ryzen 7000/8000/9000 series.
- Memory: 4x DDR5, supporting up to 256GB (4x 64GB) or high-speed Kits (over 9000+ MT/s OC).
- Expansion & Storage: PCIe 5.0 (x16/x8) slots and multiple M.2 slots (with support for an additional M.2 expander card).
- Form Factor: E-ATX, requiring substantial PC case clearance (roughly 12" x 10.9").
- Networking: Integrated Wi-Fi 7 and 10G Super LAN.
Warranty
- Limited Warranty: 3 Year
