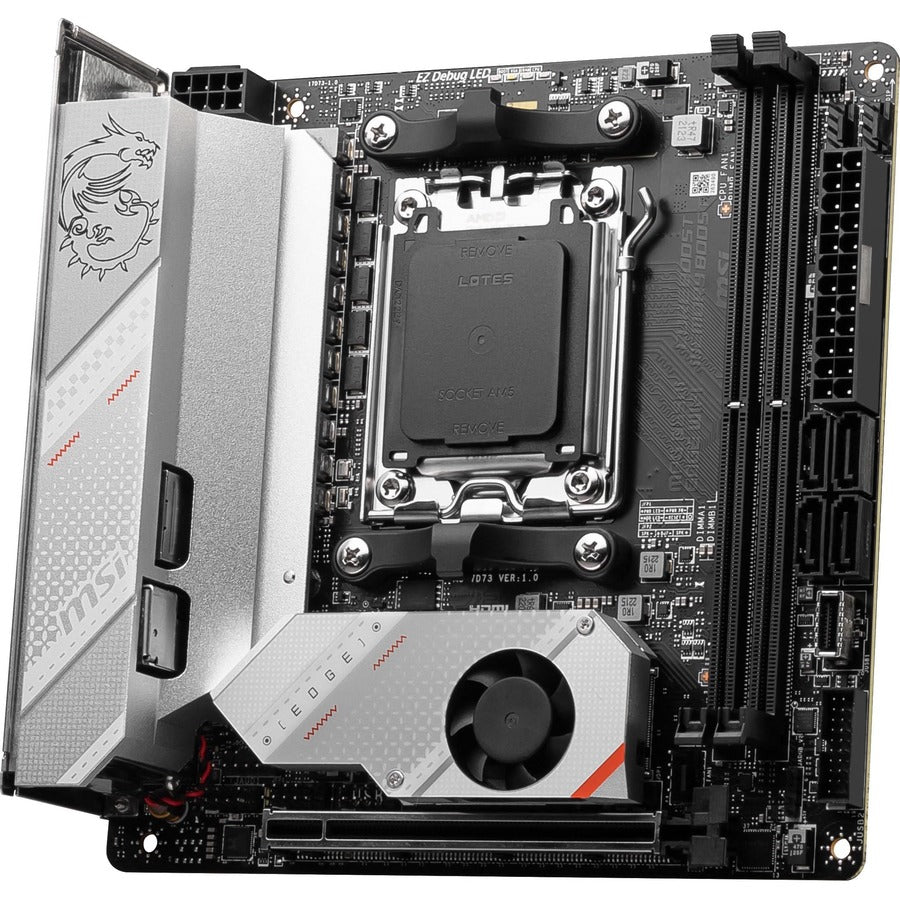

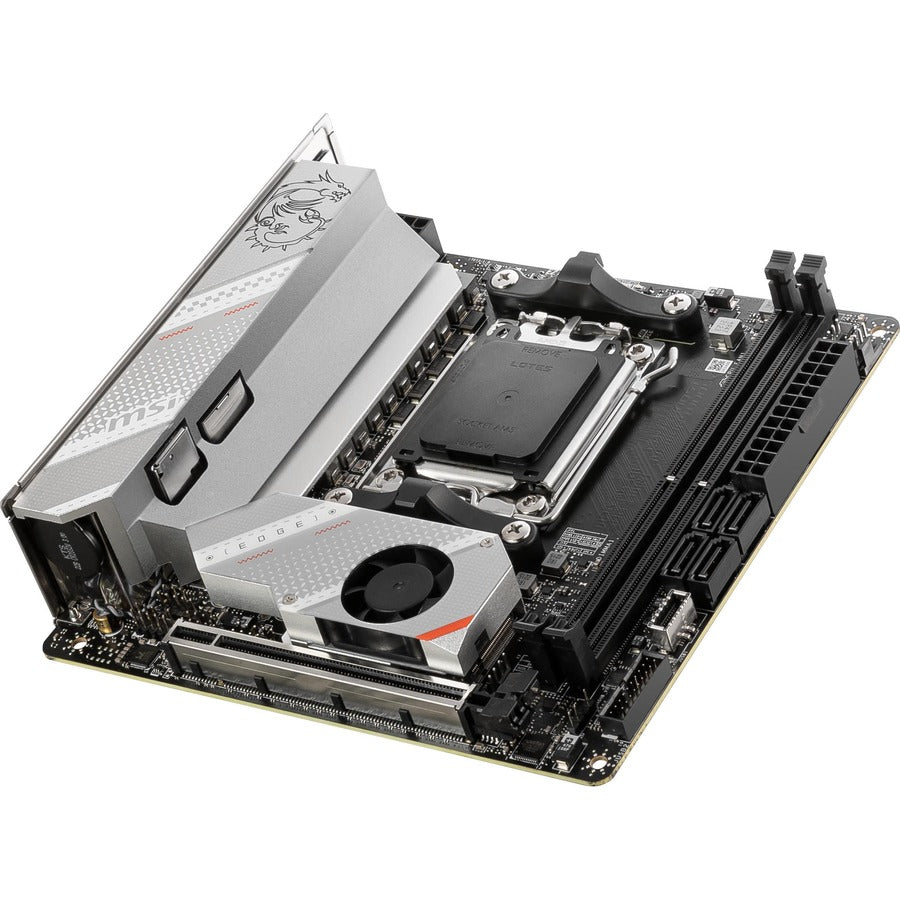

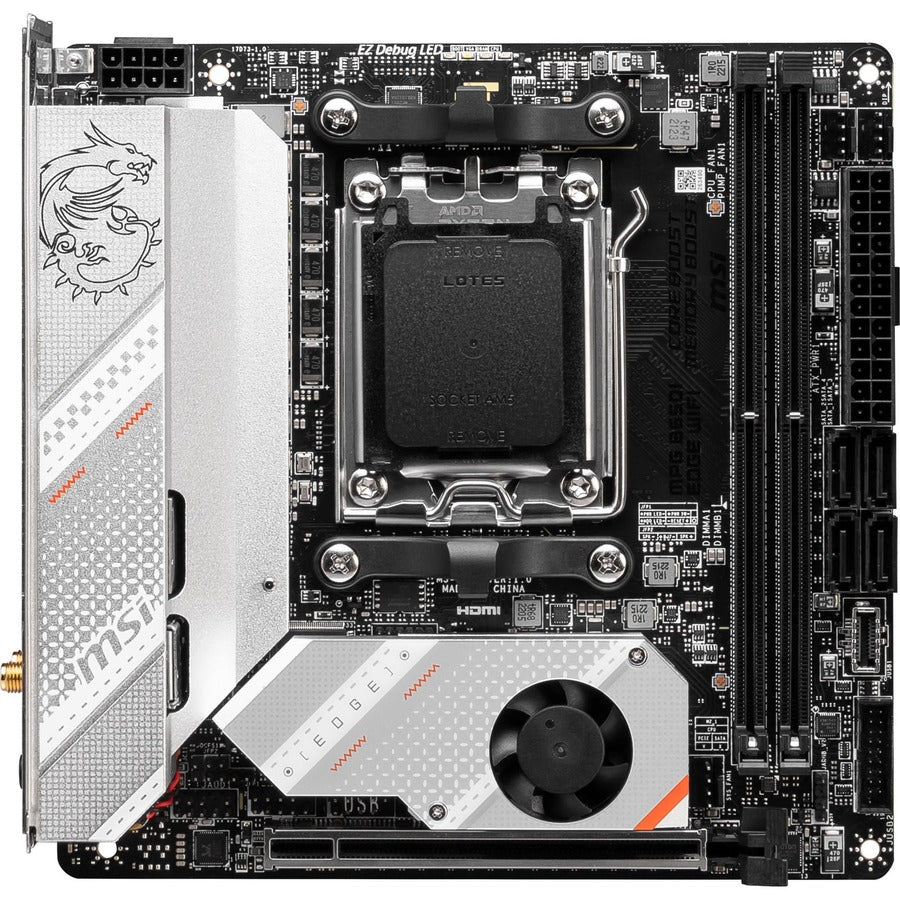

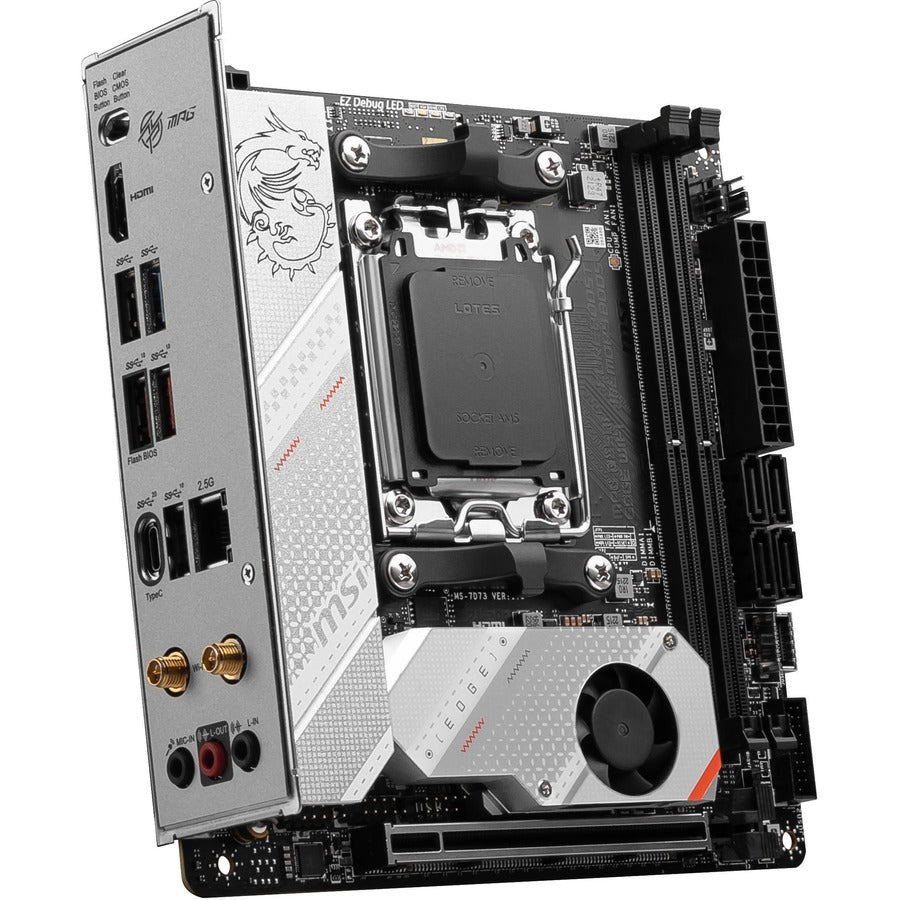

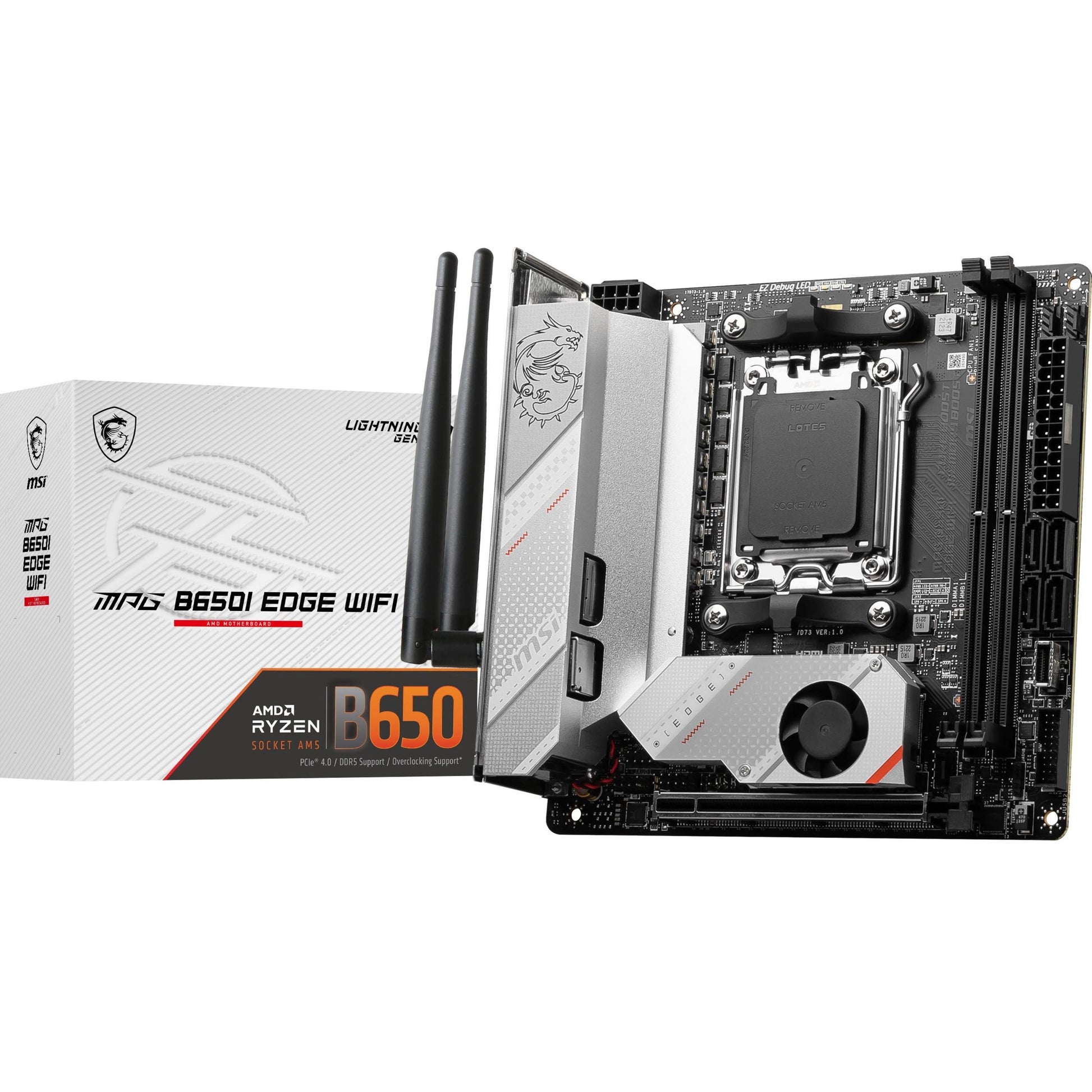

MSI MPG B650I EDGE WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Mini ITX - B650IEDGEWIFI
Key Features
- 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- M.2 SHIELD FROZR: Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Product Overview
MPG B650I EDGE WIFI
MPG B650I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: B650IEDGEWIFI
- Brand Name: MSI
- Product Line: MPG
- Product Model: B650I EDGE WIFI
- Product Name: MPG B650I EDGE WIFI Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: B650
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 5
- Ryzen 7
- Ryzen 9
Memory
- Number of Memory Slots: 2
- Memory Form Factor:
- UDIMM
- DIMM
- Maximum Memory Supported: 64 GB
- Memory Speed Supported:
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
- 6600 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.2
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
- Total Number of Expansion Slots: 1
- Total Number of PCI Express Slots: 1
- Number of PCI Express x16 Slots: 1
- PCI Express Standard: PCI Express 4.0

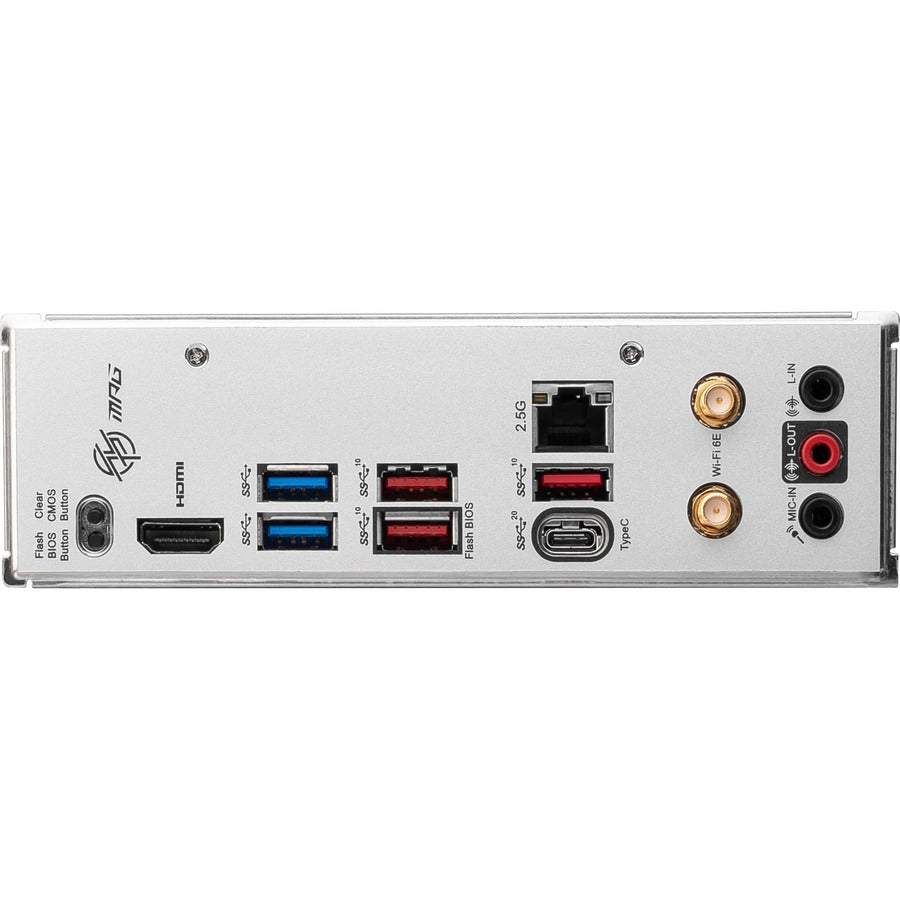

Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 3.2 Ports: 1
- Number of USB 3.2 Gen 1 Ports: 2
- Number of USB 3.2 Gen 2 Type-A Ports: 3
- HDMI: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 2
- Total Number of Onboard USB Ports: 5
- Number of Onboard USB 2.0 Ports: 2
- Number of Onboard USB 3.2 Ports: 3
Physical Characteristics
- Form Factor: Mini ITX
- Width: 6.7"
- Depth: 6.7"
Miscellaneous
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
