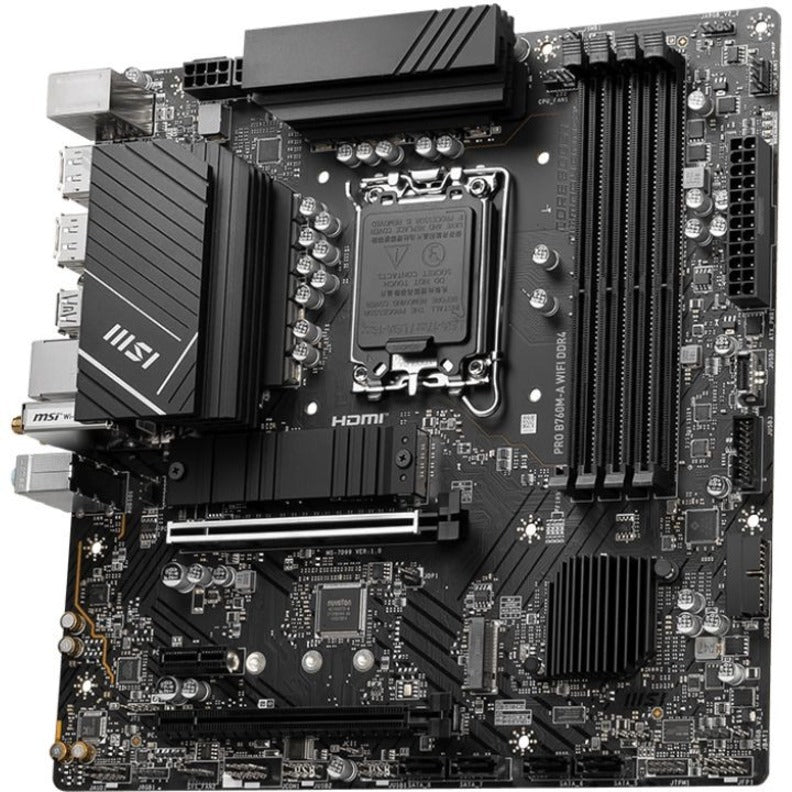

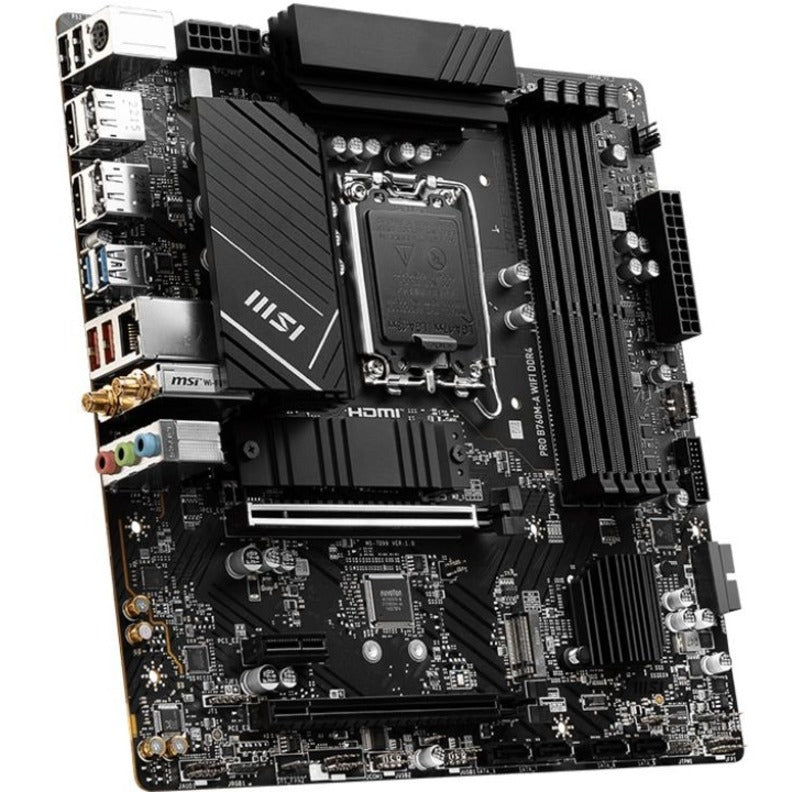

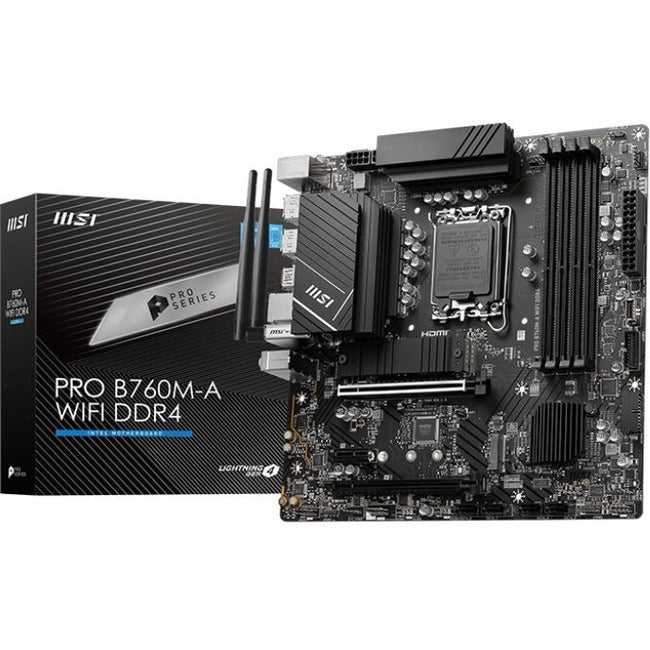

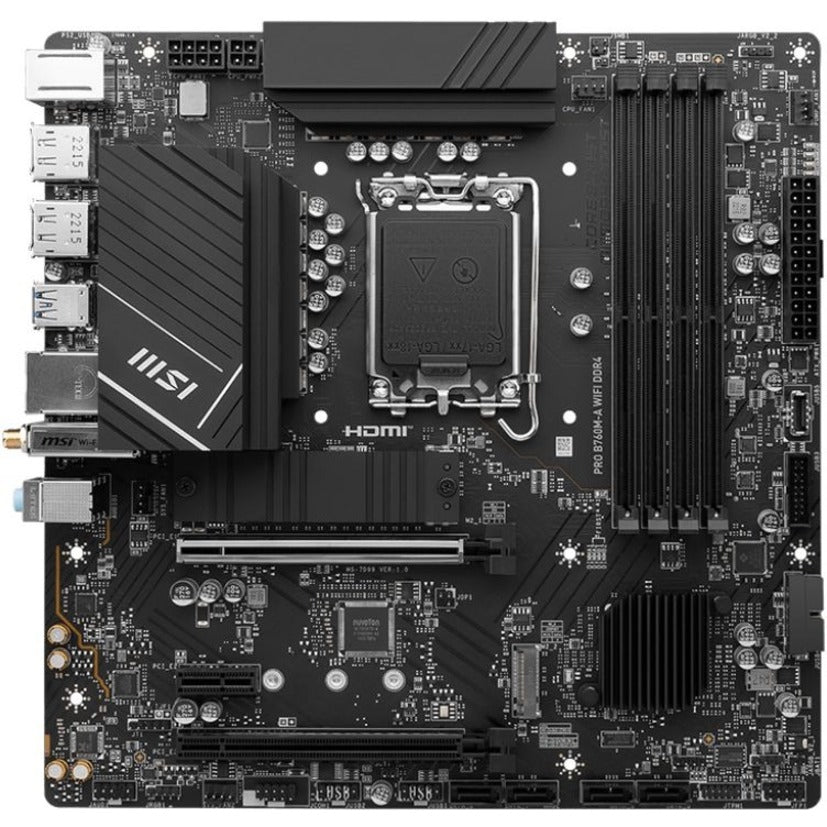

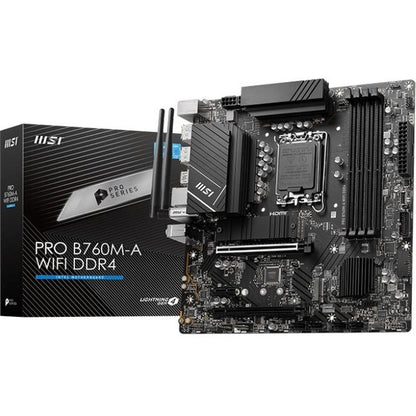

MSI Pro B760M-A WIFI DDR4 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - PROB760MAWID4
Key Features
- 2.5G Network Solution
- Featuring premium 2.5G LAN to deliver better network experience.
- Core Boost
- With premium layout and fully digital power design to support more cores and provide better performance.
- Extended Heatsink Design
- MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- EZ Debug LED
- Easiest way to troubleshoot
- Frozr AI Cooling
- Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Lightning Gen4 Solution
- The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- M.2 Shield FROZR
- Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Memory Boost
- Advanced technology to deliver pure data signals for the bestperformance, stability and compatibility.
- Wi-Fi 6E
- The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Product Overview
PRO B760M-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory. Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
General Information
- Manufacturer: MSI
- Manufacturer Part Number: PROB760MAWID4
- Brand Name: MSI
- Product Line: Pro
- Product Model: B760M-A WIFI DDR4
- Product Name: PRO B760M-A WIFI DDR4 Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: B760
- Total Processor Supported: 1
- Processor Socket: Socket LGA-1700
- Processor Generation Supported:
- 12th Gen
- 13th Gen
- Processor Supported:
- Core
- Pentium Gold
- Celeron
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 128 GB
- Memory Speed Supported:
- 5333 MHz
- 5200 MHz
- 5066 MHz
- 5000 MHz
- 4800 MHz
- 4600 MHz
- 4400 MHz
- 4266 MHz
- 4200 MHz
- 4000 MHz
- 3800 MHz
- 3733 MHz
- 3600 MHz
- 3466 MHz
- 3400 MHz
- 3333 MHz
- 3200 MHz
- 2933 MHz
- 2666 MHz
- 2400 MHz
- 2133 MHz
- Memory Technology: DDR4 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 2
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 3.0

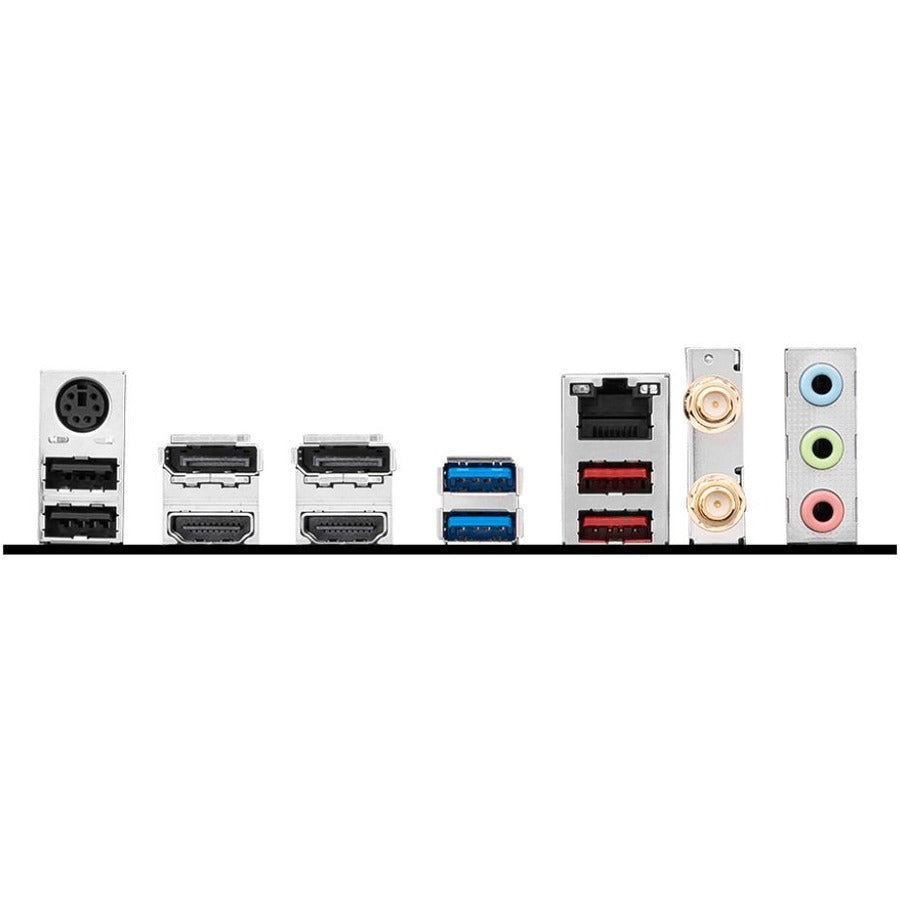

Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 2
- Number of USB 3.2 Gen 1 Type-A Ports: 2
- Number of USB 3.2 Gen 2 Type-A Ports: 2
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 2
- Total Number of Onboard USB Ports: 9
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 9.6"
Miscellaneous
- Package Contents:
- PRO B760M-A WIFI DDR4 Gaming Desktop Motherboard
- Quick Installation Guide
- European Union Regulatory Notice
- I/O Shield
- SATA Cable
- 2 x M.2 Screw / Standoff Sets
- Wi-Fi Antenna
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
