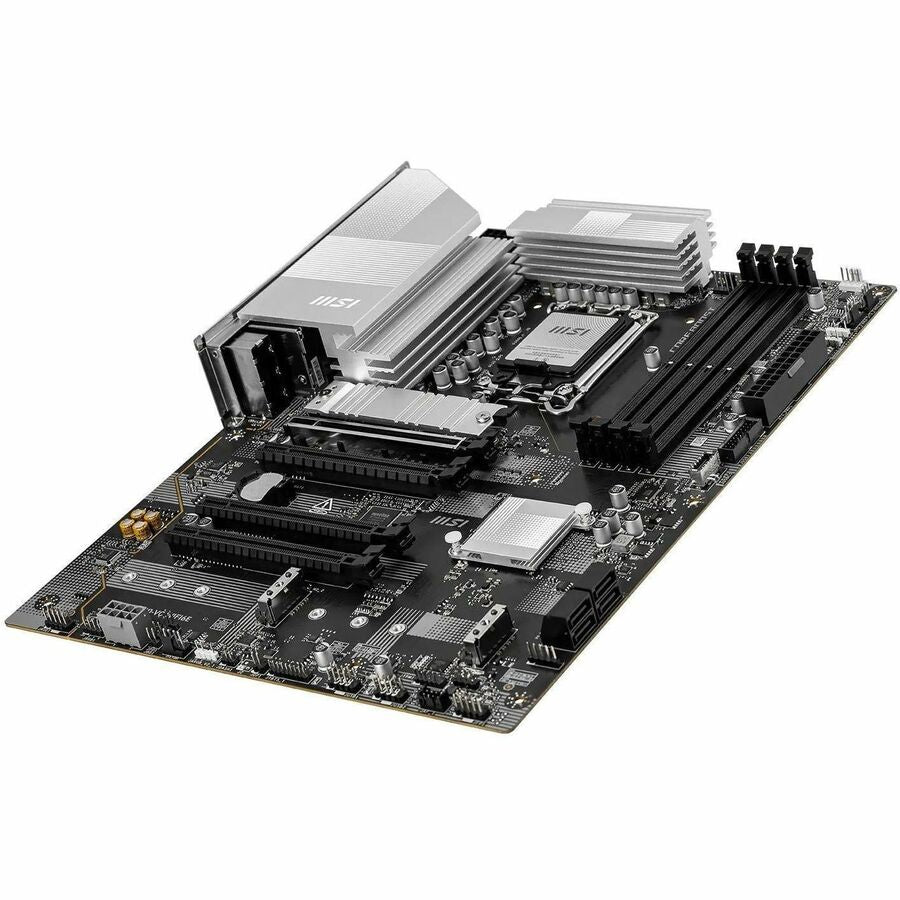

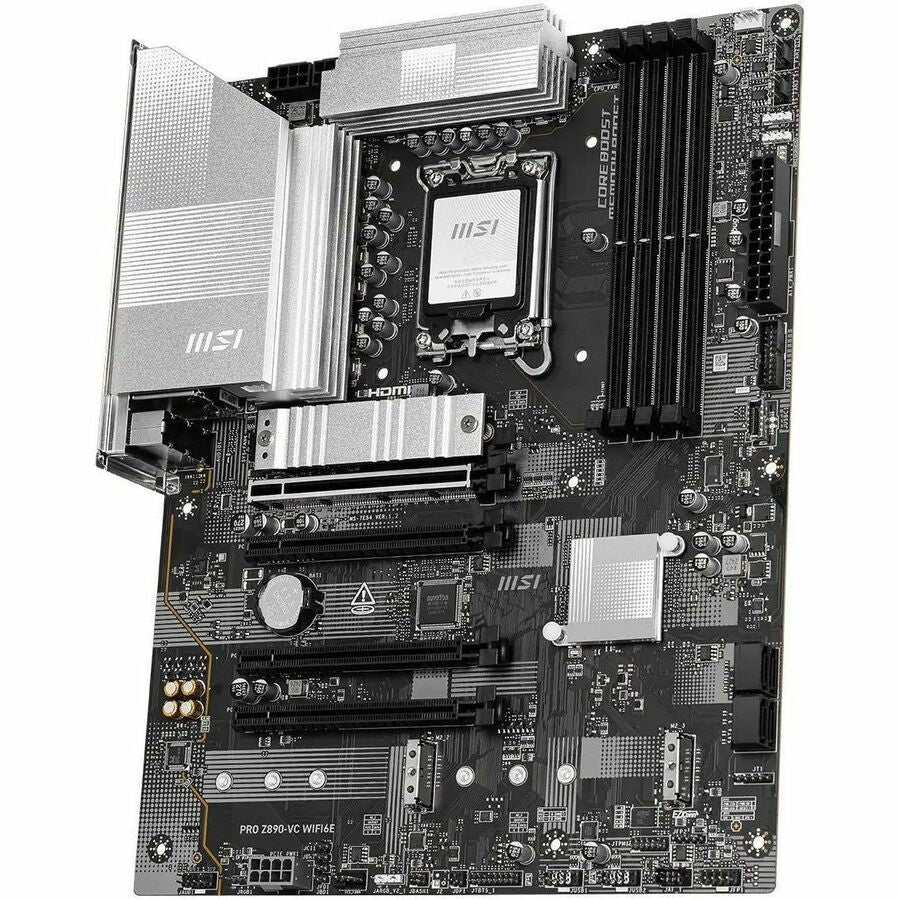

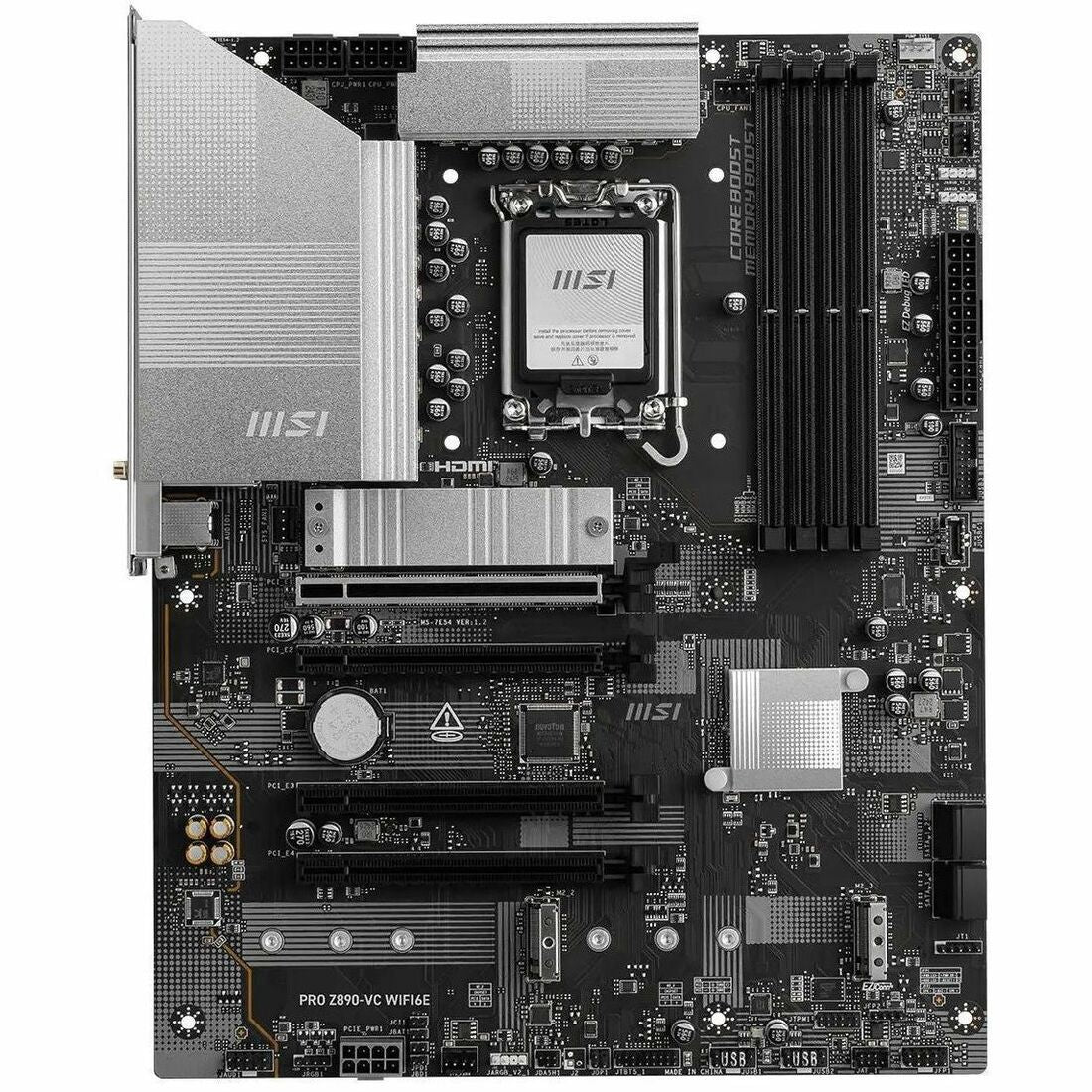

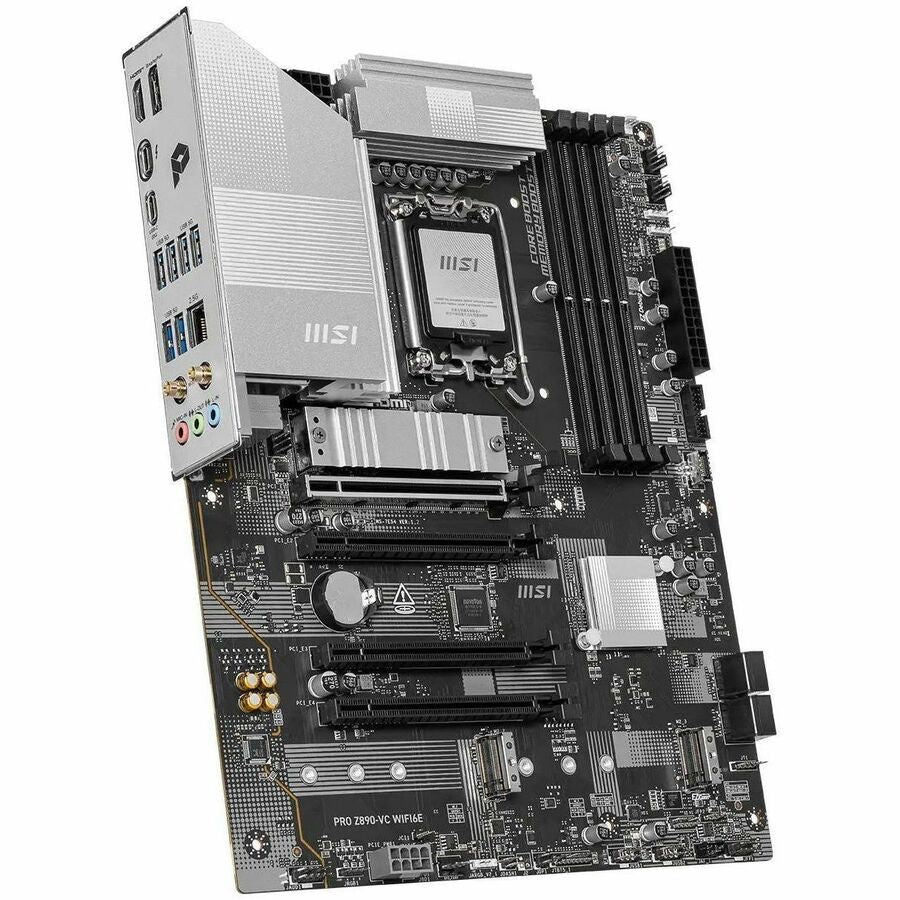

MSI Pro Z890-VC WIFI6E Gaming Desktop Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX - PROZ890VCWIFI6E
Key Features
- 2.5G LAN with Intel Wi-Fi 6E Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
- Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- EZ DIY: EZ PCIe Clip II and EZ Antenna
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Support Intel®Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
General Information
- Manufacturer: MSI
- Manufacturer Part Number: PROZ890VCWIFI6E
- Brand Name: MSI
- Product Line: Pro
- Product Model: Z890-VC WIFI6E
- Product Name: Pro Z890-VC WIFI6E Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: Z890
- Total Processor Supported: 1
- Processor Socket: Socket LGA-1851
- Processor Supported: Core Ultra
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 256 GB
- Memory Speed Supported:
- 8800 MHz
- 7200 MHz
- 6400 MHz
- 5600 MHz
- 4800 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.3
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
- Total Number of PCI Express Slots: 4
- Number of PCI Express x16 Slots: 4
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 5.0
- PCI Express 3.0

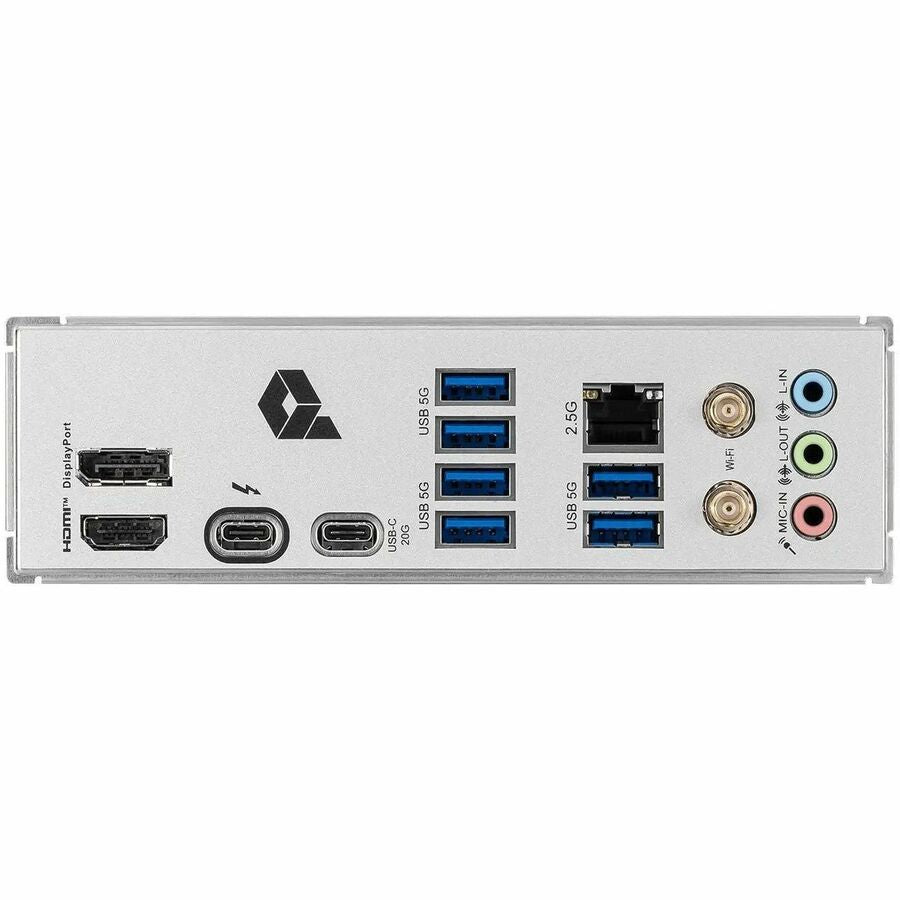

Interfaces/Ports
- Total Number of USB Ports: 7
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
- Thunderbolt: Yes
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 3
- Total Number of Onboard USB Ports: 7
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: ATX
- Width: 12"
- Depth: 9.6"
Warranty
- Limited Warranty: 3 Year
