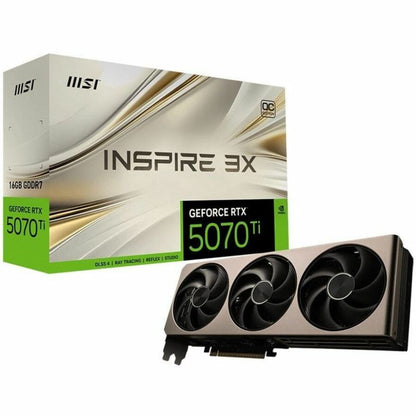

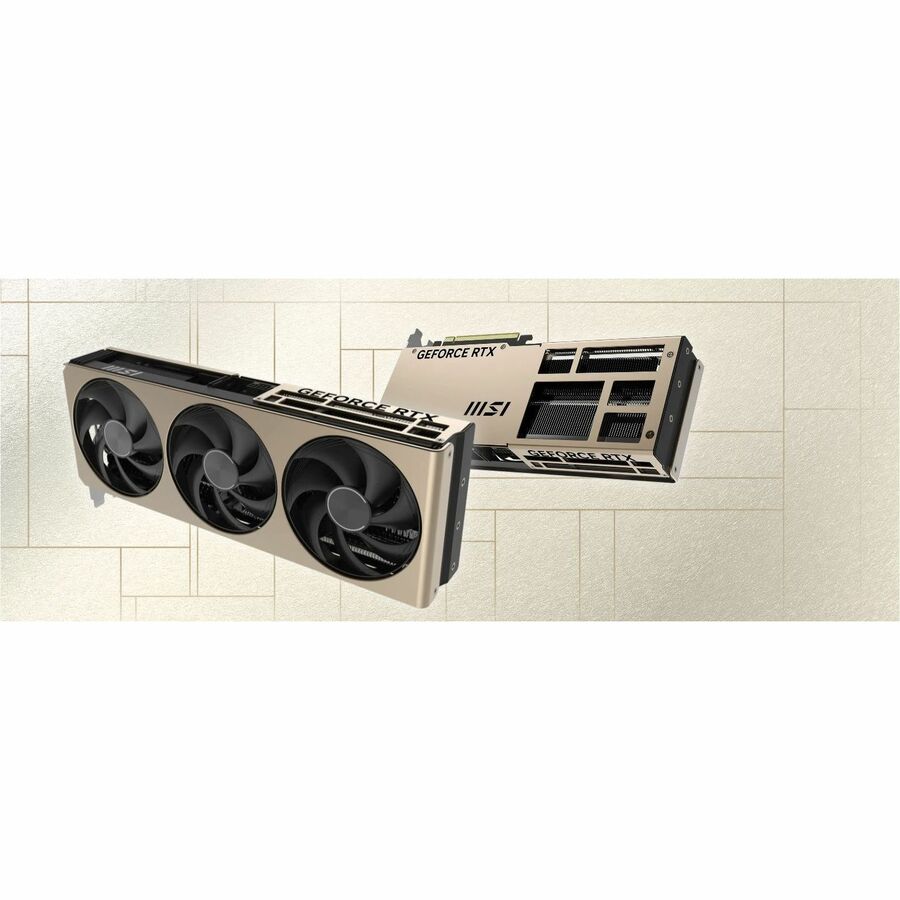

MSI RTX 5070 TI 16G INSPIRE 3X OC - G507T-16I3C
Key Features
- Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
- Air Antegrade Fin: Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency.
- Core Pipes: Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

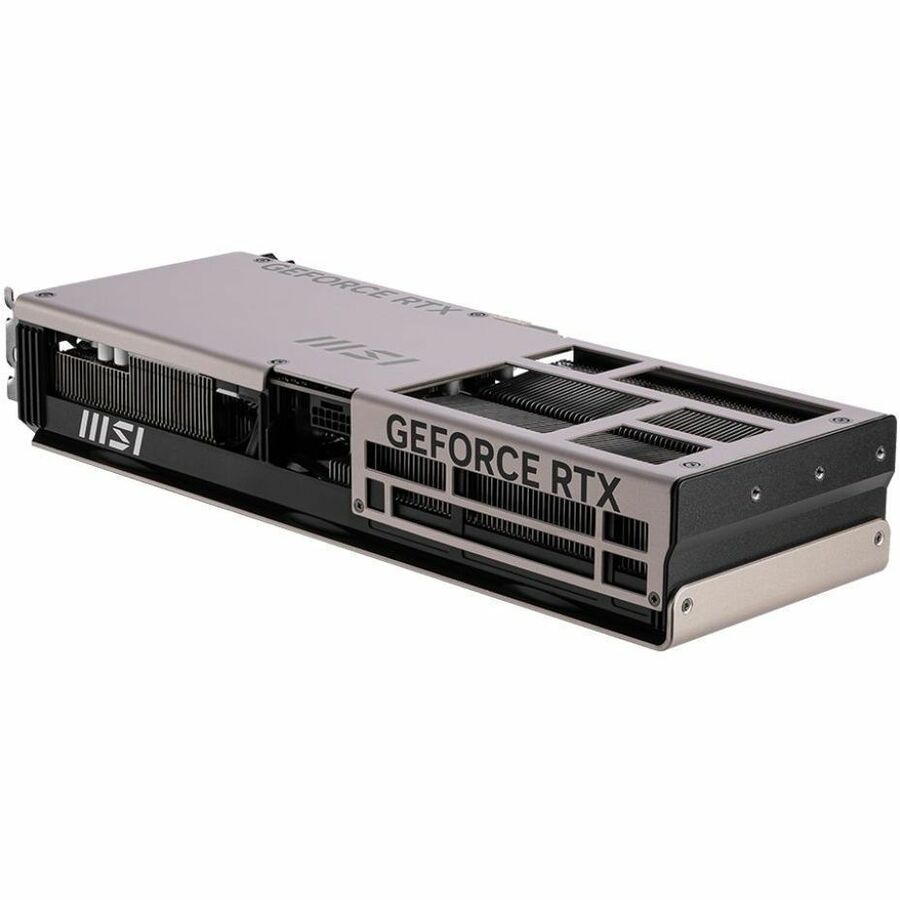

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
- STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Triple Fan: Three fans and a huge heatsink ensure a cool and quiet experience for you.
- Wave Curved 3.0: Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.
Product Overview
BIG VISION, SMALL FORM
INSPIRE seamlessly fuses a sleek, compact design with cutting-edge performance, offering advanced capabilities while ensuring seamless compatibility with creative and professional builds.
NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
Compact Design, Boundless Creativity
INSPIRE combines a small form factor with enhanced performance, making it the perfect fit for creative professionals seeking efficiency.

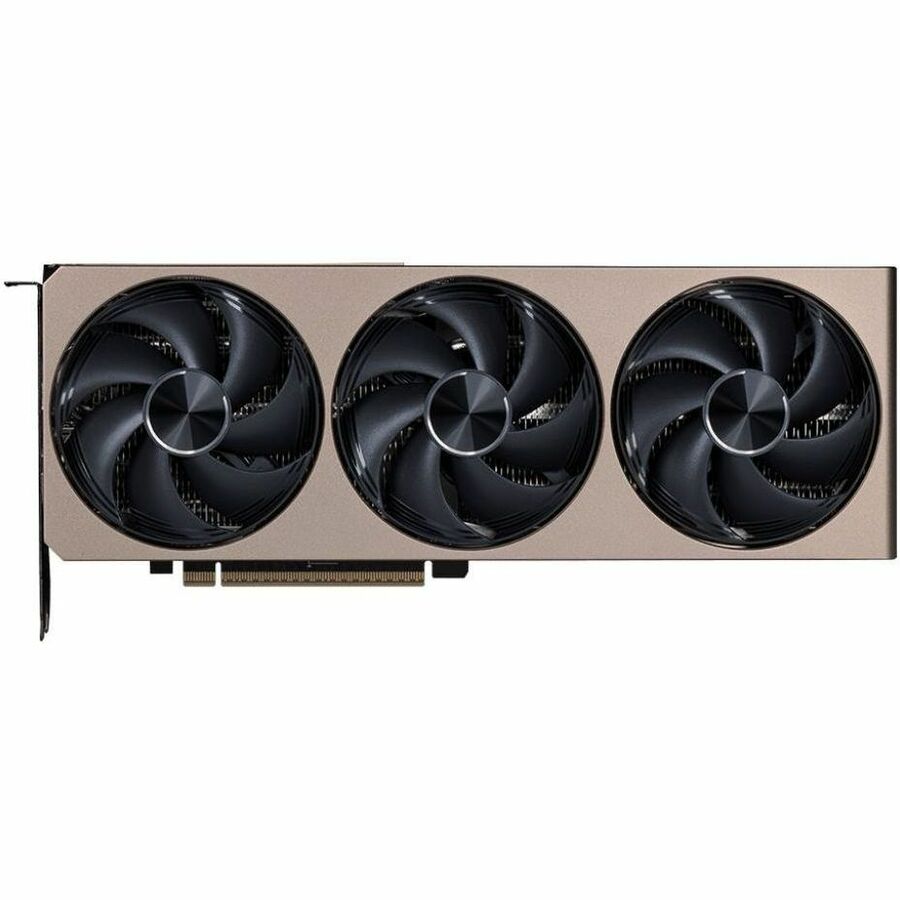

Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: G507T-16I3C
- Brand Name: MSI
- Product Line: INSPIRE 3X OC
- Product Model: G507T-16I3C
- Product Name: GeForce RTX 5070 Ti 16G INSPIRE 3X OC Graphic Card
- Product Type: Graphic Card
Technical Information
- API Supported:
- DirectX 12 Ultimate
- OpenGL 4.6
- Number of Monitors Supported: 4
- Maximum Digital Display Resolution: 7680 x 4320
- CUDA Cores: 8960
- Features: Triple-fan Cooler
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: NVIDIA
- Chipset Line: GeForce
- Chipset Series: RTX
- Chipset Model: RTX 5070 Ti
- GPU Boost Clock: 2.48 GHz
Memory
- Standard Memory: 16 GB
- Memory Technology: GDDR7
- Bus Width: 256 bit

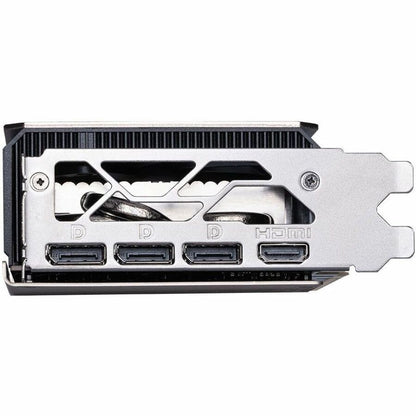

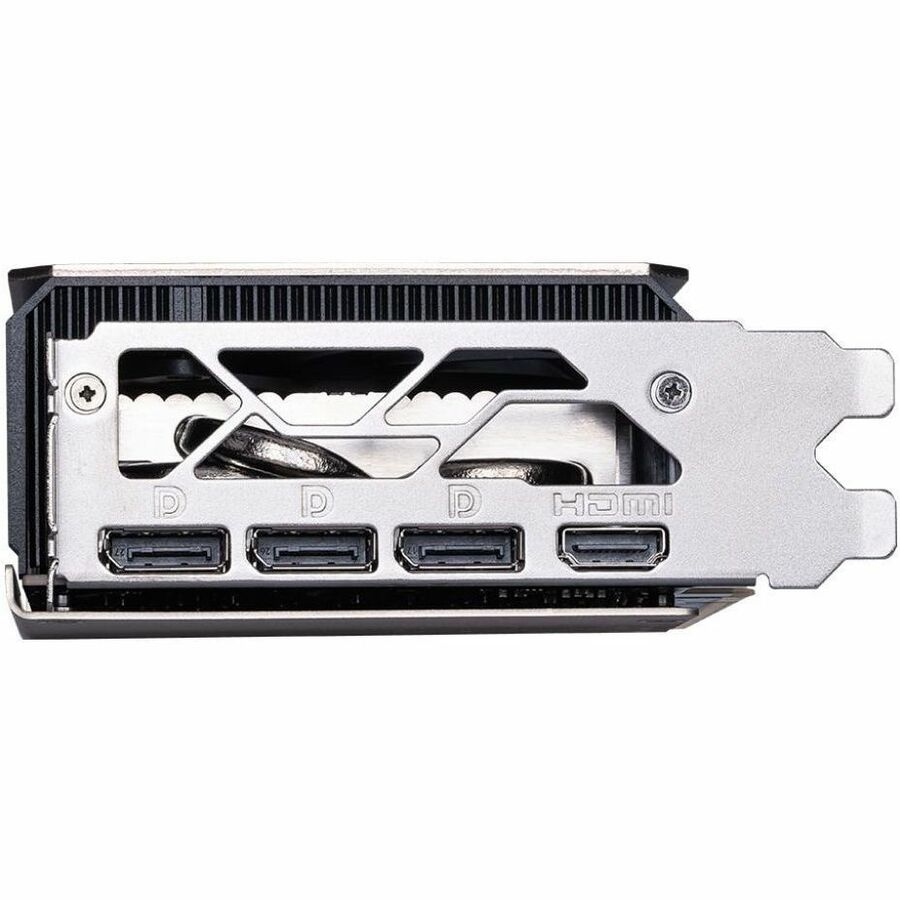

Interfaces/Ports
- Host Interface: PCI Express 5.0
- DisplayPort: Yes
- Number of DisplayPort Outputs: 3
- HDMI: Yes
- Number of HDMI Outputs: 1
Power Description
- Power Supply Wattage: 750 W

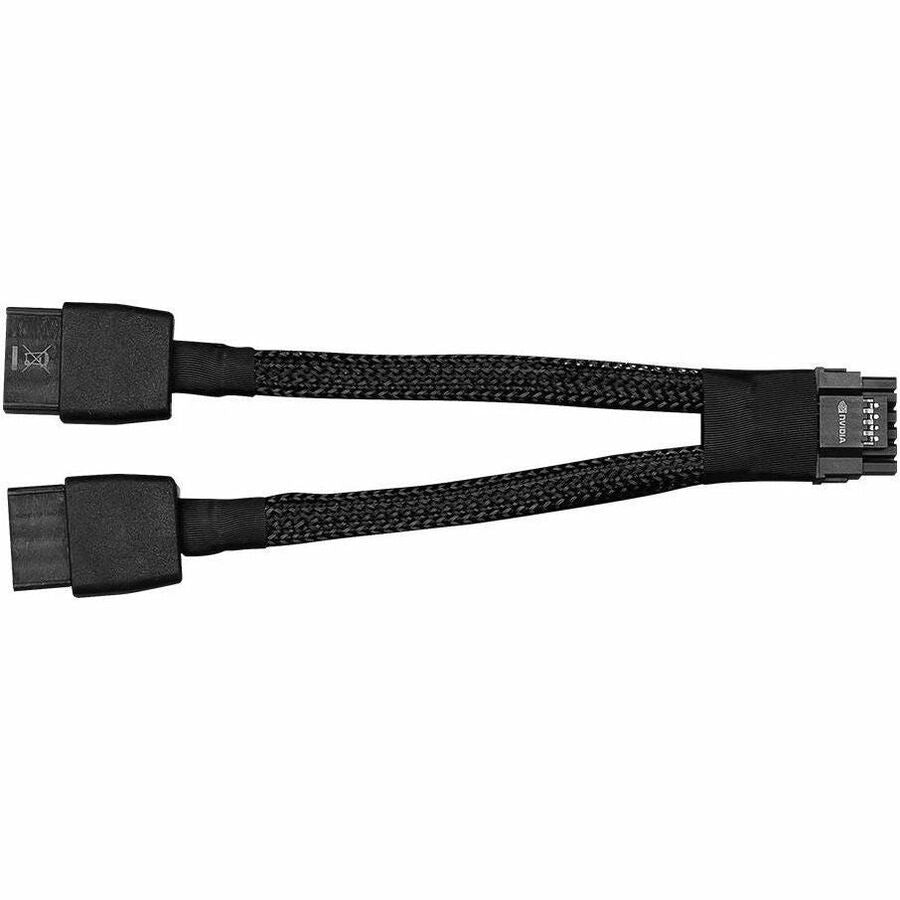

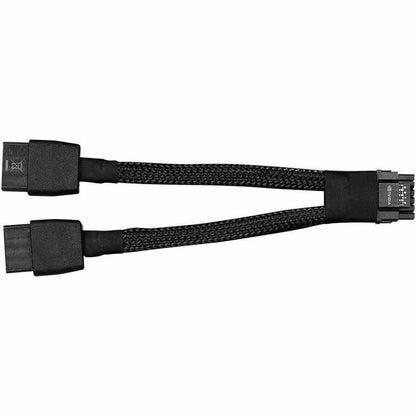

- Power Connector: 1x 16-pin
Physical Characteristics
- Form Factor: Plug-in Card
- Cooler Type: Fan Cooler
- Height: 2"
- Width: 4.4"
- Length: 11.3"
- Weight (Approximate): 1.99 lb
Miscellaneous
- Platform Supported: PC
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
No Extended Warranty available
