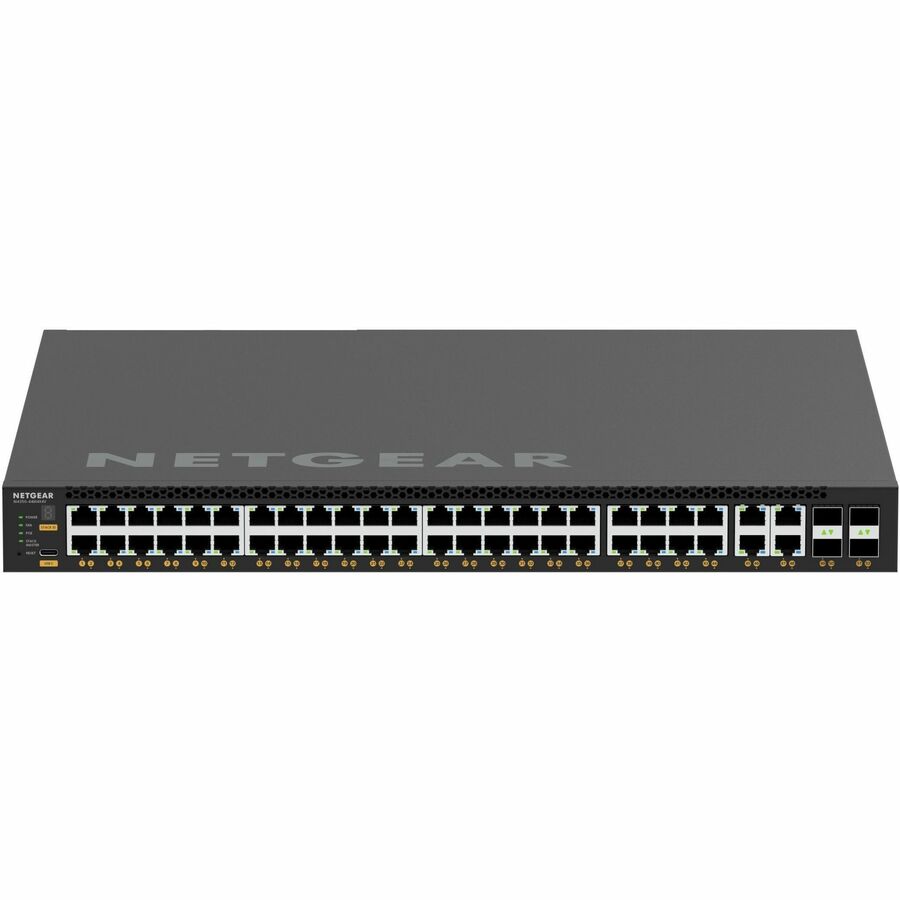

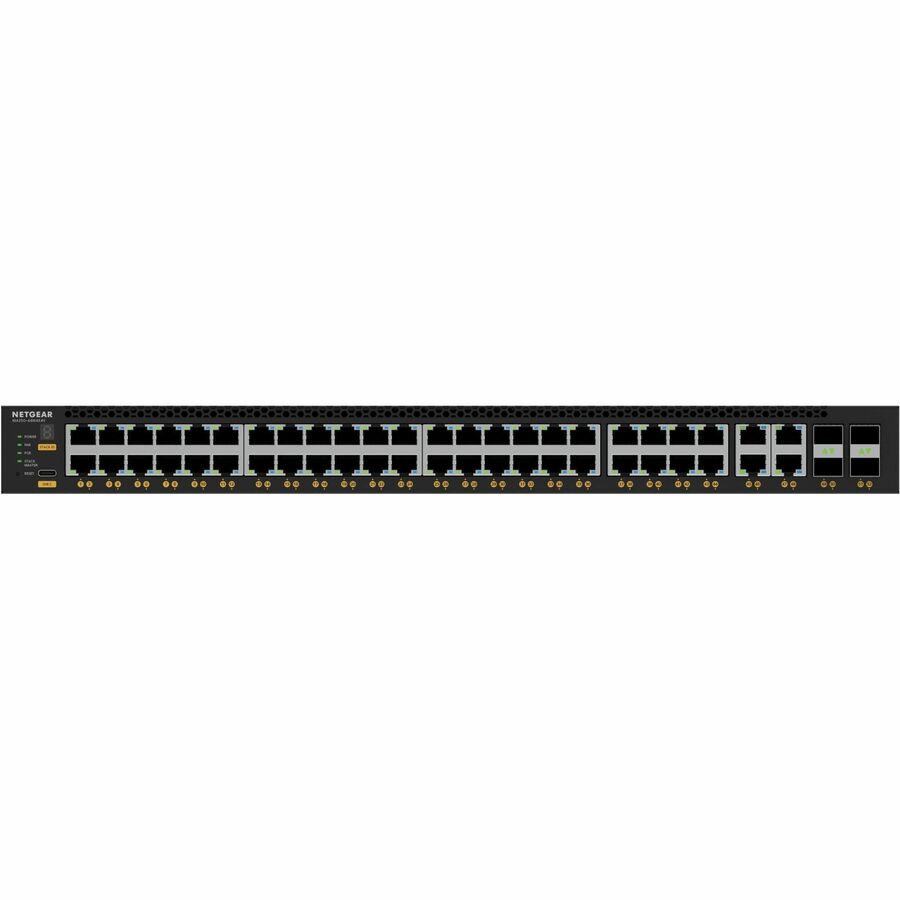

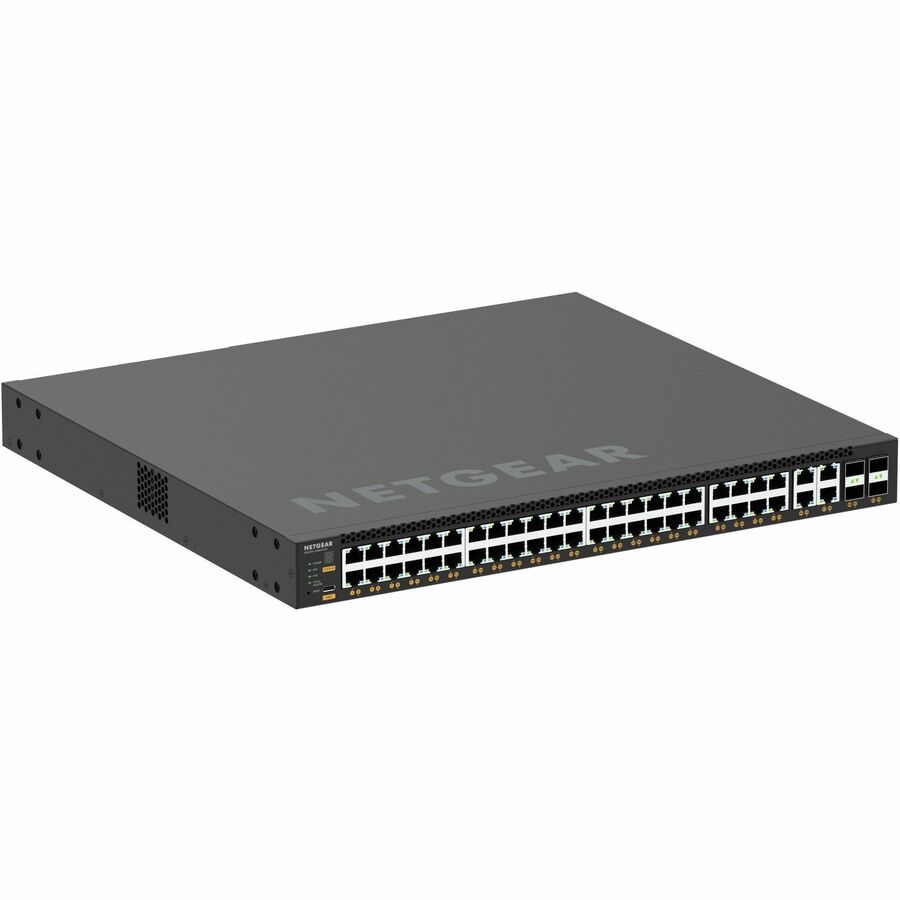

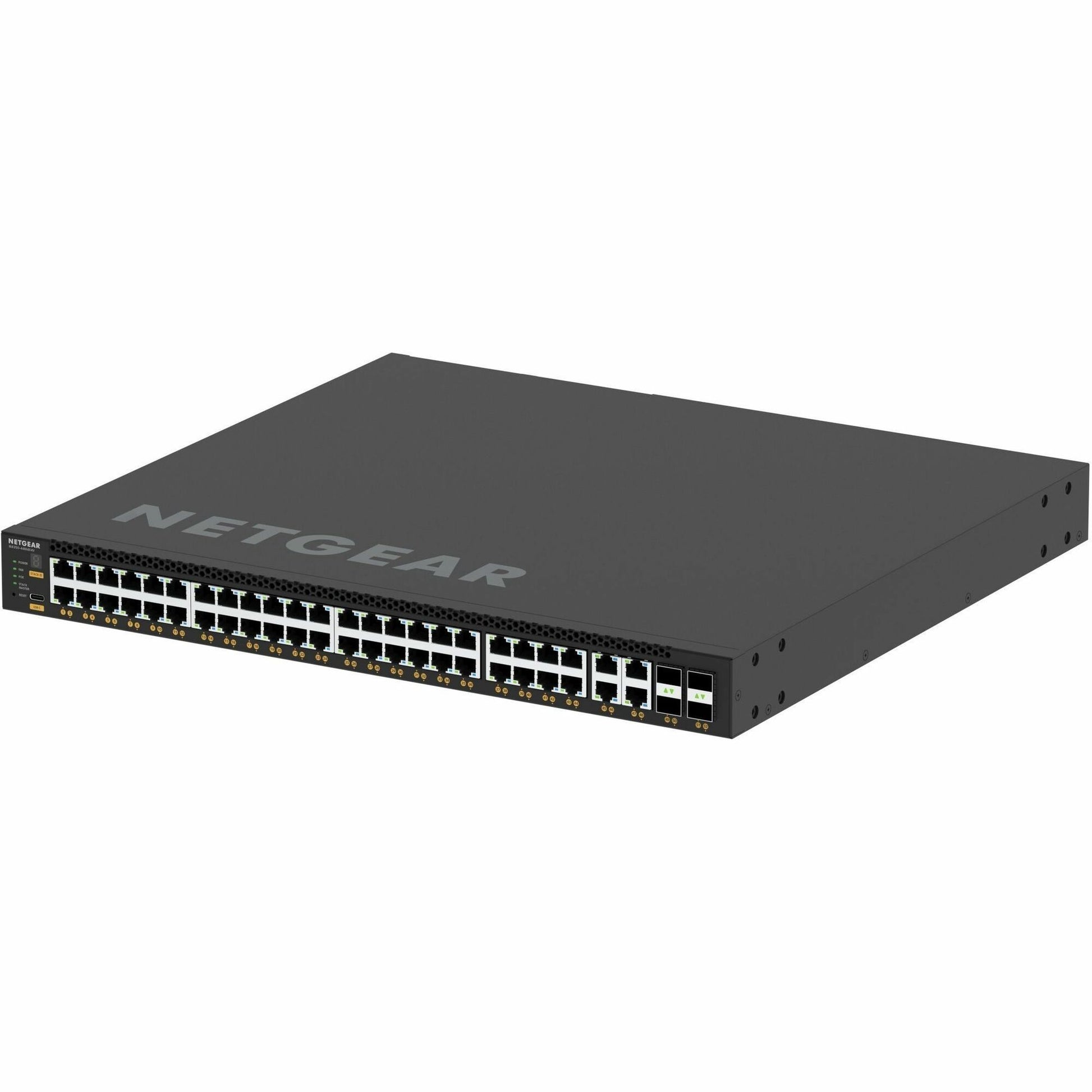

Netgear AV Line M4350-44M4X4V Ethernet Switch - MSM4352-100NES
Key Features
- C14 plug/connector type for convenient usage with added dependability
- Can work as layer 3 routing for scalable network design
- Cascade to other network devices through the uplink port to expand your local area network
- Ethernet Switch ensures productivity by providing an efficient, hassle-free connection
- Lets you conveniently connect to the 25 gigabit ethernet Ethernet technology to offer maximum productivity
- Management capability allows maximum efficiency and with unrestricted control
- Optical Fiber media support ensures maximum convenience and great usability
- Quickly and easily set up a wired network with 48 networking ports
- Rack mounting enables you to organize wires & secure cables for professional installation
Product Overview
Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
NETGEAR listens to and supports the Pro AV community
- IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
- Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
- The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
- NETGEAR Pro AV Design team to help with system design and implementation to ensure the project will work
- AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
- SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
Enterprise-class hardware
- From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
- Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
Other IT use cases
- Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
- Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
Industry standard management
- Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
- SNMP, sFlow and RSPAN - the entire feature set is available without license
Industry leading warranty
- NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
General Information
- Manufacturer: Netgear, Inc
- Manufacturer Part Number: MSM4352100NES
- Brand Name: Netgear
- Product Line: AV Line
- Product Series: M4350
- Product Model: M4350-44M4X4V
- Product Name: AV Line M4350-44M4X4V Ethernet Switch
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 48
- Network (RJ-45): Yes
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 44 x 2.5 Gigabit Ethernet PoE++
- 4 x 10 Gigabit Ethernet PoE++
- 4 x 25 Gigabit Ethernet Expansion Slots
Media & Performance
- Media Type Supported:
- Optical Fiber
- Twisted Pair
- Ethernet Technology: 25 Gigabit Ethernet
- Network Technology:
- 25GBase-X
- 10GBase-T
I/O Expansions
- Total Number of Expansion Slots: 4.0
- Expansion Slot Type: SFP28
Network & Communication
- Layer Supported: 3
- Networking Standards:
- IEEE 802.3bt
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1as
- IEEE 802.1Qav
- IEEE 802.1Qat
- IEEE 802.1ak
- IEEE 802.3az
- IEEE 802.3ad
- IEEE 802.1AX
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1BA
Management & Protocols
- Manageable: Yes

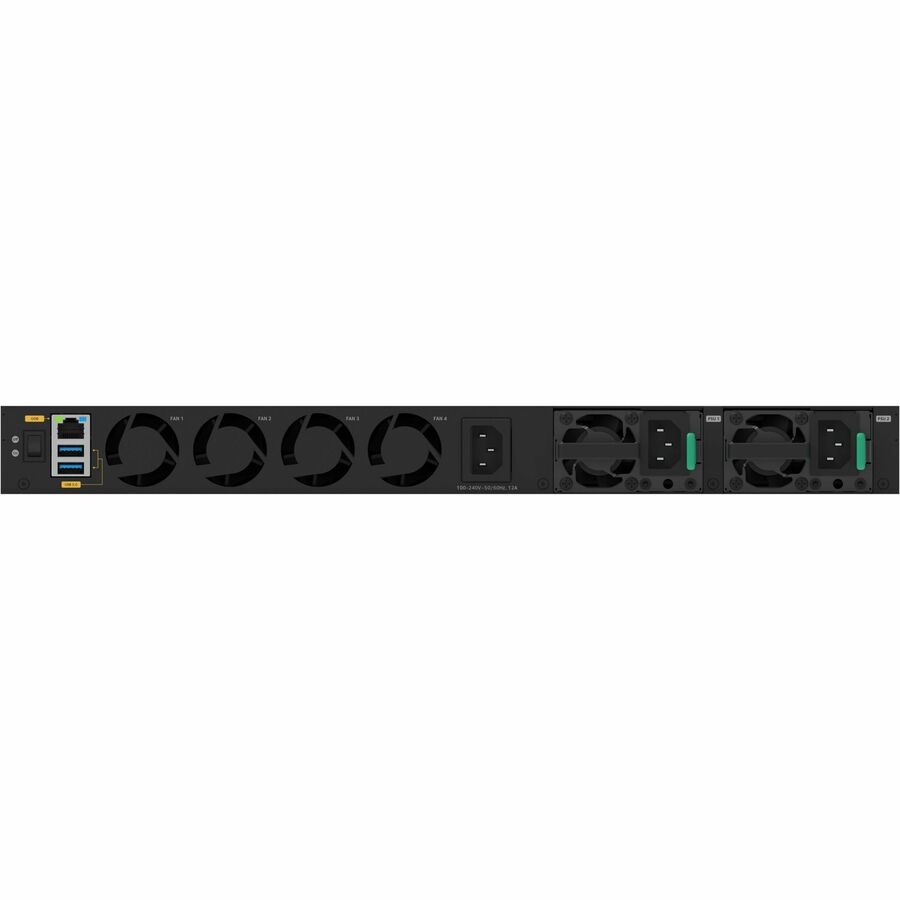

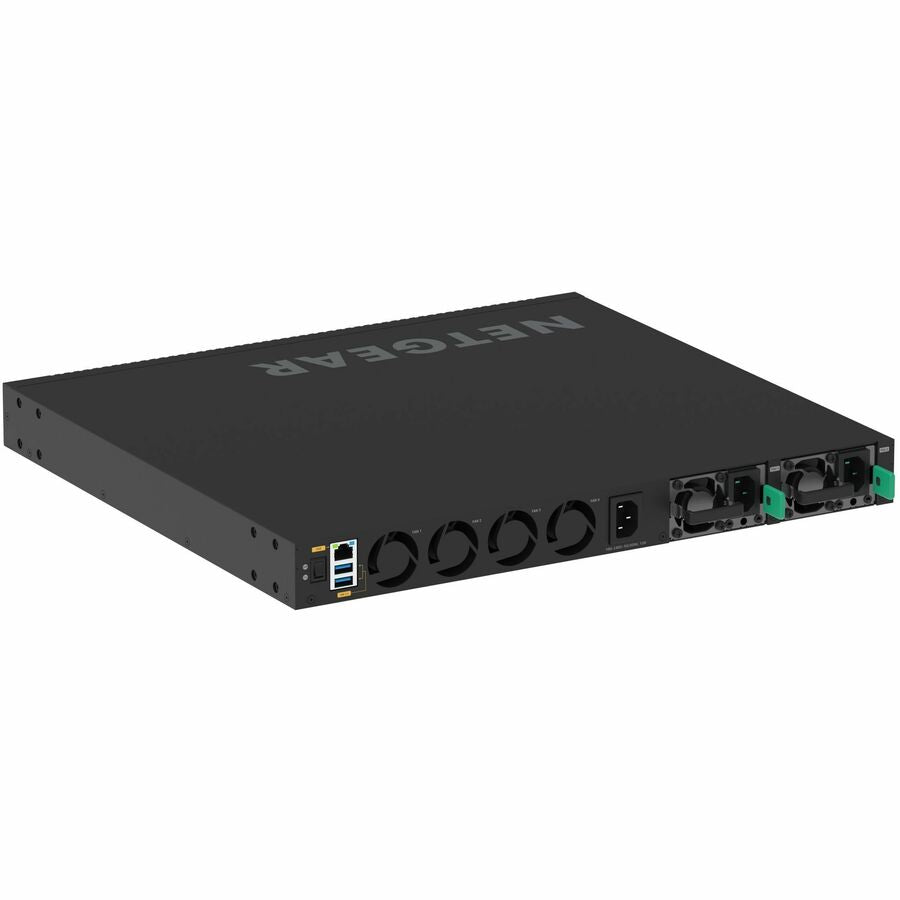

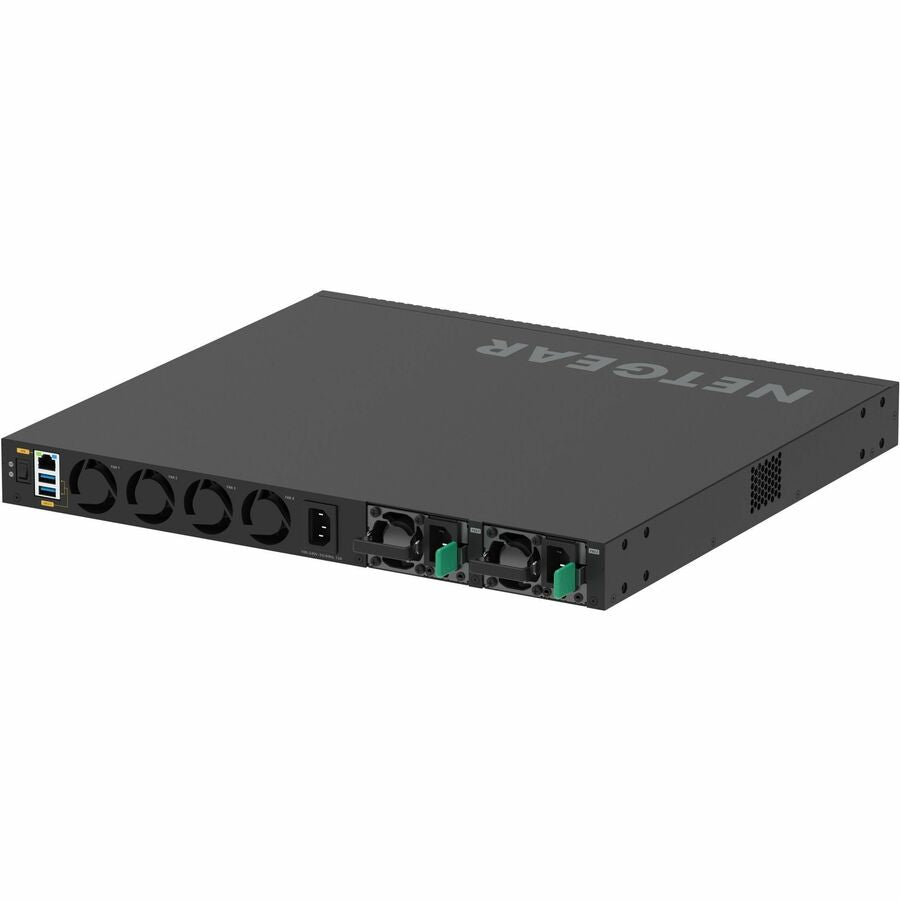

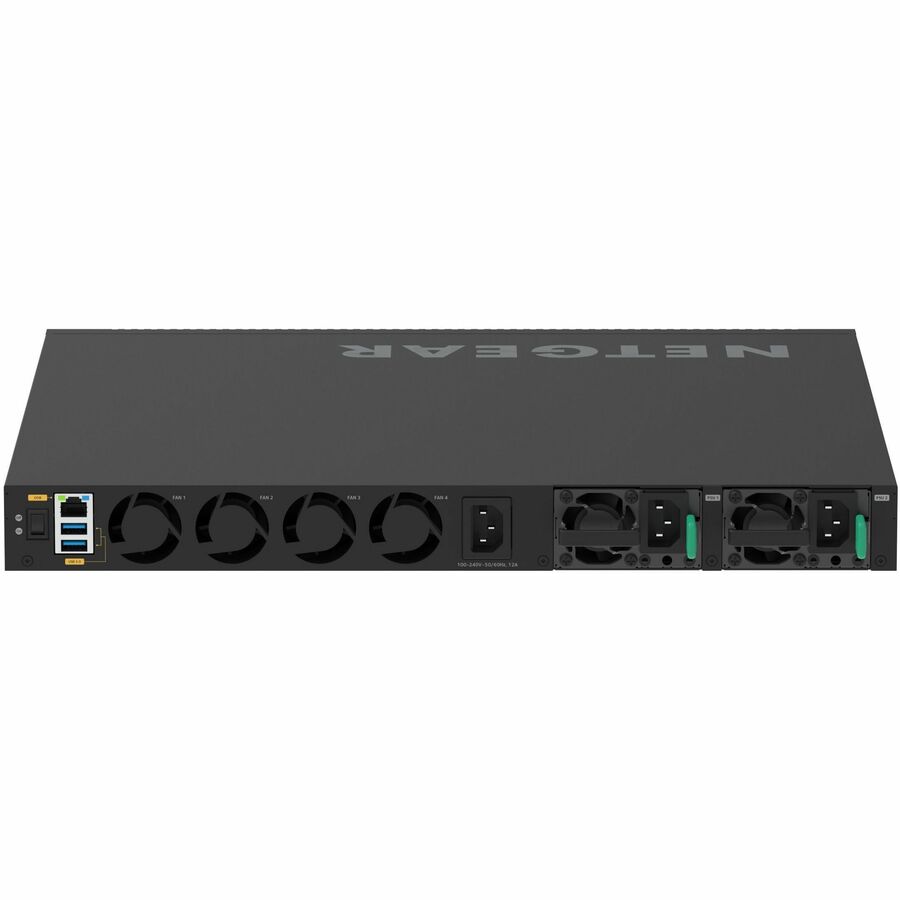

Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 194 W
- Power Source: Power Supply
- Redundant Power Supply Supported: Yes
- Number of Power Supplies Supported: 2
- Number of Power Supplies Installed: 1
- Power Consumption: 550 W
- Plug/Connector Type: C14
Physical Characteristics
- Compatible Rack Unit: 1U
- Form Factor:
- Rack-mountable
- Table Top
- Height: 17"
- Width: 14.4 ft
- Depth: 15.7"
- Weight (Approximate): 16.18 lb
Miscellaneous
- Package Contents:
- AV Line M4350-44M4X4V Ethernet Switch
- Power Cord(s)
- USB Type-C To USB-A 2.0 Console Cable
- Rubber Caps For The SFP+/SFP28/QSP28 Sockets
- Rubber Footpads For Tabletop Installation
- Installation Guide
- Rackmounting Standard Brackets
- Longer Brackets For Recessed Mounting
- Environmentally Friendly: Yes
- Energy Efficiency Compliance:
- Energy-related Products Directive (ErP)
- Energy-using Products Directive (EuP)
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: Lifetime
