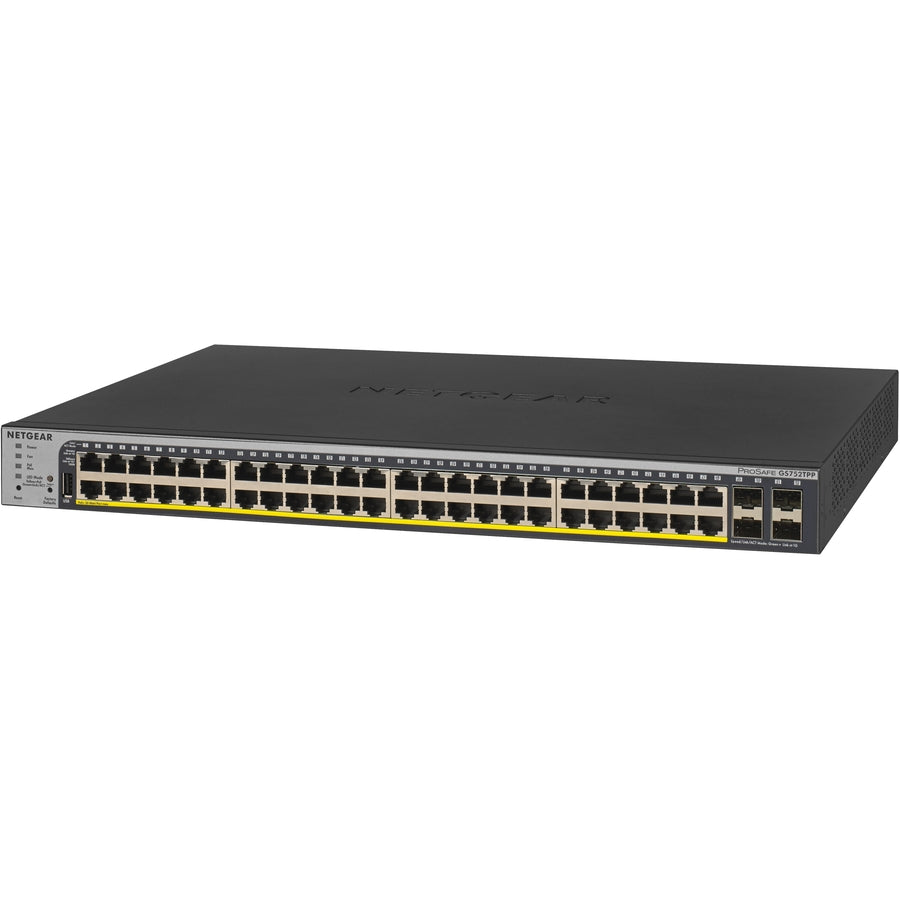

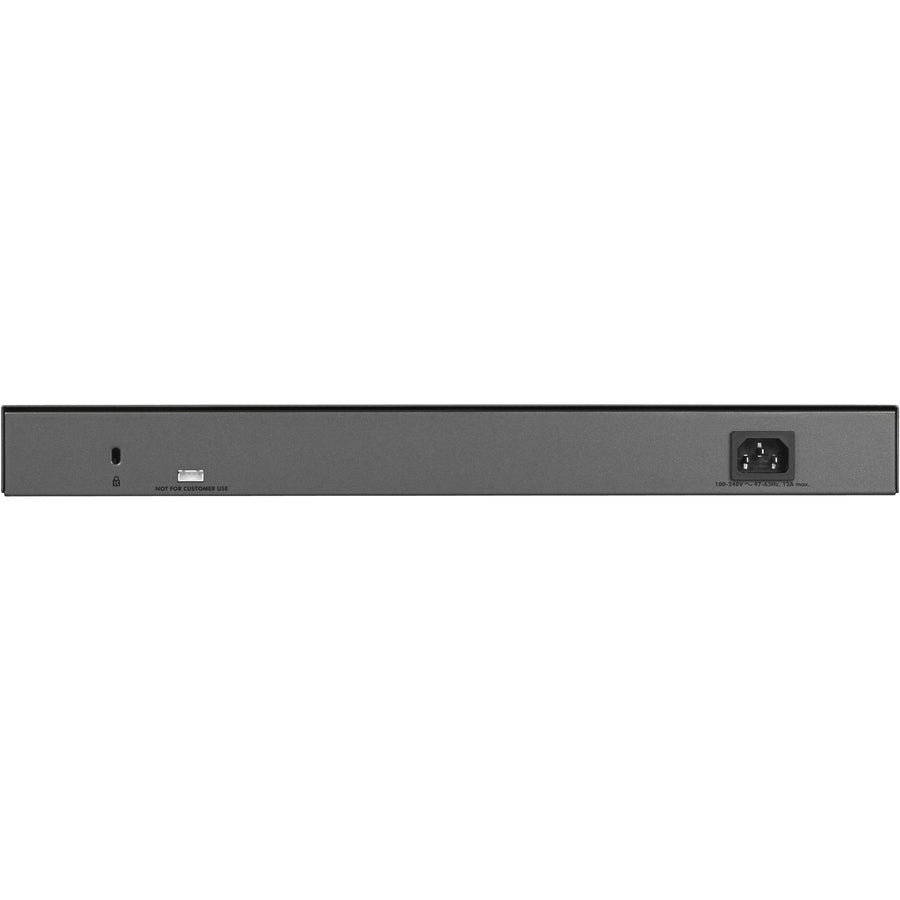

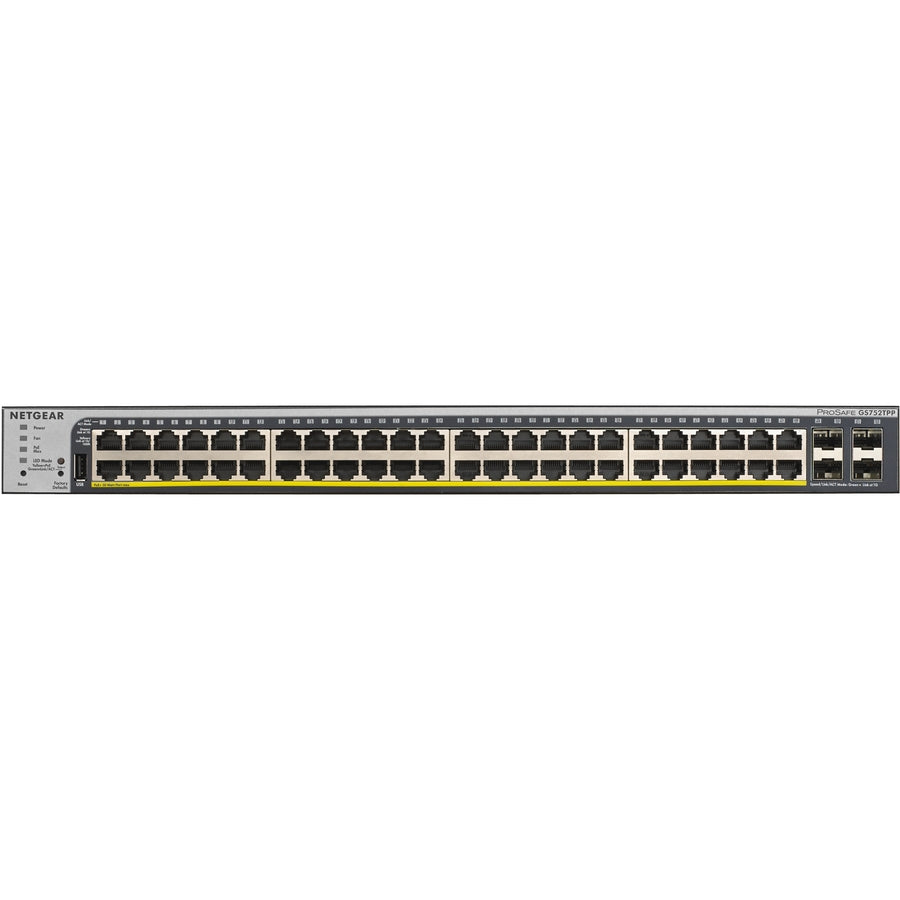

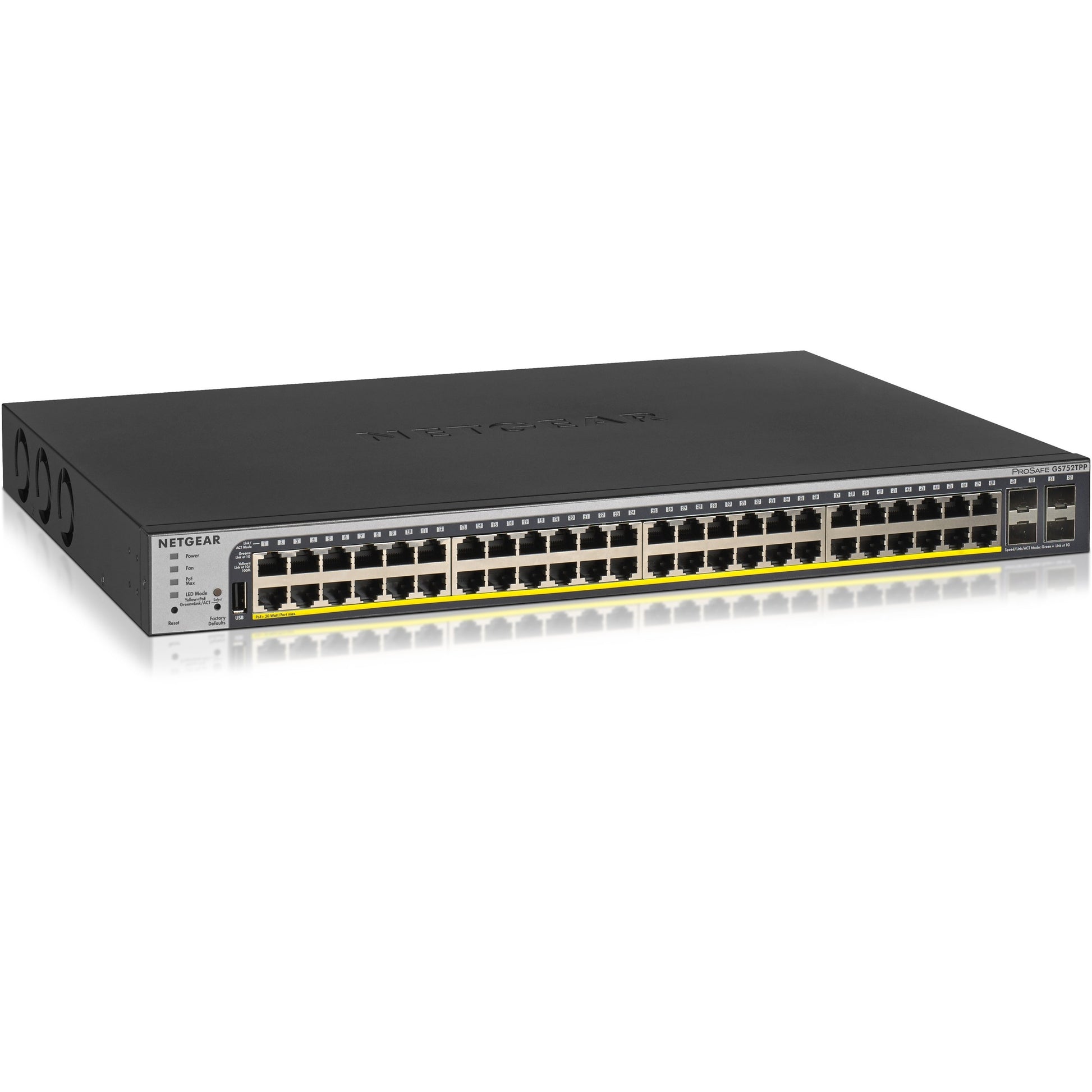

Netgear Gigabit PoE+ Smart Switches with Remote/Cloud Management - GS752TPP-300NAS
Key Features
- Effectively increases available bandwidth on your network
- Quickly and easily set up a wired network with 48 networking ports
- Rack mounting enables you to organize wires & secure cables for professional installation
- Twisted Pair media support ensures maximum convenience and great usability
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Product Overview
All ports PoE+ with up to 760W PoE budget - Select your new network engine!
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains.
The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TP supports quiet rack mounting operation with a maximum of 27.08dB even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPP is rated at 33.42dB, the GS752TP at 36.94dB and the GS752TPP at 39.74dB.
General Information
- Manufacturer: Netgear, Inc
- Manufacturer Part Number: GS752TPP300NAS
- Brand Name: Netgear
- Product Model: GS752TPP
- Product Name: Gigabit PoE+ Smart Switches with Remote/Cloud Management
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 48
- Uplink Port: Yes
- Modular: Yes
- Stack Port: No
- Port/Expansion Slot Details:
- 48 x Gigabit Ethernet PoE+
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-TX
- 1000Base-X
I/O Expansions
- Total Number of Expansion Slots: 4.0
- Expansion Slot Type: SFP
- Number of SFP Slots: 4
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.11ac
- IEEE 802.1Q
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3z
Management & Protocols
- Manageable: Yes
- Switch Management Type: Smart Managed
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 760 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source:
- Power Supply
- AC
- PoE+
- Power Consumption: 861 W
Physical Characteristics
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.3"
- Depth: 12.2"
- Weight (Approximate): 11.08 lb
Miscellaneous
- Package Contents:
- Gigabit PoE+ Smart Switches with Remote/Cloud Management
- AC Power Cord With C13 Connector (Localized To Region Of Sale)
- Brackets And Screws For Rack Mounting
- Rubber Footpads For Tabletop Installation
- Rubber Protection Caps, Which Are Already Installed In The Sfp Sockets
- Installation Guide
Warranty
- Limited Warranty: Lifetime
