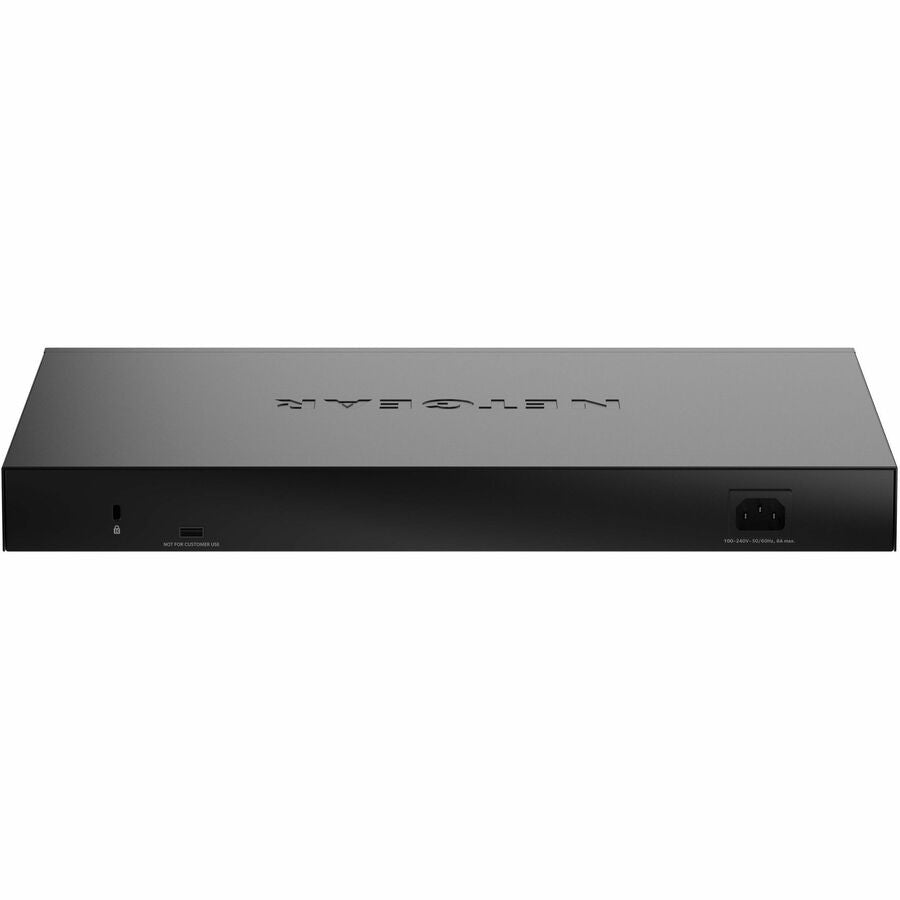

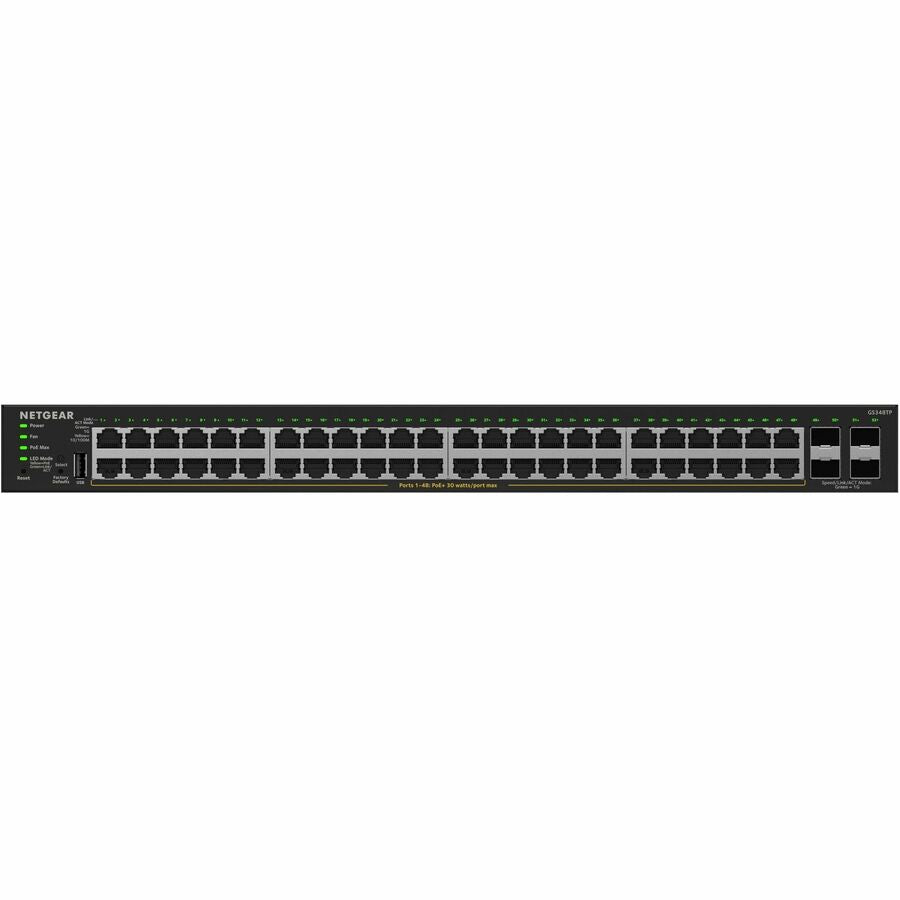

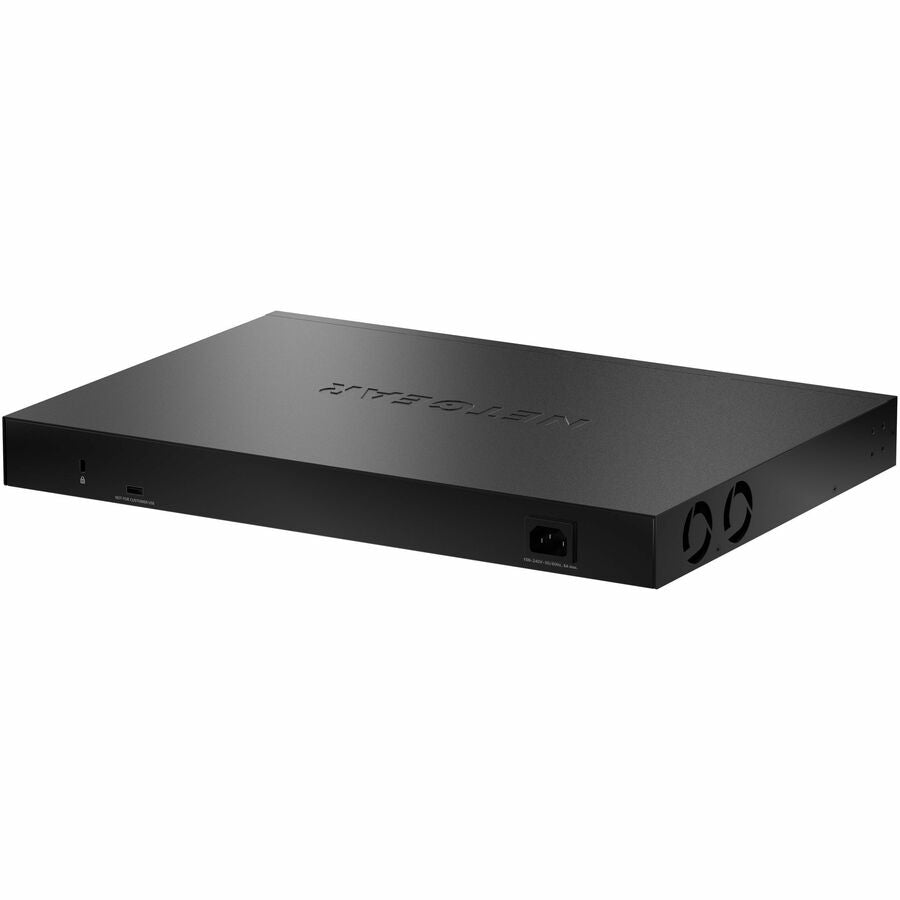

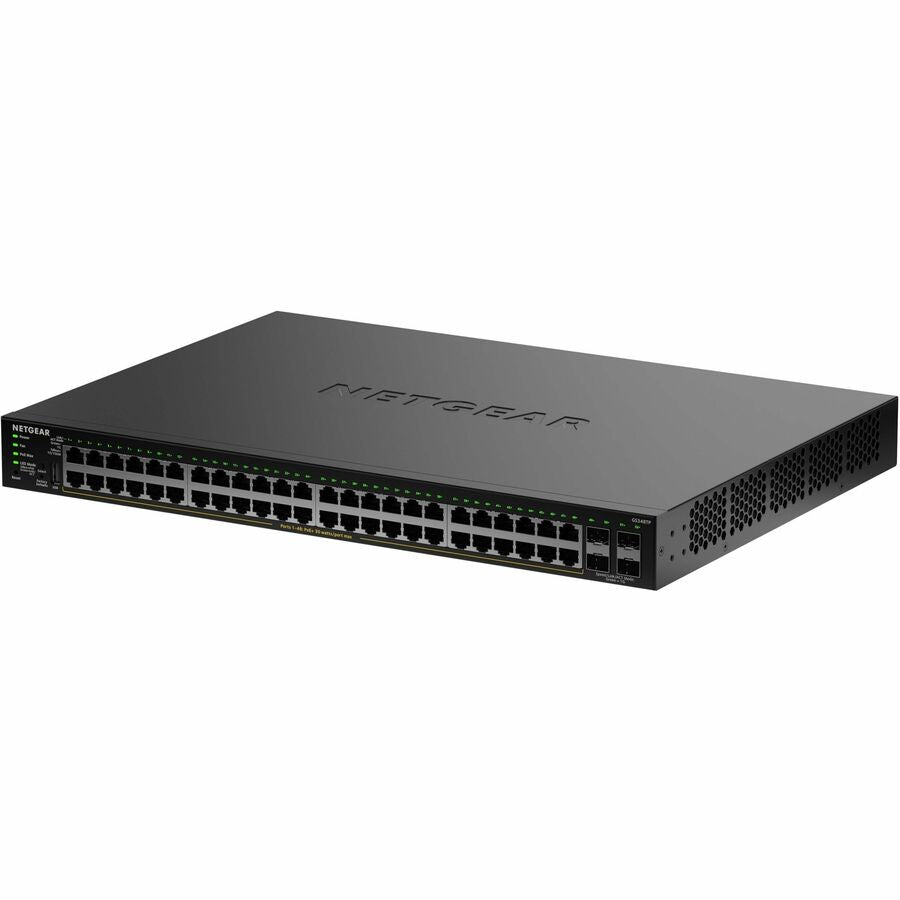

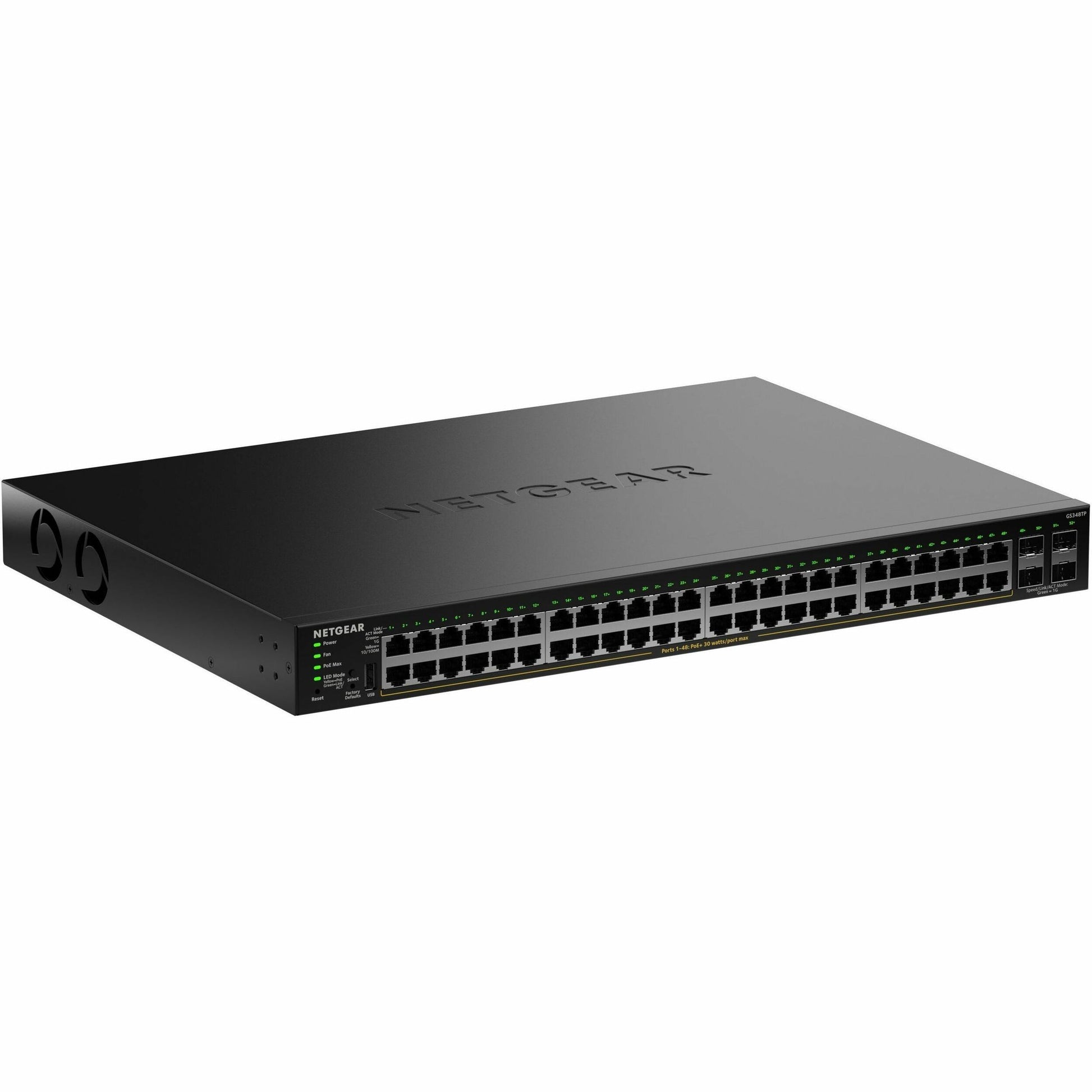

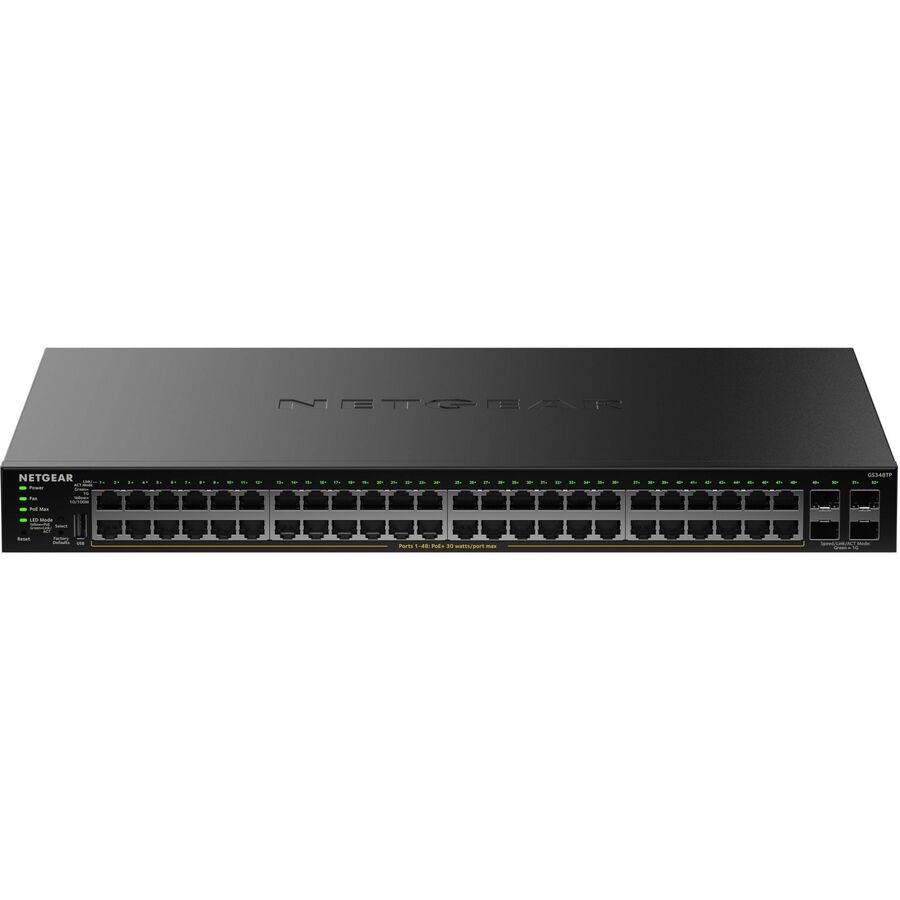

Netgear GS348TPv2 Ethernet Switch - GS348TP-200NAS
Key Features
- Effectively reduces downtime with improved network performance
- Features 48 networking ports to meet the requirements of the most demanding workgroups
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Management capability allows maximum efficiency and with unrestricted control
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Supports layer 3 switching for enhanced performance and usability
- The desktop installation makes it ideal for deployments outside the wiring closet
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Product Overview
Flexible and cost-effective solution for SME data, voice and video converged network
- 8/24/48 Gigabit 10/100/1000BASE-T RJ-45 ports
- 55W (GS310TP), 190W (GS324TP), or 380W (GS348TP) PoE budget across 8, 24, or 48 Gigabit PoE+ ports (IEEE802.3at)
- Dedicated SFP fiber ports: 2 on GS310TP/GS324TP and 4 on GS348TP
- Non-blocking switching with 20Gbps to 104Gbps line rate fabric
- Fan-less design on GS310TP, GS324TP and GS348TP have max acoustic noise level at 26.1dB and 36.3dB respectively under 25°C (77°F) ambient
Powerful connectivity and security features
- Advanced VLAN support for better network segmentation
- L2/L3/L4 Access control lists (ACLs) for granular network access control including 802.1x port authentication
- QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
- Auto "denial-of-service" (DoS) prevention
- IGMP Snooping and Querier for multicast optimization
- Rate limiting and priority queuing for better bandwidth allocation
- Port mirroring for network monitoring
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
- Easy-to-use Web browser-based management GUI available in English, German and Japanese
- SNMP v1, v2c, v3 and RMON remote monitoring
Smart IT, not Big IT
- Easy to manage via web-Based Management GUI or Smart Control Center (Windows PC required) for multi-switch deployment
- Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade
- Dual firmware images, improving reliability and uptime to your network
NETGEAR quality and reliability
- Industry-leading 3-year Limited Hardware Warranty
- Get 90-days Free Advanced Technical Support with device registration|
General Information
- Manufacturer: Netgear, Inc
- Manufacturer Part Number: GS348TP-200NAS
- Brand Name: Netgear
- Product Series: S350
- Product Model: GS348TPv2
- Product Name: GS348TPv2 Ethernet Switch
- Product Type: Ethernet Switch
Technical Information
- Features:
- Access Control List
- Quality of Service (QoS)
- Auto Denial of Service (DoS) Prevention
- IGMP Snooping
- Port Mirroring
- Energy Efficient
- Remote Monitoring (RMON)
- Kensington Lock Slot (K-slot)
- DHCP Snooping
- Broadcast Storm Control
- Strict Priority Queuing (SPQ)
Interfaces/Ports
- Total Number of Network Ports: 48
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details:
- 48 x Gigabit Ethernet PoE+ Network Port
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate: 128 MB/s
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP
- Number of SFP Slots: 4
Network & Communication
- Layer Supported: 3
- Networking Standards:
- IEEE 802.3at
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.1Q
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3z
Management & Protocols
- Manageable: Yes
- Switch Management Type: Smart Managed
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 380 W
- Power Source: Power Supply
- Number of Power Supplies Installed: 1
- Power Consumption: 431 W
Physical Characteristics
- Form Factor:
- Desktop
- Rack-mountable
- Height: 1.7"
- Width: 17.3"
- Depth: 12.4"
- Weight (Approximate): 8.93 lb
Miscellaneous
- Package Contents:
- GS348TPv2 Ethernet Switch
- Power Adapter
- Power Cord
- Rackmount Kit
- Rubber footpads for tabletop installation
- Download Center Sheet (QR code)
Warranty
- Limited Warranty: 3 Year
