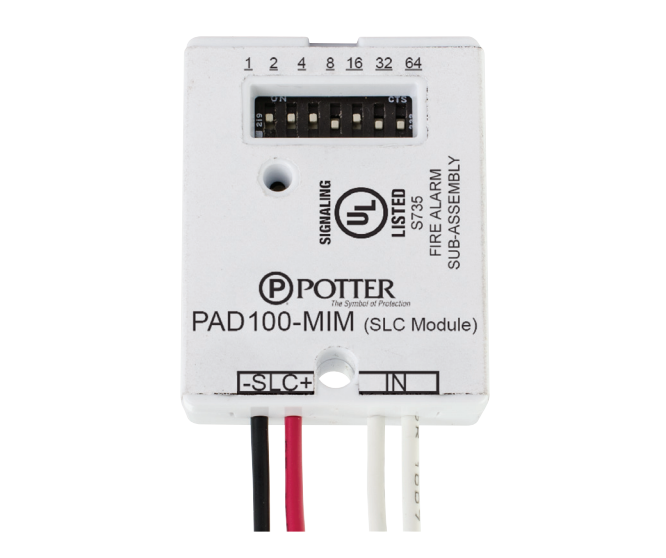

PAD100-MIM Micro Input Module
The PAD100-MIM is a compact, addressable input module designed to monitor the status of initiating devices that use a normally open set of dry contacts. Housed in a protective plastic enclosure to guard against accidental shorts and ground faults, this module offers both reliable monitoring and convenient installation.
Key Features:
• Monitors dry contact initiating devices
• Protective plastic case prevents shorts and ground faults
• Single-screw mounting for simple installation
• Status LED for communication and alarm indication
• LED flashes during polling, rapid flash during activation
Ideal For:
Applications requiring addressable monitoring of pull stations or similar devices, particularly in enclosures or electrical boxes behind the initiating device.
Why You Should Use This:
The PAD100-MIM provides a compact and efficient solution for integrating dry-contact initiating devices into addressable fire alarm systems, with real-time LED status feedback and straightforward mounting.
Key Highlights:
• Compatible with Potter IPA and AFC/ARC addressable panels
• Supports normally open dry contact devices
• Designed for in-box or enclosure installations
Frequently Asked Questions:
Q: What type of initiating devices can the PAD100-MIM monitor?
A: It monitors devices with a normally open dry contact set.
Q: What control panels is this compatible with?
A: It works with Potter IPA and AFC/ARC series panels.
Q: What does the LED indicate?
A: A slow flash indicates polling; a fast flash signals input activation.
