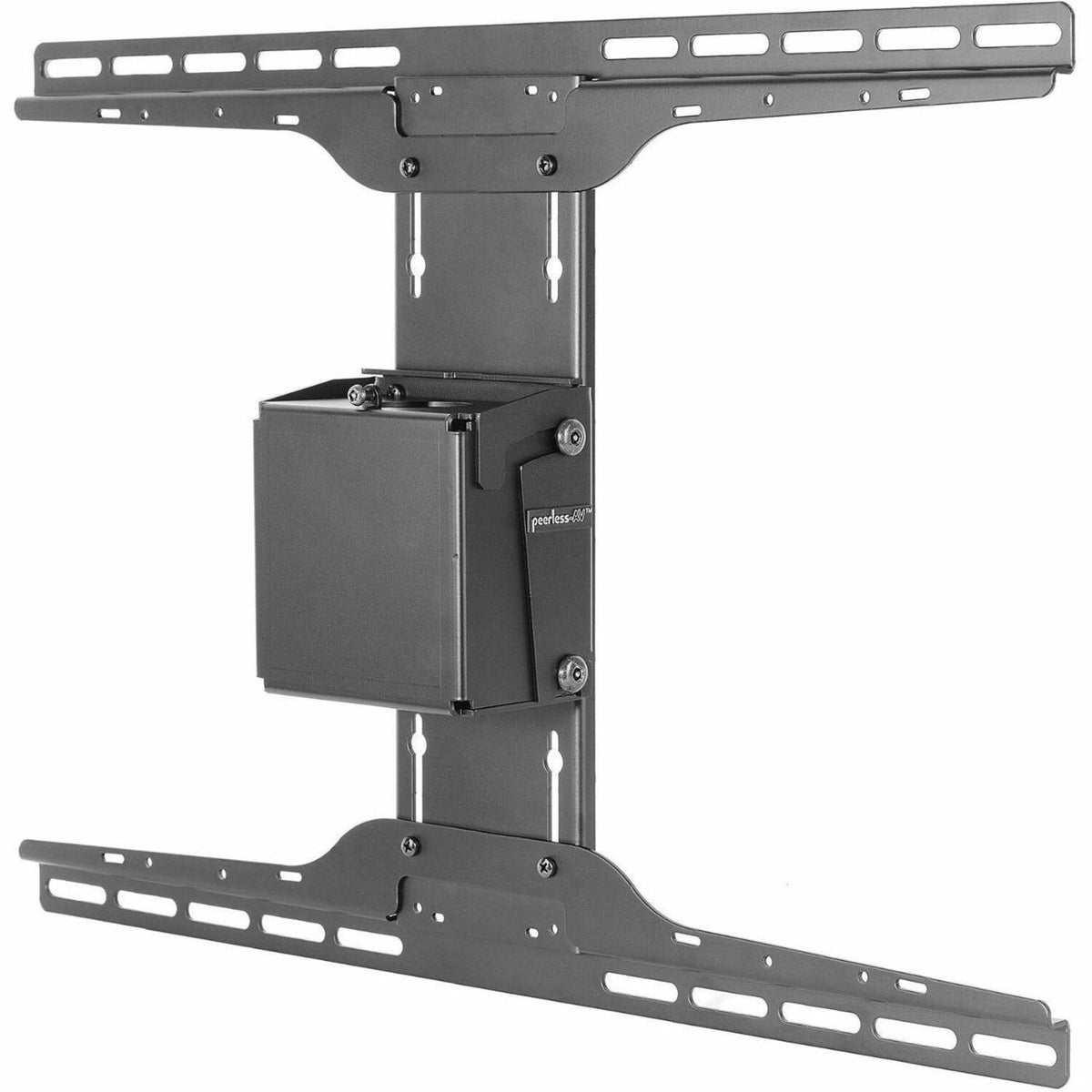

Peerless-AV® SmartMount® Ceiling Mount with I-Shaped Adaptor and Tilt Box for 32" to 90" Displays - PLCM-2-UNL
Key Features
- -5° to 20° adjustable tilt and 360° swivel
- Ceiling plate and extension columns required (sold separately)
- Landscape or portrait orientation
- Simple hook-on display installation
- Universal I-Shaped Adaptor fits displays with mounting holes up to 600 x 400mm
- Uses standard 1.5" (38mm) NPT pipe
Product Overview
The SmartMount® PLCM-2-UNL Ceiling Mount utilize a 1.5" NPT extension pipe for versatility, support, and connection. The 1.5" NPT threaded pipe makes it simple to customize each mount to your specific application. The PLCM-2-UNL kit combines the PLP-UNL Universal I-Shaped Adaptor plate and the PLCM-2 tilt box, to deliver display mounting patterns of up to 600 x 400mm. When combined with Peerless-AV® ceiling plates and columns, it provides the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: PLCM-2-UNL
- Brand Name: SmartMount®
- Product Series: PLCM-2-UNL
- Product Model: PLCM-2-UNL
- Product Name: PLCM-2-UNL Ceiling Mount
- Packaged Quantity: 1 Unit
- Product Type: Ceiling Mount
Product Information
- Device Supported: Flat Panel Display
- Maximum Load Capacity: 150 lb
- Minimum Screen Size Supported: 32"
- Maximum Screen Size Supported: 90"
- Features:
- 360° Swivel
- Adjustable Tilt
- Adjustable
- Hook
- Orientation: Landscape/Portrait
- Minimum Tilt Angle: -5°
- Maximum Tilt Angle: 20°
- Maximum Swivel Angle: 360°
- Mount Function:
- Swivel
- Adjustable
- Tilt
- Mount Surface: Ceiling
Physical Characteristics
- Color Family: Black
- Product Color: Black
- VESA Mount Compatible: Yes
- Mounting Pattern: 600 x 400
- Form Factor: Ceiling Mountable
- Height: 16.75"
- Width: 24.38"
- Depth: 4.04"
- Weight (Approximate): 7.90 lb
Miscellaneous
- Package Contents:
- PLCM-2-UNL Ceiling Mount
- PLP-UNL Universal I-Shaped Adaptor
- Mounting Hardware & Instruction
- Application/Usage:
- Pipe
- Airport
- Lobby
- Retail
- Sports
- Room
- Indoor/Outdoor: Indoor
- Assembly Required: Yes
- Country of Origin: United States
- Manufacturer Product Class: Ceiling Mount
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
