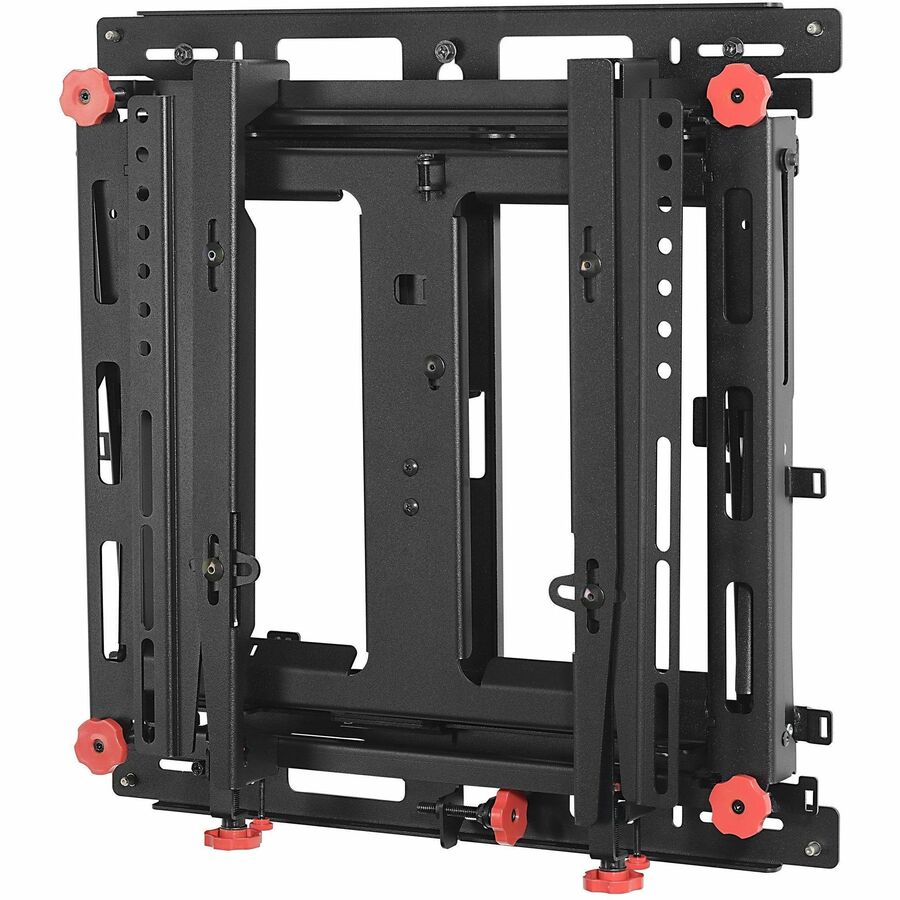

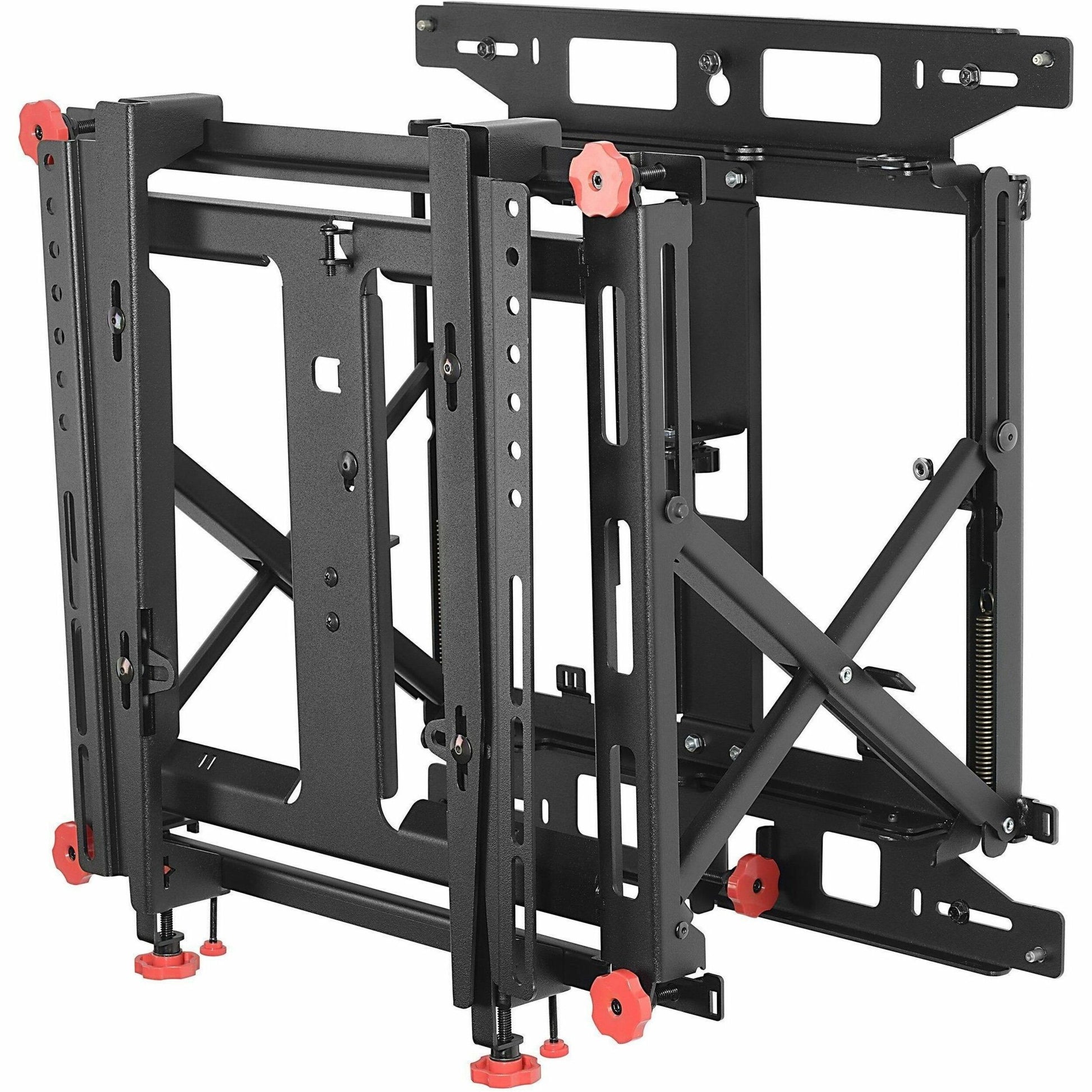

Peerless-AV® SmartMount® Supreme Full Service Video Wall Mount with Quick Release for 46" to 60" Displays - DS-VW775-QR
Key Features
- 1.5" of fine tune adjustment on each of the X, Y and Z axis
- Accommodates displays in Landscape and Portrait orientation
- Compatible up to VESA 600 x 400mm
- Easy hang wall plate offers simple mount spacing and ease of install for the single installer
- Gentle, press-to-release quick release mechanism provides convenient display access
- Integrated cable management allow cables to move in and out with the display
- Modular mount for unlimited video wall display configurations
- Reusable custom wall spacers eliminate guesswork and on-site install calculations
- Security hardware option deters tapering and theft
Product Overview
Peerless-AV's SmartMount® Supreme Full Service Video Wall Mount with Quick Release raises the bar of excellence with an enhanced feature set centered on ease of install and display alignment. With the addition of tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustment on each of the X, Y and Z axis. Serviceability is easier than ever before with a gentle press to release mechanism, any display in the video wall configuration can be quickly extended for maintenance. Reusable spacers can be used for both portrait and landscape applications resulting in a faster install and lower cost. Enhanced cable management allows the cables to effortlessly travel in and out with the display, preventing them from getting pinched or pulled loose when extended.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: DS-VW775-QR
- Brand Name: SmartMount®
- Product Series: DS-VW775-QR
- Product Model: DS-VW775-QR
- Product Name: Supreme Full Service Video Wall Mount with Quick Release for 46" to 60" Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported:
- Video Wall
- Display
- Maximum Load Capacity: 125 lb
- Minimum Screen Size Supported: 46"
- Maximum Screen Size Supported: 60"
- Features:
- Cable Management
- Quick Release Mechanism
- Adjustable Depth
- 3-axis
- Tool-less Micro-Adjustment
- Lateral Adjustment
- Minimum Adjustable Depth: 3.10"
- Maximum Adjustable Depth: 14.50"
- Orientation: Landscape/Portrait
- Mount Function: Video Wall
- Mount Surface: Wall
- Durability:
- Tamper Resistant
- Theft Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 200 x 200
- 600 x 400
- Form Factor: Wall Mountable
- Height: 21.46"
- Width: 21.25"
- Depth: 14.56"
- Weight (Approximate): 34.20 lb
Miscellaneous
- Package Contents:
- Supreme Full Service Video Wall Mount with Quick Release for 46" to 60" Displays

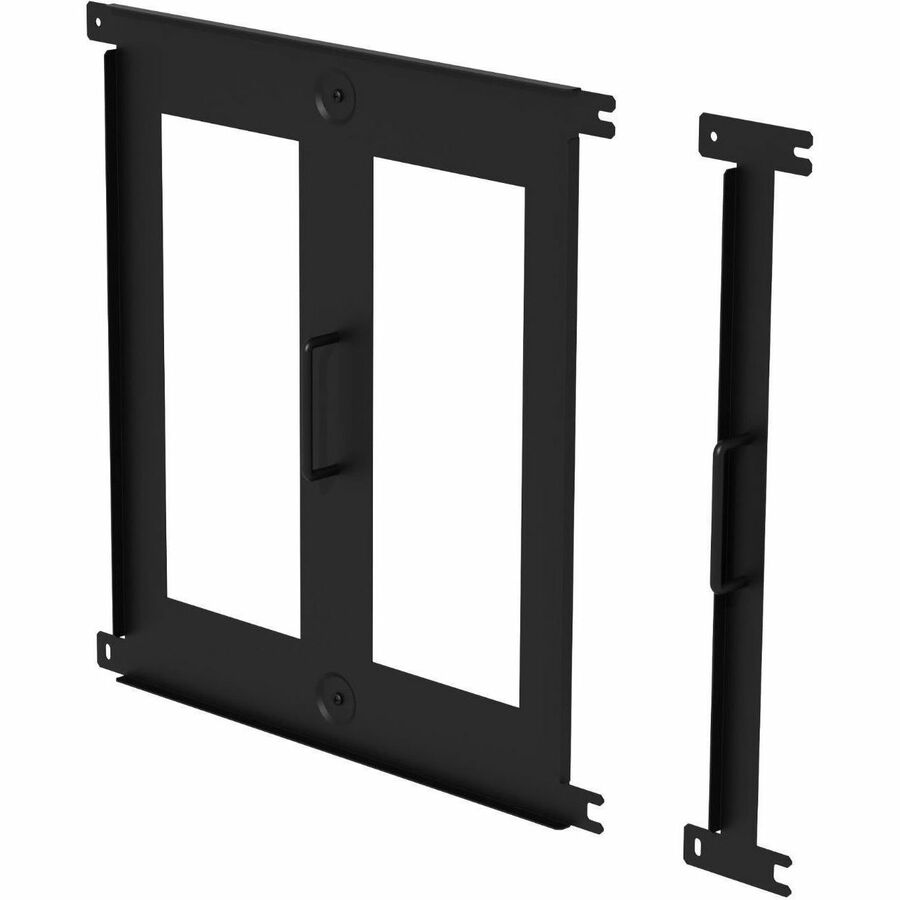

- Adaptor Rails
- Mounting Hardware
- Indoor/Outdoor: Indoor
- Assembly Required: Yes
- Manufacturer Product Class: Wall, Quick Release Pop-out
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
