Peerless-AV® SmartMount® Universal Scissor Wall Mount for 39" to 85"+ Displays - STS650
Key Features
- 3.82"-12.00" (97-305mm) display extension allows for post-installation servicing and component storage behind display

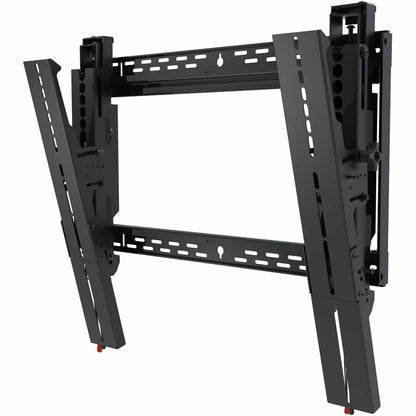

- Adjustable up to 15° of forward tilt and -2° of backward tilt for the optimal viewing angle
- Automatic spring locks with quick release cords simplify the installation and removal of the display
- Center keyhole for easy leveling and installation
- Display can be pulled 12" (305mm) from the wall to access components and the back of the display with the extendable adaptors
- Display is easily installed by a single person with the Hook-and-Hang™ feature
- IncreLok™ tilt technology allows the user to lock the tilt angle for the perfect view and prevent tampering or undesired adjustment
- Menu board style wall plate with open frame design (compatible with IB14X9-W In-Wall Box)

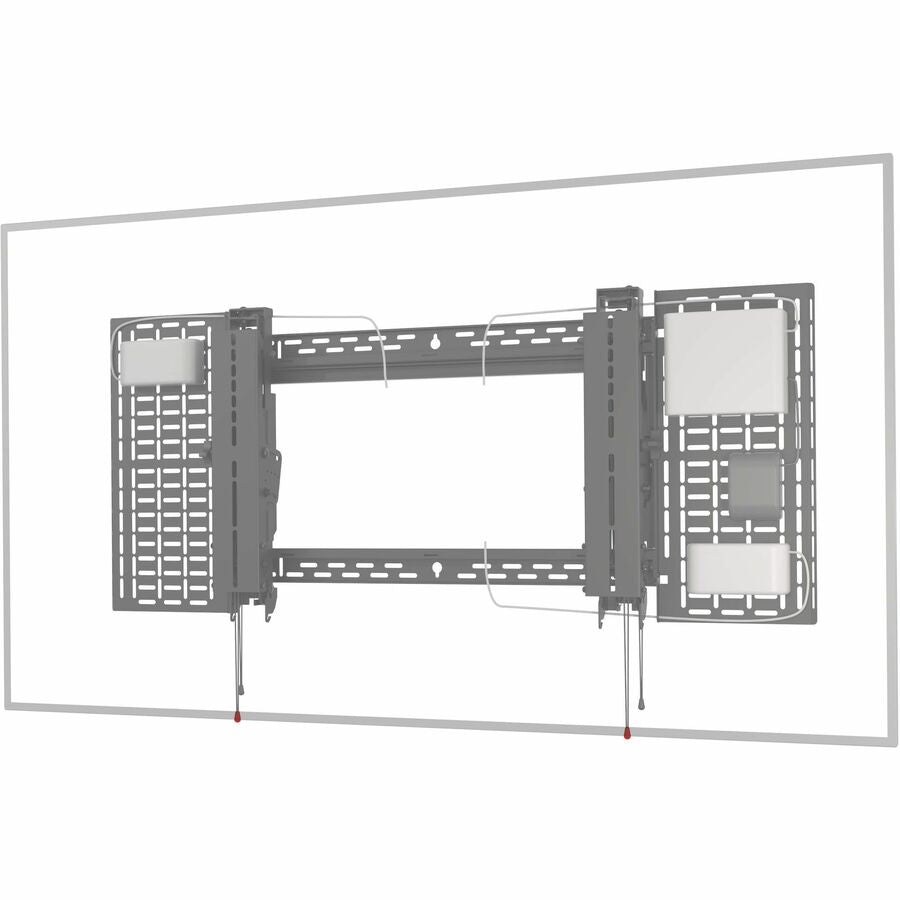

- Open access provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes (IB14X9-W)

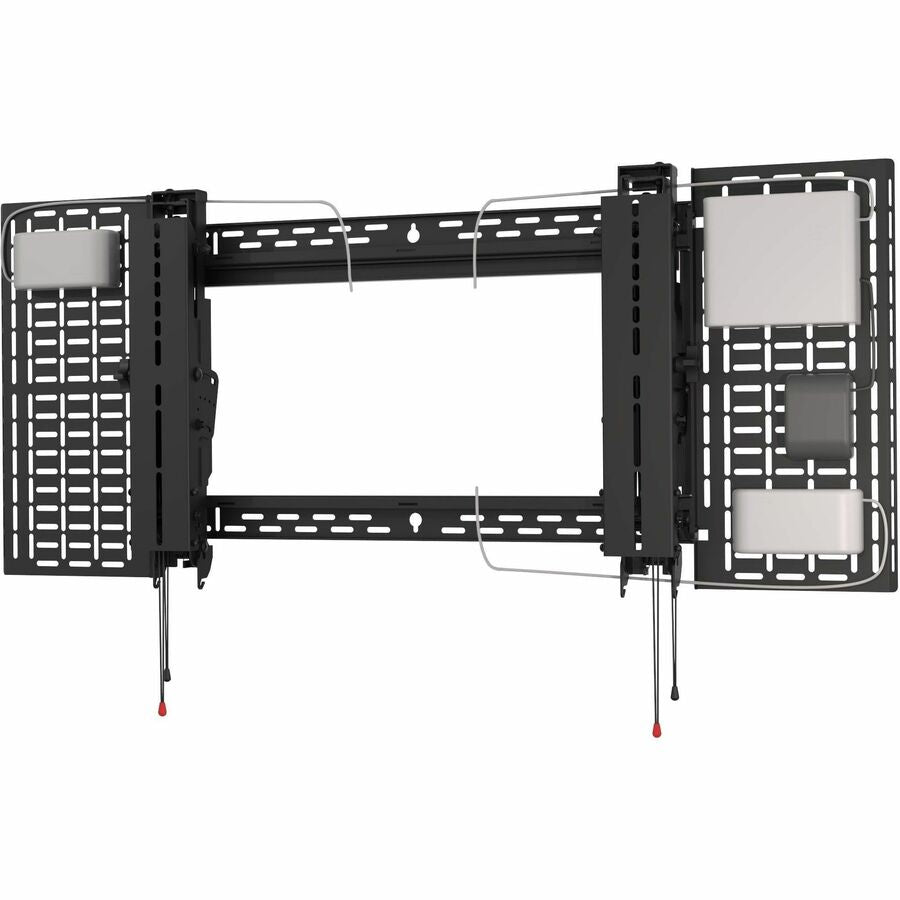

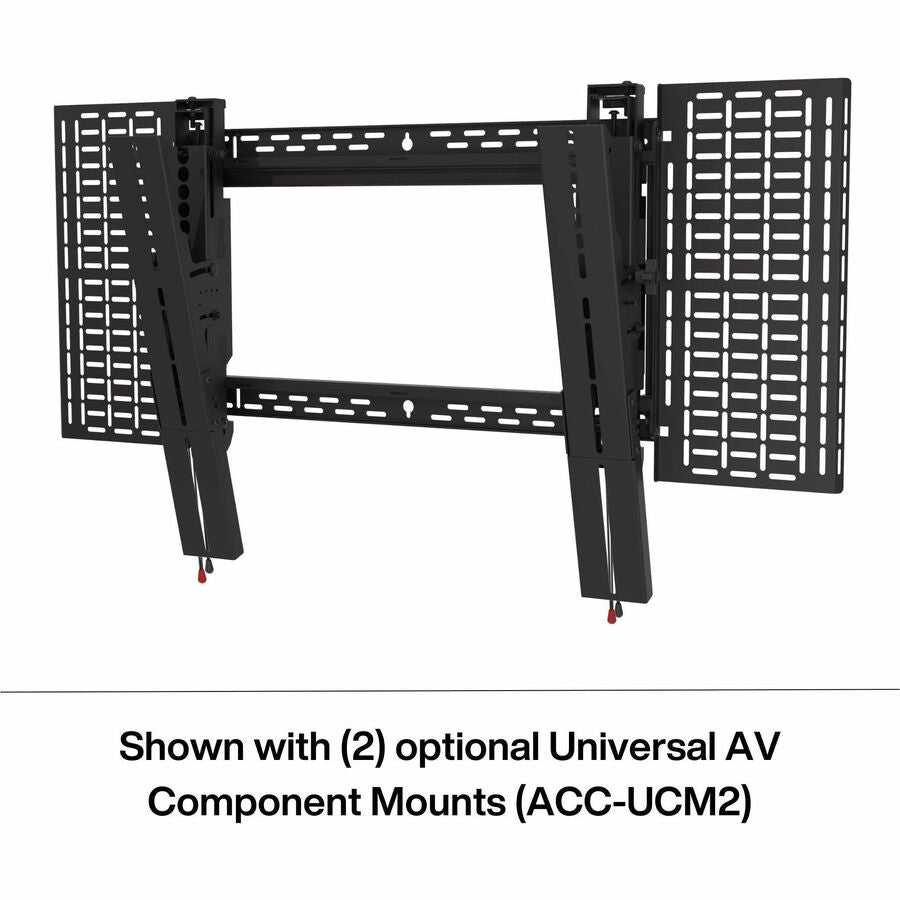

- Optional Accessory: Universal AV Component Mount (ACC-UCM2) allows components to be installed, configured and cabled off-site, and quickly attaches to the mount which reduces on-site installation time
- Post-installation leveling and side-to-side adjustability features allow fine tuning of the mounted display for the perfect display positioning
- Universal mount fits displays with mounting patterns 200 x 100 to 600 x 400mm (600 x 600mm with included bolt-on extenders)
Product Overview

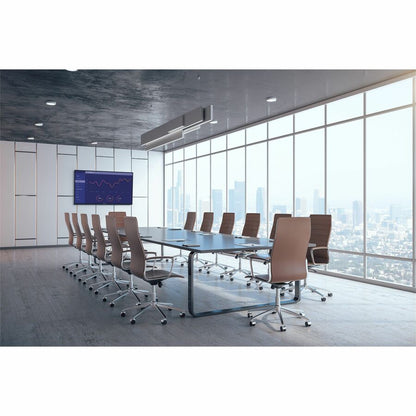

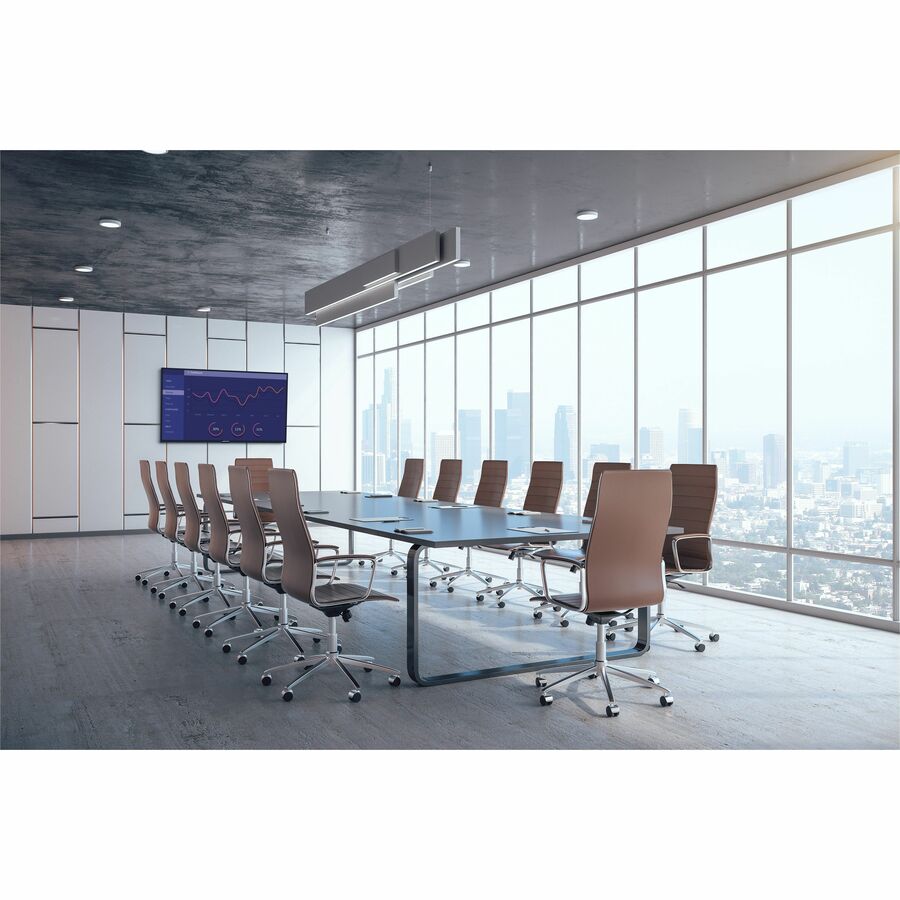

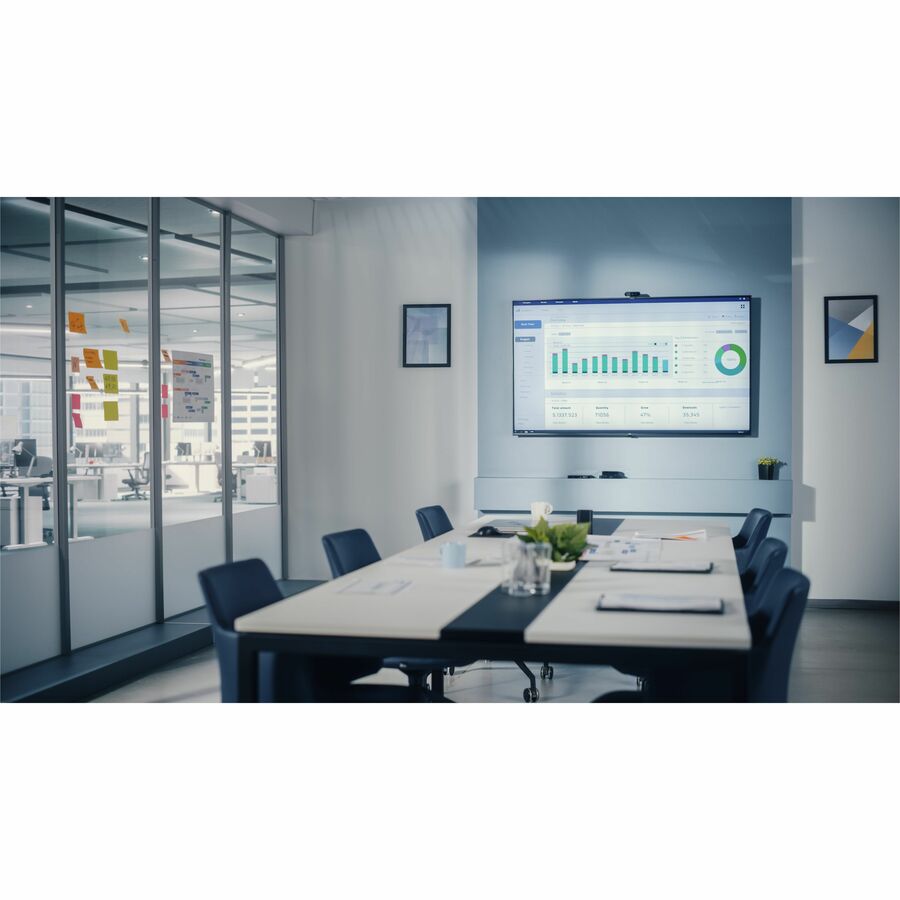

Peerless-AV's SmartMount® Universal Scissor Wall Mount is the optimal mounting solution for UC/VC applications and recessed walls as the STS650 allows for convenient access to components stored behind the display. The STS650's extendable adaptors allow the display to be pulled 12" (305 mm) from the wall to easily access the back of the display, and can be locked into place when the installation or maintenance is completed. Installation of the display is a breeze with the Hook-and-Hang™ feature, and the mount's open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes. Post-installation leveling and side-to-side adjustability features allow for fine tuning of the mounted display for the perfect position in any corporate conference room, digital signage application or hospitality setting.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: STS650
- Brand Name: SmartMount®
- Product Series: STS650
- Product Model: STS650
- Product Name: Universal Scissor Wall Mount for 39" to 85"+ Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported:
- Electrical Outlet
- In-Wall Storage Box
- Display
- Maximum Load Capacity: 200 lb
- Minimum Screen Size Supported: 39"
- Maximum Screen Size Supported: 85"
- Height Adjustable: Yes
- Features:
- Hook-and-Hang Design
- Interlocking
- Spring Lock
- Easy to Install
- Leveling System
- 15° Forward Tilt
- Adjustable Depth
- Extendable
- Increlock
- Minimum Adjustable Depth: 3.82"
- Maximum Adjustable Depth: 12"
- Mount Profile: Recessed
- Minimum Tilt Angle: -2°
- Maximum Tilt Angle: 15°
- Mount Function:
- Adjustable
- Tilt
- Wall Mount
- Mount Surface: Wall
- Durability:
- Tamper Resistant
- Scratch Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Semi-gloss Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 200 x 100
- 200 x 200
- 300 x 200
- 300 x 300
- 400 x 200
- 400 x 300
- 400 x 400
- 600 x 400
- 600 x 600
- Form Factor: Wall Mountable
- Height: 26.90"
- Width: 28.84"
- Depth: 12"
- Weight (Approximate): 35.50 lb
Miscellaneous
- Package Contents:
- Universal Scissor Wall Mount for 39" to 85"+ Displays
- Wall Installation Hardware
- Display Installation Hardware
- Installation Instructions
- Application/Usage:
- Conference Room
- Hospitality
- Display
- Digital Signage
- Wall
- Compatibility:
Peerless-AV IB14X9-W 14 x 9" In-Wall Box
- Assembly Required: Yes
- Manufacturer Product Class: Tilt
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: Lifetime
