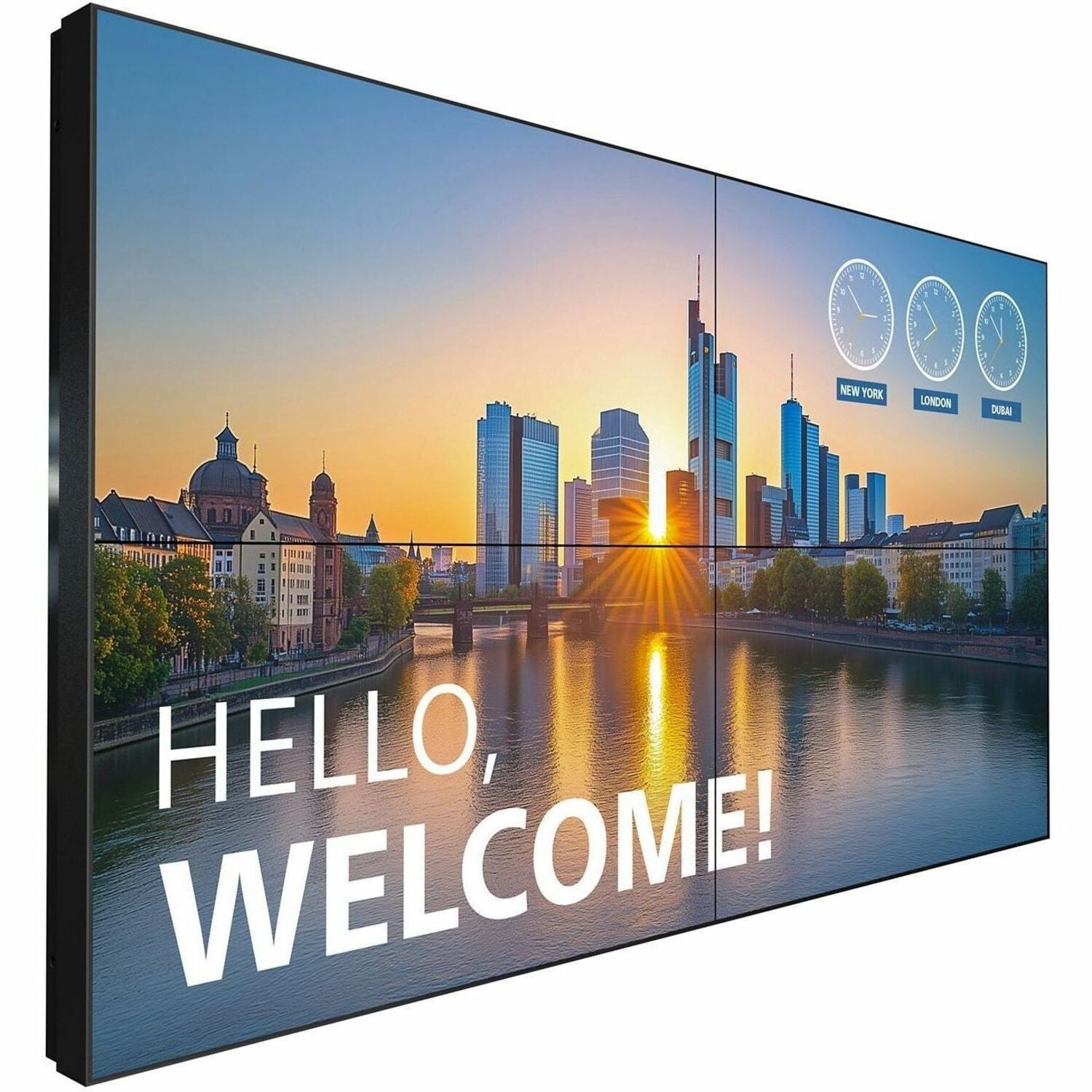

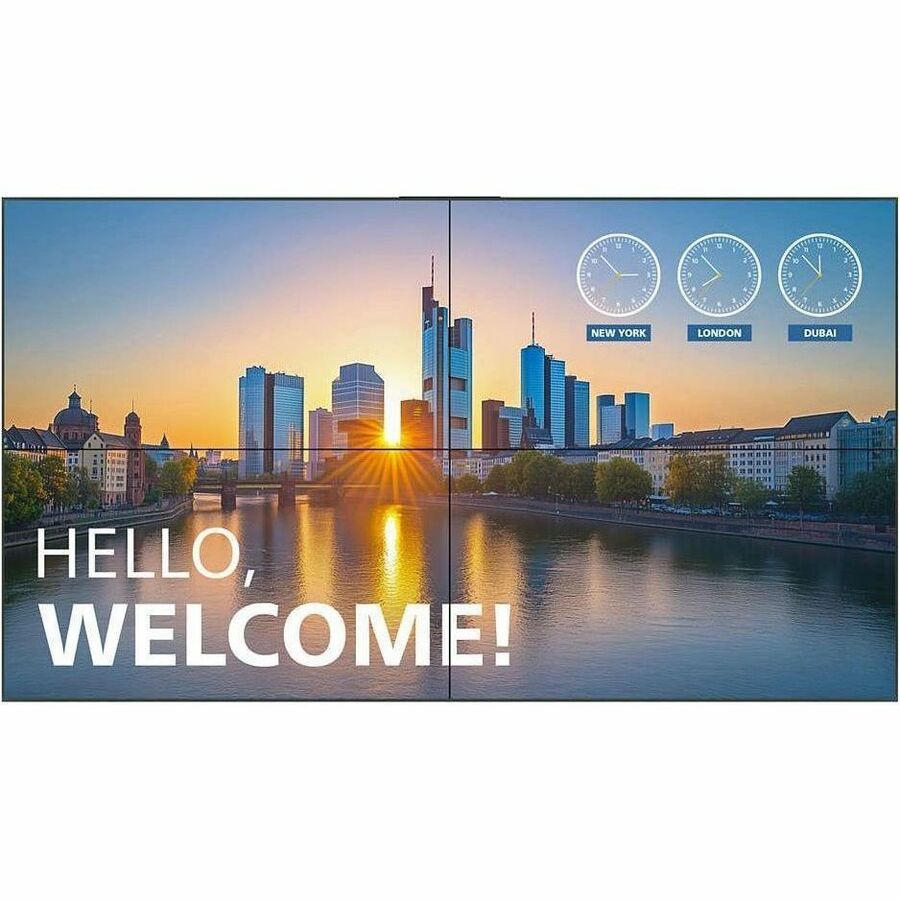

Philips 55BDL3305X Digital Signage Display - 55BDL3305X27
Key Features
- Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
- Direct LED backlight technology for a consistent picture quality from corner to corner
- Experience luminescent visual images with LCD display
- Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
- Features full 1920 x 1080 HD resolution enabling sharp and clear images
Product Overview
Remarkable retail experiences around the clock- 55"
- Direct LED Backlights
- Full HD
- 500cd/m²
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
Add Android processing power with an optional CRD50 moduleEmbed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).
FailOver ensures content is always playingFrom waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.
Full HD monitors. Brilliant images. Clear contrastBoost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.
OPS slot allows for PC embedding without cablingIntegrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
Tiling mode. Create tiled 4K videowalls of any sizeConnect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you're showing that content on four screens you get the best possible dot-by-dot resolution.
General Information
- Manufacturer: Philips Electronics
- Manufacturer Part Number: 55BDL3305X27
- Brand Name: Philips
- Product Series: 3000
- Product Model: 55BDL3305X
- Product Name: 55BDL3305X Digital Signage Display
- Product Type: Digital Signage Display
Technical Information
- Video Wall Compatible: Yes
- Operation Hours: 24 Hours/7 Days
- On Screen Display (OSD) Languages:
- Arabic
- English
- French
- German
- Italian
- Japanese
- Polish
- Russian
- Spanish
- Simplified Chinese
- Turkish
- Traditional Chinese
Display & Graphics
- Number of Screens: 1
- Viewable Screen Size: 54.50"
- Screen Size Class: 55"
- Display Screen Type: LCD
- Response Time: 8 ms
- Display Resolution: 1920 x 1080
- Orientation: Landscape/Portrait
- Backlight Technology: Direct LED
- Aspect Ratio: 16:9
Video
- Scan Format: 1080p
- Native Contrast Ratio: 1,200:1
- Dynamic Contrast Ratio: 500,000:1
- Brightness: 500 Nit
Network & Communication
- Ethernet: Yes
Interfaces/Ports
- USB: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of USB 2.0 Ports: 1
- Number of HDMI Inputs: 2
- Number of DisplayPorts: 2
- DisplayPort Output: Yes
- Number of Network (RJ-45) Ports: 2
- Number of Audio Line Out: 1
- Number of HDMI 2.0 Ports: 2
- Number of DisplayPort 1.2 Ports: 1
- Number of DVI-D Ports: 1
- Number of DisplayPort Outputs: 1
Physical Characteristics
- VESA Mount Standard:
- 100 x 100
- 100 x 200
- 400 x 400
- Mount Type: Wall Mountable
- Height: 26.9"
- Width: 47.7"
- Depth: 3.9"
- Weight (Approximate): 63.27 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Minimum Storage Temperature: -4°F (-20°C)
- Maximum Storage Temperature: 140°F (60°C)
Miscellaneous
- Package Contents:
- 55BDL3305X Digital Signage Display
- 3 x Gap pad
- 1 x IR sensor cable (1.8 m)
- 1 x Quick start guide
- Remote control & AAA batteries
- RJ45 / RS232 converter
- 3 x Wire Clamper
- Power cord
- 1 x DP cable
- 1 x RJ45 cable
- 2 x Edge alignment pin
- 1 x Kit-1
- 2 x Kit-2
- DVI-D cable
- RS232 cable
- Application/Usage:
- Meeting Room
- Professional Audio/Video
- Retail
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
