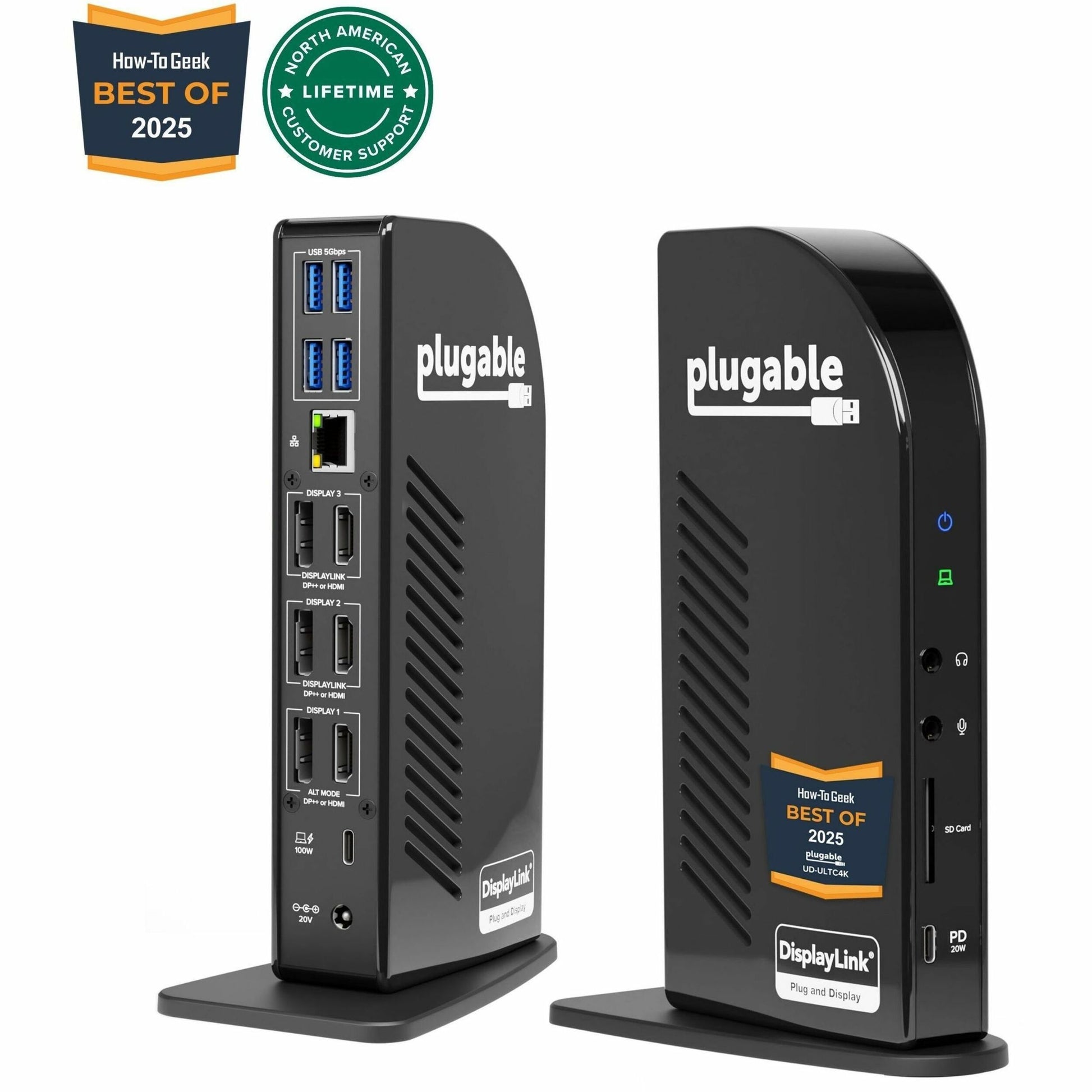

Plugable 4K USB C Docking Station Triple Monitor with 100W Power Delivery, USB C Dock for Thunderbolt 3/4, and USB-C Windows and Mac - UD-ULTC4K
Key Features
- 100W Power Delivery: Power your laptop with up to 100W (96W certified) directly through the DisplayLink docking station, so you can leave your laptop power adapter in your travel bag.
- All in One USB C Docking Station with Power - Named "Best Docking Station 2025" by How-To Geek, this multi-monitor station features 13 powerful ports. It includes USB-C with 100W charging, 4x USB-A, Ethernet, an SD card reader, and more - all through a single 10Gbps USB-C connection. It is the definitive complete docking station setup for busy professionals.
- Compatibility: This USB-C dock is compatible with Windows 10 or later, macOS 11+, and ChromeOS (100.x or later) systems with Thunderbolt, USB4, or USB-C. Requires installation of DisplayLink Drivers, refer to the setup guide video in image gallery. HDCP (streaming services) not supported.
- Connection Options: Triple display docking station lets you connect your phone or other devices with 1x USB-C (10Gbps, 20W PD), and keep expanding with 4x USB 3.0 (5Gbps), an SD card reader
Product Overview

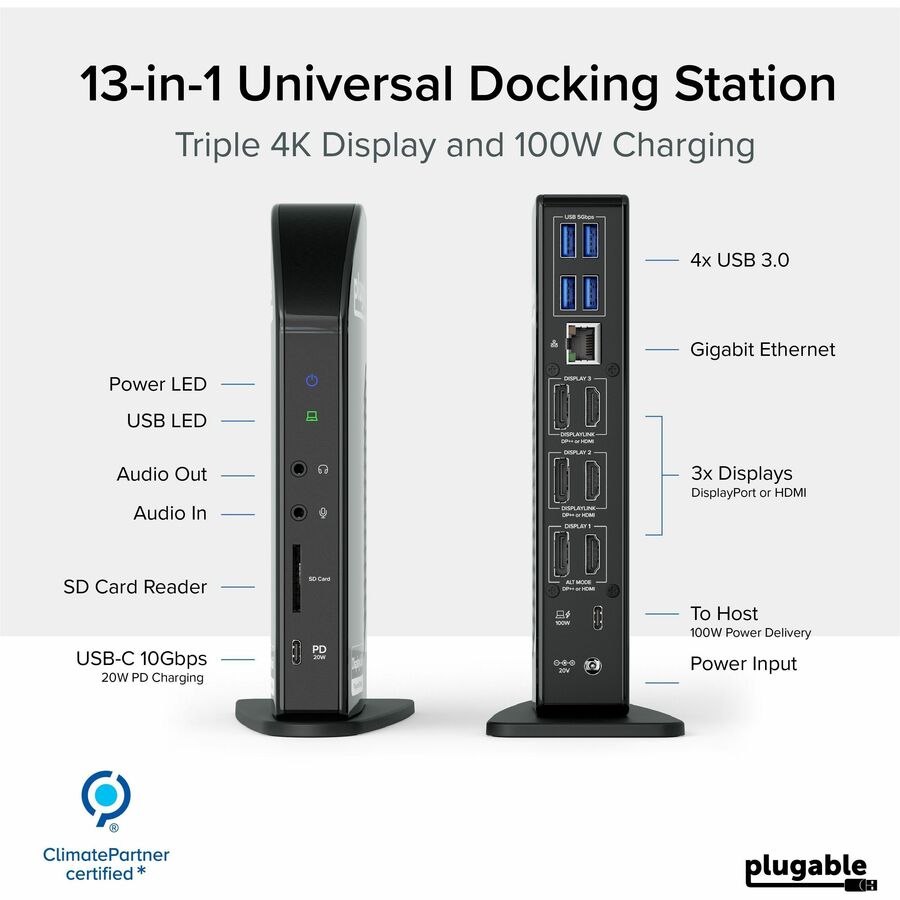

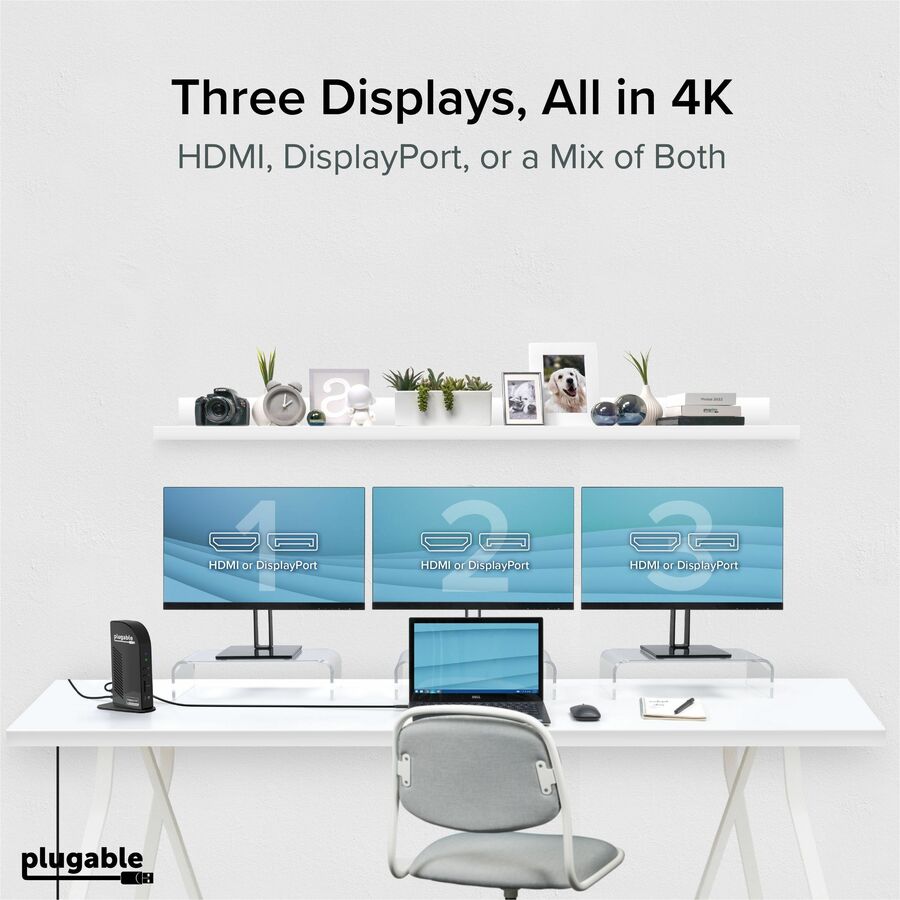

The Plugable UD-ULTC4K is a USB-C docking station designed for business and mixed-device environments. It supports up to three external displays through a combination of DisplayPort and HDMI connections, with up to 4K 60Hz resolution depending on host system capabilities. Named "Best Docking Station 2025" by How-To Geek. The dock includes 3 DisplayPort outputs and 3 HDMI outputs, allowing flexible monitor connections without requiring adapters for different display types. In addition to display connectivity, the dock features a front-facing USB-C port with up to 10Gbps data transfer and 20W charging for compatible accessories, 4 USB 3.0 ports with up to 5Gbps transfer speeds, an SD card reader, Gigabit Ethernet, and separate 3.5mm audio input and output ports. The host connection supports up to 100W USB-C Power Delivery, with 96W certified for supported laptops. The replaceable USB-C host cable can help simplify setup and maintenance in office deployments. Compatible with supported Windows, macOS, and ChromeOS systems. DisplayLink drivers are required for DisplayLink-based video outputs. HDCP is not supported, so protected content playback from some streaming services may be limited. Port configuration includes 1 USB-C host connection with up to 100W Power Delivery, 2 DisplayPort 1.2 outputs using DisplayLink, 1 DisplayPort 1.2 output using Alt Mode, 2 HDMI 2.0 outputs using DisplayLink, 1 HDMI 2.0 output using Alt Mode, 4 USB 3.0 ports, 1 USB-C port with 10Gbps and 20W charging, 1 SD card reader, 1 Gigabit Ethernet port, and 1 audio input.
General Information
- Manufacturer: Plugable Technologies
- Manufacturer Part Number: UD-ULTC4K
- Brand Name: Plugable
- Product Model: UD-ULTC4K
- Product Name: USB-C Triple 4K Display Docking Station
- Packaged Quantity: 1
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 3
- Supported Resolutions:
- 3840 x 2160
- 2560 x 1440
- 2560 x 1080
- 1920 x 1080
- 1600 x 900
- 1280 x 1024
- 1280 x 800
- 1280 x 720
- 1024 x 768
- 800 x 600
- 640 x 480
- Screen Mode Supported: 4K
- Device Supported: Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Host Interface: USB Type C
- Audio Line In: Yes
- Audio Line Out: Yes
- Total Number of USB Ports: 5
- Number of USB 3.0 Ports: 5
- Number of USB Type-C Ports: 1
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB-C Front USB 3.0 (5Gbps)
- Number of USB Type-A Ports: 4
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPort Outputs: 2
- DisplayPort: Yes
- DisplayPort Version: 1.2
- Microphone: Yes
- Number of HDMI Outputs: 1
- HDMI: Yes
Software
- Operating System Supported:
- macOS
- Windows
Power Description
- Maximum Power Supply Wattage: 60 W
Physical Characteristics
- Height: 7.90"
- Width: 2.90"
- Weight (Approximate): 1.37 lb
Miscellaneous

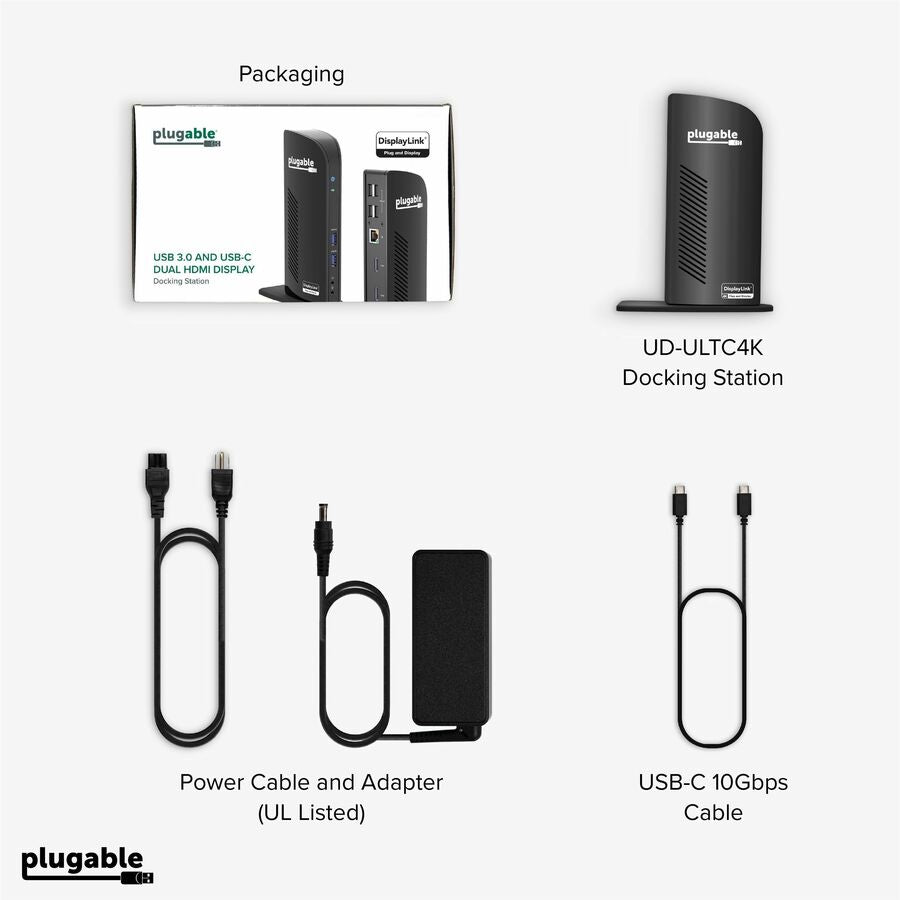

- Package Contents:
- USB-C Triple 4K Display Docking Station
- 1 x USB-C to USB-C Cable
- 1 x 100W Power Adapter
- Compatibility: Thunderbolt, USB4, or Alt Mode laptops
- Country of Origin: Taiwan
Warranty
- Limited Warranty: 2 Year
