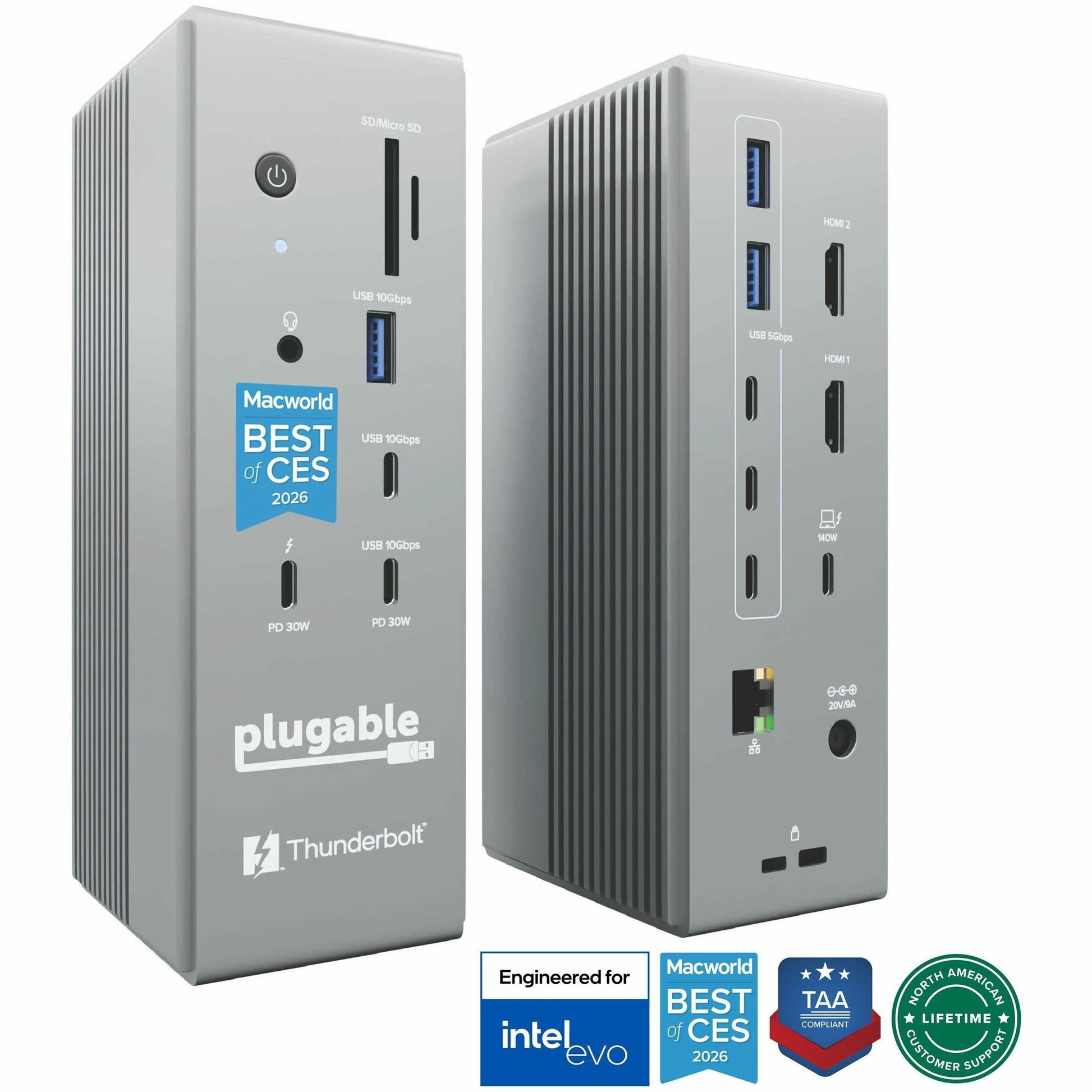

Plugable Thunderbolt 5 Dock: 16-in-1, Dual HDMI 2.1 Up to 8K 60Hz / 4K 144Hz, 140W Laptop Charging, 2.5GbE, Fanless - TBT-UDH2
Key Features
- Dual 8K: This Thunderbolt dock's native Dual HDMI 2.1 ports deliver up to 8K 60Hz or 4K 144Hz with Thunderbolt 5 hosts, and dual 4K 120Hz with Thunderbolt 4. No adapters, just pure pixel performance. It's the clean, plug-and-play setup your MacBook Pro or Thunderbolt 5 laptop deserves
- Lifetime Support: This Thunderbolt 5 dock has been designed with reliability at its core and was built to meet the deployment demands of IT departments and the ease of use necessary for home offices. Includes lifetime support from our North American team of connectivity experts
- More USB-C Ports (Finally): This Windows and MacBook docking station has 6x USB-C connections, including two front ports that each deliver up to 30W charging (1x Thunderbolt 5, 1x USB-C). Connect everything from SSDs to phones to capture cards. You'll have to USB-C it to believe it
- Power and Performance: The TBT-UDH2 laptop docking station is a 16-in-1 productivity powerhouse with 140W laptop charging, 6x USB-C ports including 2x front-facing 30W charging
Product Overview

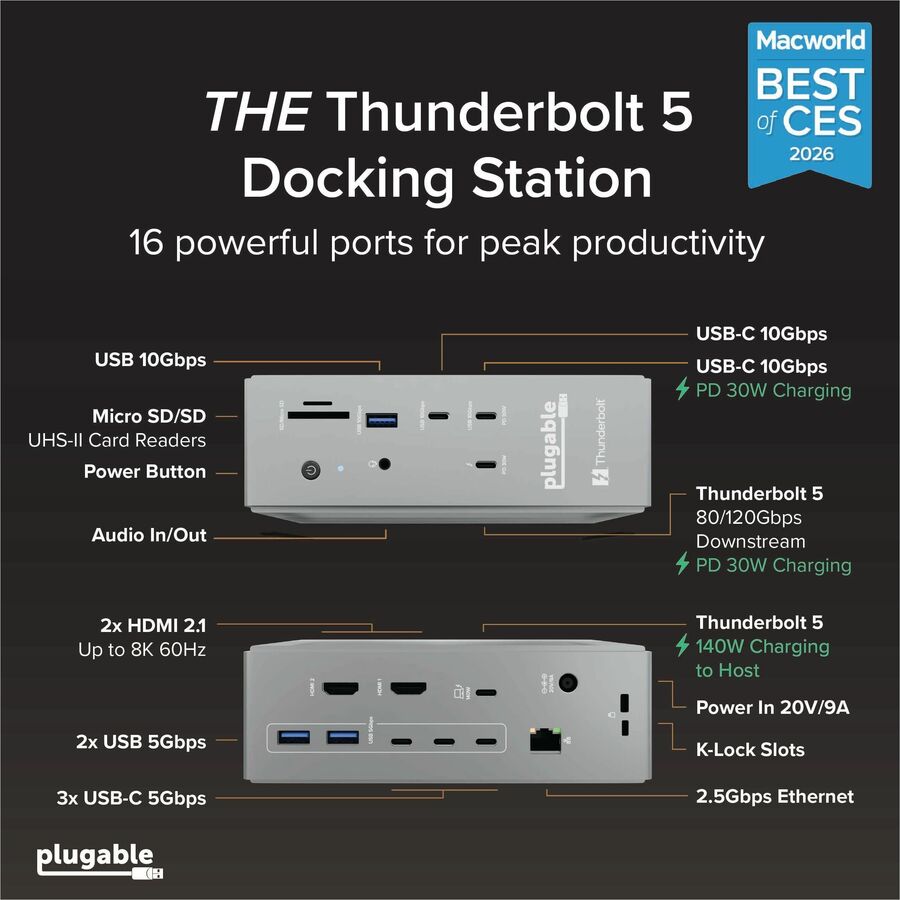

Meet the Plugable TBT-UDH2, a 16-in-1 Windows and Mac docking station with Thunderbolt 5 is built for serious productivity. With 140W host charging, native Dual HDMI 2.1 (up to 8K 60Hz or 4K 144Hz), 6x USB-C ports, including a downstream Thunderbolt 5 port, 2.5Gb Ethernet, and UHS-II SD/microSD readers. This dock delivers next-gen performance without adapters.
Whether you're powering a MacBook Pro M4 or a high-end Windows laptop, the TBT-UDH2 docking station for laptops simplifies your setup with driverless, plug-and-play support and a full port lineup. And it's all in a TAA-compliant design perfect for enterprise, education, or hybrid work.
No dongles. No compromises.
General Information
- Manufacturer: Plugable Technologies
- Manufacturer Part Number: TBT-UDH2
- Brand Name: Plugable
- Product Model: TBT-UDH2
- Product Name: TBT-UDH2 Docking Station
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 2
- Supported Resolutions:
- 3840 x 2160
- 7680 x 4320
- Screen Mode Supported:
- 8K @ 60Hz
- 4K @ 144Hz
- Memory Card Reader: Yes
- Memory Card Supported:
- microSD
- SD
- Device Supported:
- Notebook
- Tablet
- Smartphone
Network & Communication
- Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
- Host Interface: Thunderbolt 5
- Total Number of USB Ports: 8
- Number of USB Type-C Ports: 5
- USB Type-C: Yes
- USB Type-C Detail: 3 x USB-C 5Gbps, USB-C 10Gbps, USB-C 10Gbps (PD 30W Charging)
- Number of USB Type-A Ports: 3
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Outputs: 2
- HDMI: Yes
- Thunderbolt: Yes
- Thunderbolt Ports Quantity: 2
- Number of Thunderbolt 5 Ports: 2
- USB Power Delivery: 140W
- Total Number of Ports: 16
Software
- Operating System Supported:
- Windows
- macOS
Physical Characteristics
- Form Factor: Desktop
Miscellaneous
- Kensington Security Slot: Yes
- Compatibility:
Apple Products:
- MacBook Pro
- MacBook Air
- TAA Compliant: Yes
