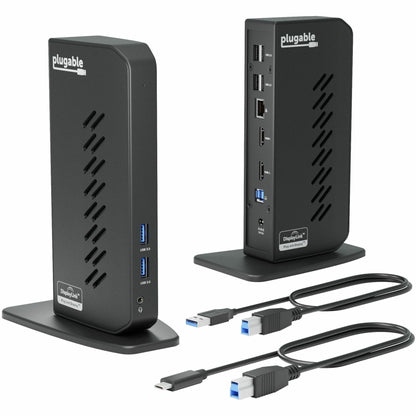

Plugable USB 3.0 and USB-C Universal Laptop Docking Station for Windows and Mac - UD-3900Z
Key Features

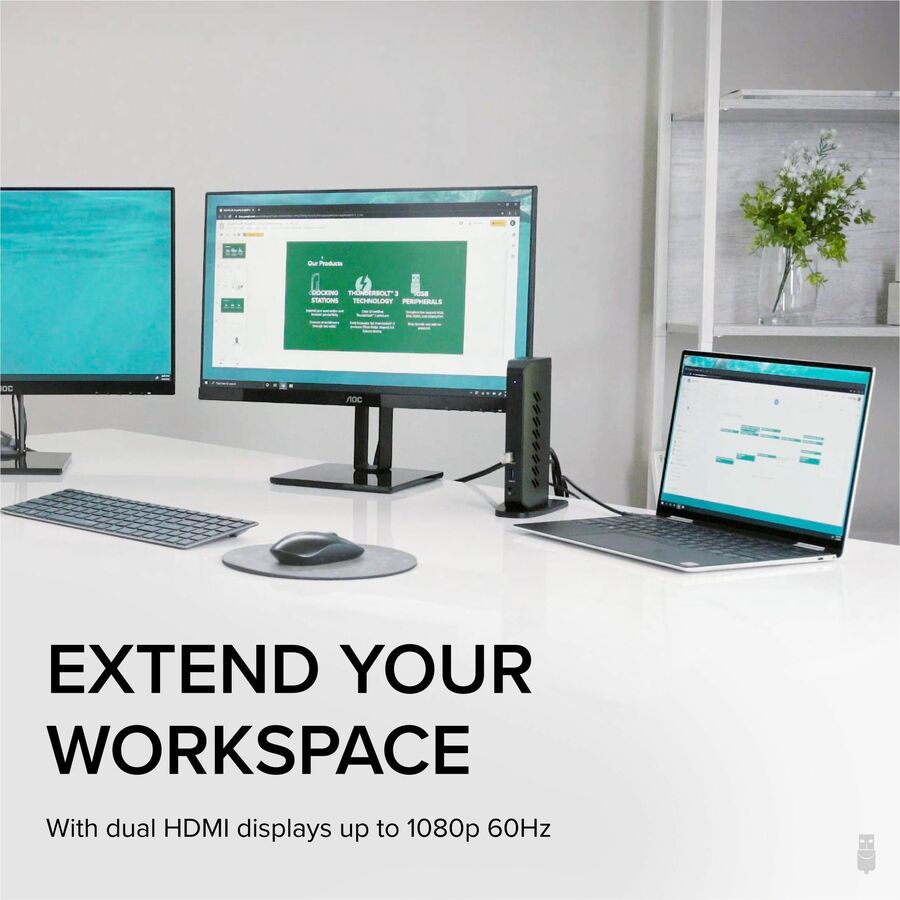

- Docking Station Dual Monitor - 2x HDMI ports let you easily connect two HDMI monitors, even if your computer only supports one output like an M1, M2, or M3 Mac. Supports resolutions up to 1920x1200; lower resolutions such 1080p (1920x1080) are also supported.

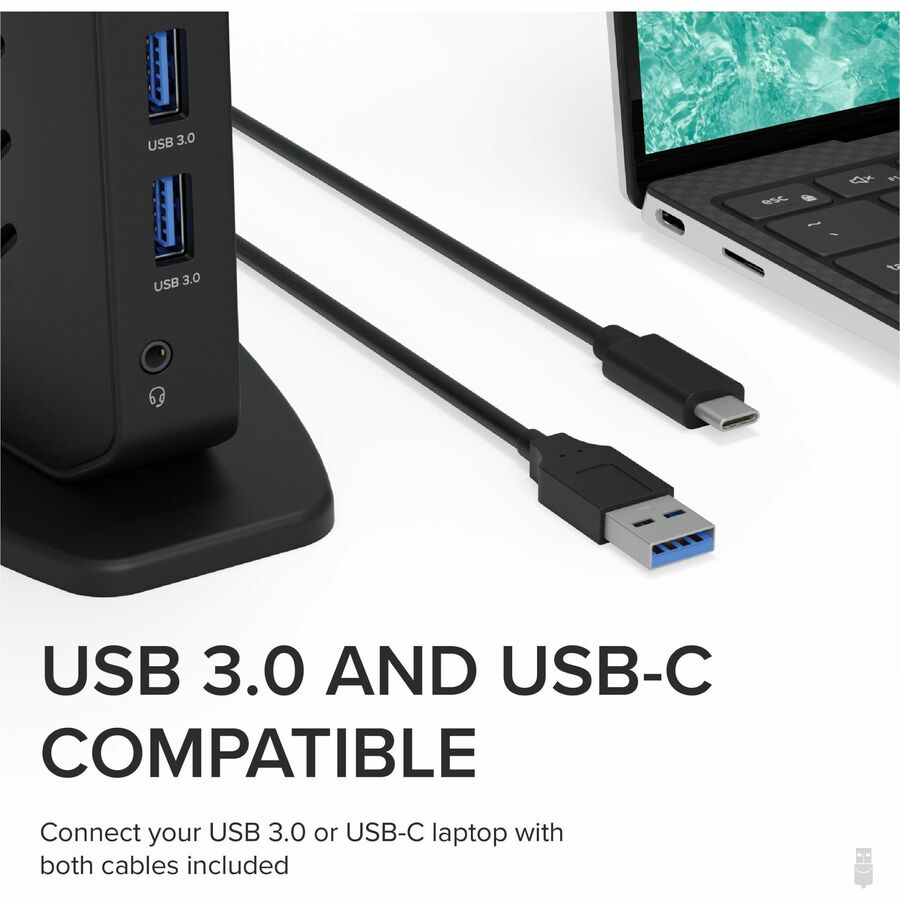

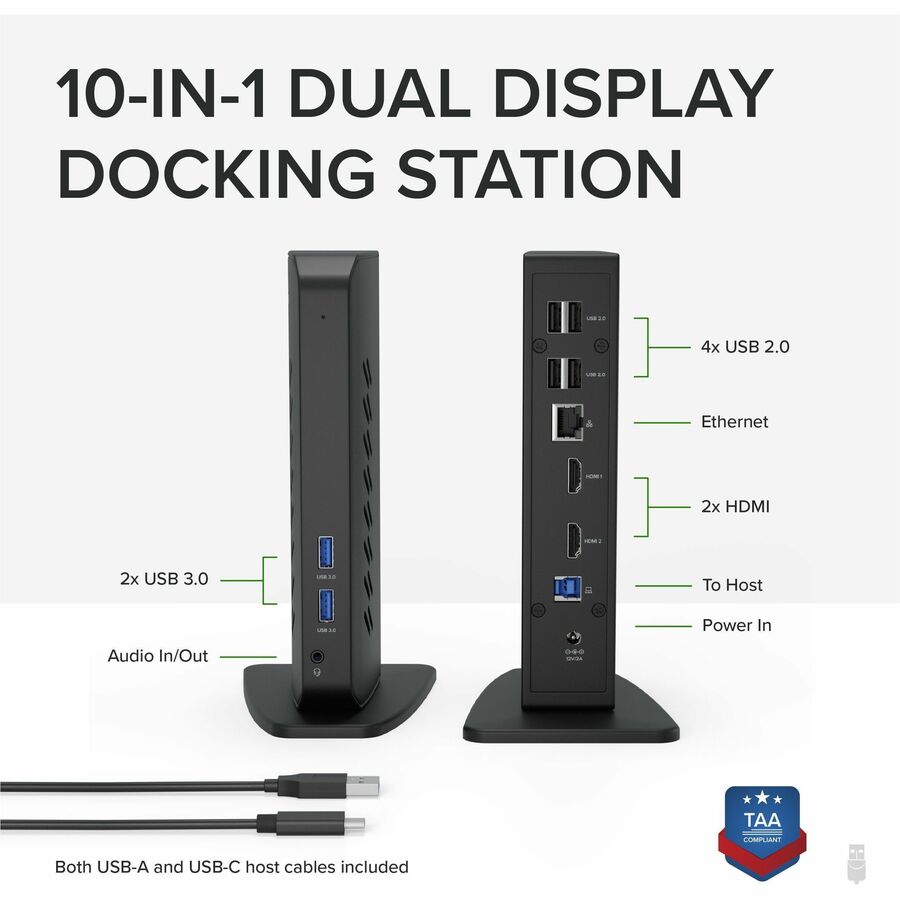

- Flexible Expandability - This USB 3.0 laptop docking station provides dual HD HDMI video outputs, wired Gigabit Ethernet, a 3.5mm combination audio jack, two USB 3.0 ports, and four USB 2.0 ports. Includes both USB 3.0 and USB-C cables for flexible host connectivity. Please note: this dock does not charge the connected computer.
Product Overview
The Plugable UD-3900Z dock is a one-stop upgrade for your Windows tablet, laptop, or desktop. Connect up to 10 accessories through a single USB cable. Includes the latest drivers and firmware for compatibility with Windows 10 and earlier. Fully backward compatible with USB 2.0 PCs and devices. Features two HDMI ports for mirroring/extending your Windows desktop to external monitors, a Gigabit Ethernet port (10/100/1000 supported, full-duplex required), audio input/output, two USB 3.0 ports, and four USB 2.0 ports.Compatibility
Windows 11, 10, 8.1, 8, and 7 drivers can be automatically installed by Windows Update (with an existing Internet connection) or can be downloaded from our website.
USB graphics require dual-core 2GHz+ CPU for best performance.Up-to-date USB drivers on host system recommended.
Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC). HDCP/Blu-ray playback not supported. Not recommended for gaming.
Linux/Unix are not supported.
Power

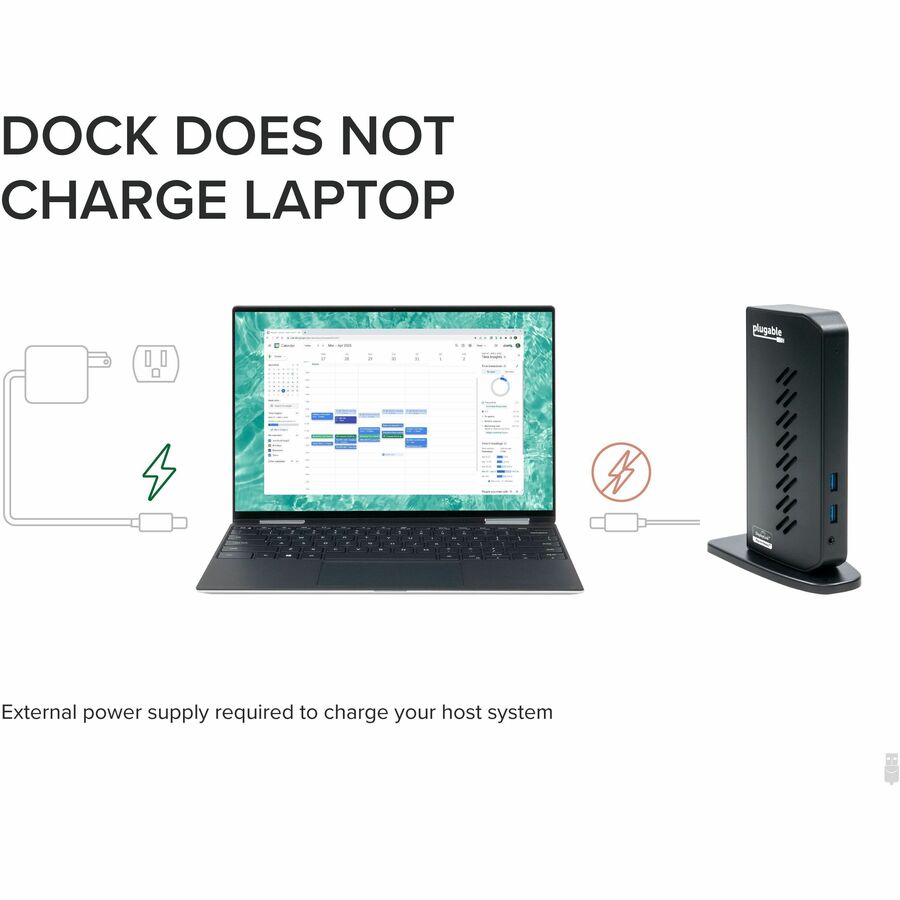

Includes 24W power supply. Dock does not provide power to attached computer.

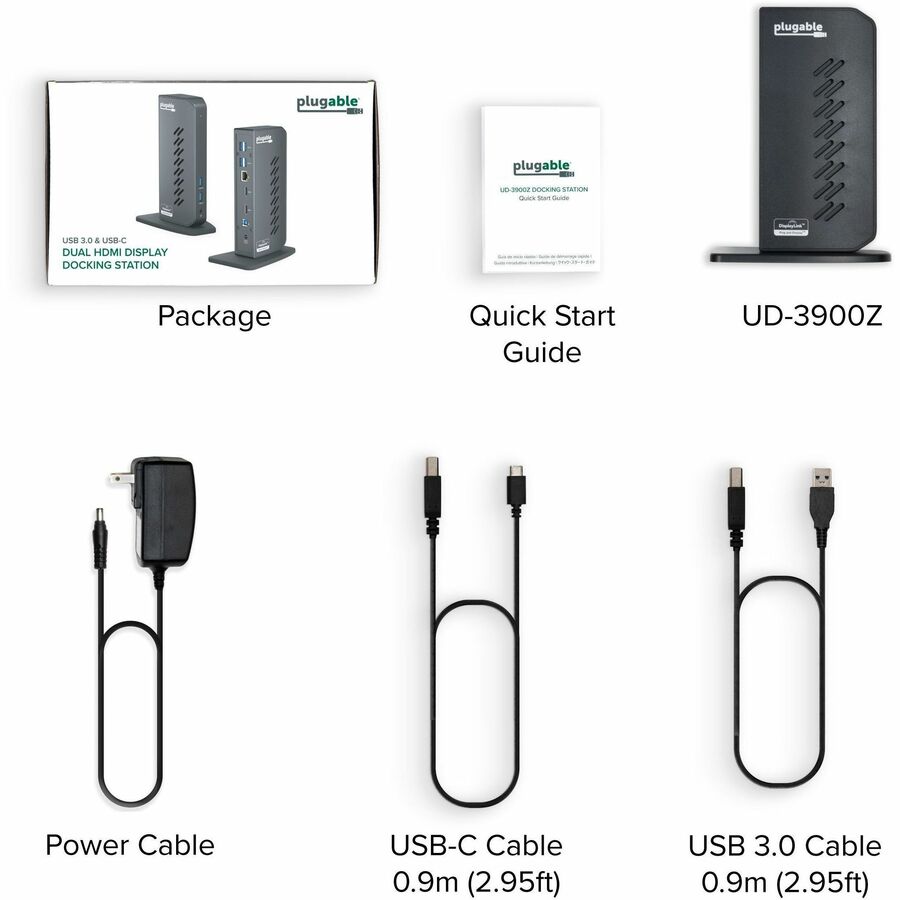

In the Box
UD-3900Z dock, 24W power adapter (US AC Wall Outlet Plug, 100-240V 50/60Hz), USB 3.0 Type-A to Type-B cable (USB 2.0 compatible) and USB 3.1 Type-C to Type-B cable, quick-install guide
General Information
- Manufacturer: Plugable Technologies
- Manufacturer Part Number: UD-3900Z
- Brand Name: Plugable
- Product Model: UD-3900Z
- Product Name: Dual HDMI USB Universal Docking Station For Windows
- Packaged Quantity: 1
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 2
- Supported Resolutions:
- 2048 x 1152
- 1920 x 1200
- 1600 x 900
- 1280 x 1024
- 1280 x 800
- 1280 x 720
- 1152 x 864
- 1024 x 768
- 800 x 600
- 640 x 480
- Screen Mode Supported: Full HD
- Device Supported:
- Notebook
- Desktop PC
- Tablet PC
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Host Interface:
- USB 3.1 Type C
- USB 3.0 Type A
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 4
- Number of USB 3.0 Ports: 2
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB 3.1 Type-C to Type-B cable
- Number of USB Type-A Ports: 6
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Outputs: 2
- HDMI: Yes
Software
- Operating System Supported:
- Windows
- macOS
Power Description
- Maximum Power Supply Wattage: 24 W
Physical Characteristics
- Height: 7.50"
- Width: 2.80"
- Weight (Approximate): 11.70 oz
Miscellaneous
- Package Contents:
- Dual HDMI USB Universal Docking Station For Windows
- 1 x Quick Start Guide
- 1 x USB 3.0 Cable
- 1 x USB-C Cable
- 1 x Power adapter
- Compatibility: Compatible with most modern laptops and desktops running Windows 11 / 10 / 8.x / 7, macOS 10.14+, or ChromeOS 100+. Includes a USB 3.0 and USB-C cable for maximum flexibility connecting the dock to your laptop. Not compatible with: macOS 10.13 and previous, Linux / Unix, and ARM-based Windows systems.
- Country of Origin: Thailand
Warranty
- Limited Warranty: 2 Year
