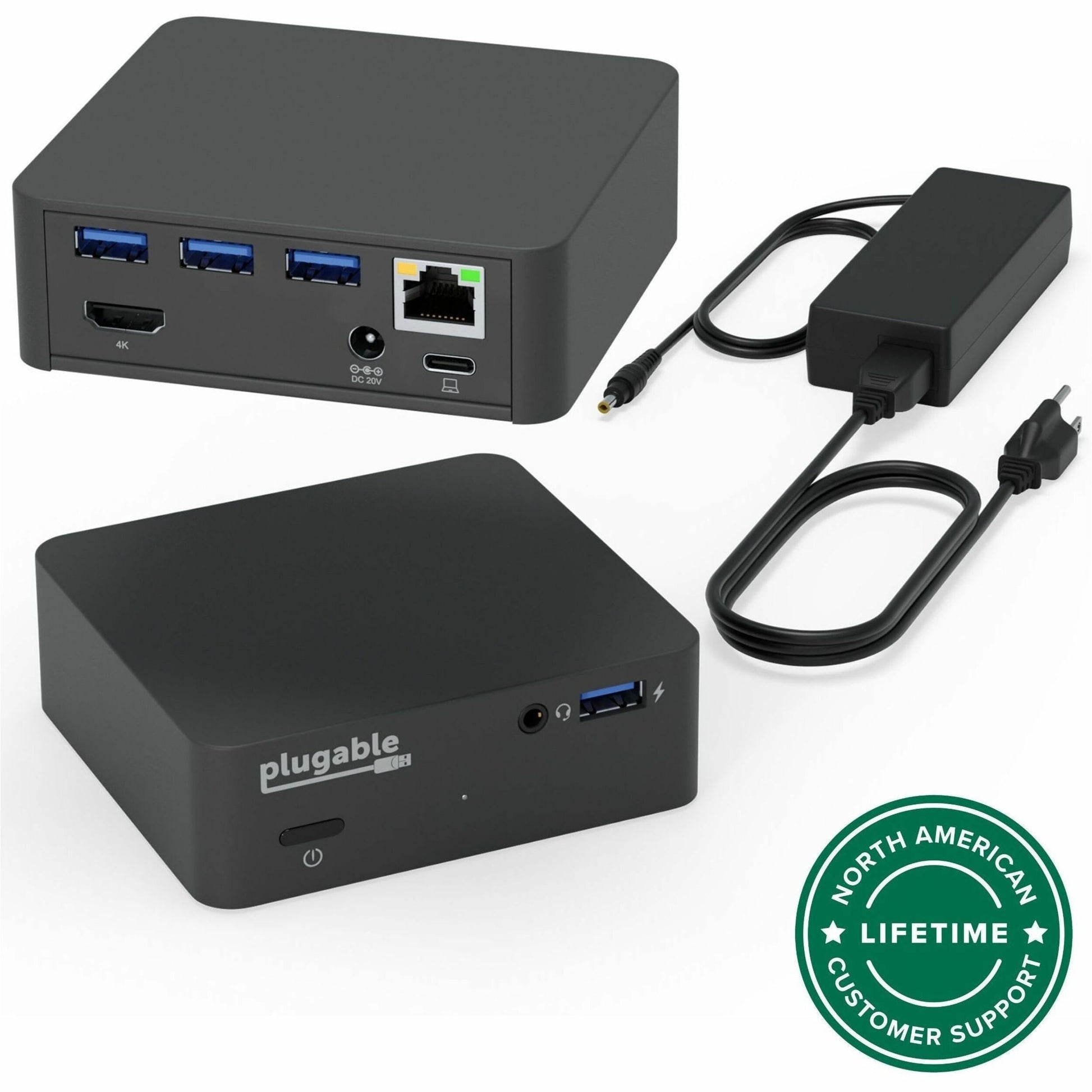

Plugable USB C Dock with 85W Charging Compatible with Thunderbolt 3 and USB-C MacBooks and Select Windows Laptops - UD-CAM
Key Features
- Small form factor, big functionality
- Supports display resolutions up to 4K@30Hz
- USB-C Power Delivery provides up to 85W of charging power to host system

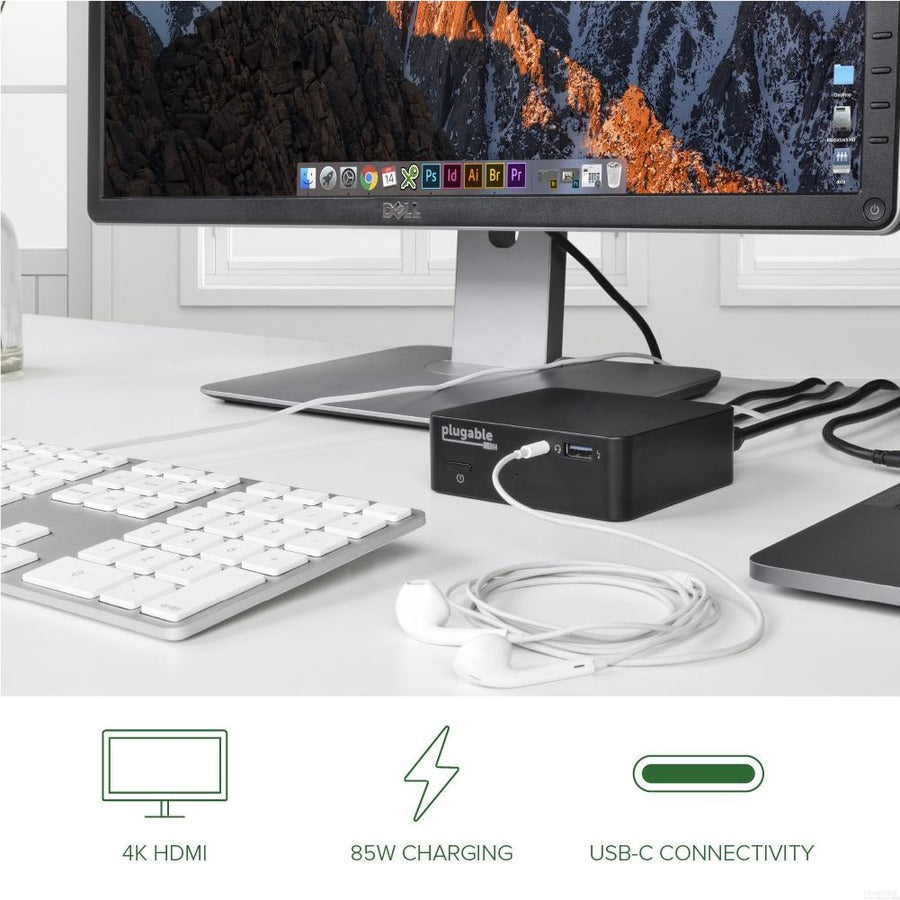

Product Overview
The Plugable UD-CAM USB-C Mini Docking Station provides an additional HDMI display output (via Alternate Mode, converted internally to HDMI for maximum compatibility), up to 85 Watts of Power Delivery (PD) to charge your host computer via USB-C (host computer must support PD over USB-C), gigabit Ethernet, audio, and expanded USB device connectivity. All through a single USB-C cable.
The UD-CAM docking station utilizes new USB-C functionality to output native video over compatible USB-C ports. USB-C ""Alternate Mode"" provides a direct pipeline to the graphics processor in your system, and your connected monitor will function and perform as a natively attached display. The Alternate Mode signal is converted to HDMI 1.4 to accommodate widely available HDMI monitors.
Compatible Systems
Plug and play installation on virtually any Windows, Mac, or Linux host which supports Alternate Mode (Alt Mode) video output functionality. Current examples are the 12"" Retina MacBook with USB-C / Late 2016 / 2017 MacBook Pro / Lenovo Yoga 720 13"" / Surface Book 2 / Dell XPS 13"" (9350/9360) / Pixelbook. Dell XPS 15"" (9550/9560) will function but displays a warning on boot if a 130W charger is not detected.
Power and Charging
The UD-CAM's power supply can charge hosts with up to 85 Watts of power via the USB Power Delivery standard. As mentioned above, some devices which support video output over USB-C will not charge via USB-C. For these systems, the charger from your system manufacturer will be required.

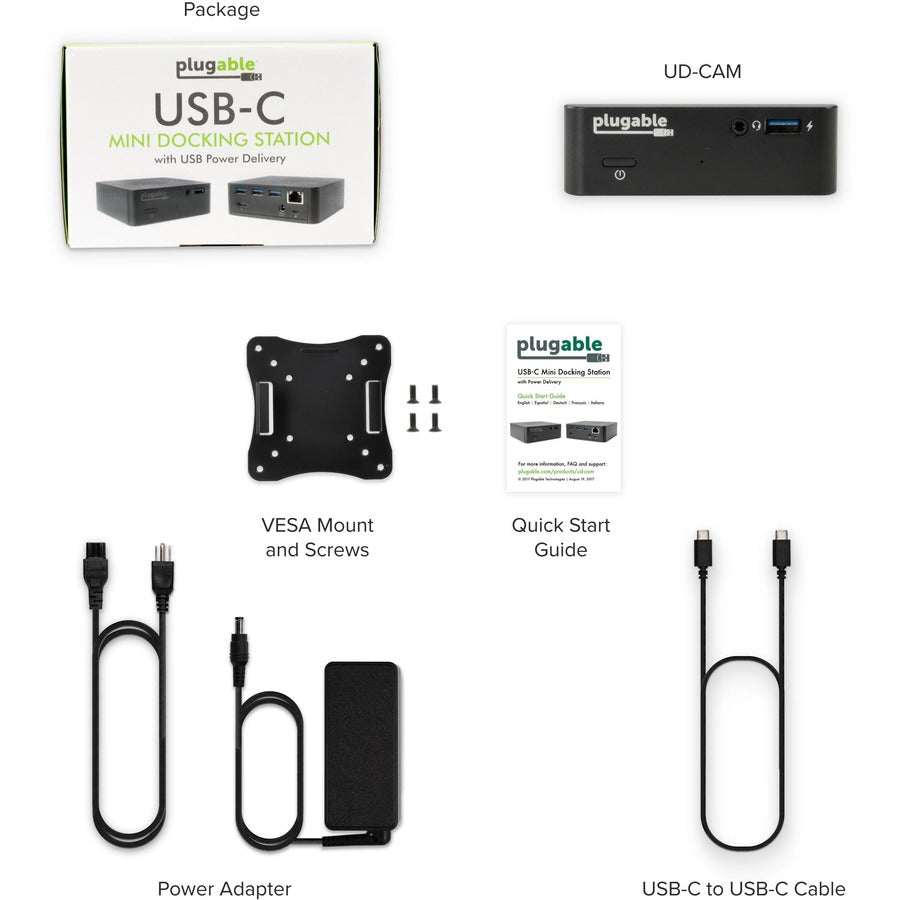

In the Box
UD-CAM Mini Docking Station,1m long USB-C cable, 100W (20V, 5A) power supply with US power plug, VESA Mount, and quick start guide.
General Information
- Manufacturer: Plugable Technologies
- Manufacturer Part Number: UD-CAM
- Brand Name: Plugable
- Product Model: UD-CAM
- Product Name: USB-C Mini Docking Station with 85W Power Delivery
- Packaged Quantity: 1
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 1
- Supported Resolutions:
- 3840 x 2160
- 2560 x 1440
- 1920 x 1080
- 2560 x 1080
- 1600 x 900
- 1280 x 1024
- 1280 x 800
- 1280 x 720
- 1024 x 768
- 800 x 600
- 640 x 480
- Screen Mode Supported: 4K
- Device Supported:
- Tablet PC
- Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet

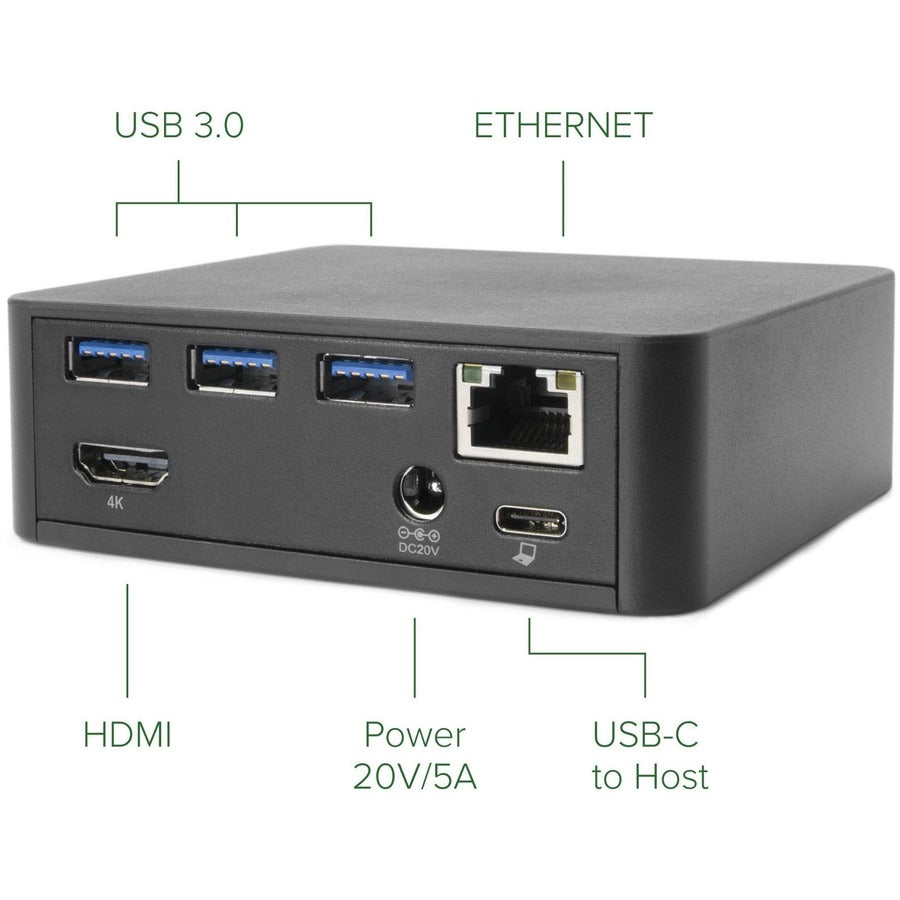

Interfaces/Ports
- Host Interface: USB 3.1 (Gen 1) Type C
- Total Number of USB Ports: 4
- Number of USB 3.0 Ports: 4
- Number of USB Type-A Ports: 4
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Outputs: 1
- HDMI: Yes
- Thunderbolt: Yes
- USB Power Delivery: 85W
Software
- Operating System Supported:
- Windows
- macOS
- ChromeOS
Power Description
- Maximum Power Supply Wattage: 100 W

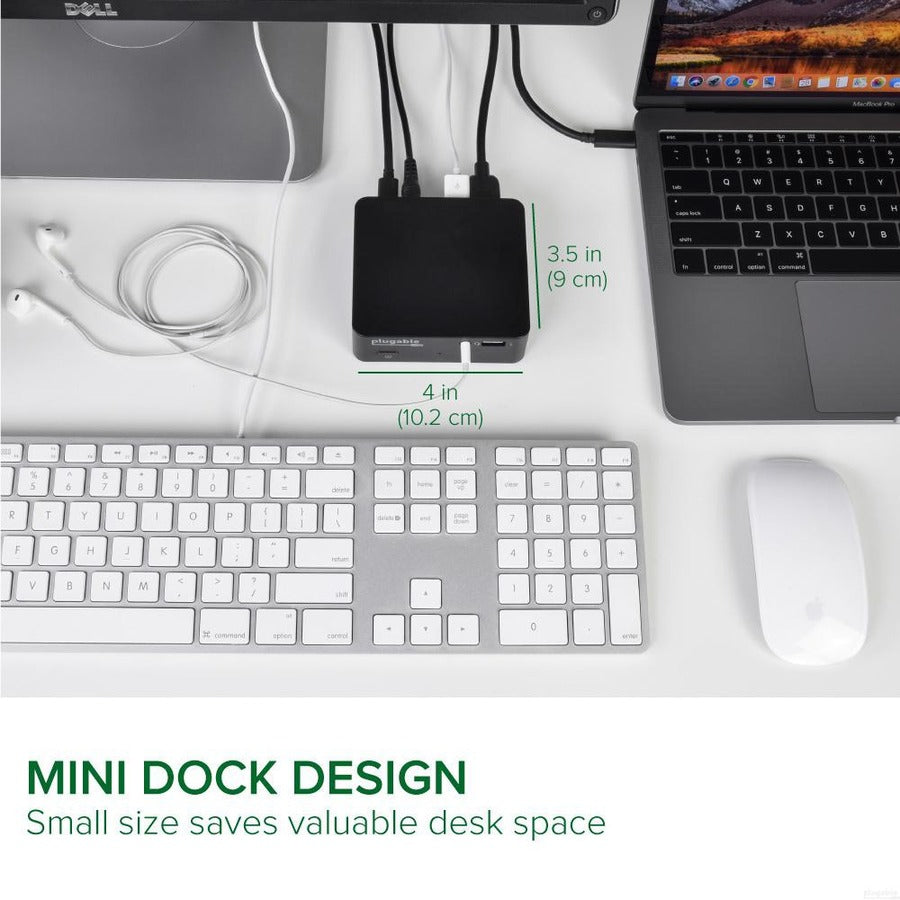

Physical Characteristics
- Height: 1.20"
- Width: 3.90"
- Weight (Approximate): 6.30 oz
Miscellaneous
- Package Contents:
- USB-C Mini Docking Station with 85W Power Delivery
- 1 x USB-C to USB-C Cable
- 1 x Power Adapter

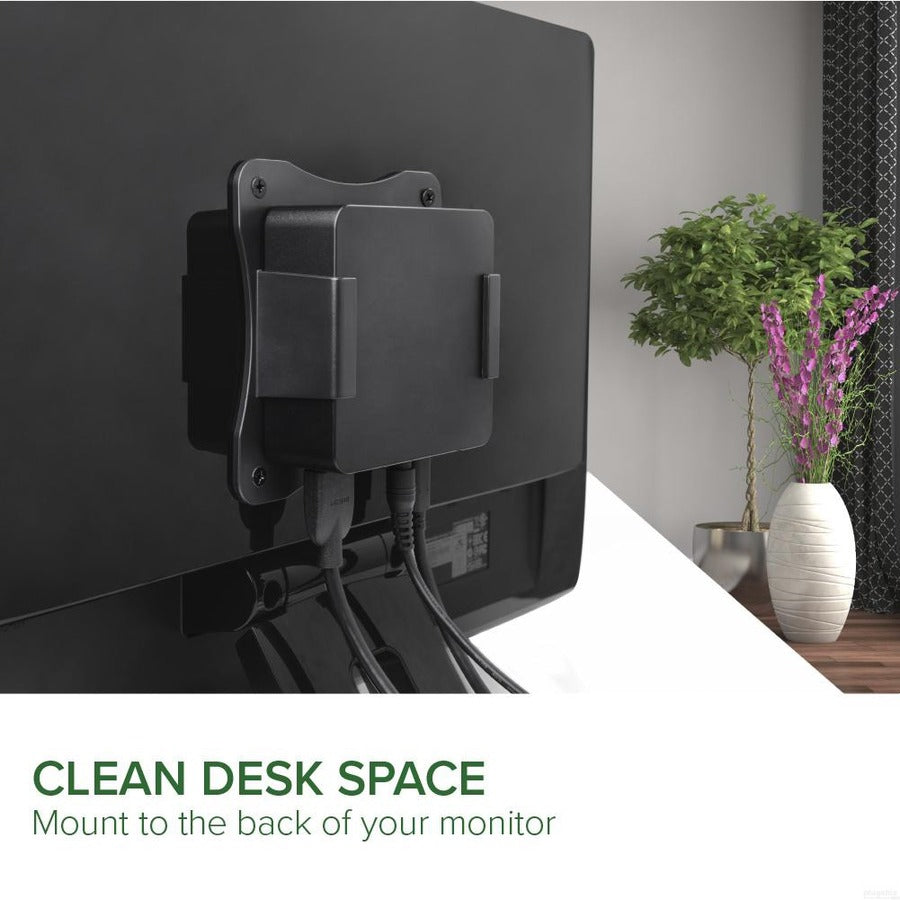

- 1 x VESA Mount + Screws
- Compatibility:
Acer Notebook:
- Chromebook 14
Apple Notebooks:
- MacBook 12" Retina 2016
- MacBook Pro 13" Late 2016 (non Touch Bar)
- MacBook Pro 15" Late 2016 (with Touch Bar)
- Macbook Pro 13" Early 2018 (with Touch Bar)
ASMedia Controller:
- USB 3.1 (Generic)
ASUS Notebook:
- Vivobook Max X541NA-PD1003Y
Dell Notebooks:
- Latitude 5580
- Latitude 7280
- XPS 13 9350 (Intel 6th Gen CPU)
- XPS 13 9360 (Intel 7th Gen CPU)
- XPS 15 9550 (Intel 6th Gen CPU)
- XPS 15 9560 (Intel 7th Gen CPU)
- XPS 15 9570
HP Products:
- Spectre X360 Convertible 13-AC0XX
- Chromebook 13 G1 (TPN-Q176)
- Elite Folio G1
- Elite X2 1012 G1
Huawei Notebooks:
- Matebook
Lenovo Products:
- Yoga 720 13" 1st gen
- Yoga 900 113ISK
- Yoga 910 14"
- Yoga 920
- Miix 720
- X1 Carbon 5th Gen
Microsoft Notebook:
- Surface Book 2
Google Notebook:
- Pixelbook
Samsung Notebook:
- Chromebook Plus (XE513C24)
https://docs.google.com/spreadsheets/d/1y1BcngYaXtfc-mk-JjJ2j3XzmrRV_DaqaN7uxiAsFEw/htmlembed?gid=0&range=A1:CC999&widget=false&gridlines=true&chrome=false
- Country of Origin: Taiwan
Warranty
- Limited Warranty: 2 Year
