Sharp 55" Ultra-Narrow Bezel Professional-Grade Display - PN-UN553S
Key Features
- Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
- Direct LED backlight technology for a consistent picture quality from corner to corner
- Engages your customers and makes their viewing experience breathtaking with its 1080p content
- Experience luminescent visual images with LCD display
- Features full 1920 x 1080 HD resolution enabling sharp and clear images
Product Overview

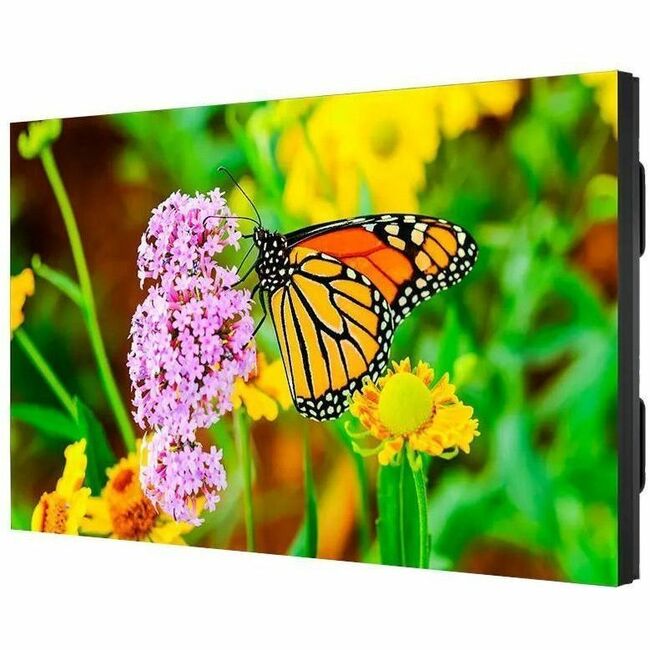

55" Ultra-Narrow Bezel Professional-Grade Display
Sharp's 55" PN-UN553S sets the standard for quality color reproduction in video wall environments. Direct LED backlighting and factory calibration for brightness intensity, gamma, uniformity, white point and RGB allows for ideal panel settings and an easy out-of-the-box experience. Brand new panel technology minimizes the bezel gap of this display, allowing for a < 1.0mm distance between adjacent displays with a 0.44mm even and near bezel-less design per unit. This display is integrated with the proprietary SpectraView Engine, which not only allows for ultimate color control but also allows for increased color calibration capabilities including white copy, self calibration to an external sensor and manual CIE chromaticity adjustment for maximum control when color matters most. This display also includes both a DisplayPort and an HDMI Out connections for daisy chaining signals up to 4K UHD. This new generation of display also received a full chassis upgrade with faster processing times, evolved daisy chain performance, and new TileMatrixing capabilities.
Features
- SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
- Near Bezel-less panel technology allows for an even 0.44mm design, allowing for the distance between adjacent displays to be <1.0mm
- 700cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
- TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
- Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
General Information
- Manufacturer: Sharp Electronics
- Manufacturer Part Number: PN-UN553S
- Brand Name: Sharp
- Product Model: PN-UN553S
- Product Name: 55" Ultra-Narrow Bezel Professional-Grade Display
- Product Type: Digital Signage Display
Technical Information
- Video Wall Compatible: Yes
- Bezel Width (Top): 17.3 mil
- Bezel Width (Bottom): 17.3 mil
- Bezel Width (Left): 17.3 mil
- Bezel Width (Right): 17.3 mil
- Panel Technology: Super In-plane Switching (S-IPS) Technology
- Operation Hours: 24 Hours/7 Days
Display & Graphics
- Number of Screens: 1
- Viewable Screen Size: 55"
- Screen Size Class: 55"
- Display Screen Type: LCD
- High Dynamic Range (HDR): Yes
- Response Time: 8 ms
- Display Resolution: 1920 x 1080
- Orientation: Landscape/Portrait
- Backlight Technology: Direct LED
- Aspect Ratio: 16:9
Video
- Scan Format: 1080p
- Native Contrast Ratio: 1,100:1
- Brightness: 700 Nit
Network & Communication
- Ethernet: Yes
Interfaces/Ports
- USB: Yes
- DVI: Yes
- HDMI: Yes
- DisplayPort: Yes
- Serial: Yes
- Number of HDMI Inputs: 2
- Number of DisplayPorts: 2
- DisplayPort Output: Yes
- RS-232C Input: Yes
- Number of HDMI 2.0 Ports: 2
- Number of DisplayPort 1.2 Ports: 2
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
- VESA Mount Standard: 400 x 400
- Height: 26.8"
- Width: 47.7"
- Depth: 3.9"
- Weight (Approximate): 61.95 lb
Environmental Conditions
- Minimum Operating Temperature: 41°F (5°C)
- Maximum Operating Temperature: 104°F (40°C)
- Minimum Storage Temperature: -4°F (-20°C)
- Maximum Storage Temperature: 140°F (60°C)
- Minimum Operating Humidity: 20%
- Maximum Operating Humidity: 80%
- Minimum Storage Humidity: 10%
- Maximum Storage Humidity: 90%
Miscellaneous
- Package Contents:
- 55" Ultra-Narrow Bezel Professional-Grade Display
- 2.0m DisplayPort cable
- 2.0m HDMI cable
- 3.0m Power cord
- Clamp for Power Cable
- Contents Sheet
- LAN cable
- SD Card Cover
- Setup Manual
- Application/Usage:
- Professional Audio/Video
- Industrial
Warranty
- Limited Warranty: 3 Year
