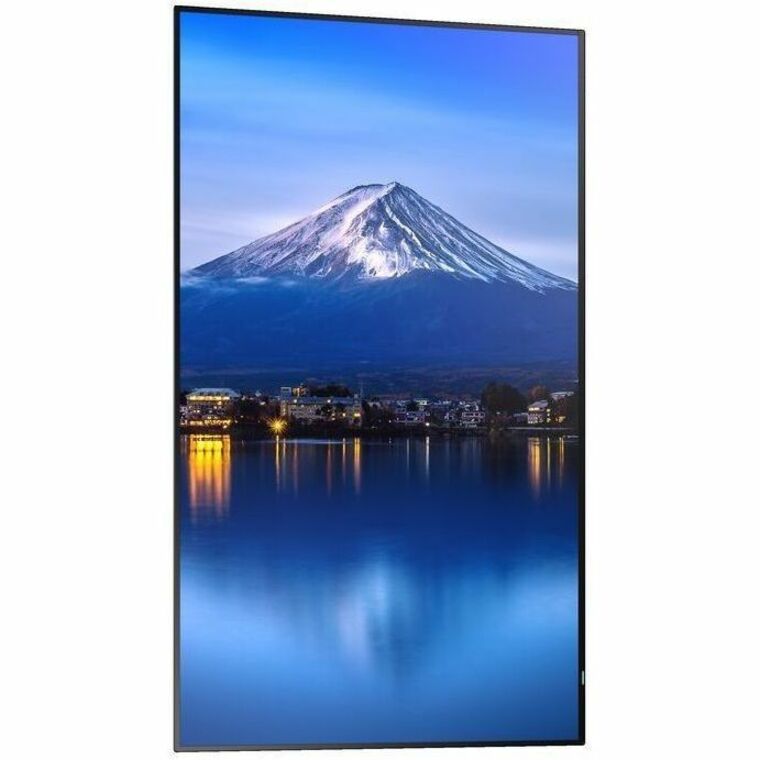

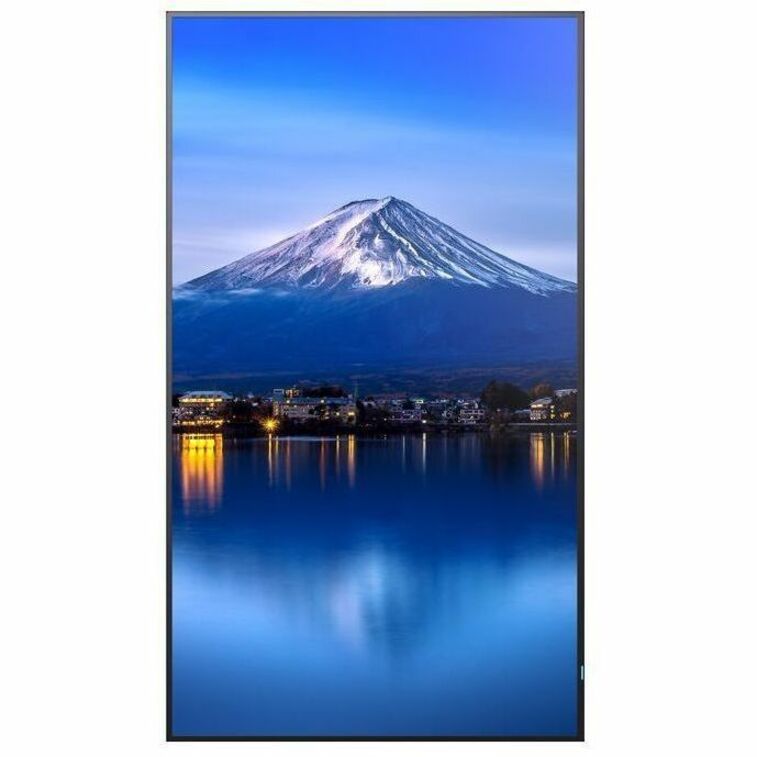

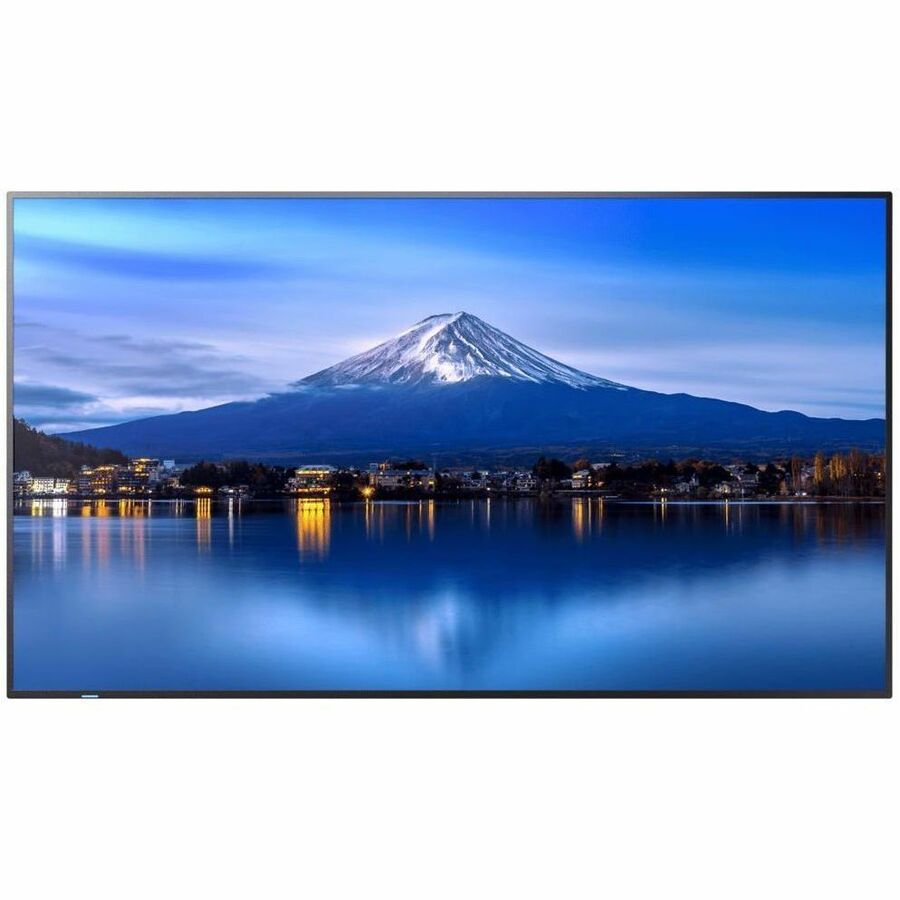

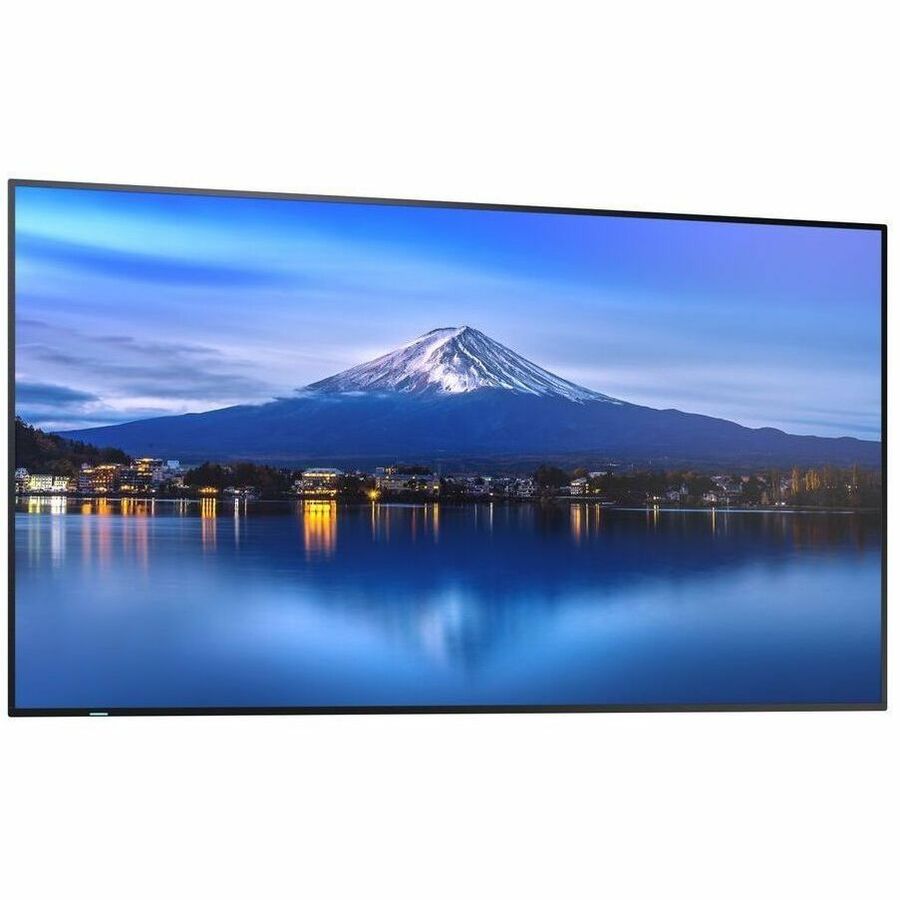

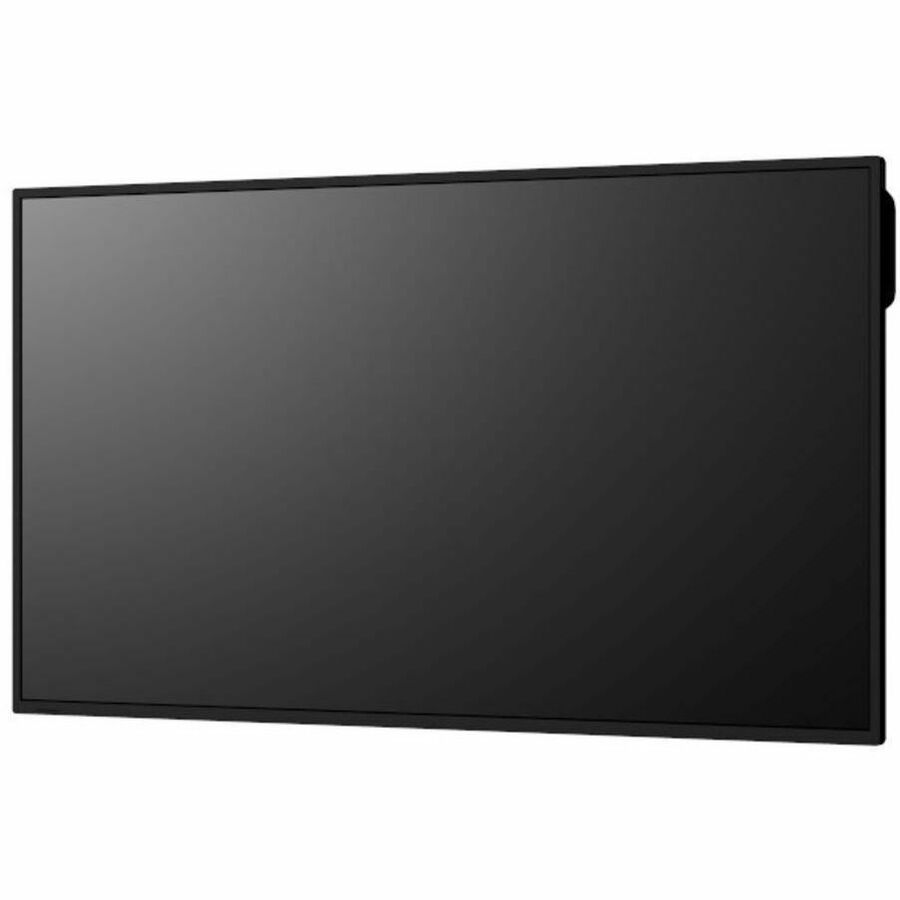

Sharp NEC Display 43" Ultra High Definition Professional Display - PN-P436
Key Features
- 4K UHD native resolution
- 700 cd/m2 brightness
- allow for more streamlined operations when using as a presentation type of device
- allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
- allows for easy integration into control systems via LAN or RS232C
- allows for flexibility of installation dependent on your needs
- Bidirectional and Full External Control
- Energy Star 8.0 Certified Product
- Enhanced Daisy Chain Capabilities
- Failover Capabilities
- Free software solution that greatly eases administration and management of larger display device installations
- Full 5 year commercial warranty
- Industrial-strength, premium-grade panel
- Integrated USB-C input with DP-Alt Mode, 65W Power Delivery and Hub functionality
- LAN Daisy Chain
- Landscape and Portrait orientation
- NaViSet Administrator 2
- passes RS-232C, TCP-IP and IR signal to easily control groups of displays without having to run extra cable
- through both HDMI and DisplayPort Out Connections passing any digital input into the d
Product Overview
Create pixel perfect imagery with the high-end panel quality of the new fully commercial Sharp PN-P Series large format displays. By implementing premium features and focusing on creating impressionable digital signage experiences, the PN-P series gives customers an elite display option with its one-of-a-kind and proprietary SpectraView Engine capabilities, these displays offer out-of-the-box factory panel calibration, allowing for consistent visuals out of the box. On top of that, these products allow customers the modularity capabilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity interface allows customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The Sharp PN-P series boasts 700 cd/m2 brightness which is ideal for a majority of high end digital signage applications in transportation, command and control, retail, healthcare and corporate environments when high-end and feature rich displays are necessary to convey important messaging.
General Information
- Manufacturer: Sharp
- Manufacturer Part Number: PN-P436
- Brand Name: Sharp NEC Display
- Product Series: PN-P
- Product Model: PN-P436
- Product Name: 43" Ultra High Definition Professional Display
- Product Type: Digital Signage Display
Technical Information
- Bezel Width (Top): 0.39"
- Bezel Width (Bottom): 0.55"
- Bezel Width (Left): 0.39"
- Bezel Width (Right): 0.39"
- Panel Technology: In-plane Switching (IPS) Technology
- Operation Hours: 24 Hours/7 Days
Display & Graphics
- Number of Screens: 1
- Viewable Screen Size: 43"
- Screen Size Class: 43"
- Display Screen Type: LCD
- High Dynamic Range (HDR): Yes
- High Dynamic Range (HDR) Type:
- Hybrid Log Gamma (HLG)
- PQ
- HDR10
- Response Time: 8 ms
- Display Resolution: 3840 x 2160
- Orientation: Landscape/Portrait
- Backlight Technology: Direct LED
- Aspect Ratio: 16:9
Video
- Scan Format: 2160p
- Dynamic Contrast Ratio: 1,200:1
- Brightness: 700 Nit
Network & Communication
- Ethernet: Yes
Interfaces/Ports
- USB: Yes
- HDMI: Yes
- DisplayPort: Yes
- Serial: Yes
- Number of HDMI Inputs: 2
- Number of DisplayPorts: 2
- DisplayPort Output: Yes
- RS-232C Input: Yes
- Number of HDMI 2.0 Ports: 2
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
- VESA Mount Standard: 300 x 300
- Mount Type:
- Wall Mountable
- Table Mount
- Mount Surface: Wall
- Height: 21.9"
- Width: 38"
- Depth: 2.6"
- Weight (Approximate): 29.76 lb
Environmental Conditions
- Minimum Storage Temperature: -4°F (-20°C)
- Maximum Storage Temperature: 140°F (60°C)
- Minimum Operating Humidity: 20%
- Maximum Operating Humidity: 80%
- Minimum Storage Humidity: 10%
- Maximum Storage Humidity: 80%
Miscellaneous
- Package Contents:
- 43" Ultra High Definition Professional Display
- 3.0m HDMI cable
- 3m Power cord
- Batteries
- Setup Guide
- Wireless remote control
- Application/Usage:
- Commercial
- Transportation
- Command Center
- Retail
- Healthcare
- Corporate
- Energy Star: Yes
- Energy Efficiency Certification: ENERGY STAR 8.0
