- Description
- Specifications

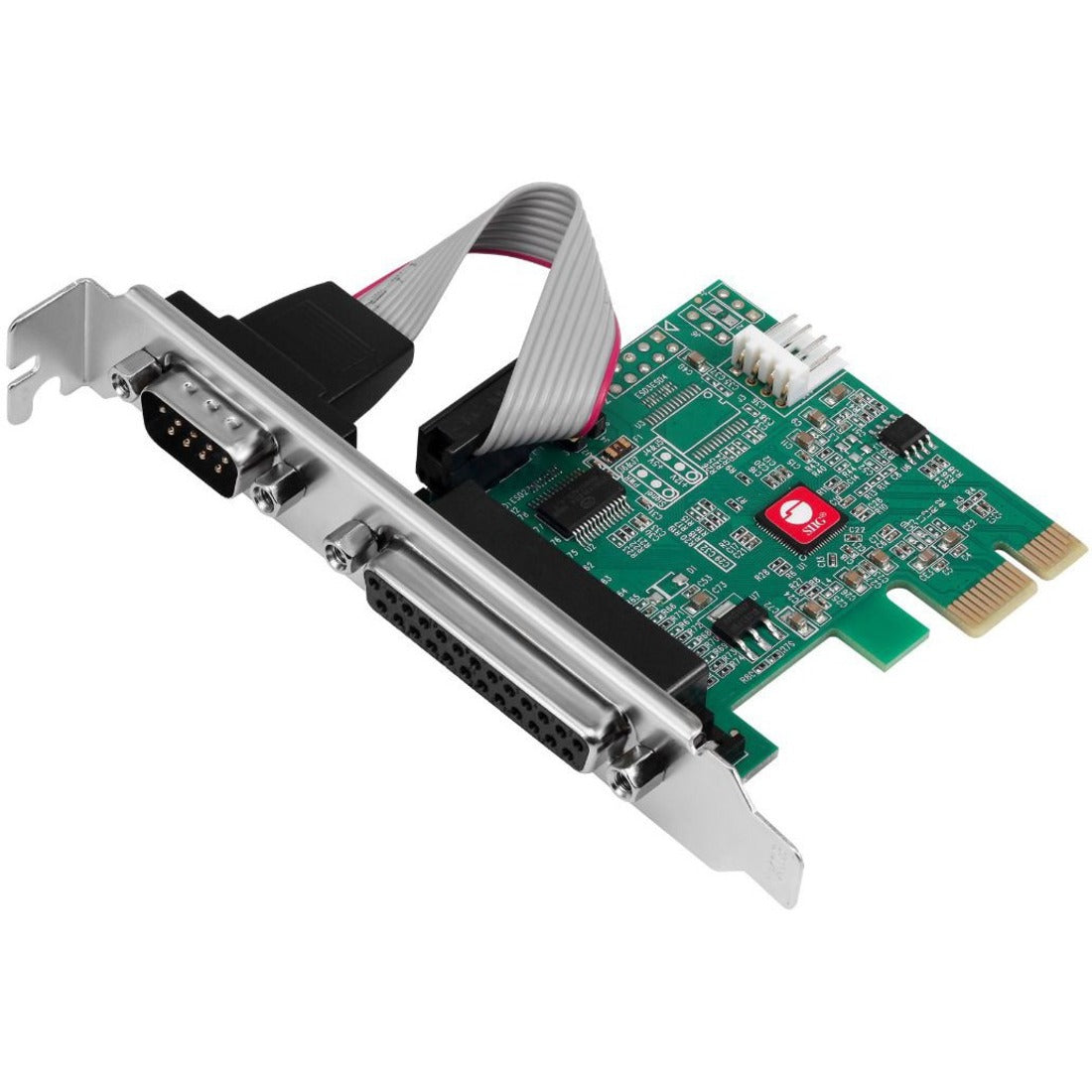

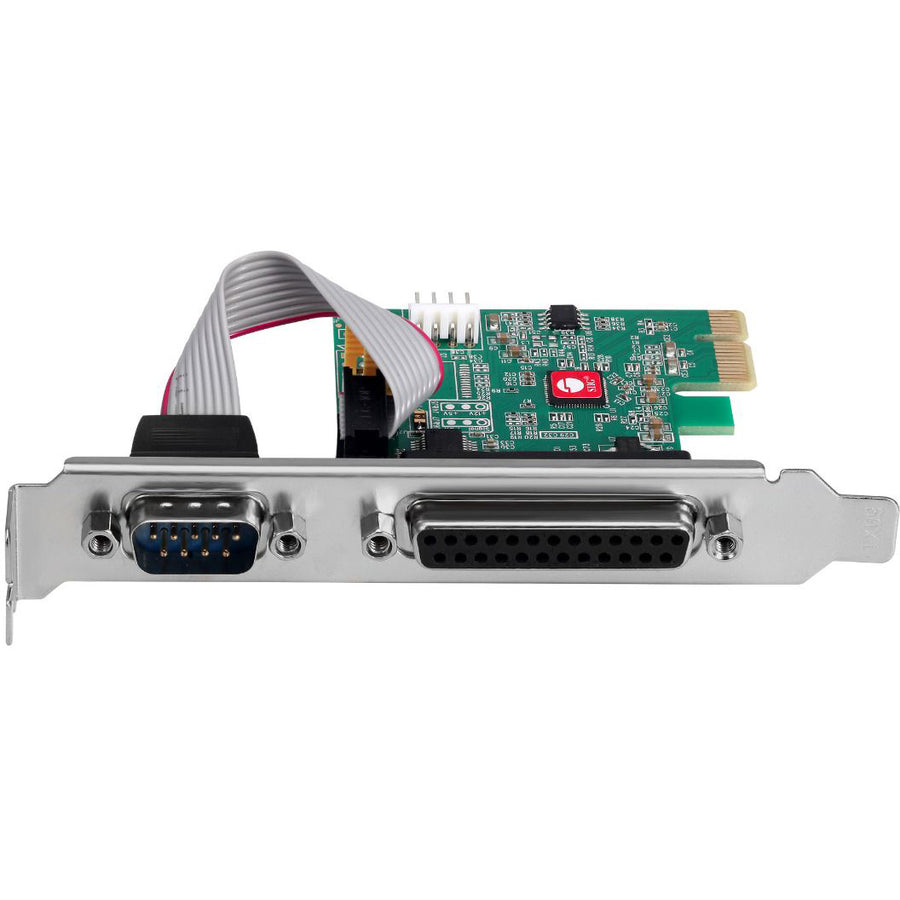

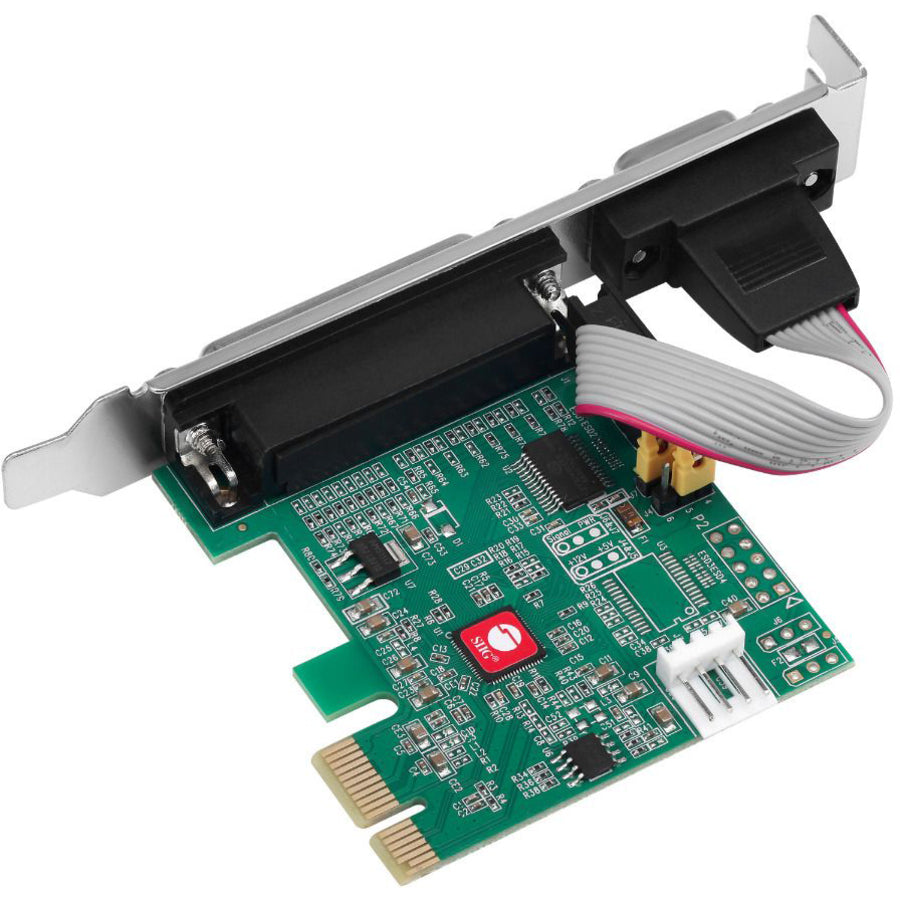

SIIG DP Cyber 1S1P PCIe Card - JJ-E20311-S1
Key Features
- 16C650 UART serial port with data transfer rate up to 250Kbps
- 5, 6, 7, 8 and 9-bit serial format
- Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
- Compliant with PCI Express 2.0 Gen 1
- Easily adds one serial port and one parallel port through an available PCI Express slot
- Even, odd, none, space and mark parity
- Full serial modem control
- Hardware and software flow control
- On chip 256 byte FIFO buffers in transmit, receive path
- Single-lane (X1) PCI Express end-point controller with PHY integrated
Product Overview

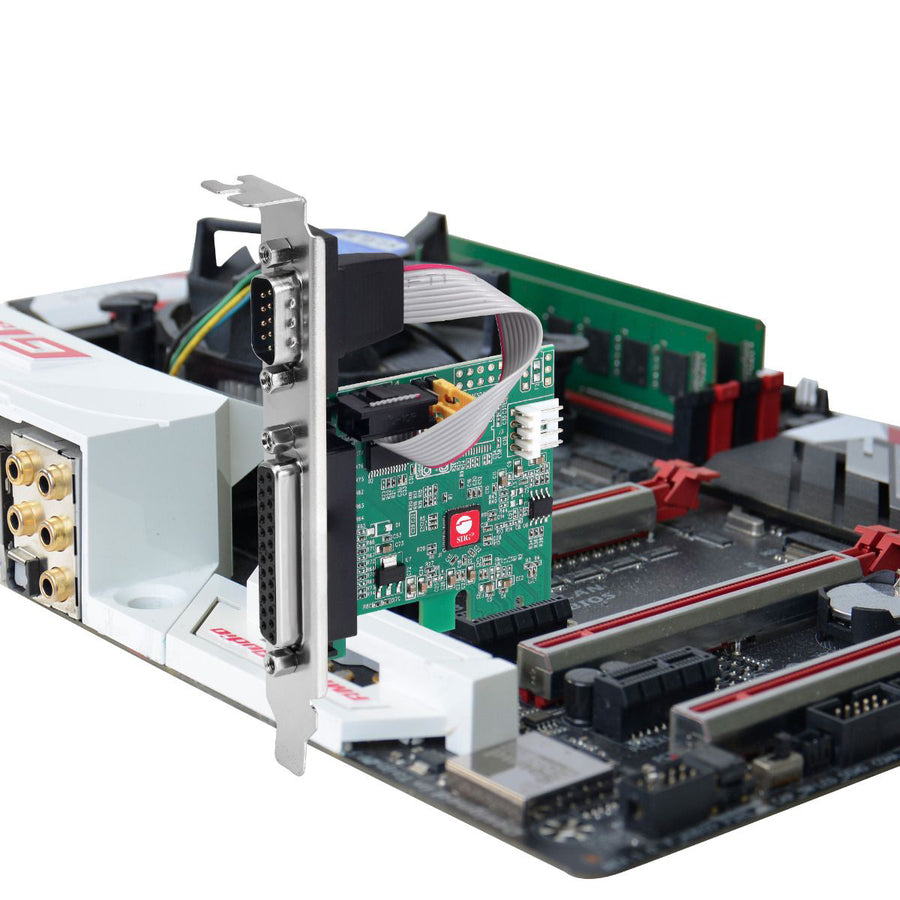

Adds one RS-232 serial port and one parallel port to a PCI Express enabled system
General Information
- Manufacturer: SIIG, Inc
- Manufacturer Part Number: JJ-E20311-S1
- Brand Name: SIIG
- Product Name: DP Cyber 1S1P PCIe Card
- Product Type: Serial/Parallel Combo Adapter
Technical Information
- Host Interface: PCI Express 2.0 x1
- Platform Supported: PC
Interfaces/Ports
- Number of Parallel Ports (External): 1
- Number of Serial Ports (External): 1
Physical Characteristics
- Form Factor: Plug-in Card
- Card Height: Full-height
- Height: 2.9"
- Width: 4.7"
- Depth: 0.7"
- Weight (Approximate): 1.60 oz
Miscellaneous

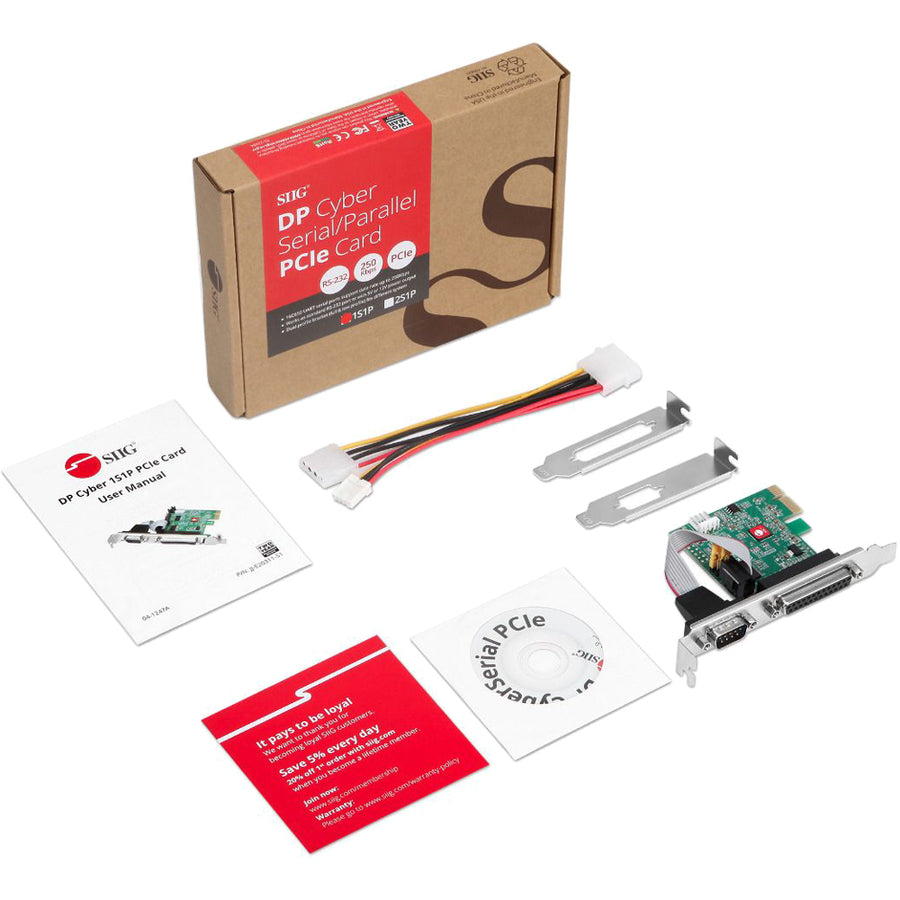

- Package Contents:
- DP Cyber 1S1P PCIe Card

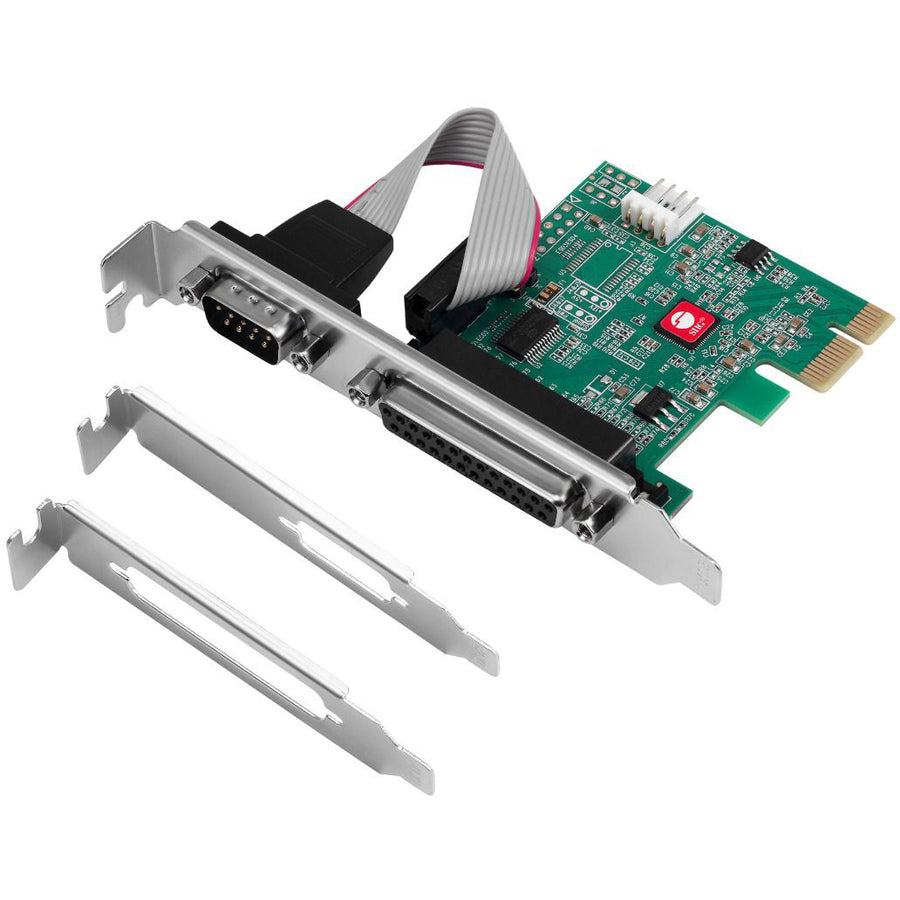

- 2 x Low-Profile Bracket
- Y-Split Power Cable
- 2 x Voltage Jumper
- Software CD
- User Manual
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
