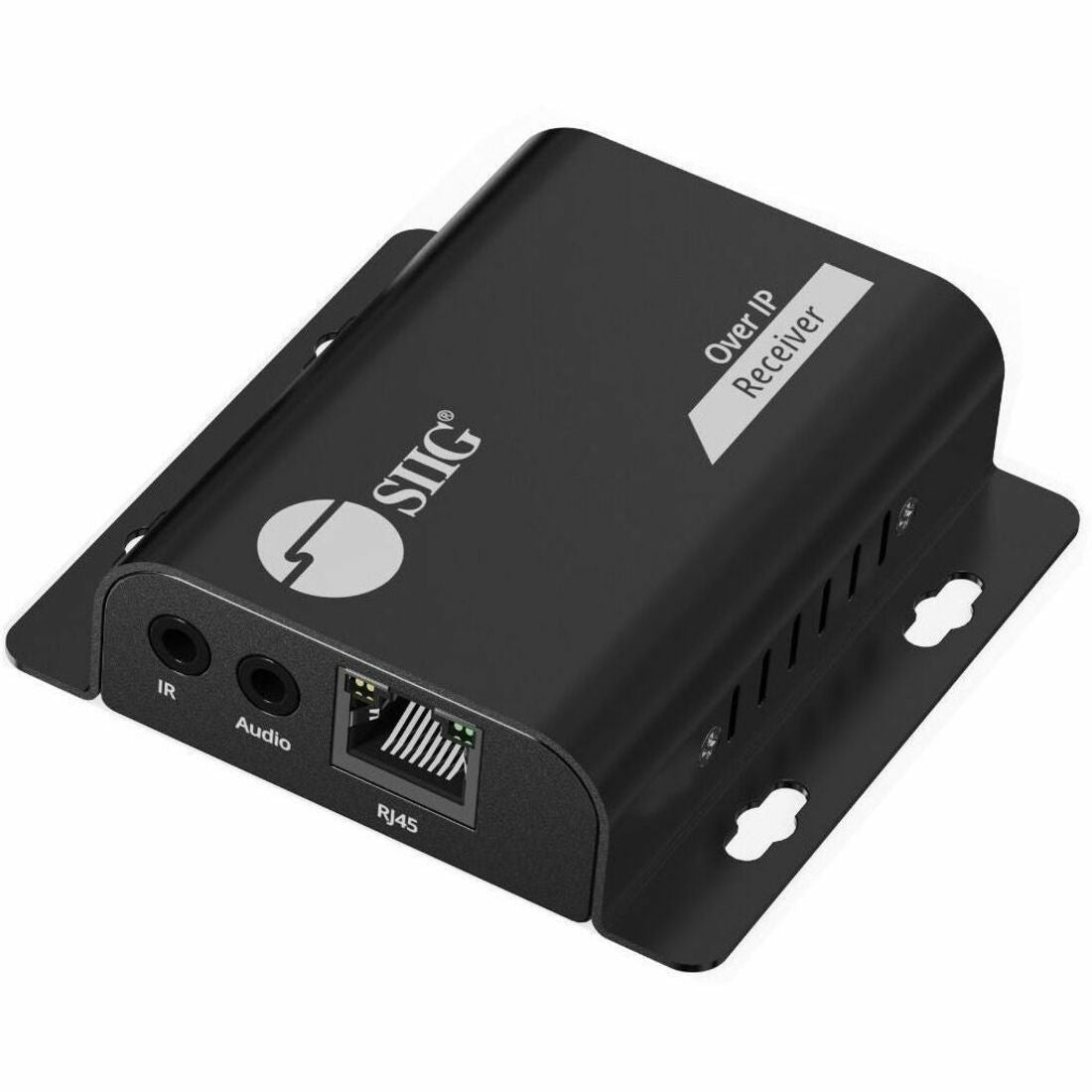

SIIG HDMI Over IP Extender with IR - 492ft (150m) - Receiver - 1080p- IR - One-to-Many - CE-H3IP11-S1
Key Features
- IR Remote Control Extension (20-60KHz) Easily control your source device from the receiver location with integrated IR pass-through support

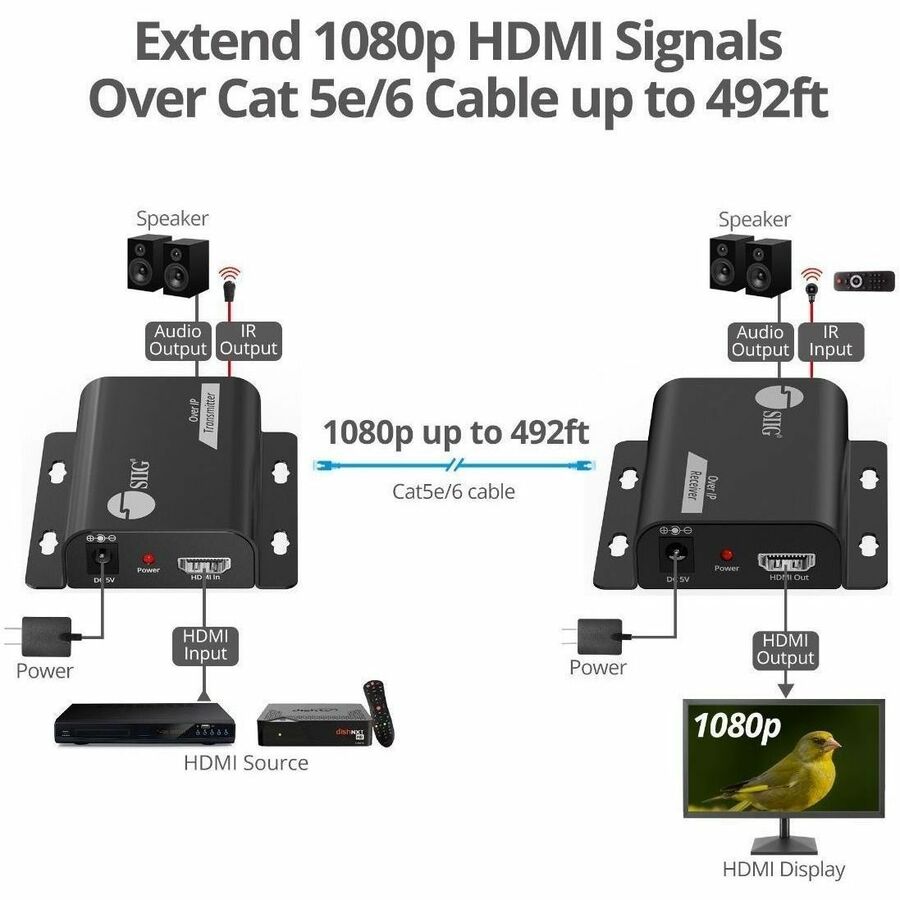

- Long-Distance HDMI Transmission - Up to 492ft (150m) Extend 1080p HDMI video and audio signals up to 492 feet over standard Cat5e/6 network cables with exceptional clarity and stability
- Note:
- Scalable Network Protocol (TCP/IP) Designed for flexible IP-based installations. Connect one transmitter to up to 253 receivers across your network

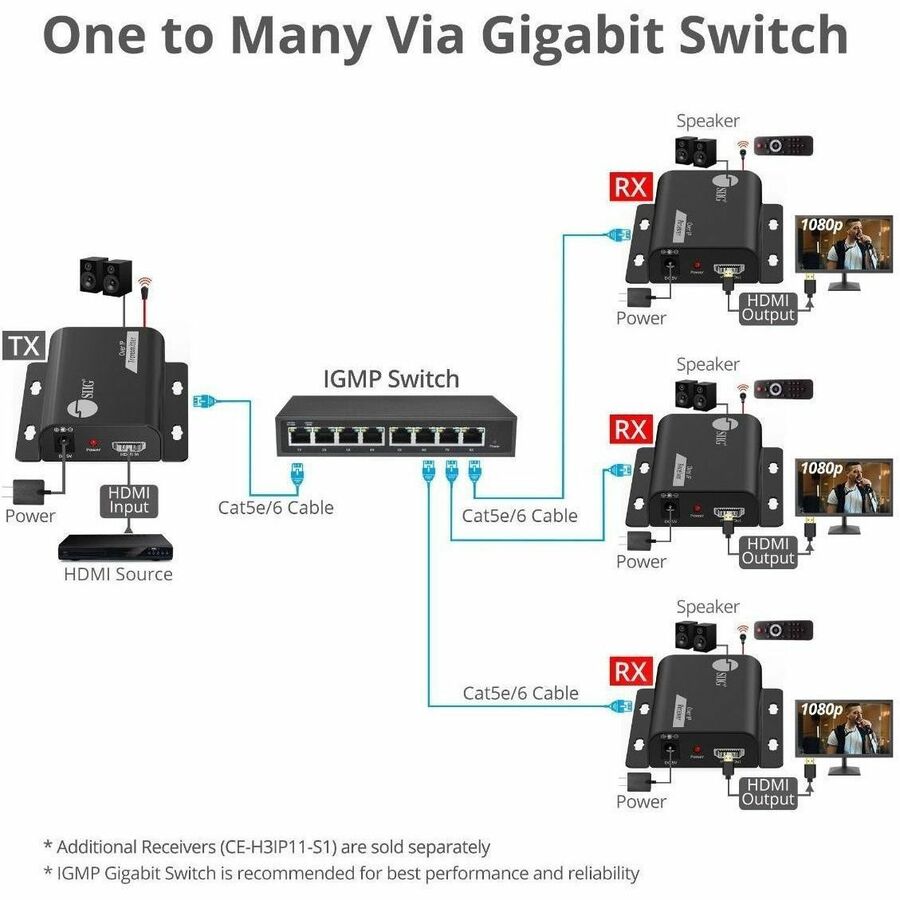

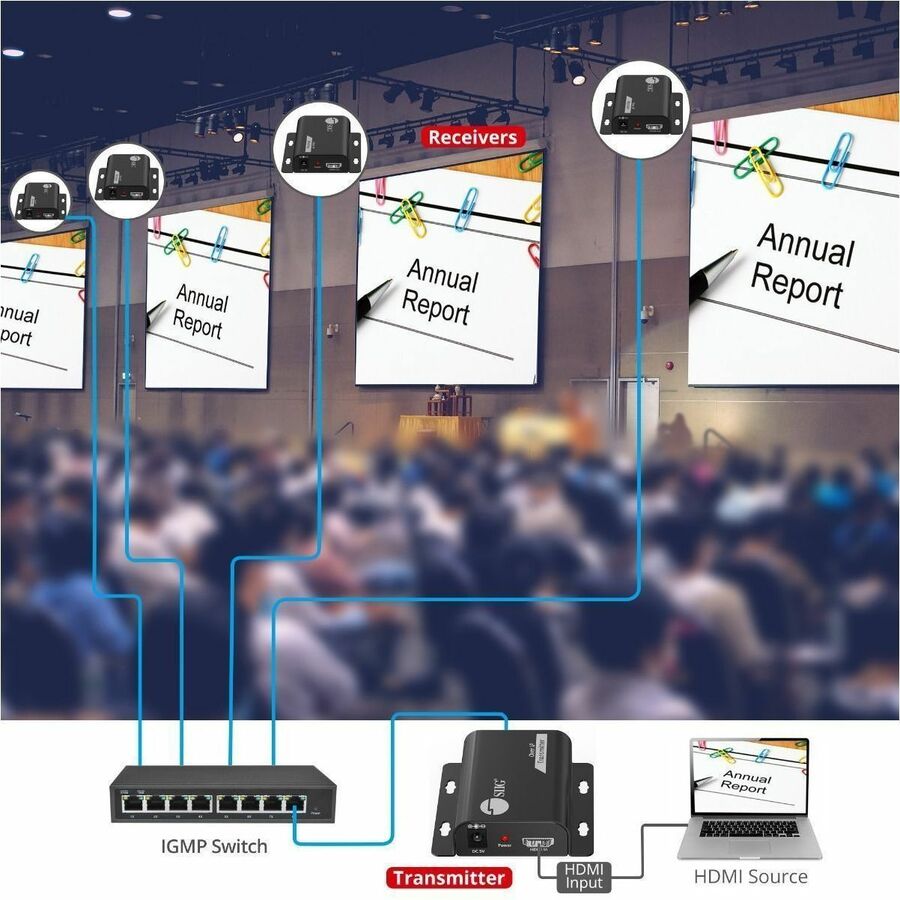

- Scalable, Flexible One-to-One or One-to-Many Setups Easily expand your video distribution using standard unmanaged Gigabit network switches to create One-to-Many Configuration. One transmitter can connect to up to 253 receivers (the additional receiver for Part# CE-H3IP01-S1 kit), ensuring a flexible and future-ready solution
- Secure & Flexible Installation The plug-and-play design requires no drivers or software. Durable and mountable metal housing with ESD protection ensures reliable long-term performance
- Stereo Audio + Audio Extraction Support Supports stereo audio through HDMI and features 3.5mm output jacks on both transmitter and receiver for PCM 2CH audio extraction
- Stunning Full HD 1080p @ 60Hz Delivers crisp, vivid visuals with smooth frame rates - perfect for presentations, signage, and multimedia playback
- This additional RX (part# CE-H3IP11-S1) must be used with the Kit (part# CE-H3IP01-S1)
Product Overview

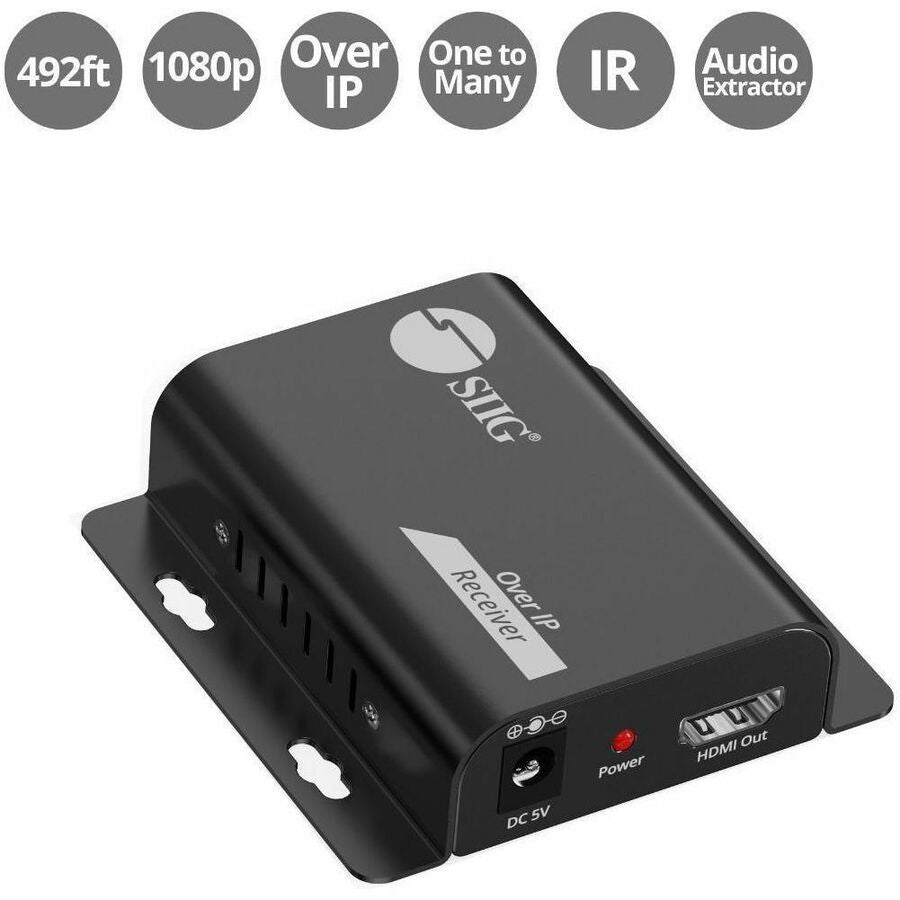

HDMI Over IP Extender with IR- 492ft (150m) - RX, Full HD 1080p Transmission with IR Control, Audio Extraction, and One-to-Many Support; A high-performance HDMI Over IP Extender designed for long-distance signal transmission up to 492ft (150m) via standard Cat5e/6 network cables. Ideal for digital signage, education, broadcasting, and commercial AV systems, the additional receiver for Part# CE-H3IP01-S1 kit
General Information
- Manufacturer: SIIG, Inc
- Manufacturer Part Number: CE-H3IP11-S1
- Brand Name: SIIG
- Product Name: HDMI Over IP Extender with IR - 492ft (150m) - Receiver only, 1080p @ 60Hz, IR Control, Audio Extraction, One-to-Many Support
- Packaged Quantity: 1
- Product Type: Video Extender Receiver
Technical Information
- Connectivity Technology: Wired
- Number of Output Devices Supported: 1
- Maximum Operating Distance: 492.13 ft
- Data Link Protocols: TCP/IP
Video
- Graphics Modes: Full HD
- Supported Video Modes:
- 1080p
- 480p
- 576p
- 720p
- 1080i
- Maximum Video Resolution: 1920 x 1080

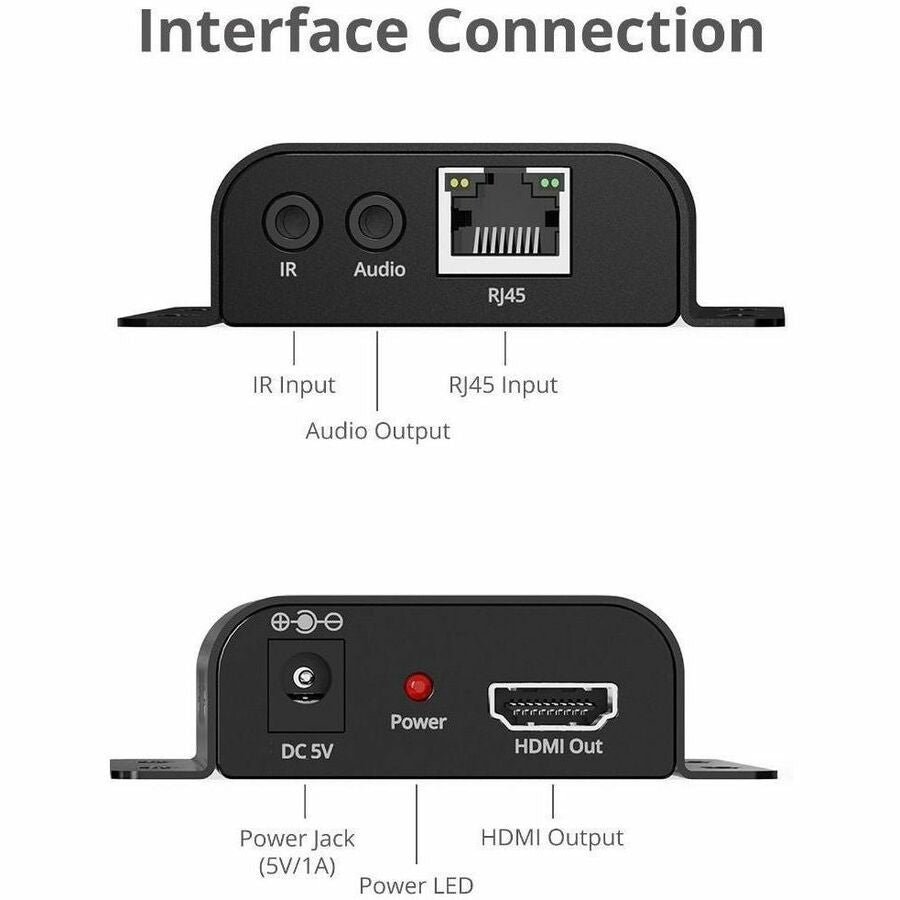

Interfaces/Ports
- Network (RJ-45): Yes
- HDMI Out: Yes
- Number of Network (RJ-45) Ports: 1
- Number of HDMI Outputs: 1
- Remote (IR) Input: 1
Media & Performance
- Twisted Pair Cable Standard:
- Category 5e
- Category 6
Physical Characteristics
- Color Family: Black
- Product Color: Black

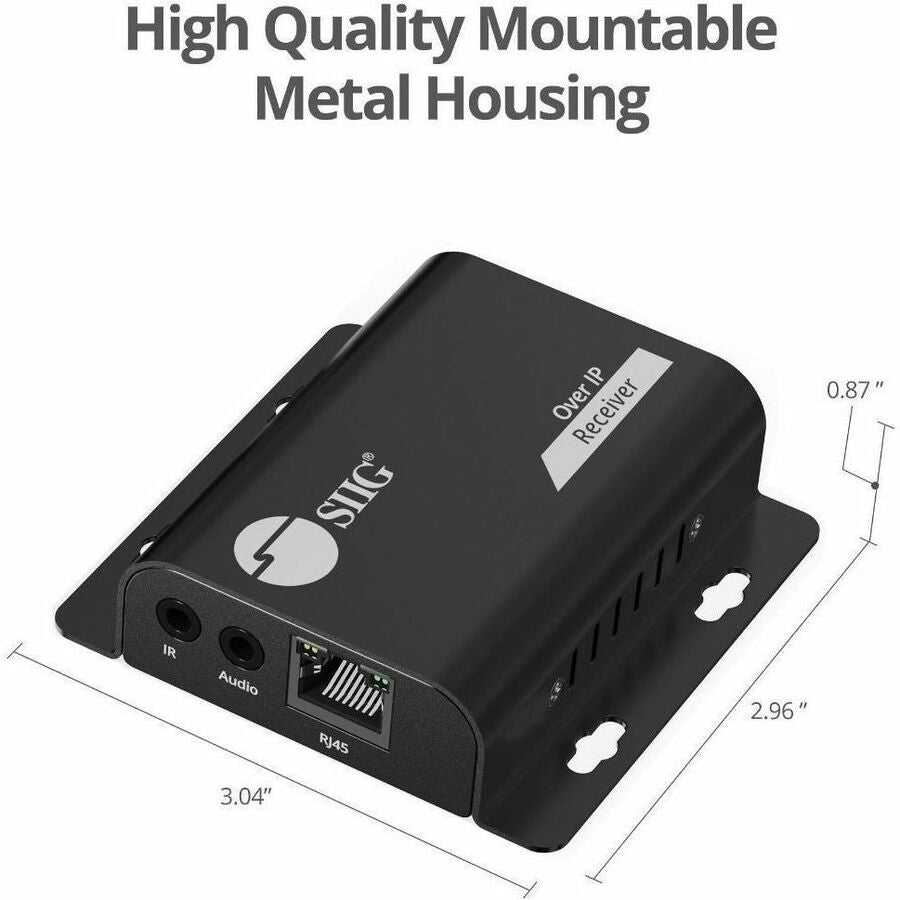

- Receiver Height: 0.87"
- Receiver Width: 2.96"
- Receiver Depth: 3.04"
- Receiver Weight (Approximate): 4.16 oz
Miscellaneous

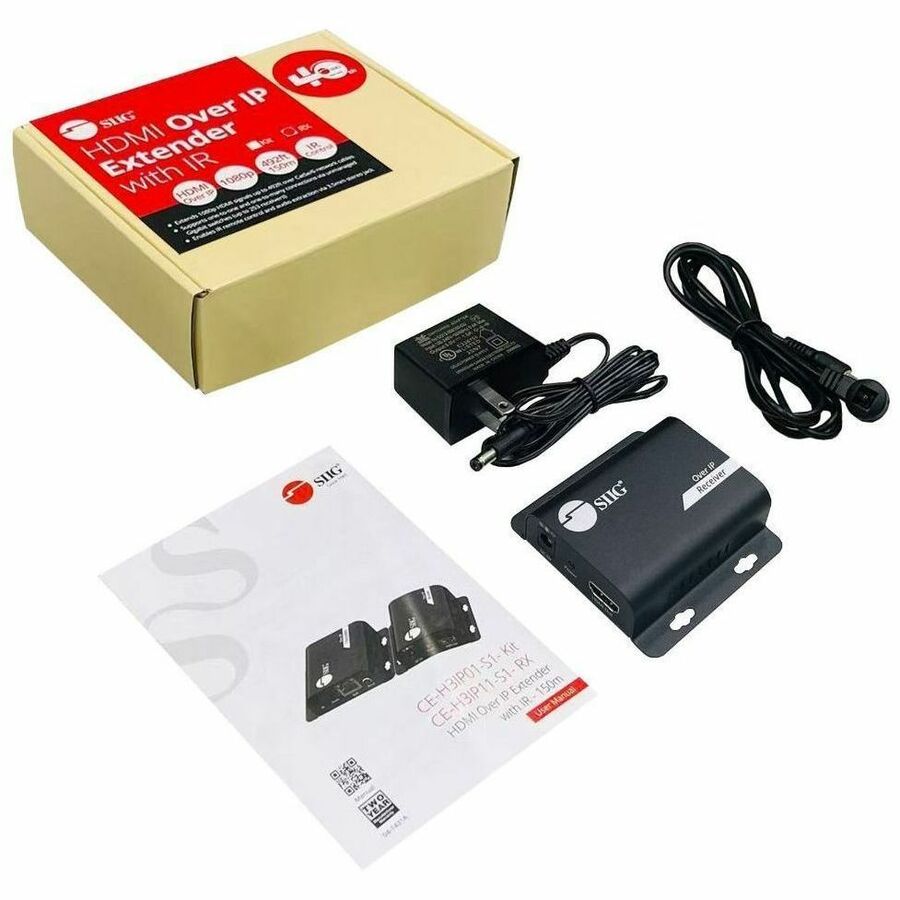

- Package Contents:
- HDMI Over IP Extender with IR - 150m - Receiver
- 1x Power adapter 5V/1A
- 1x IR receiver cable
- User Manual
- Application/Usage:
- Digital Signage System
- Educational Facilities
- Commercial
- A/V Equipment
- Presentation System
- Multimedia
- Display
- Trade Show
- Retail
- Shopping Center
- Restaurant
- Classroom
- Set-top Box
- Gaming
- Country of Origin: China
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
