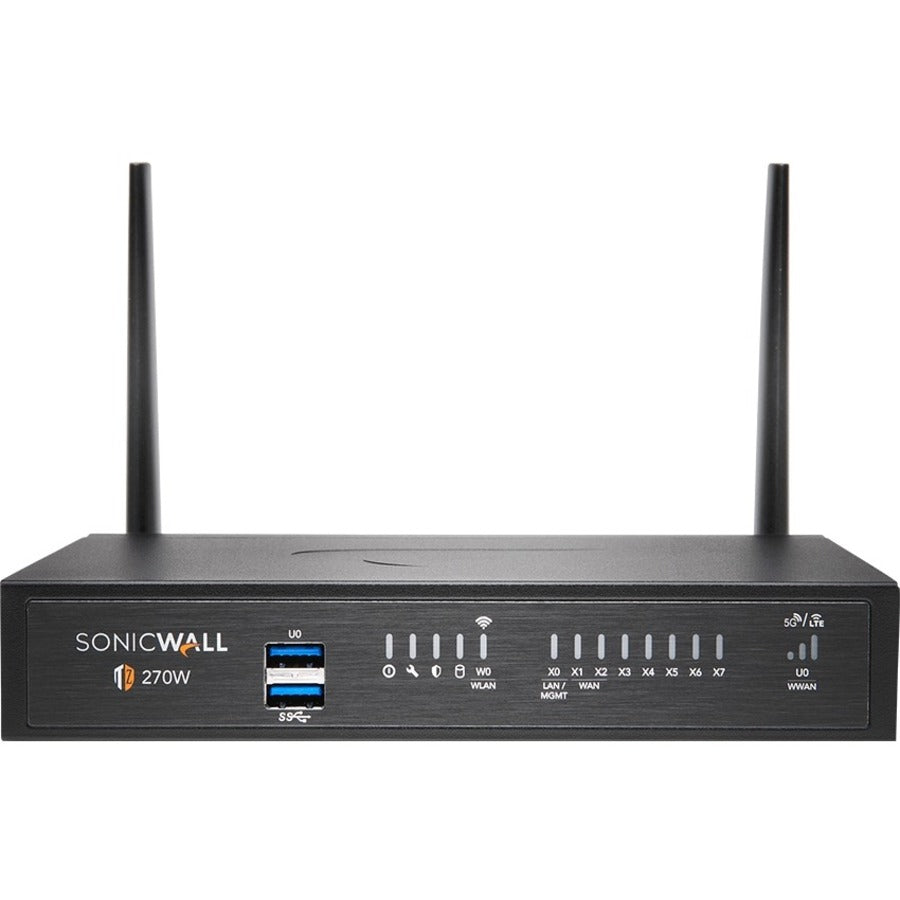

SonicWall TZ270W Network Security/Firewall Appliance - 02-SSC-2823
Key Features
- 10/5/2.5/1 GbE interfaces in a desktop form factor
- Built-in and expandable storage
- DNS security
- Redundant power
- SD-Branch ready
- Secure SD-WAN capability
- Single-pane-of-glass-management through cloud or firewall
- SonicExpress App onboarding
- SonicWall Switch, SonicWave Access Point and Capture Client integration
- Zero-Touch Deployment
Product Overview
Designed for home offices and lean branches, the TZ270 series deliver industry-validated security effectiveness with best-inclass price-performance.
General Information
- Manufacturer: SonicWall Inc.
- Manufacturer Part Number: 02-SSC-2823
- Brand Name: SonicWall
- Product Series: TZ
- Product Model: TZ270W
- Product Name: TZ270W Network Security/Firewall Appliance
- Product Type: Network Security/Firewall Appliance
Technical Information
- Functionality: Intrusion Prevention
- Firewall Protection Supported:
- Intrusion Prevention
- Malware Protection
- Application Control
- Content Filtering
- Anti-spyware
- URL Filtering
- Stateful Packet Filtering
- Distributed Denial of Service (DDoS)
- Threat Protection
- Secure IPsec VPN Connectivity
- Real-Time Deep Memory Inspection (RTDMI)
- Reassembly-free Deep Packet Inspection
- Antivirus
- VoIP Protection
- Zero Day Event
- Firewall Throughput: 2 Gbit/s
- Encryption Standard:
- DES
- 3DES
- MD5
- SHA-1
- AES (128-bit)
- AES (192-bit)
- AES (256-bit)
- WEP
- WPA
- TKIP
- WPA2
- EAP-PEAP
- EAP-TLS
- Number of VPN Supported: 200
- Data Link Protocols:
- SMB
- HTTPS
- HTTP
- TCP/IP
- L2TP
- Connectivity Technology: Wired/Wireless
- New Connections Per Second: 6000
Interfaces/Ports
- Total Number of Ports: 8
- USB: Yes
- Number of Network (RJ-45) Ports: 8
Media & Performance
- VPN Throughput: 93.75 MB/s
- IPS Throughput: 128 MB/s
Network & Communication
- Ethernet Technology: Gigabit Ethernet
- Network Standard: 1000Base-T
Wireless Specifications
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac
Management & Protocols
- Manageable: Yes
Power Description
- Frequency:
- 50 Hz
- 60 Hz
- Power Consumption: 18.91 W
Physical Characteristics
- Form Factor:
- Rack-mountable
- Desktop
- Height: 1.4"
- Width: 7.5"
- Depth: 5.3"
- Weight (Approximate): 1.87 lb
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: Taiwan
- TAA Compliant: Yes
