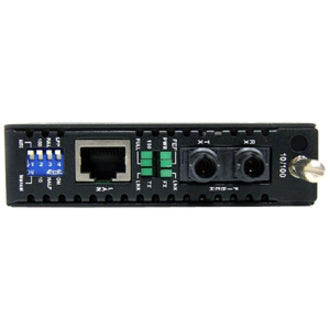

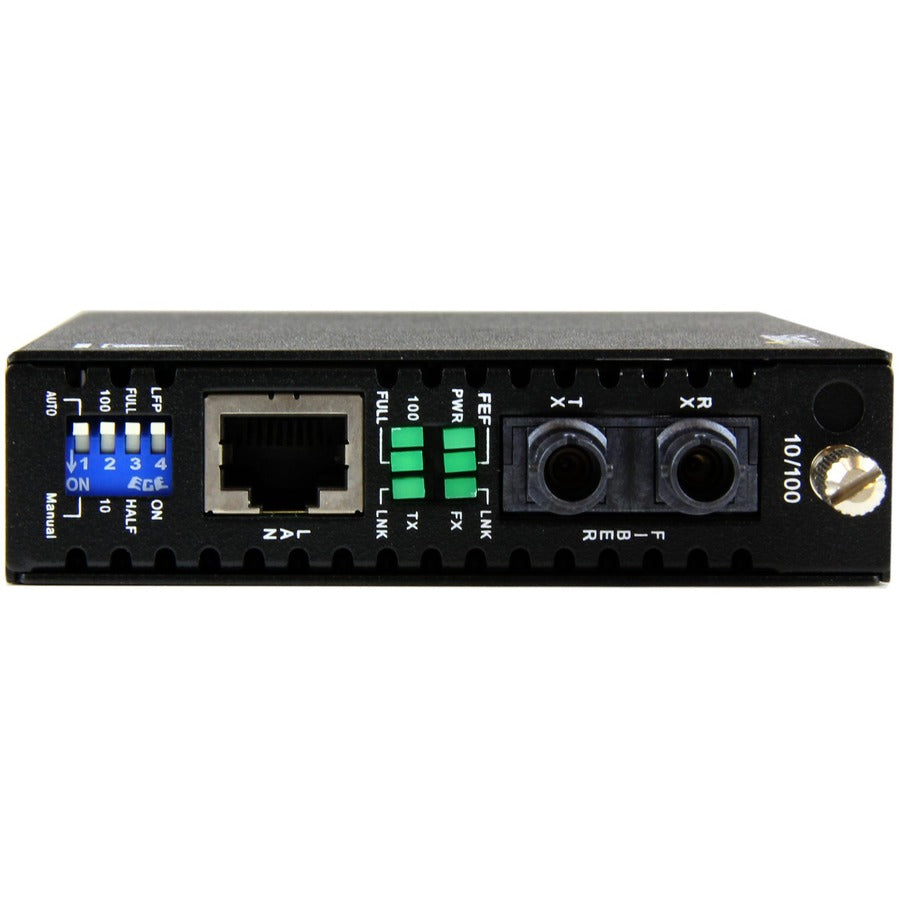

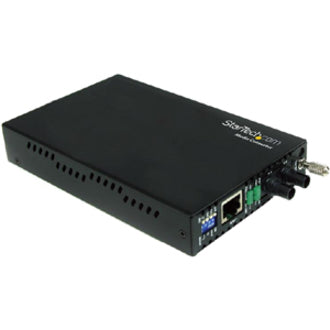

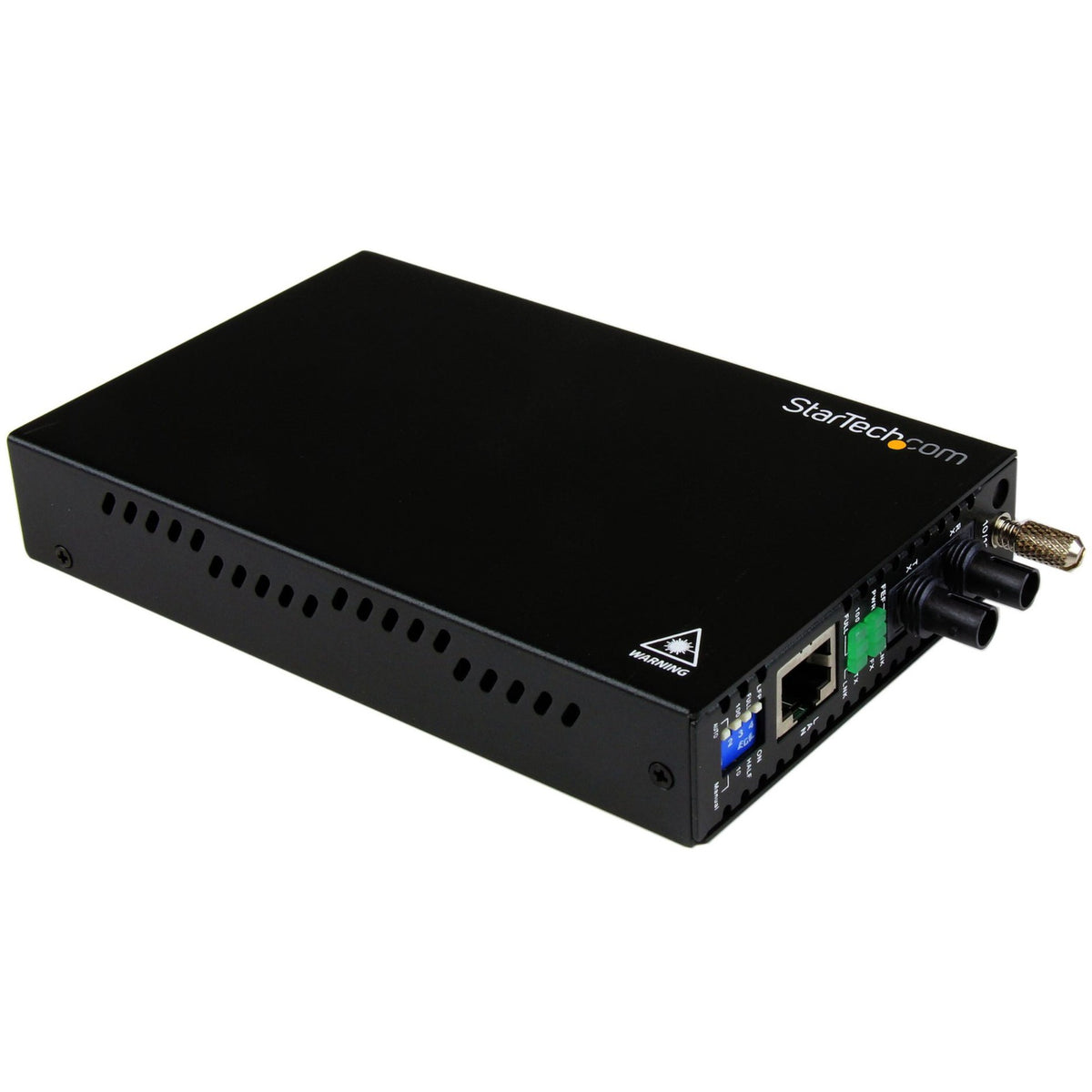

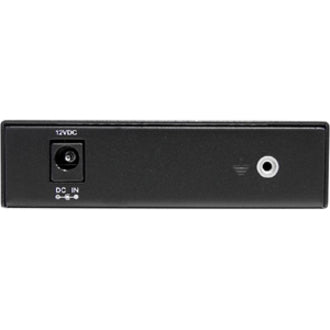

StarTech 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km, TAA - ET90110ST2
Key Features
- Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
- Cost-effective way to extend/bridge networks using fiber cabling
- Quick and simple installation, easy to use
- Supports a maximum fiber cable length of 2 km
- Supports full or half-duplex operation

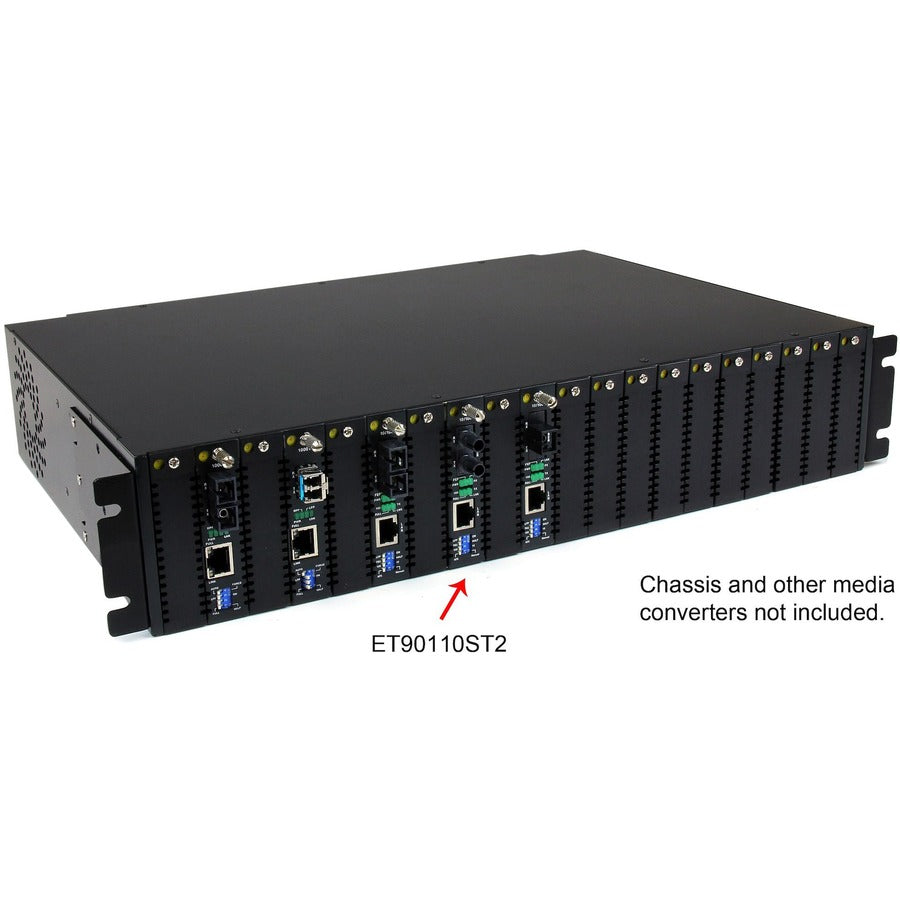

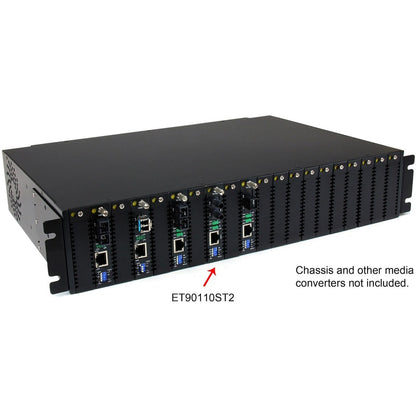

- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
Product Overview
The ET90110ST2 10/100 Mbps Multimode Fiber Media Converter (ST, 2 km) lets you extend a Fast Ethernet network (10/100 Mbps) over multimode fiber, at distances of up to 2 km (1.2 miles).A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to ST Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the ManufacturerGeneral Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: ET90110ST2
- Brand Name: StarTech.com
- Product Name: 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km
- Packaged Quantity: 1 Each
- Product Type: Transceiver/Media Converter
Interfaces/Ports
- Total Number of Ports: 2
- Network (RJ-45): Yes
- DVI: No
- USB: No
- Management Port: No
- Number of Network (RJ-45) Ports: 1
- Number of ST Ports: 1
- ST Port Type: Duplex
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported: Multi-mode
- Fiber Optic Cable Wavelength: 1310 nm
- Maximum Distance Supported: 2 km
Network & Communication
- Ethernet Technology: Fast Ethernet
- Network Technology:
- 10/100Base-TX
- 100Base-FX
Power Description

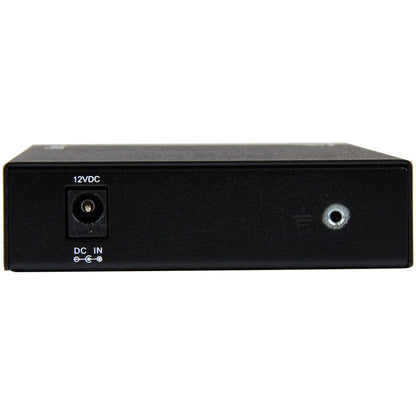

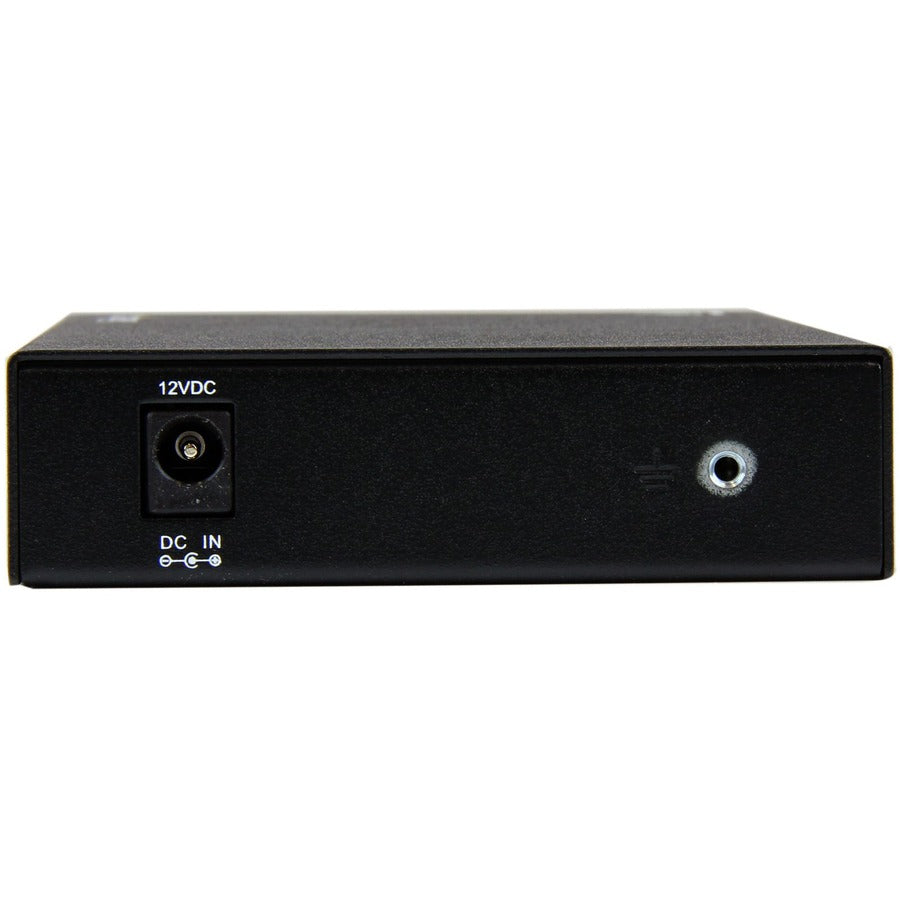

- Power Source: AC Adapter
- Power Consumption: 19.20 W
- Plug/Connector Type: Type M
Physical Characteristics
- Form Factor:
- Desktop
- Rack-mountable
- Height: 0.9"
- Width: 3.4"
- Depth: 6.1"
- Weight (Approximate): 13.70 oz
Miscellaneous
- Package Contents:
- 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x Grounding Screw
- 1 x Instruction Manual
- Environmentally Friendly: Yes
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
