- Description
- Specifications

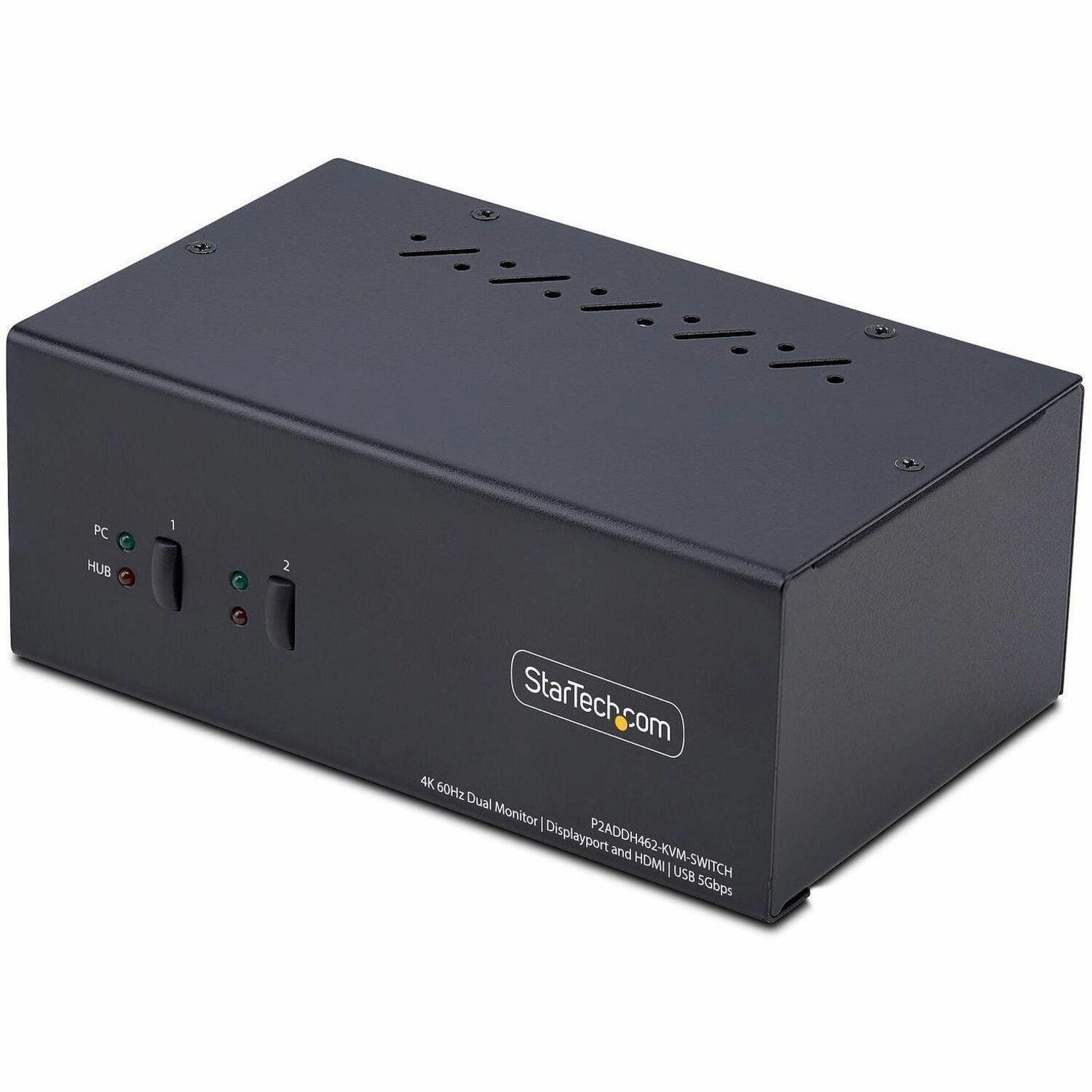

StarTech 2-Port Dual-Monitor DisplayPort and HDMI KVM Switch, 4K 60Hz, 2-Port USB 5Gbps Hub, 2x USB HID Ports, Hotkeys, TAA Compliant - P2ADDH462-KVM-SWITCH
Key Features
- DURABLE DESIGN: Steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability and reliability of the KVM; Sturdy construction makes it ideal for installation in a variety of environments; 8kV Air/6kV Contact ESD protection
- EASILY SHARE USB DEVICES: Provides high-speed data transfer over two USB 3.0 ports for devices such as external SSDs and flash drives, alongside two dedicated USB HID ports for keyboard and mouse
- HDMI + DISPLAYPORT KVM SWITCH: Enable a mixed-display setup with an HDMI and a DisplayPort monitor without adapters, and share peripherals, including a keyboard, mouse, audio device, and dual monitors, between two computers using this HDMI+DP KVM switch
- MULTIPLE SWITCHING OPTIONS: Easy to use KVM controls via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling another
- UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch provides BIOS/UEFI control and works wit
Product Overview

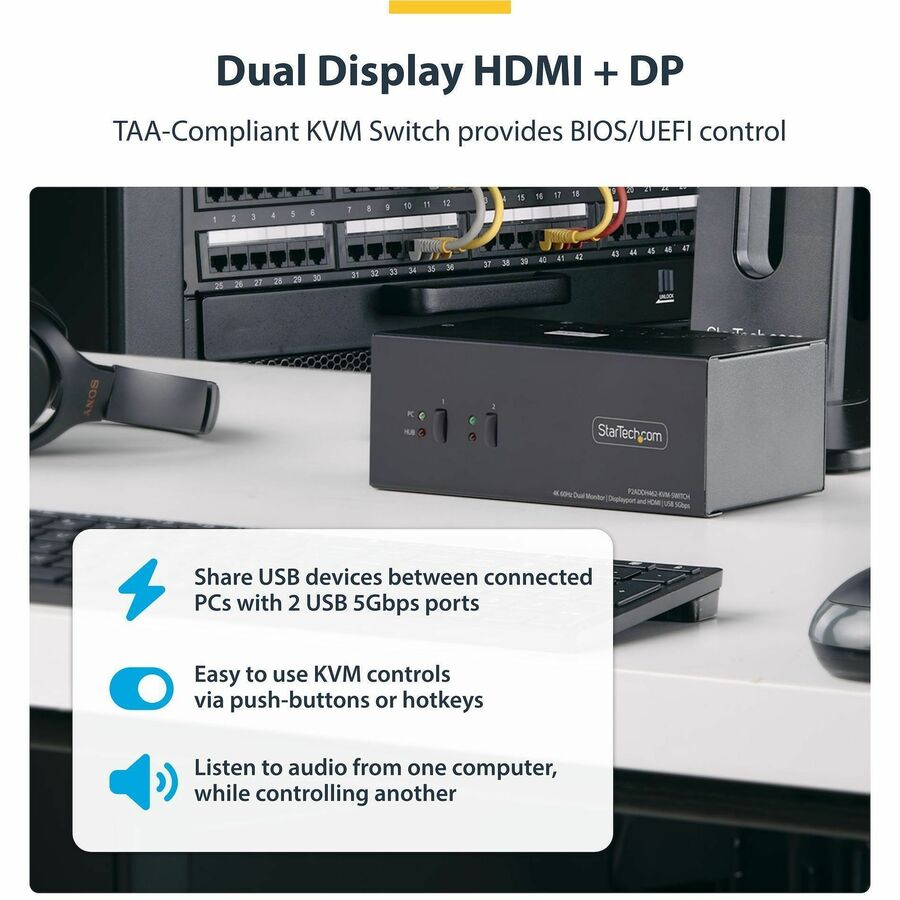

The HDMI and DisplayPort KVM switch enables a mixed-display setup of an HDMI and a DisplayPort monitor without the need for adapters or converters. It allows you to share peripherals, including a keyboard, mouse, audio device, and dual monitors, between two computers.
HDMI + DisplayPort
Connect an HDMI and a DisplayPort monitor to this KVM switch, both supporting resolutions up to 4K 60Hz for high-definition content without the need for adapters. The HDMI port is ideal for connecting to a wide range of devices, including TVs, monitors, and projectors, while the DisplayPort port is ideal for high-performance monitors.
Easily Share USB Devices
The USB 3.0 hub provides high-speed data transfer over two USB 3.0 ports for devices such as external SSDs and flash drives. It also includes two dedicated USB HID ports for a keyboard and mouse.
No Drivers or Software Required
The TAA-compliant KVM switch offers BIOS/UEFI control and works with any operating system, including Windows, macOS, ChromeOS, and Linux, without requiring any software. It is compatible with all hardware platforms, such as Intel, AMD, and Apple.
The KVM switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation. LEDs offer quick visual port selection status, and you can listen to audio from one computer while controlling another.
Reliable Performance
The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in various environments, and it provides 8kV air and 6kV contact ESD protection.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: P2ADDH462-KVM-SWITCH
- Brand Name: StarTech.com
- Product Name: KVM Switchbox
- Packaged Quantity: 1
- Product Type: KVM Switchbox
Technical Information
- Connectivity Technology: Wired
- Number of Computers Supported: 2
- Features: LED Indicator
- Maximum Data Transfer Rate: 640 MB/s
Video
- Graphic Mode: 4K
- Maximum Video Resolution: 3840 x 2160

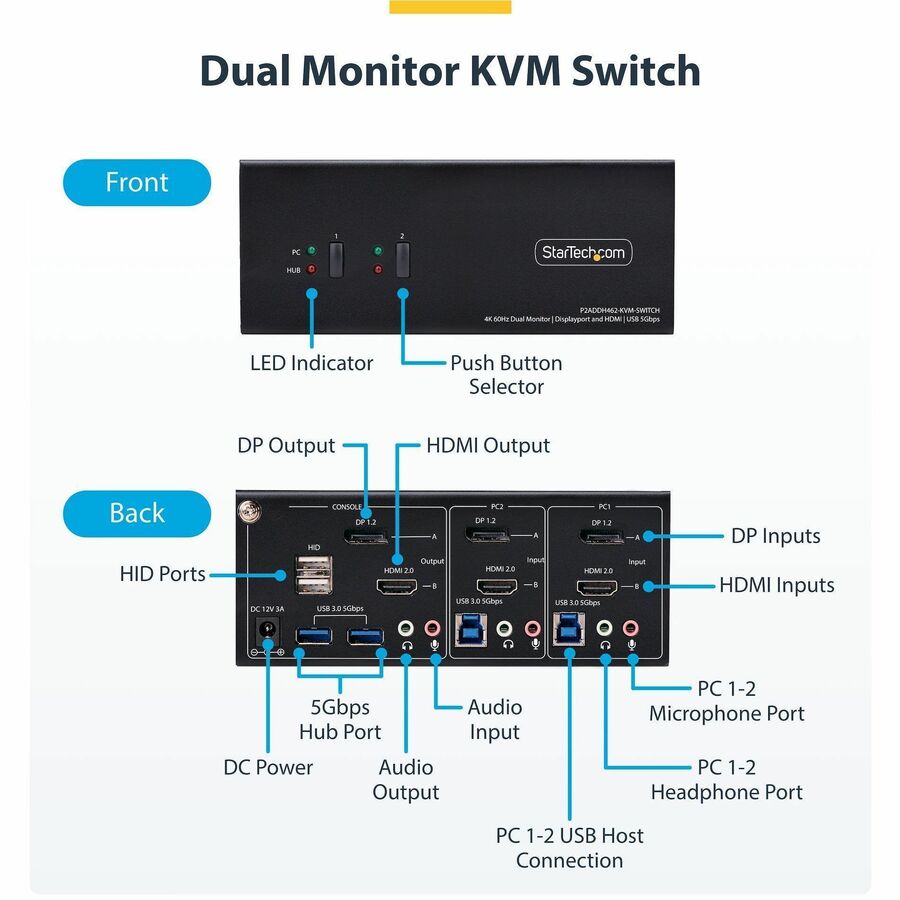

Interfaces/Ports
- USB: Yes
- USB Standard: USB 3.0
- HDMI: Yes
- DisplayPort: Yes
- Number of USB Ports: 6
- Number of HDMI Ports: 3
- Number of DisplayPorts: 3
Power Description
- Input Voltage Range: 100 - 240 AC
Physical Characteristics
- Height: 2.6"
- Width: 3.9"
- Length: 6.40"
Miscellaneous

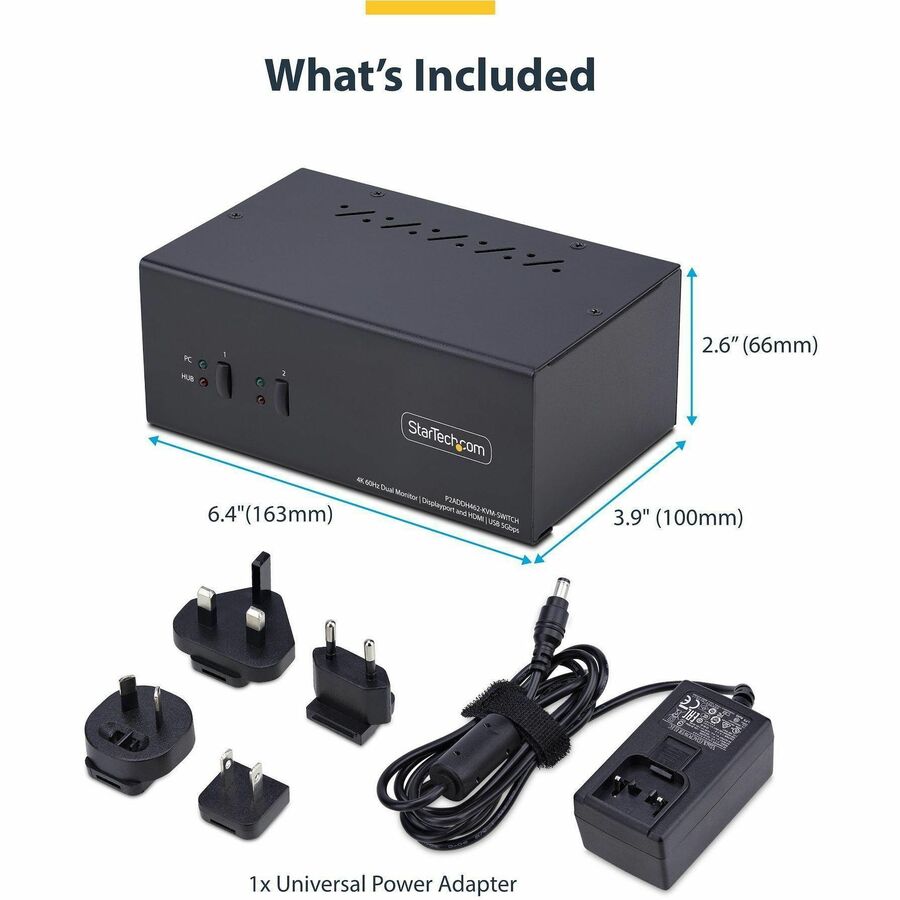

- Package Contents:
- KVM Switchbox
- 1x Universal Power Adapter (NA/EU/UK/ANZ)
- 1x Quick-Start Guide
- Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
