StarTech MPO/MTP Coupler, Multimode OM3/OM4 MPO Fiber Coupler, Key Up-Key Down, Fiber Optic MPO/MTP Coupler for Patch Panels - Aqua - MPOSMAPCAQCOUPLER
Key Features
- EXTEND MPO/MTP CONNECTIONS: Seamlessly join two Multimode OM3/OM4 MPO/MTP fiber cables or extend multi-fiber runs in rackmount PATCH panels, wall enclosures or distribution frames; Ideal for scalable data center and telecom builds
- MULTIMODE COMPATIBILITY: Supports OM3/OM4 Multimode MPO/MTP cables with 50/125um cores, operating at standard 850nm/1300nm VCSEL wavelengths; Best paired with MPO/MTP trunk cables with PC polished ends
- QUICK INSTALLATION: Plug-and-play design with metal mounting tabs offers quick, secure installation in standard panels with no tools required, no extra steps
- RELIABLE, HIGH-SPEED PERFORMANCE: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler ensures signal integrity and exceeds TIA-568.3-D standards; Optimized for VCSEL sources
- THE IT PRO'S CHOICE: Our network jacks, connectors, and couplers are tested for peak performance in structured cabling environments; Designed for reliability with consistent fit and finish; Backed by fr
Product Overview

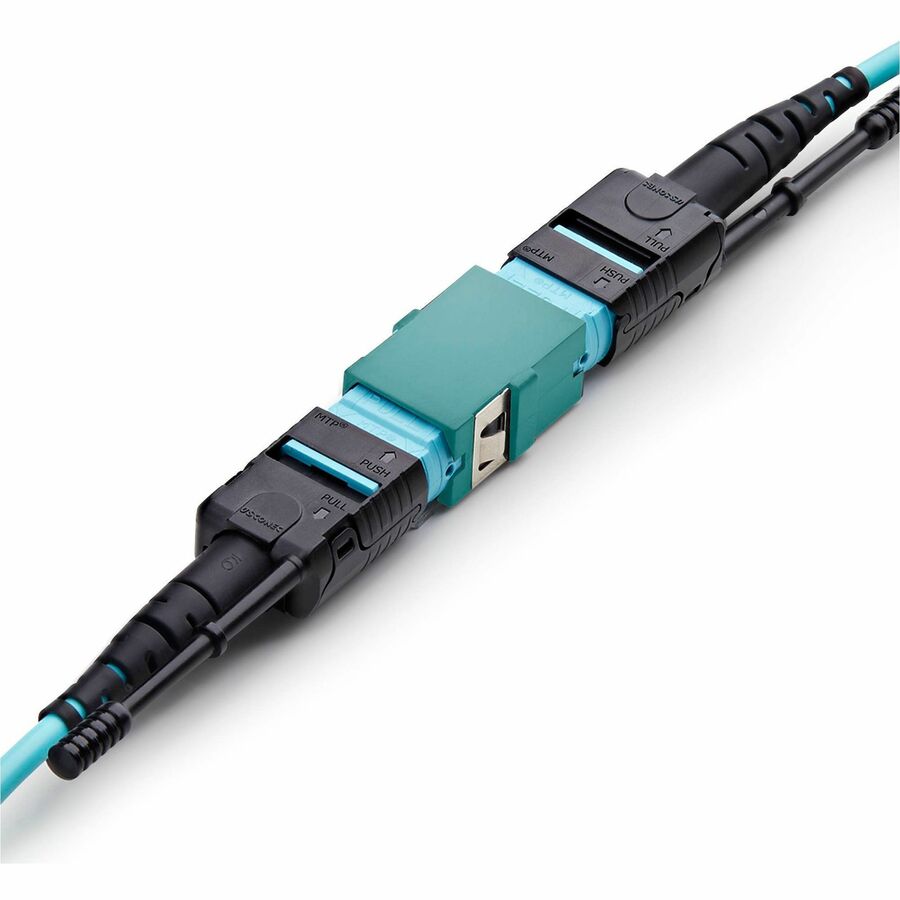

Extend a Multimode fiber connection by connecting two OM3/OM4 MPO/MTP trunk cables with this MPO/MTP Coupler. The female-to-female fiber coupler supports both male and female MPO/MTP connections, maintaining optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Toolless Installation for Quick Setup
The MPO/MTP Fiber Coupler supports Multimode OM3/OM4 (50/125 µm) fiber cables. The coupler features toolless setup to simplify installation into fiber patch panels and rackmount/wall enclosures. Ideal for fast deployment in data centers, enterprise networks, and telecom applications.
Built to Last
The MPO/MTP Coupler features a durable ABS housing and precision alignment structure for accurate multi-fiber mating, minimizing signal loss for long-lasting reliability and performance.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: MPOSMAPCAQCOUPLER
- Brand Name: StarTech.com
- Product Name: MTP/MPO Fiber Coupler - Aqua
- Packaged Quantity: 1
- Product Type: Network Adapter
Technical Information
- Adapter Type: Fiber Optic
- Connector Type on First End: MTP/MPO Network - Female
- Connector on First End Details: 1 x MTP/MPO Network - Female
- Connector Type on Second End: MTP/MPO Network - Female
- Connector on Second End Details: 1 x MTP/MPO Network - Female
- Features:
- Plug and Play
- Passive
Physical Characteristics
- Color Family: Green
- Product Color: Aqua
- Product Material: Metal
- Height: 0.4"
- Width: 0.7"
- Length: 0.8"
- Weight (Approximate): 0.10 oz
Miscellaneous
- Package Contents:
- MTP/MPO Fiber Coupler - Aqua

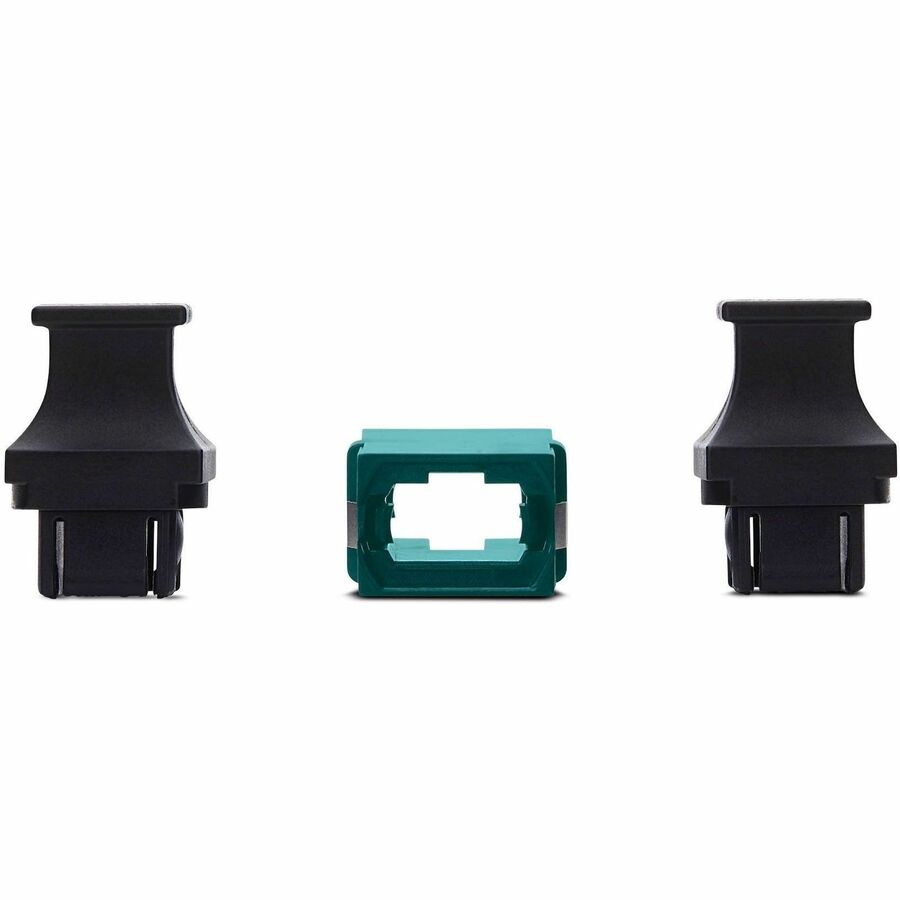

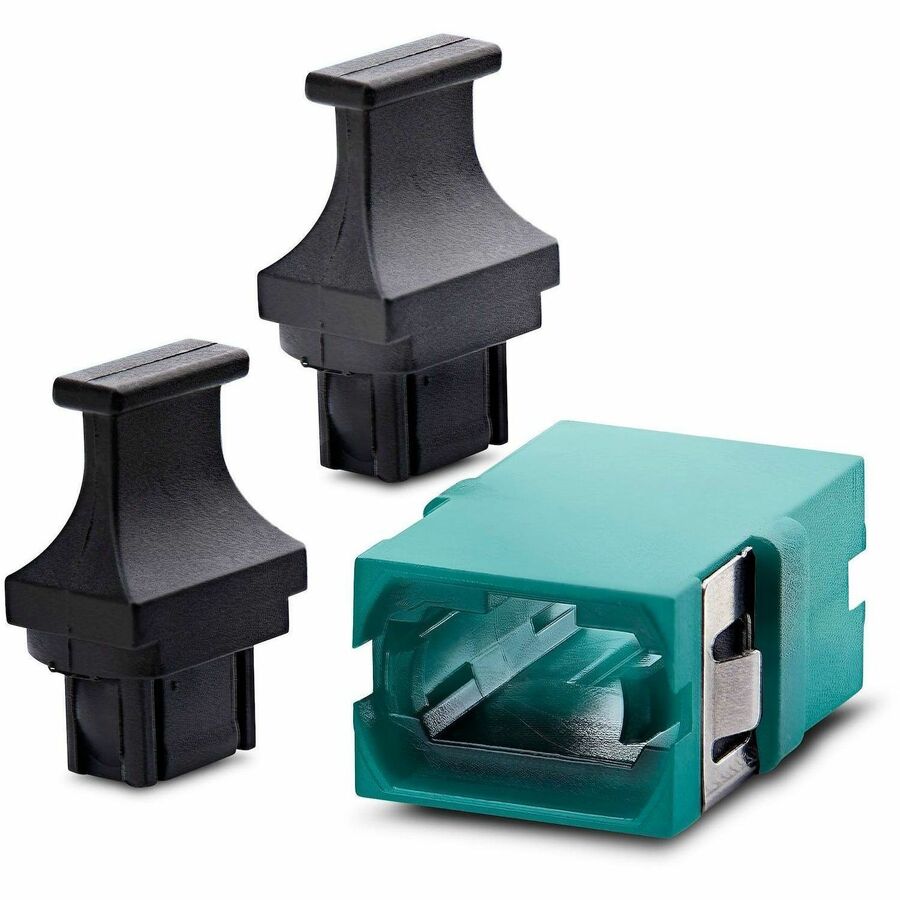

- Dust Covers
Warranty
- Limited Warranty: 1 Year
