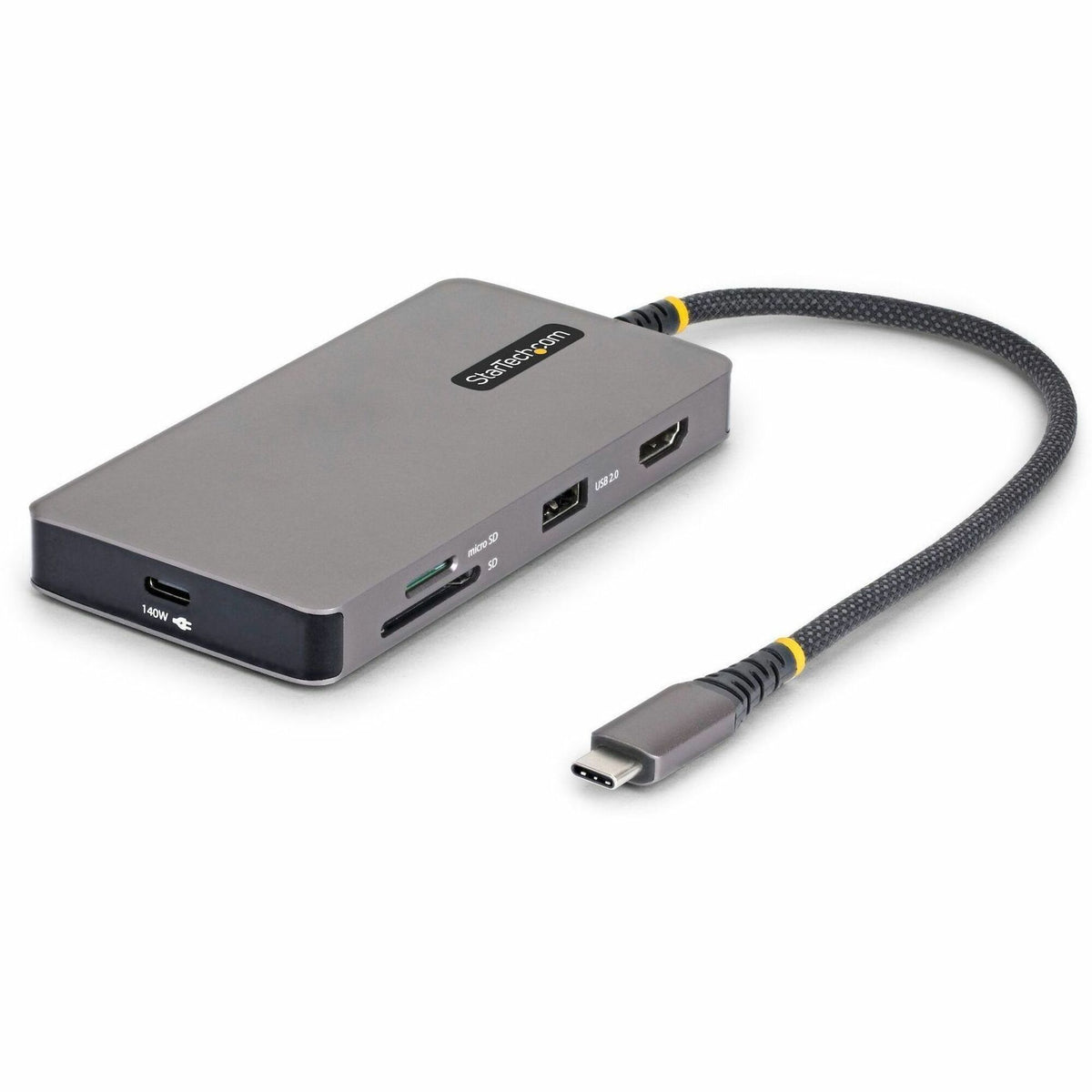

StarTech USB-C Multiport Adapter with 4K 60Hz HDMI, 140W Power Delivery, USB 10Gbps, GbE, SD / MicroSD Slots, Plug-and-Play - 305B-USBC-MULTIPORT
Key Features
- 140W USB-C PD FOR HIGH-PERFORMANCE & AI WORKLOADS: Supports up to 140W passthrough to keep power-hungry laptops and AI-ready systems running at full capacity without compromise
- CREATE A MOBILE WORKSTATION WITH ONE ADAPTER: Transform one USB-C port into 4K 60Hz HDMI, 140W PD passthrough, and USB data ports with ports on both sides for easy access and a braided cable for flexible, durable use in shared workspaces and travel setups
- EXPAND CONNECTIVITY WITHOUT SACRIFICING PORTS: Add three USB 10Gbps ports for high-speed devices, plus a USB 2.0 port for essential peripherals, enabling greater connectivity on thin laptops, 2-in-1s, and MacBooks while preserving valuable host connections
- STREAMLINE MEDIA TRANSFERS ACROSS DEVICES: Integrated SD and microSD 4.0 card readers support simultaneous high-speed file transfers to accelerate media workflows and eliminate the need for separate card reader adapters
- THE IT PRO'S CHOICE: Rigorously tested in our Innovation Lab across 100+ monitors and major laptop brands befo
Product Overview

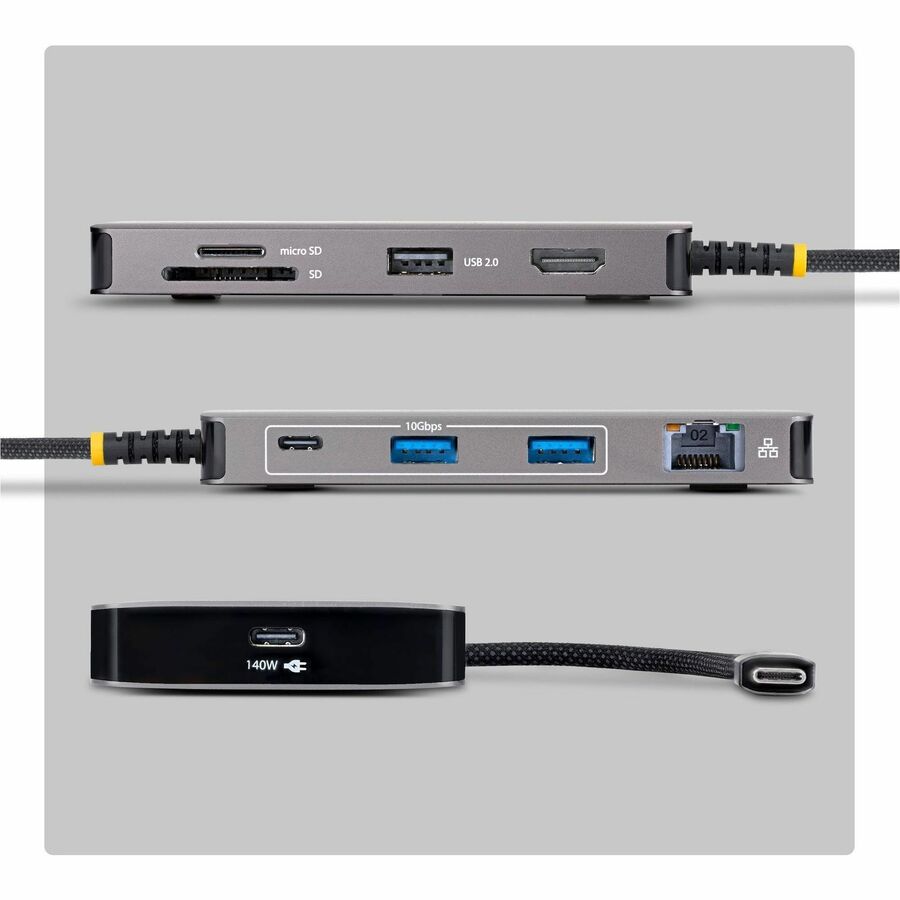

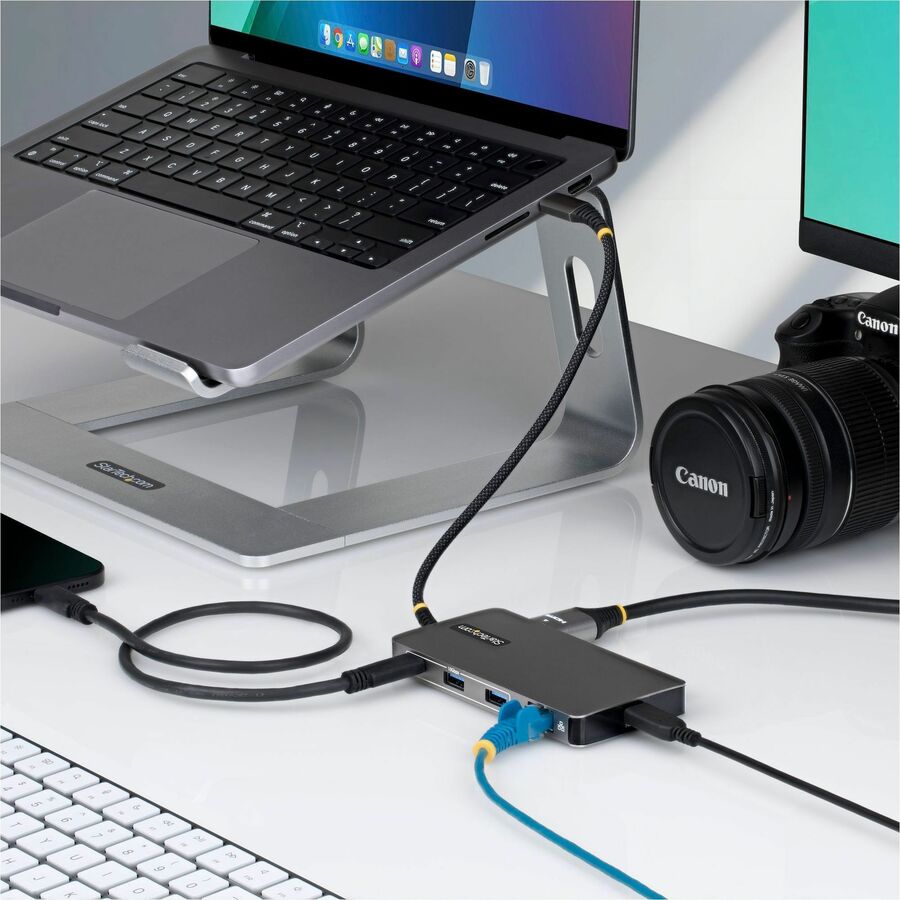

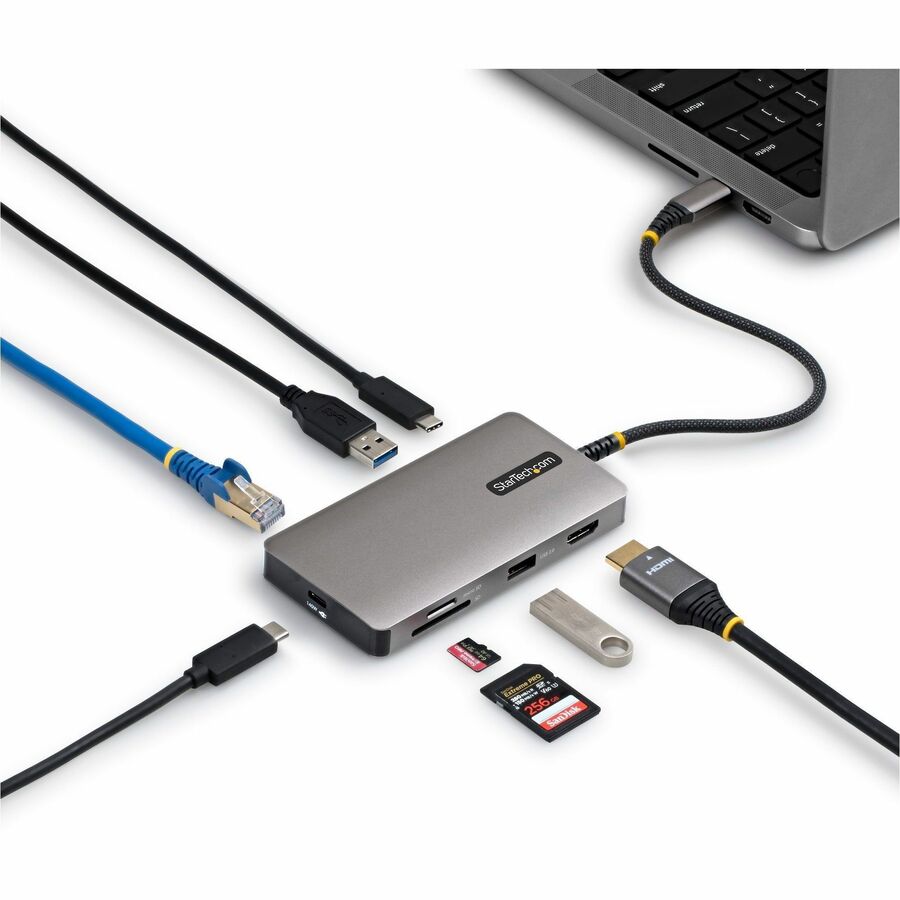

Transform a single USB-C port into a mobile workstation with 4K 60Hz HDMI, 140W USB-C PD passthrough, USB-C and USB-A connectivity, and integrated SD/microSD card readers, with ports on both sides for easier access and a 8-inch (20.3cm) braided tethered cable for flexible, durable use in shared workspaces and travel setups.
Keep High-Performance Systems Powered

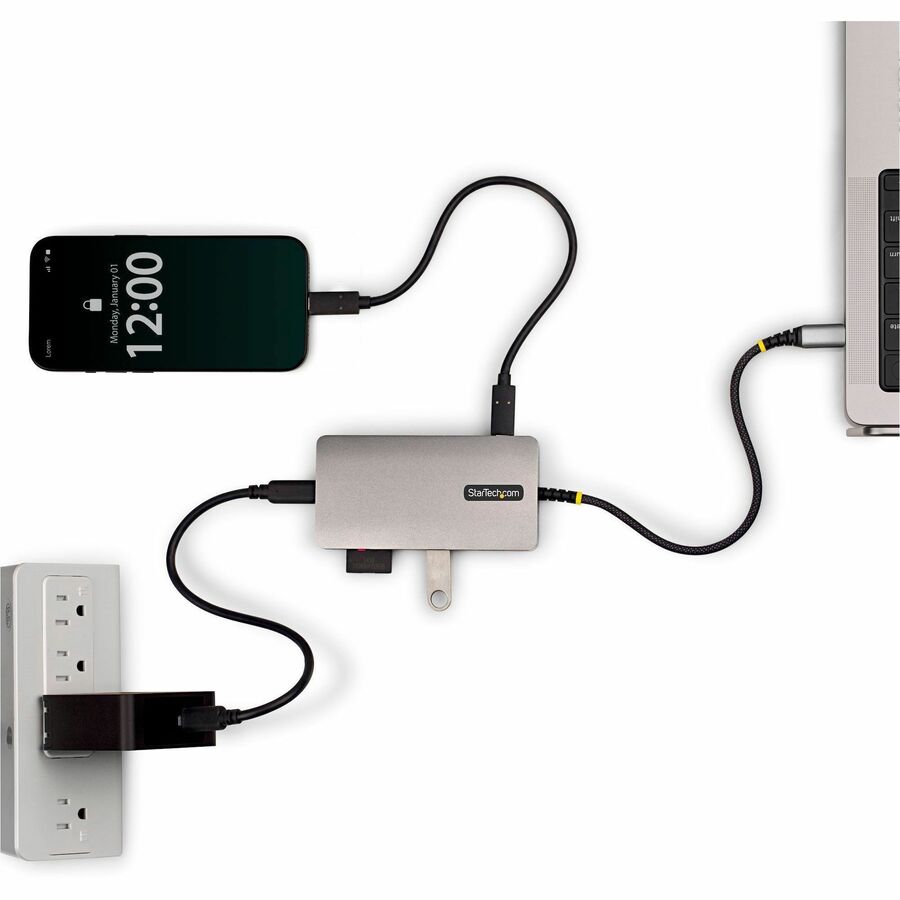

Support demanding workflows with up to 140W USB-C Power Delivery passthrough. Keep AI-ready laptops, mobile workstations, and power-hungry systems running at full capacity while maintaining display and peripheral connectivity through one compact adapter.
Connect More Devices Without Giving Up Ports
Add three USB 10Gbps ports for high-speed storage and accessories, plus a USB 2.0 port for keyboards, mice, or other essential peripherals. Ideal for thin laptops, 2-in-1s, and MacBooks where port availability is limited.
Easy Card Access Anywhere
Integrated SD and microSD 4.0 card readers support simultaneous file transfers to streamline media handling across cameras, mobile devices, and external storage. Eliminate extra adapters and reduce setup time for content creation, field work, and mobile IT environments.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: 305B-USBC-MULTIPORT
- Brand Name: StarTech.com
- Product Name: Docking Station
- Packaged Quantity: 1
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 1
- Supported Resolutions: 3840 x 2160
- Screen Mode Supported: 4K @ 60Hz
- Memory Card Reader: Yes
- Management Features:
- PXE Boot
- Wake-on-LAN
- Memory Card Supported:
- SD
- microSD
- Device Supported:
- Notebook
- Mobile Workstation
- Card Reader
- Keyboard
- Mouse
- MacBook
- Camera
- Mobile Device
- Workstation
- Display
- Monitor
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Host Interface: USB 3.2 Type C
- Total Number of USB Ports: 5
- Number of USB 3.2 Gen 2 Type-A Ports: 2
- Number of USB 3.2 Gen 2 Type-C Ports: 2
- Number of USB Type-C Ports: 2
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps), 1 x USB Type-C (24 pin) USB Power Delivery Only
- Number of USB Type-A Ports: 3
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of HDMI Outputs: 1
- HDMI: Yes
- USB Power Delivery: 140W
- Total Number of Ports: 9
Software
- Operating System Supported:
- Windows 10
- Windows 11
- Mac OS X 13.0 Ventura
- macOS 14
- macOS Sequoia 15
- macOS Tahoe 26.0
- Linux
- Ubuntu 20.04
- iPadOS
- iOS
- macOS Sonoma
- macOS Ventura
Physical Characteristics
- Product Color: Space Gray
- Height: 0.60"
- Width: 2.30"
- Weight (Approximate): 4.80 oz
Miscellaneous
- Package Contents:
- Docking Station
- 1 x Product Documentation
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
