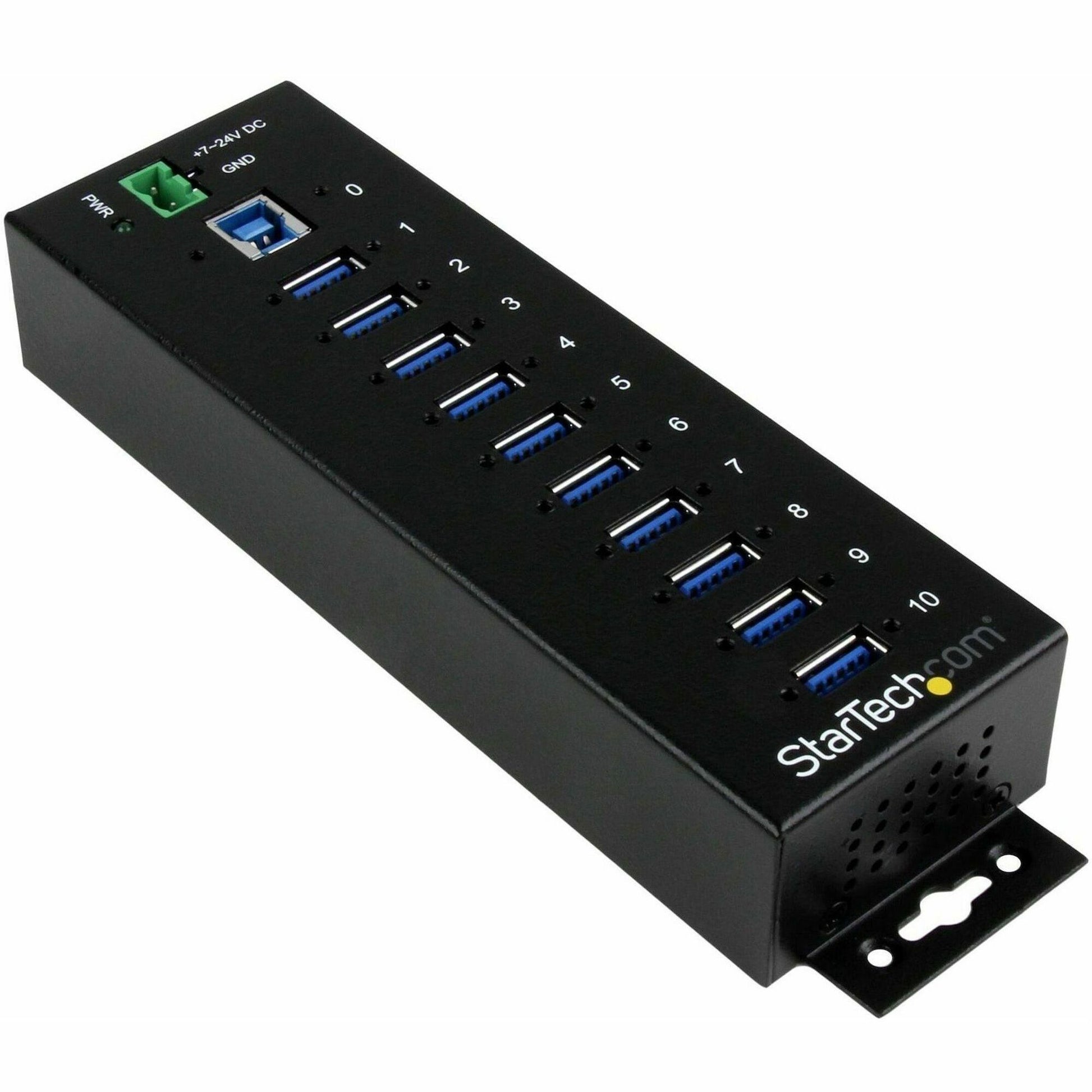

StarTech 10 Port Industrial USB 3.0 Hub - ESD and Surge Protection - DIN Rail or Surface-Mountable Metal Housing - ST1030USBM
Key Features
- MAXIMIZE USB PERFORMANCE: This 10-port USB 3.2 Gen 1 (5Gbps) hub adds ten independent USB ports to your server room or industrial environment
- POWERED HUB: Allows 7 ~ 24VDC input through included terminal block or 65W external power adapter; Supports USB Battery Charging Specification 1.2
- PROTECT YOUR DEVICES: This USB 3.0 hub protects your connected devices with 15kV Air and 8kV contact ESD protection; It provides a surge protection of 350W on the downstream and upstream USB ports
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB hub is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance
- VERSATILE INSTALLATION OPTIONS: built-in mounting brackets and included DIN mount rails to securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or in a rack
Product Overview
This TAA compliant 10-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect & Charge More USB Devices
Designed for a high volume of connections, this robust USB 3.0 hub offers ten connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.
Locate the Hub Where You Need it Most

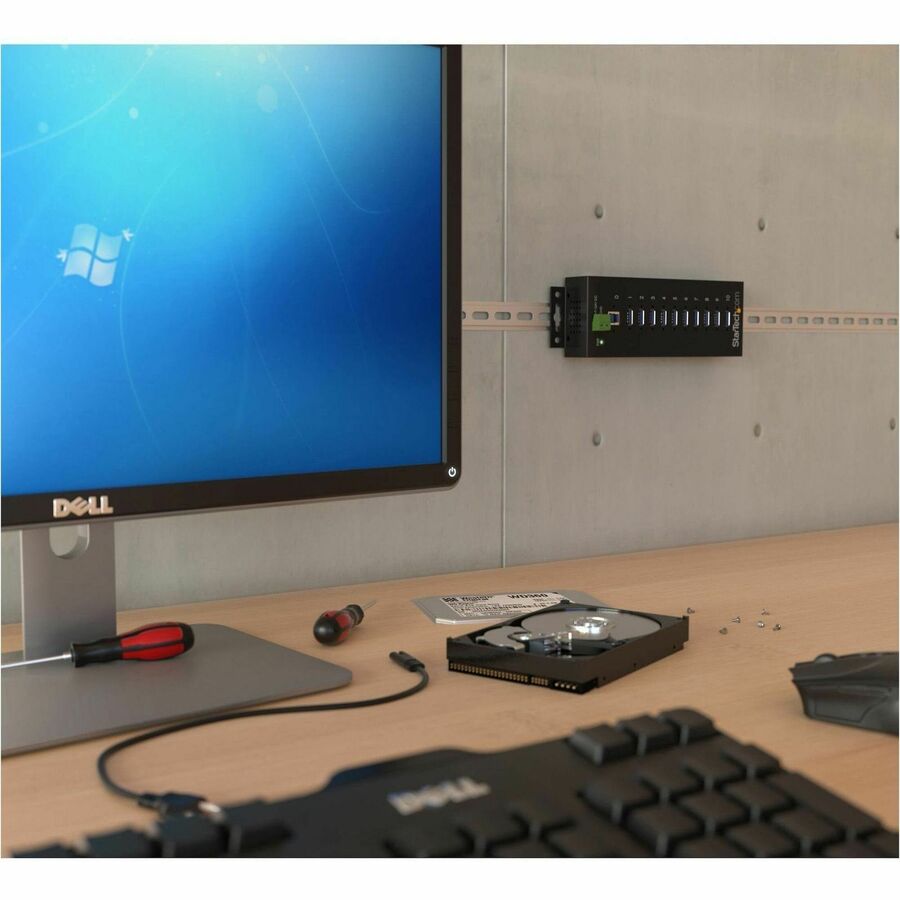

With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech's line of industrial USB hubs.
Works With Your Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy USB 3.0 and 1.x peripherals alongside your newer USB 3.0 devices without any disruptions.
The ST1030USBM is backed by a StarTech 2-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: ST1030USBM
- Brand Name: StarTech
- Product Name: 10-Port Industrial USB 3.0 Hub
- Packaged Quantity: 1 Each
- Product Type: USB Hub
Technical Information
- Host Interface: USB 3.0 Type A
Interfaces/Ports
- Total Number of USB Ports: 10
- Number of USB 3.0 Ports: 10
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor: External
- Height: 1.2"
- Width: 2.2"
- Length: 7.8"
- Weight (Approximate): 12.59 oz
Miscellaneous

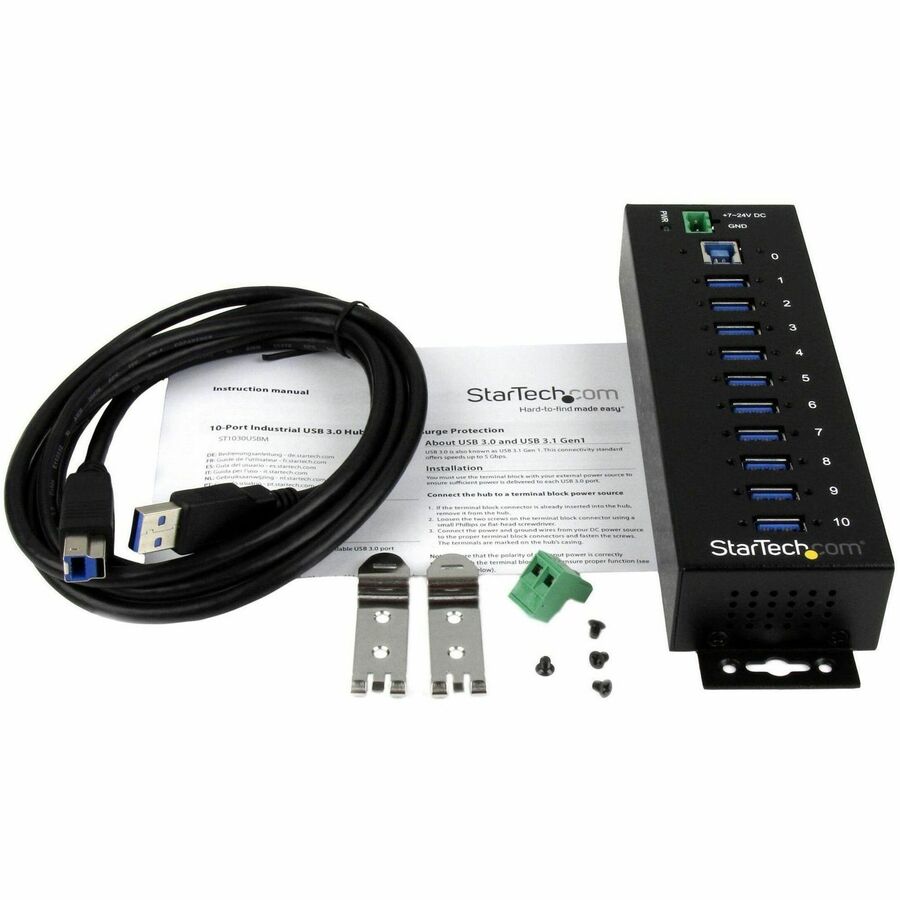

- Package Contents:
- 10-Port Industrial USB 3.0 Hub
- USB 3.0 Host Cable
- DIN Rail Mounting Kit
- Terminal Block (2 wire)
- Instruction Manual
- Platform Supported: PC
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
Warranty
- Limited Warranty: 2 Year
