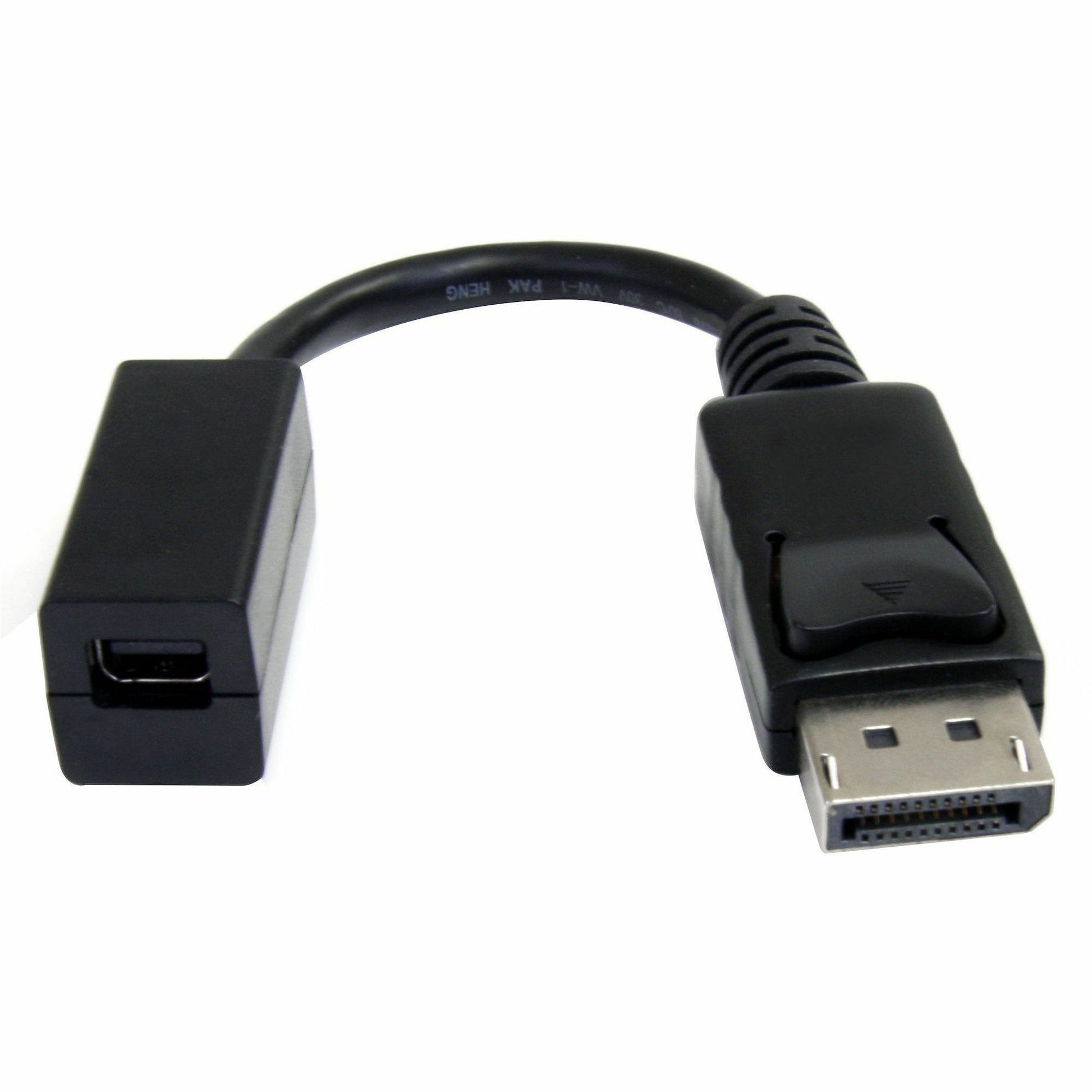

StarTech 6in (15cm) DisplayPort to Mini DisplayPort Cable, 4K x 2K Video, DP Male to Mini DP Female Adapter Cable, DP to mDP 1.2 - DP2MDPMF6IN
Key Features
- APPLICATIONS: DisplayPort to Mini DisplayPort cable is ideal for home/office/boardroom/classroom works with laptop with standard DP port and workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use with UHD/4K monitor/projector/display
- DISPLAYPORT TO MINI DISPLAYPORT 1.2 CABLE: 6in (15 cm) DP male to mDP female extension cable; 4K (3840x2400p 60Hz) x 2K (2560x1600p 120Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST); GTC for precise audio channel timing and 3D Stereo

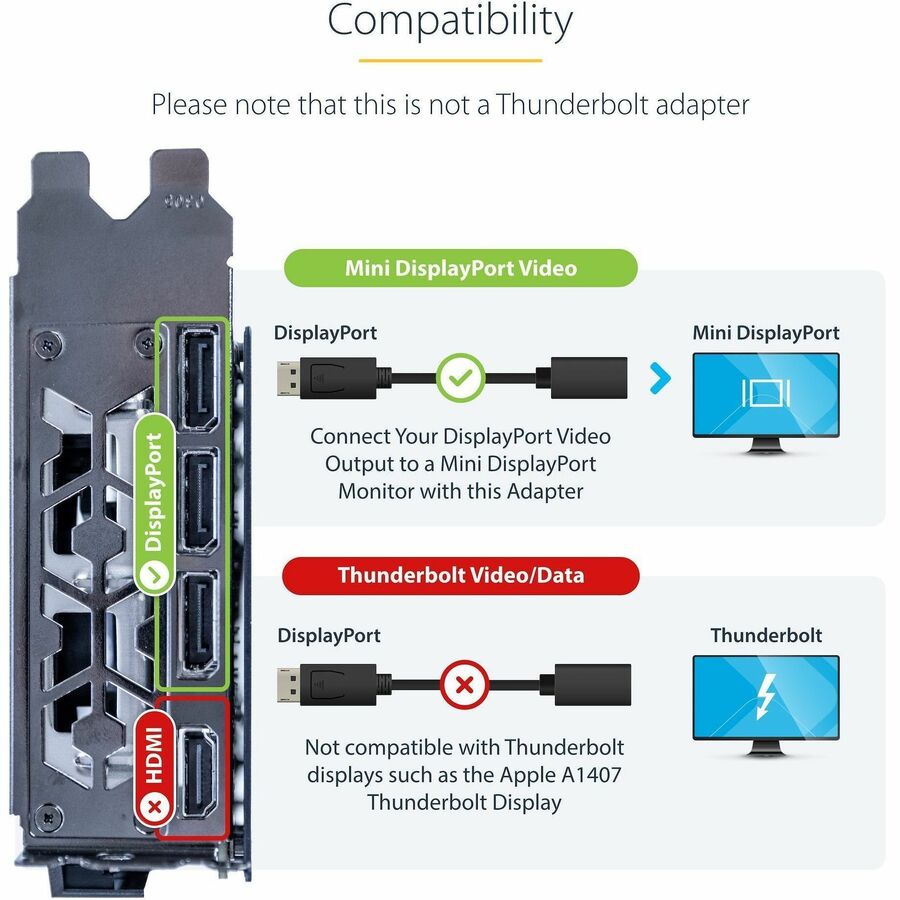

- NOTE: This DisplayPort to MiniDisplayPort adapter is not compatible with TB monitors like the Apple A1407 Thunderbolt Display; The adapter cannot be used to connect Thunderbolt accessories like docks or audio interfaces to a DP port~

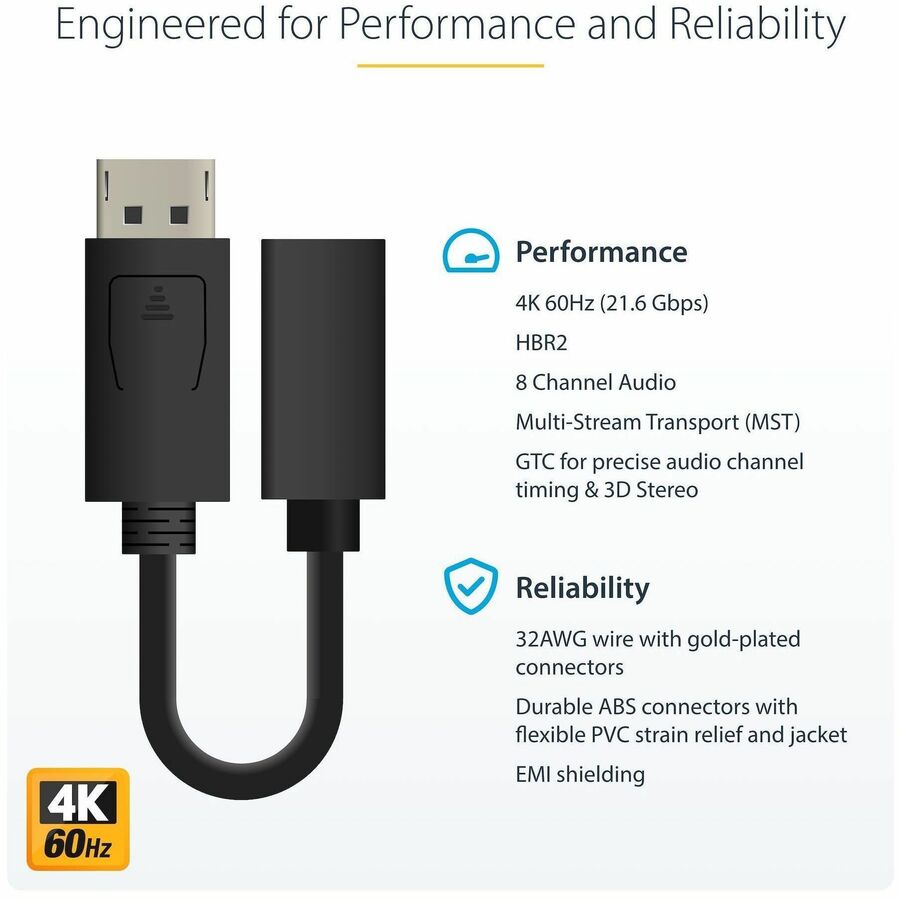

- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Aluminium foil & Braid provide higher quality video and audio; Backwards compatible with DP 1.1
- RELIABLE DESIGN: DisplayPort to Mini DisplayPort adapter cable has durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
Product Overview

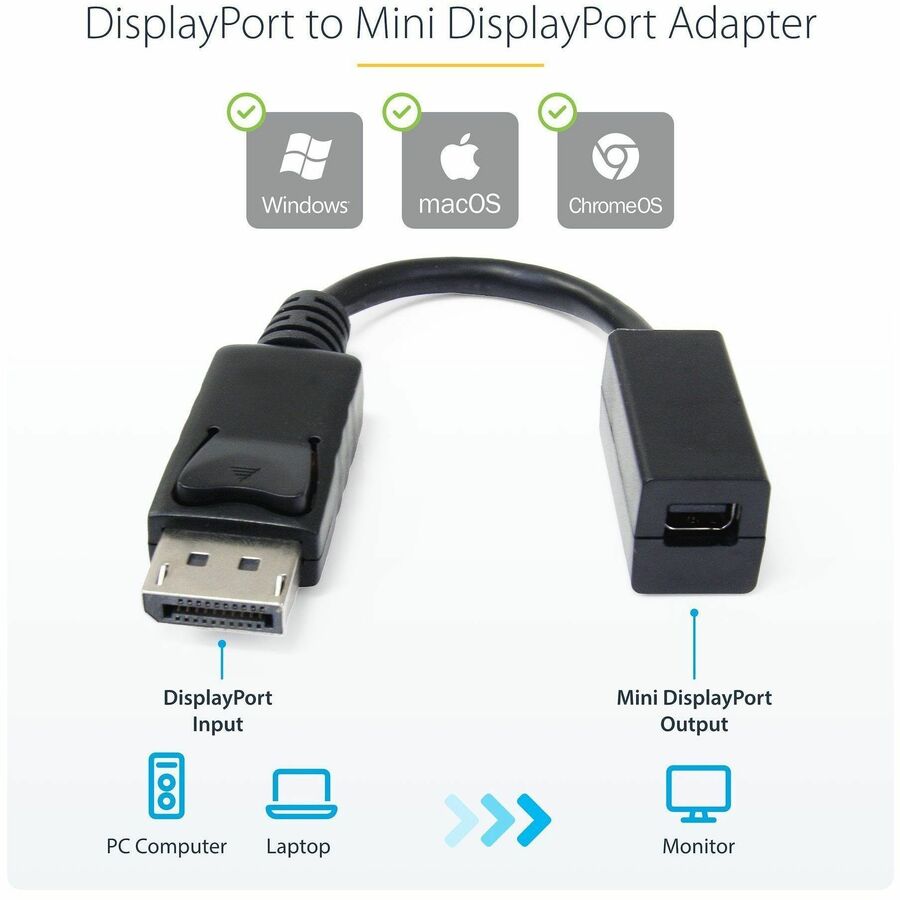

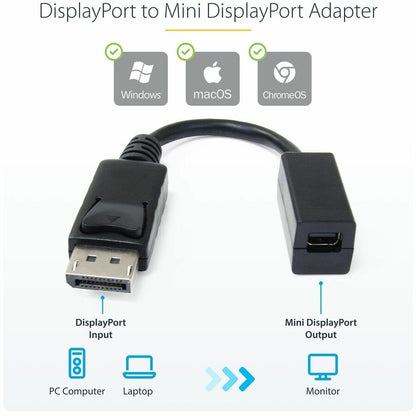

The DP2MDPMF6IN DisplayPort® to Mini DisplayPort Adapter turns a mini DisplayPort (male) connector into a regular DisplayPort (male) connector, making it easy to connect a mini DisplayPort-equipped monitor to a laptop that only provides a standard DisplayPort output (e.g. Apple®; Toshiba® etc.).
This 6in DisplayPort to Mini DisplayPort Video Cable Adapter is designed & manufactured to DisplayPort v1.2 standards; Max resolution: 2560x1600 60Hz (depends on the cable quality; Attached cable must be at least DP 1.2).
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: DP2MDPMF6IN
- Brand Name: StarTech
- Product Model: DP2MDPMF6IN
- Product Name: 6in DisplayPort to Mini DisplayPort Cable Adapter
- Packaged Quantity: 1 Each
- Product Type: Video Cable Adapter

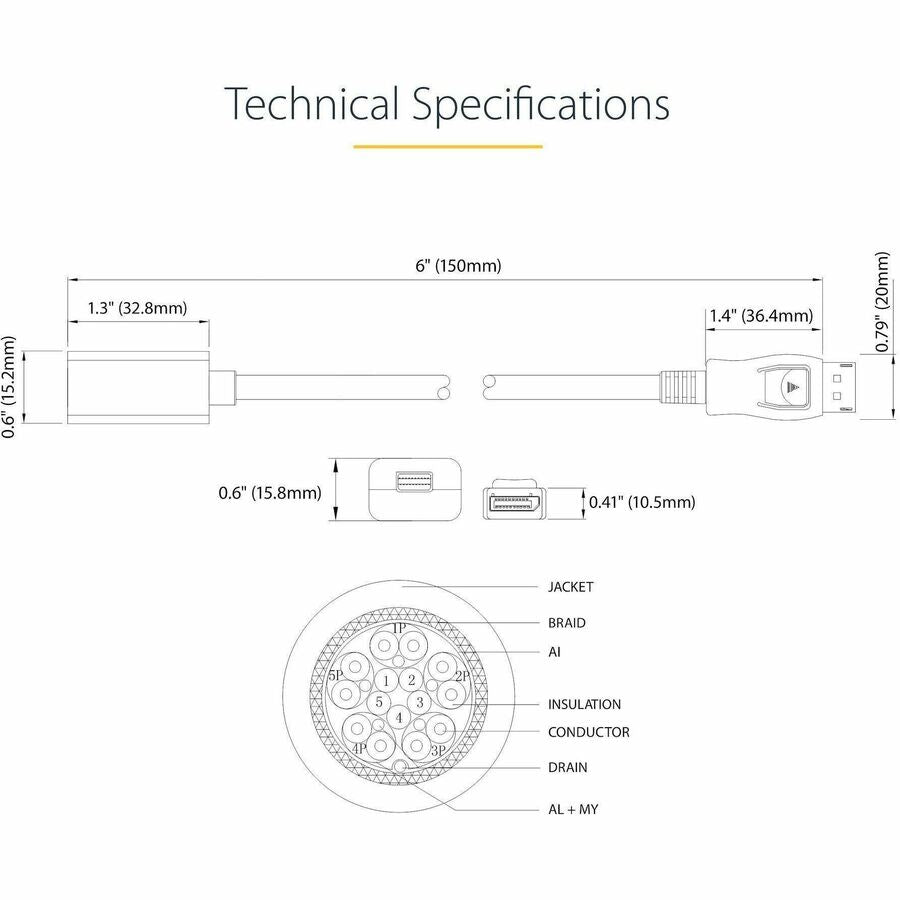

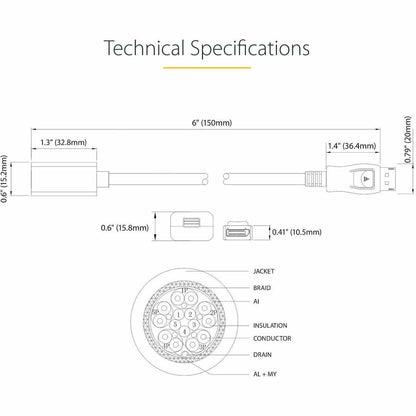

Technical Information
- Cable Type: DisplayPort/Mini DisplayPort
- Cable Length: 6"
- Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End: Mini DisplayPort 1.2 Digital Audio/Video - Female
- Connector Gender on Second End: Female
- Connector on Second End Details: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Female
- Connector Plating: Nickel
- Jacket Type: CMG
- Device Supported:
- Monitor
- Notebook
- Audio/Video Device
- Computer
- American Wire Gauge: 32 AWG
- Supported Resolution: 2560 x 1600
- Features:
- Molded
- Strain Relief
- Latching Connector
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Jacket Material: Polyvinyl Chloride (PVC)
- Weight (Approximate): 0.03 lb
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
