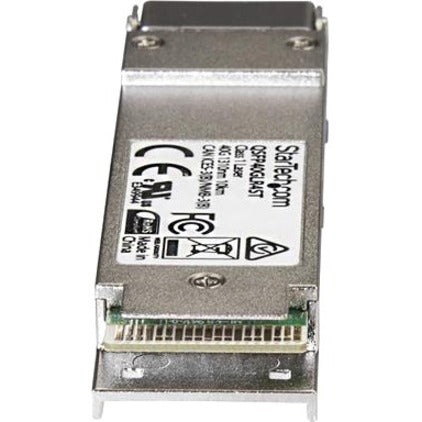

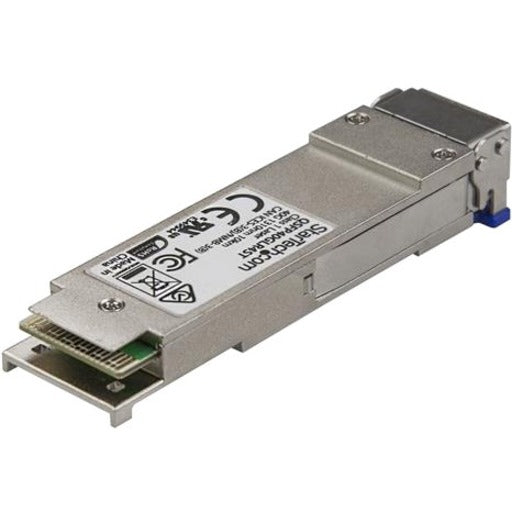

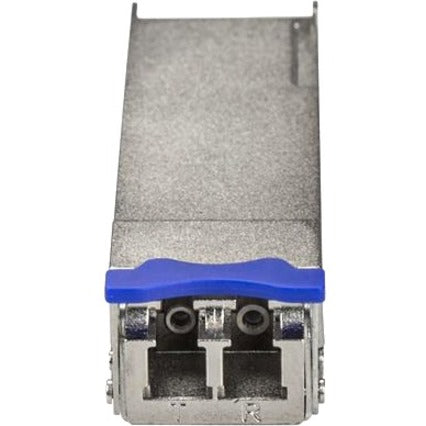

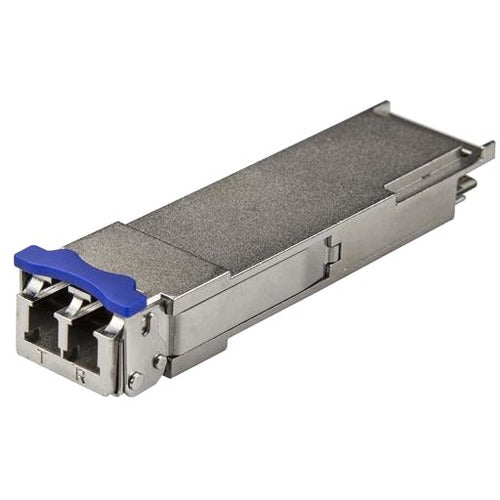

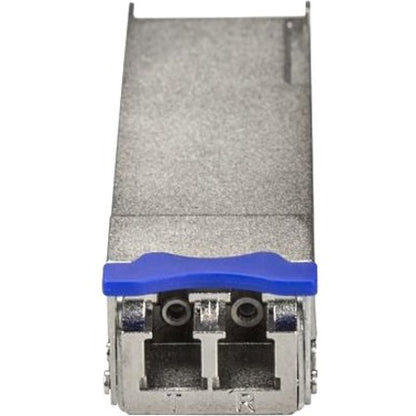

StarTech Cisco QSFP-40G-LR4 Comp. QSFP+ Module - 40GBASE-LR4 - 40GE Gigabit Ethernet 40GbE Single Mode Fiber SMF Optic Transceiver - QSFP40GLR4ST
Key Features
- 40 Gigabit Ethernet for efficient data transfer and fast connectivity
- 40GBase-LR4 network technology for fast, dependable connectivity with maximum efficiency
- Hot-pluggable form factor for added reliability and dependability
- QSFP+ is the single answer to all your desired and specified application execution needs
- QSFP+ with data networking application/usage for reliability and maximum efficiency
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance
Product Overview
The QSFP40GLR4ST is a Cisco QSFP-40G-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).Technical Specifications:
- Wavelength: 1270nm to 1330nm
- Maximum Data Transfer Rate: 40 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 1,489,426 hours
- Power Consumption: Less than 2.5 Watts
- Digital Diagnostics Monitoring (DDM): Yes
StarTech SFPs
All StarTech SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: QSFP40GLR4ST
- Brand Name: StarTech
- Product Name: Cisco QSFP-40G-LR4 Compatible QSFP+ Transceiver Module - 40GBASE-LR4
- Product Type: QSFP+
- Packaged Quantity: 1 Each
Technical Information
- Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
- Total Number of Ports: 1
- Connector Type: LC
- Interfaces/Ports Details: 1 x LC Duplex 40GBase-LR4 Network
Media & Performance
- Media Type Supported: Optical Fiber
- Fiber Mode Supported: Single-mode
- Ethernet Technology: 40 Gigabit Ethernet
- Network Technology: 40GBase-LR4
Physical Characteristics
- Form Factor:
- Hot-pluggable
- Hot-swappable
- Height: 0.5"
- Width: 0.7"
- Depth: 2.8"
- Weight (Approximate): 0.10 lb
Miscellaneous
- Compatibility:
- MSA Compliant
- ASR1000
- ASR9000
- C9300
- C3850
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: Lifetime
