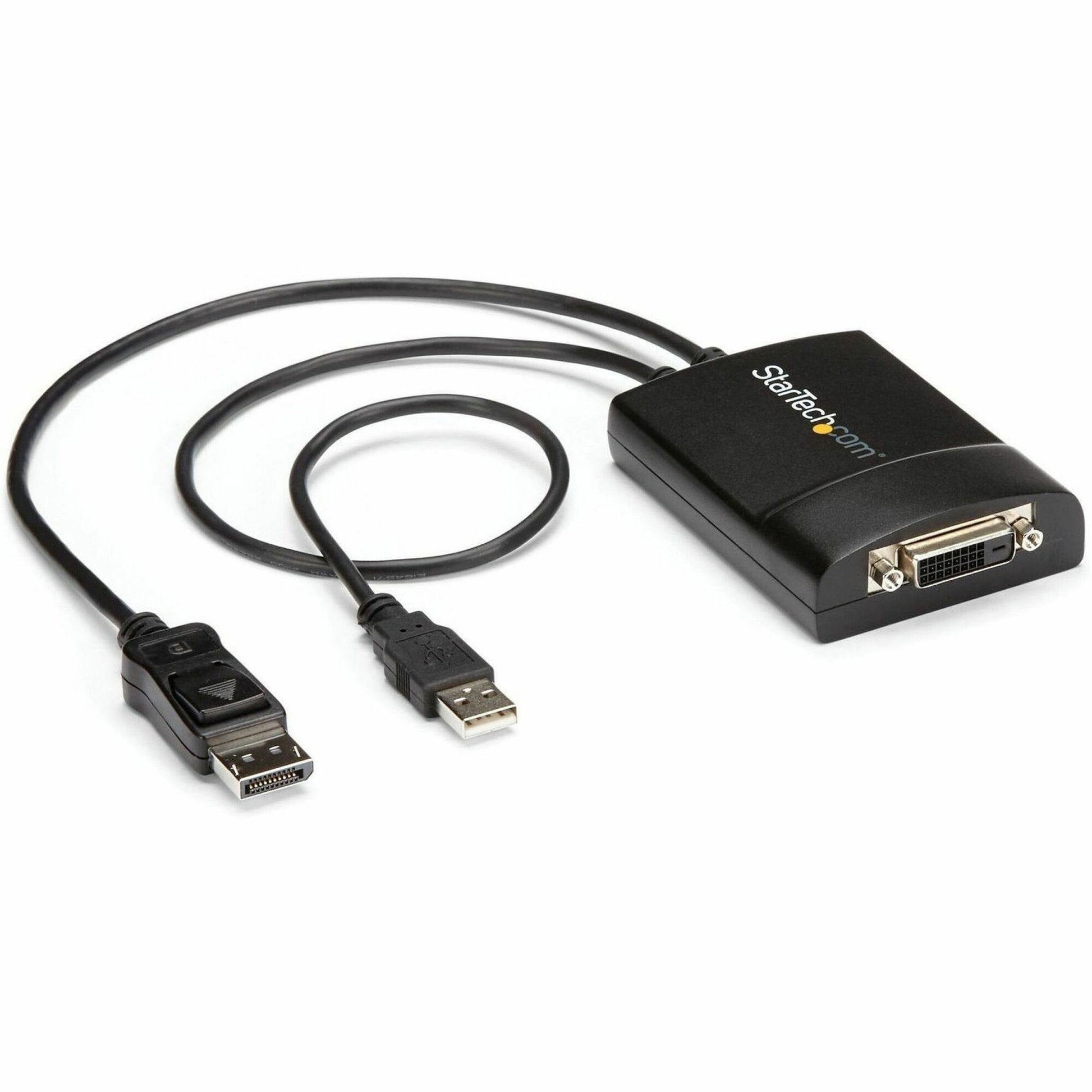

StarTech DisplayPort to DVI Dual Link Active Adapter, DisplayPort to DVI-D Adapter/Video Converter 2560x1600 60Hz, DP to DVI Adapter - DP2DVID2
Key Features
- COMPATIBILITY: Active video converter supports DP (single mode) or DP++ (multi-mode) source including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations

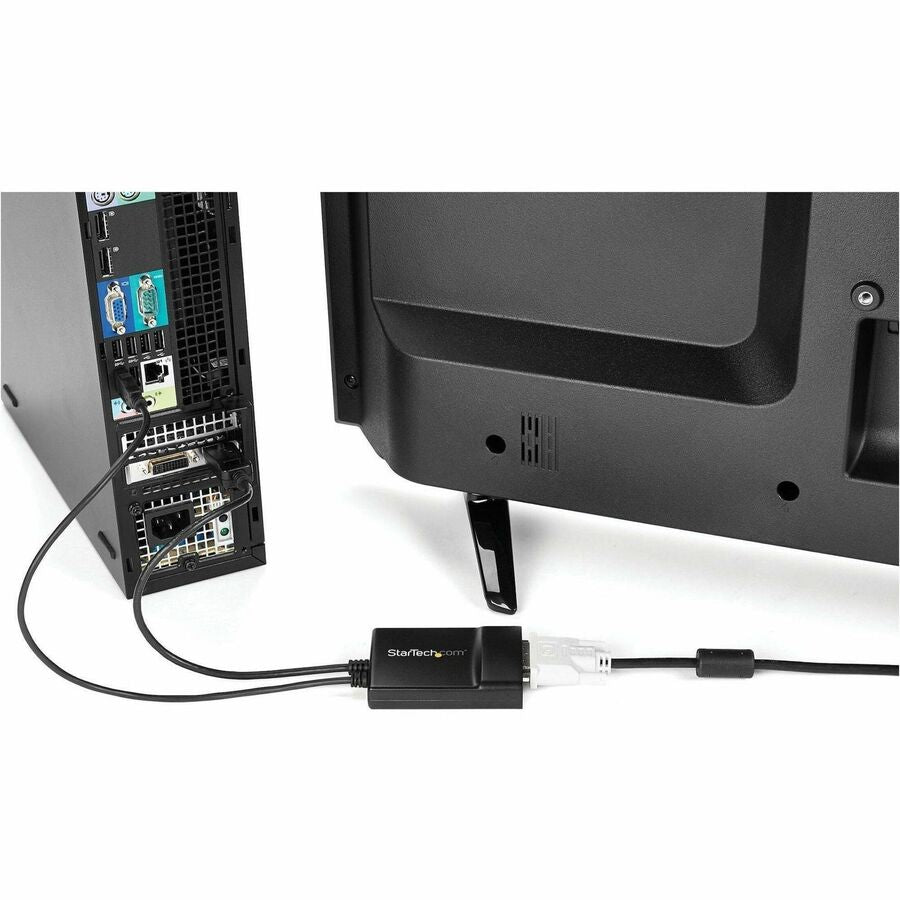

- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation
- Compact design
- Tested w/ DVI cables up to 25ft
- Supports widescreen/ultrawide & Apple Cinema Display HD
- Ideal for digital signage
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D dual-link adapter connects a DVI display supporting 2560x1600 60Hz (dual-link) or 1920x1200/1080p 120Hz (single-link); HDCP compliant;
- 15" (37cm) attached cable
- USB-Powered
- EDID pass-through
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS; DisplayPort male to DVI female adapter dongle
- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching nickel-plated DP connector with gold-plated contacts ensure a solid host connection
- Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection

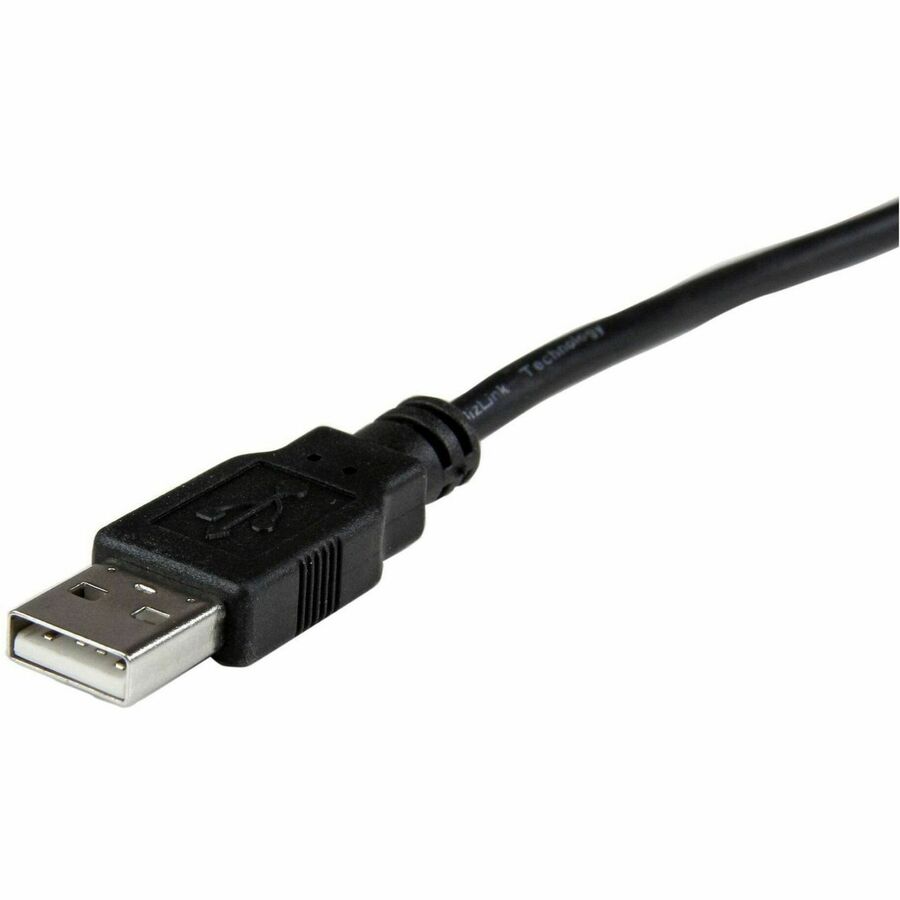

- 18" (46cm) USB cable
Product Overview
The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech 3-year warranty, with free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: DP2DVID2
- Brand Name: StarTech
- Product Name: DisplayPort to DVI Adapter
- Packaged Quantity: 1 Each
- Product Type: Video Adapter
Technical Information
- Connector Type on First End:
- DisplayPort Digital Audio/Video - Male
- USB Type A - Male
- Connector on First End Details:
- 1 x 20-pin DisplayPort Digital Audio/Video - Male
- 1 x 4-pin USB Type A - Male
- Connector Type on Second End: DVI-D (Dual-Link) Digital Video - Female
- Connector on Second End Details: 1 x 19-pin DVI-D (Dual-Link) Digital Video - Female
- Connector Plating: Nickel
- Contact Plating: Gold
- Features:
- Active
- HDCP
- Extended Display Identification Data (EDID)
- Screw Lock
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Height: 0.9"
- Width: 2.5"
- Weight (Approximate): 5.60 oz
Miscellaneous
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 3 Year
