StarTech.com HDMI KVM Extender Over IP Network, 4K 60Hz, Driverless, HDMI and USB Over Ethernet/CAT6, AVoIP, Transmitter/Receiver Kit - IH2006-KVM-EXTENDER
Key Features
- AVoIP KVM EXTENDER: Remotely access and control a computer over a TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor, while keeping the system secure from unauthorized access or physical damage

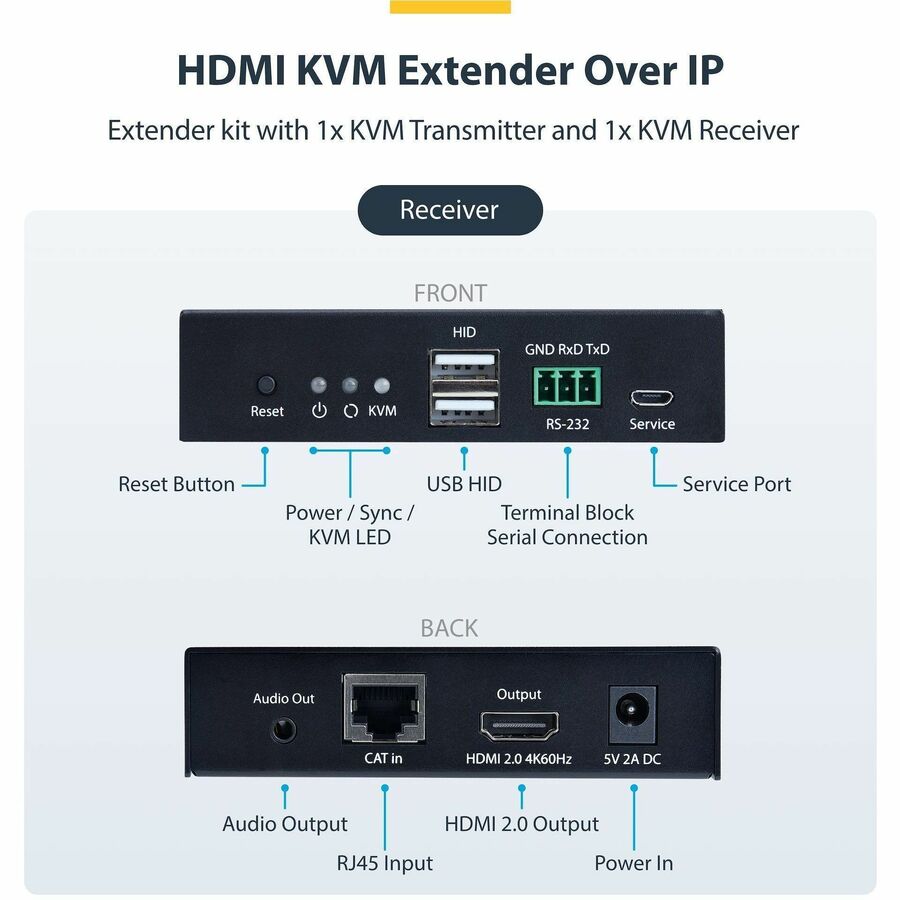

- LOCAL HDMI OUTPUT: IP KVM Transmitter features an HDMI output to connect a local display, allowing you to view the content without being at the receiver's location; Three-wire RS232 port and a 3.5mm audio passthrough port offer serial and audio extension
- NO DRIVERS OR SOFTWARE: IP Video Distribution kit requires no configuration to get it working; Compatible with any operating system including Windows, macOS and Linux, as well as all hardware platforms such as Intel, AMD, Snapdragon/ARM and Apple Silicon
- SCALABLE SETUP: Start with a point-to-point setup, then expand to a one-to-many setup by adding IP KVM receivers (sold separately), allowing your setup to grow with your business needs and ensuring a scalable, future-proof solution
- SECURE & FLEXIBLE INSTALLATION: Durable metal housing with included mounting kits for wall or under-desk installation; Rubber feet prevent slipping for desktop use; Ideal for industrial and professional environments
Product Overview
The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.
Professional-Grade Design

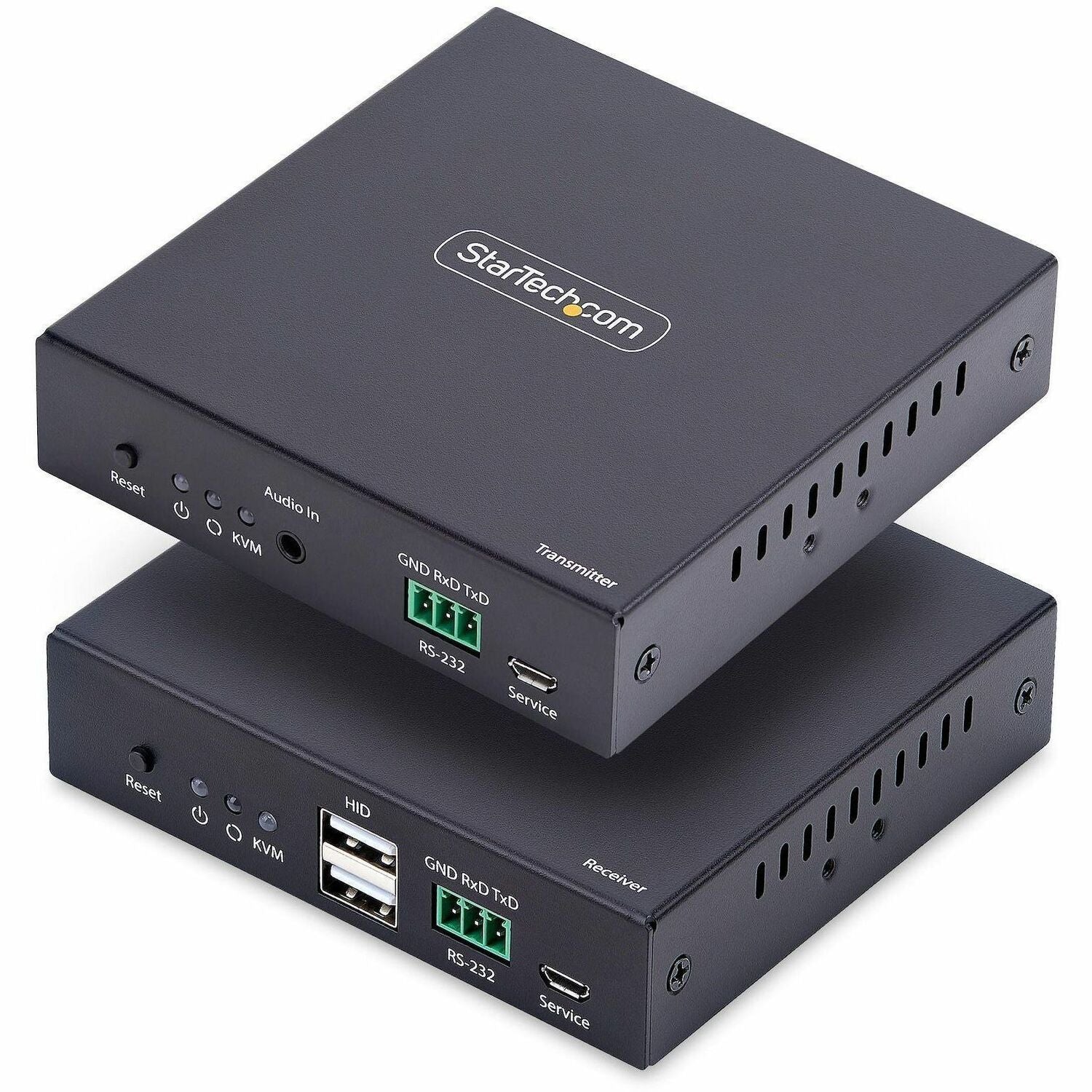

Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: IH2006-KVM-EXTENDER
- Brand Name: StarTech.com
- Product Name: KVM Extender Transmitter/Receiver
- Packaged Quantity: 1
- Product Type: KVM Extender Transmitter/Receiver
Technical Information
- Connectivity Technology: Wired
- Data Link Protocols: TCP/IP
- Device Type: KVM Extender
Video
- Graphic Mode: 4K
- Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
- Host Interface: HDMI
- Network (RJ-45): Yes
- USB: Yes
- HDMI: Yes
- Number of HDMI Ports: 3
- Number of Network (RJ-45) Ports: 2
- Number of USB Ports: 5
Power Description
- Input Voltage:
- 100 V AC
- 240 V AC
- Input Voltage Range: 100 - 240 AC
- Power Consumption: 10 W
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor: Wall Mountable
- Transmitter Height: 0.80"
- Transmitter Width: 4.10"
- Receiver Height: 0.80"
- Receiver Width: 4.10"
- Transmitter Weight (Approximate): 11.10 oz
- Receiver Weight (Approximate): 11.10 oz
Miscellaneous
- Package Contents:
- KVM Extender Transmitter/Receiver
- 2x RS-232 Terminal Headers
- 2x Mounting Kit
- 2x Set of Rubber Feet
- 2x Universal Power Adapter (NA/EU/UK/ANZ)
- 1x Quick-Start Guide
- Platform Supported:
- Windows
- Mac
- Linux
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
