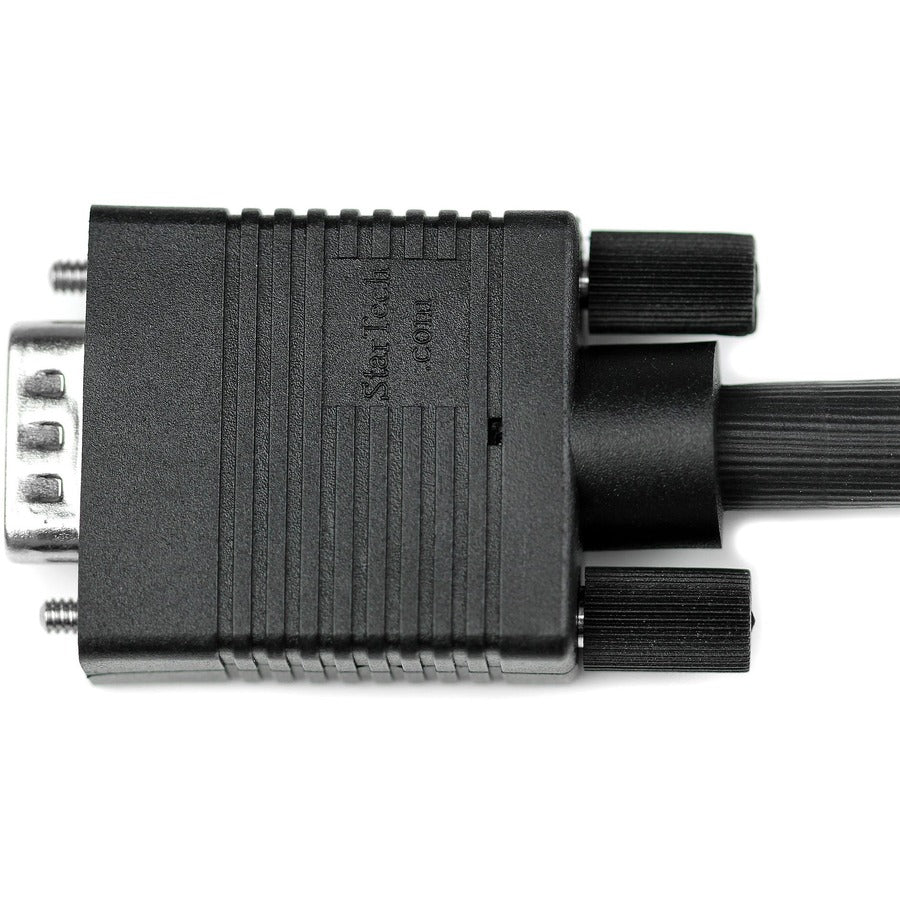

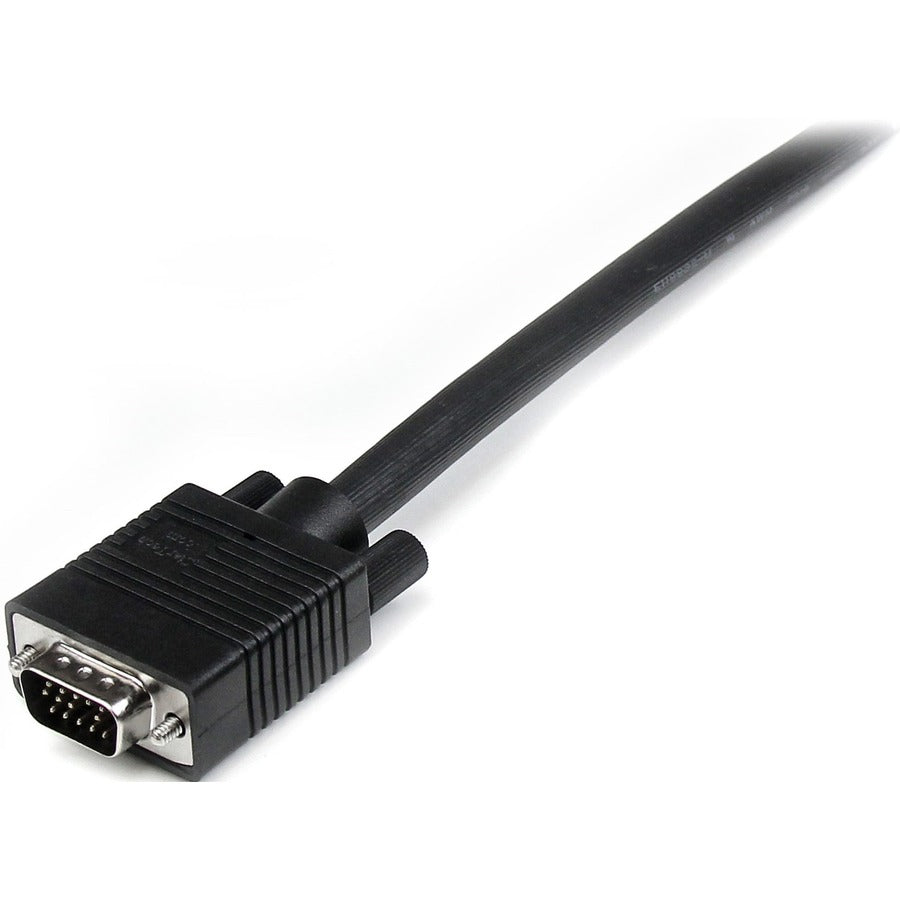

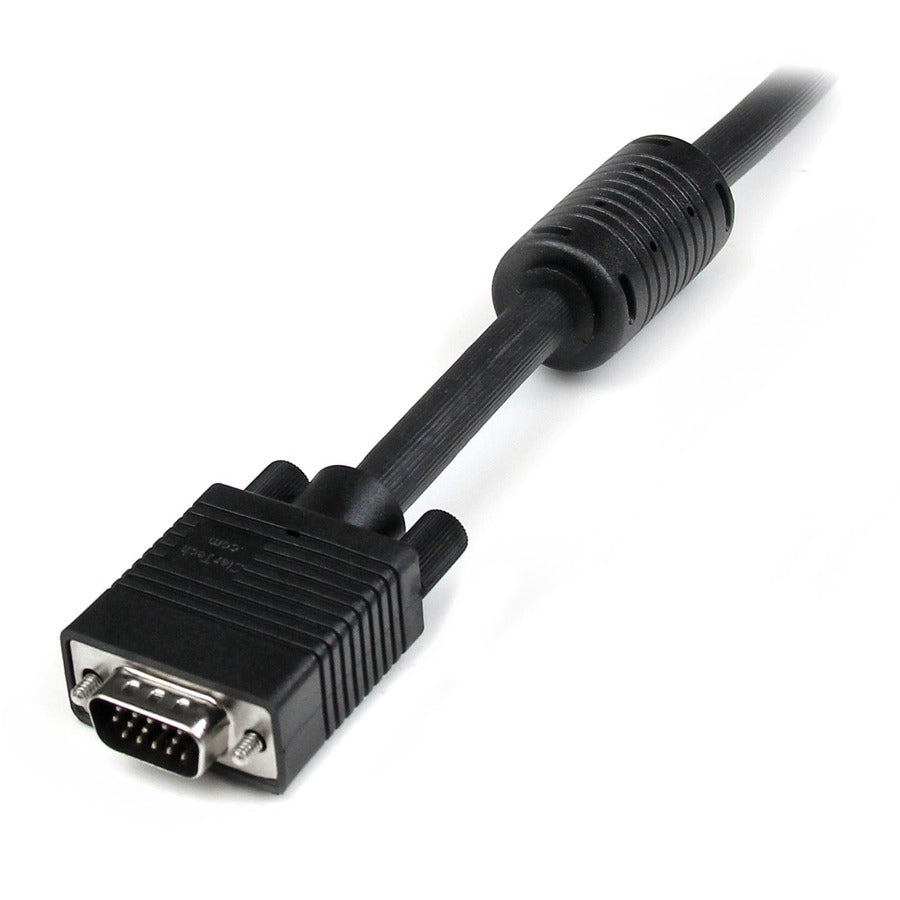

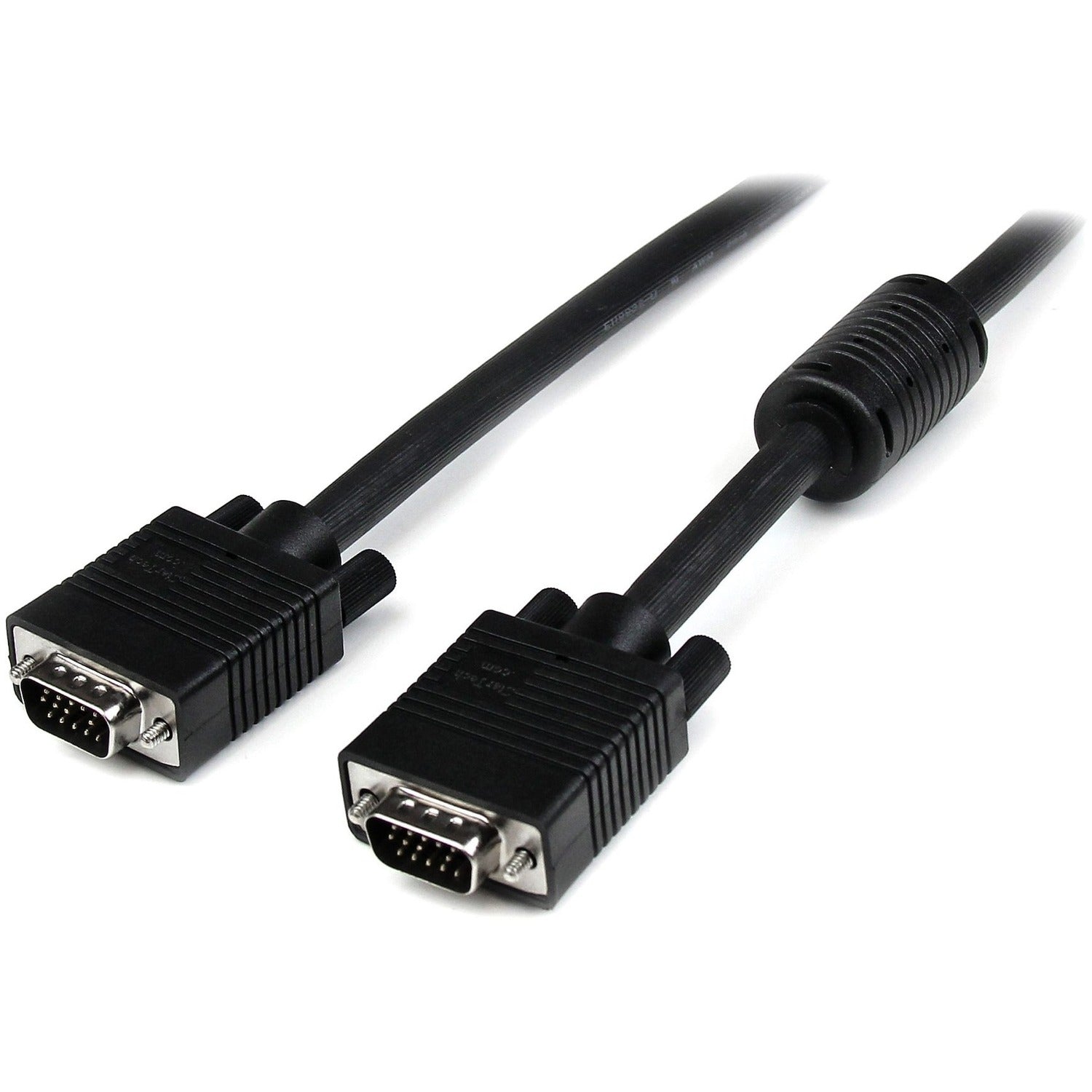

StarTech High-Resolution Coaxial SVGA - VGA Monitor cable - HD-15 (M) - HD-15 (M) - 4.57 m - MXT105MMHQ
Key Features
- Durably constructed cable, with high quality HD15 connectors
- High quality VGA connectors with molded PVC strain relief
- Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor
- Triple-coaxial + twisted-pair wire for crystal clear display
Product Overview
The MXT105MMHQ High Resolution VGA Cable (15ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above. This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: MXT105MMHQ
- Brand Name: StarTech
- Product Name: 15 ft Coax High Resolution Monitor VGA Cable - HD15 Male/Male
- Packaged Quantity: 1 Each
- Product Type: Video Cable
Technical Information
- Cable Type: Coaxial
- Cable Characteristic: Extension Cable
- Cable Length: 15 ft
- Connector Type on First End: HD-15 - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x HD-15 - Male
- Connector Type on Second End: HD-15 - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x HD-15 - Male
- Connector Plating: Nickel
- Device Supported:
- Monitor
- Video Device
- American Wire Gauge: 28 AWG
- Supported Resolution: 1920 x 1200
- Features:
- Molded
- EMI Protection
- Strain Relief
- Ferrite Bead
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Weight (Approximate): 1.21 lb
Miscellaneous
- Package Contents:
- 1 x 15 ft Coax High Resolution Monitor VGA Cable - HD15 M/M
- 2 x Nuts
- Compatibility:
- Monitor
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
