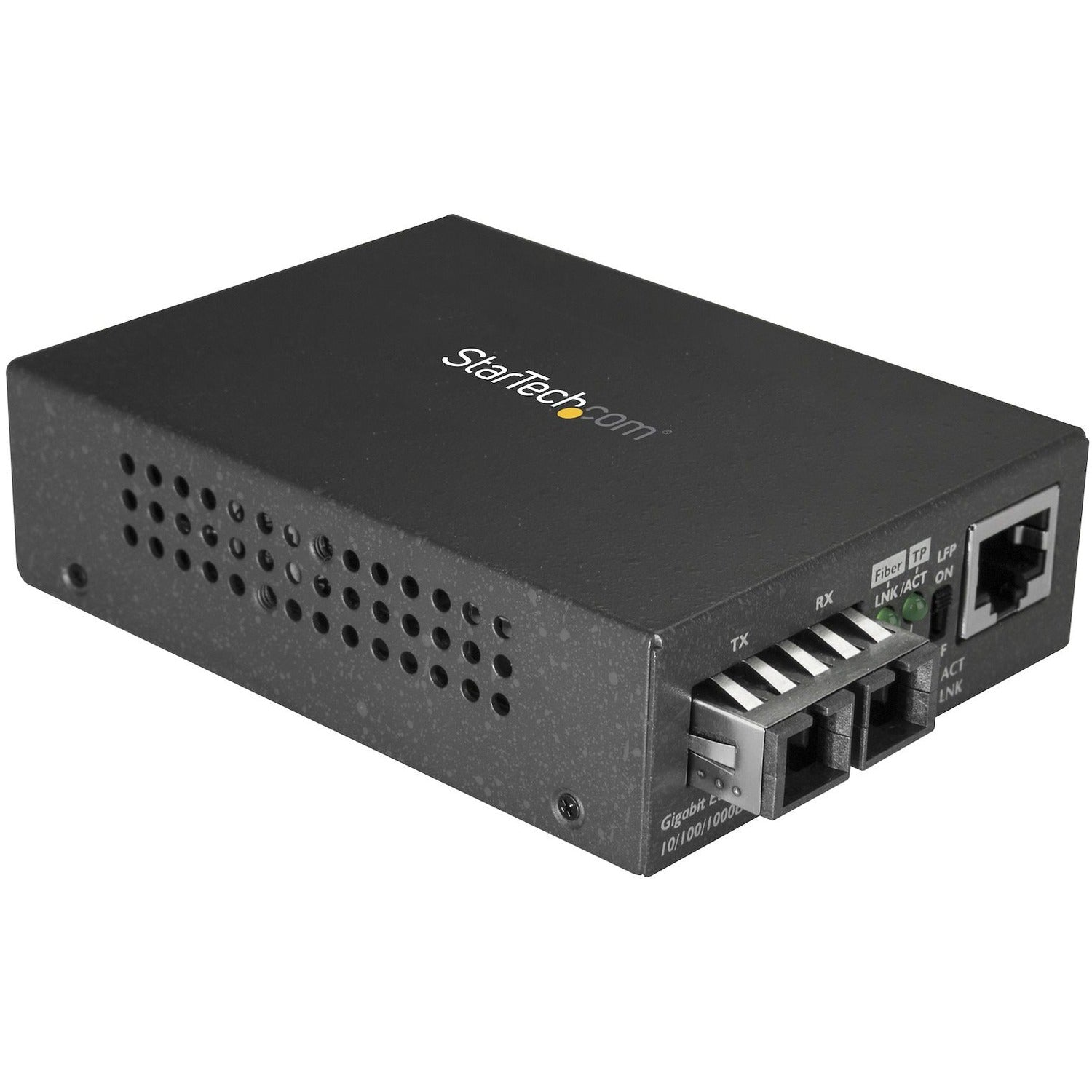

StarTech Single Mode SC Fiber Ethernet Media Converter - 1000BASE-LX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network 10km - MCMGBSCSM10
Key Features
- 1310 nm wavelength
- Compact design and wall mountable
- Converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks

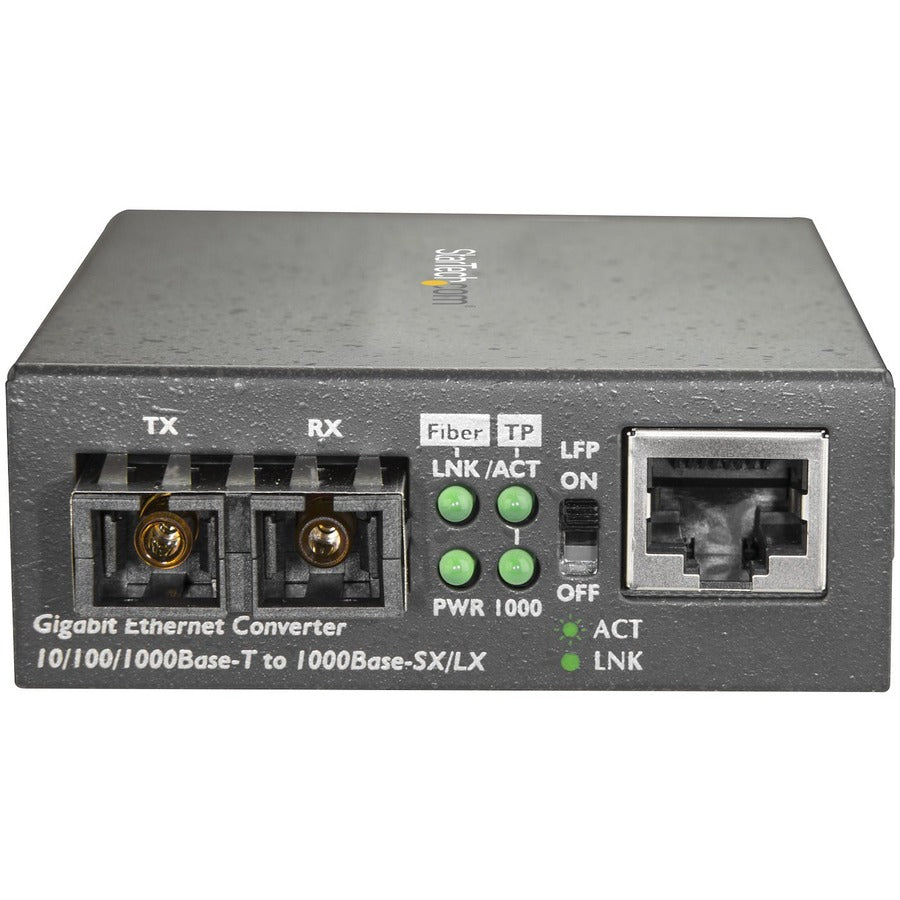

- LED Indicators for simple Ethernet/fiber network link monitoring
- Non-blocking full wire-speed forwarding rate
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Provides DIP switch supporting Link Fault Pass-through function
- Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
- Supports IEEE 802.1q Tag VLAN pass through
Product Overview
This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCSM10 is backed by a StarTech 2-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: MCMGBSCSM10
- Brand Name: StarTech
- Product Name: Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
- Packaged Quantity: 1 Each
- Product Type: Transceiver/Media Converter
Interfaces/Ports
- Total Number of Ports: 2
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 1
- Number of SC Ports: 1
- SC Port Type: Duplex
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported: Single-mode
- Fiber Optic Cable Wavelength: 1310 nm
- Maximum Distance Supported: 10 km
Network & Communication
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 1000Base-T
- 1000Base-LX
- 10Base-T
- 100Base-LX
Power Description

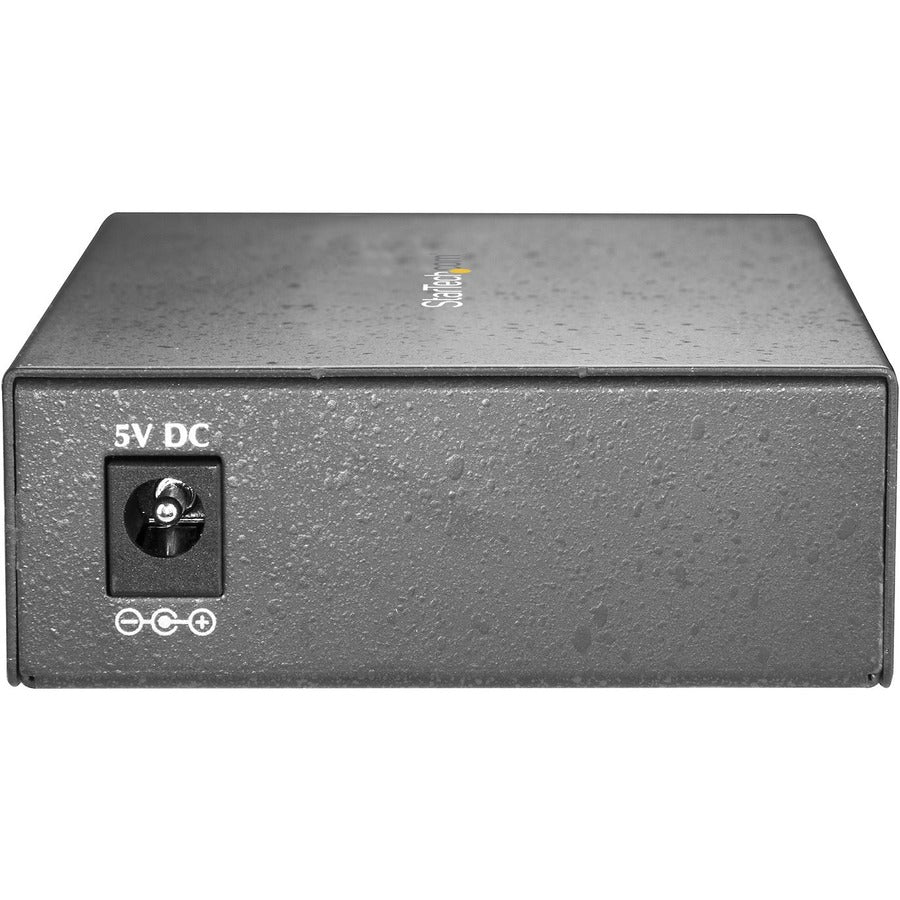

- Power Source: AC Adapter
- Power Consumption: 10 W
- Plug/Connector Type: Type N
Physical Characteristics
- Form Factor: Wall Mountable
- Height: 1"
- Width: 4.1"
- Depth: 2.8"
- Weight (Approximate): 6.90 oz
Miscellaneous

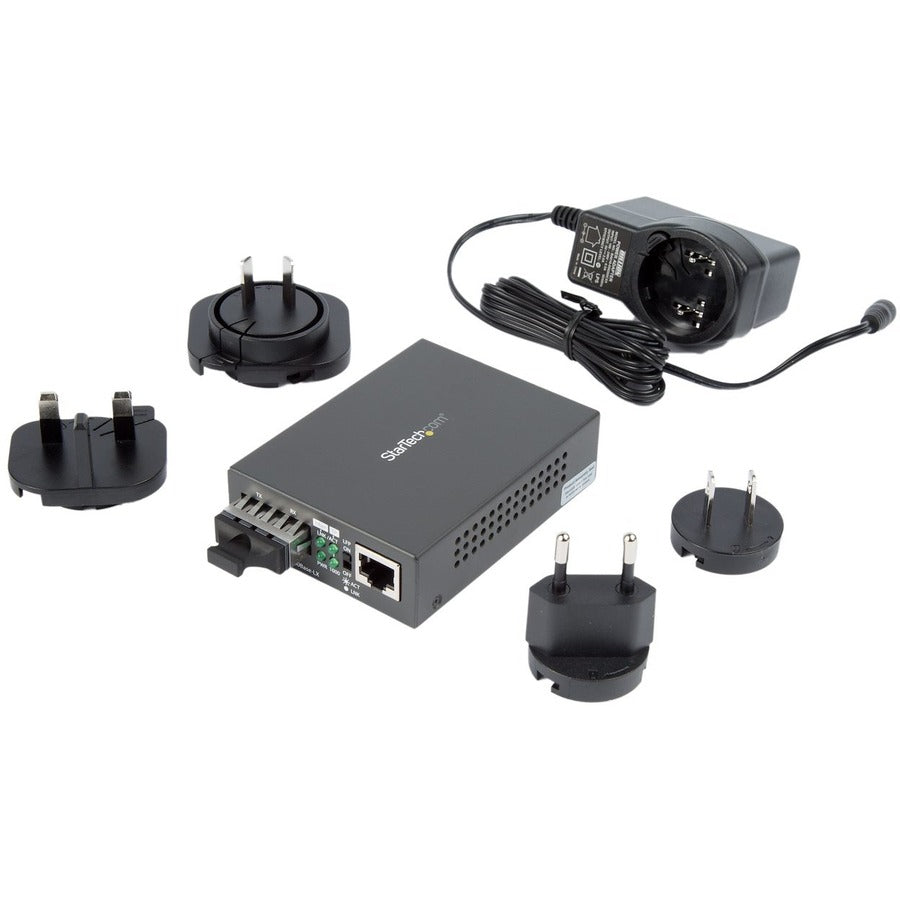

- Package Contents:
- Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
- 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
- 1 x Quick-start Guide
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
