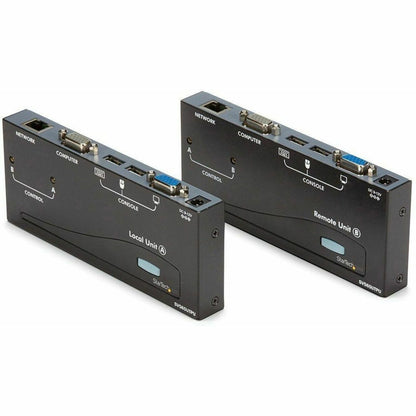

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft) - SV565UTPU
Key Features
- Can be used with a single computer or connected to an existing KVM switch
- Easy installation using industry-standard UTP network cable
- Intuitive hotkey commands
- PS/2 and USB host PC's supported via the appropriate PS2 or USB KVM cable (USB style included)
- Supports auto-switching between host and remote users or dedicated control
- Supports most combo keyboard and mouse sets (including Wireless)
Product Overview

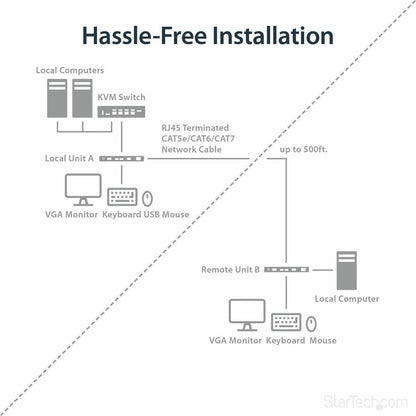

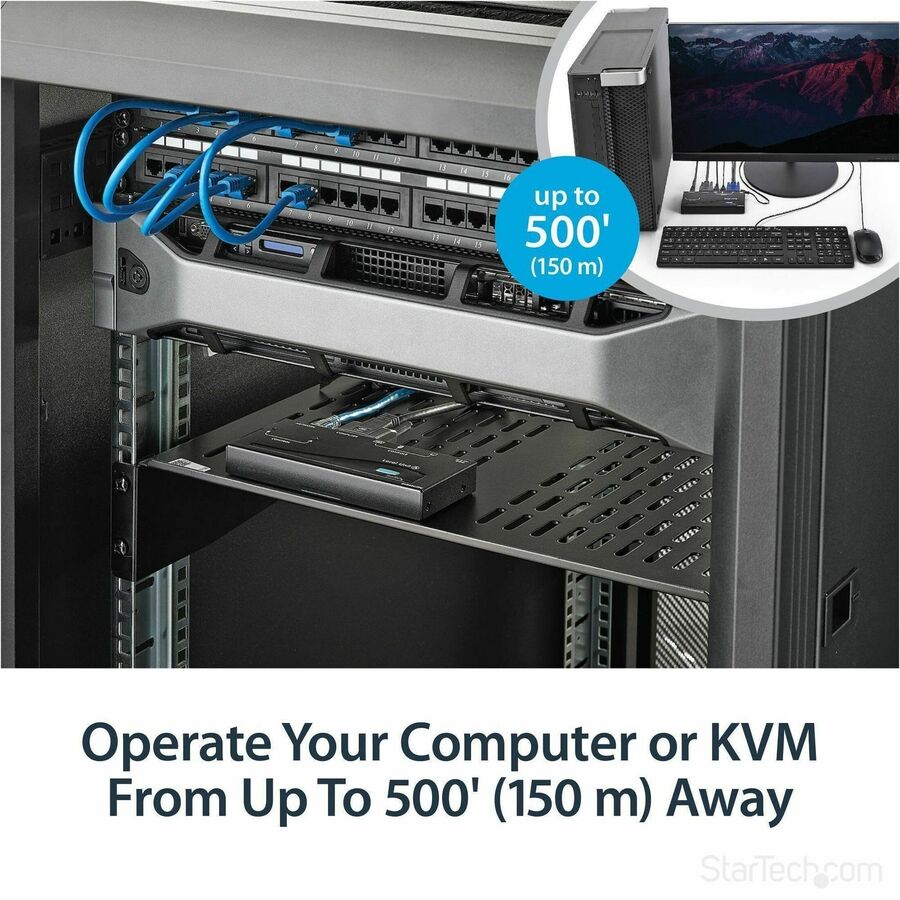

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: SV565UTPU
- Brand Name: StarTech.com
- Product Model: SV565UTPU
- Product Name: USB VGA KVM Console Extender over CAT5 UTP - 500 ft
- Packaged Quantity: 1 Kit
- Product Type: KVM Console/Extender
Technical Information
- Connectivity Technology: Wired
- KVM Technology: Analog
- Number of Computers Supported: 2
- Number of Local Users Supported: 1
- Number of Remote Users Supported: 1
- Maximum Operating Distance: 500 ft
Video
- Graphic Mode: XGA
- Maximum Video Resolution: 1024 x 768

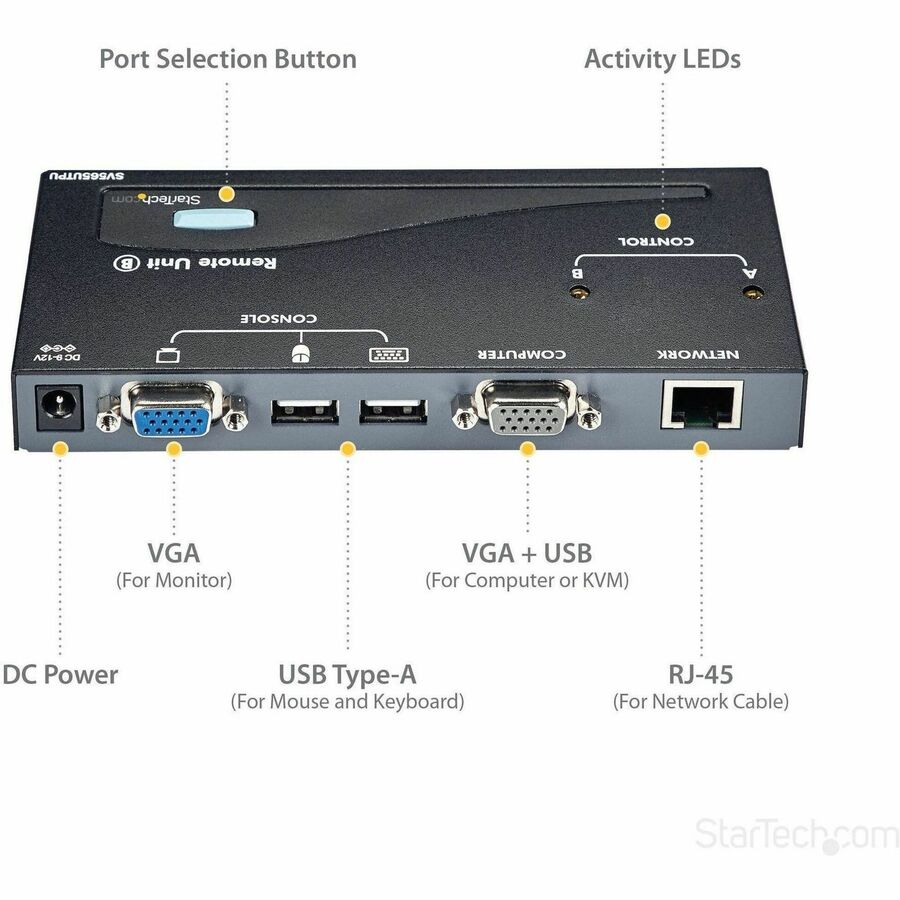

Interfaces/Ports
- Network (RJ-45): Yes
- USB: Yes
- VGA: Yes
- Number of VGA Ports: 4
- Number of Network (RJ-45) Ports: 2
- Number of USB Ports: 4
Power Description
- Input Voltage:
- 120 V AC
- 240 V AC
- Input Voltage Range: 110V AC to 240V AC
- Power Consumption: 5.40 W
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor: Desktop
- Transmitter Height: 0.80"
- Transmitter Width: 6.10"
- Receiver Height: 0.80"
- Receiver Width: 6.10"
- Transmitter Weight (Approximate): 1.32 lb
- Receiver Weight (Approximate): 1.32 lb
Miscellaneous
- Package Contents:
- USB VGA KVM Console/Extender
- 2 x 6 ft 2-in-1 USB VGA KVM Cables
- 8 x Rubber Feet
- 1 x Power Adapter
- 1 x Instuction Manual
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
- Additional Warranty Information: This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
