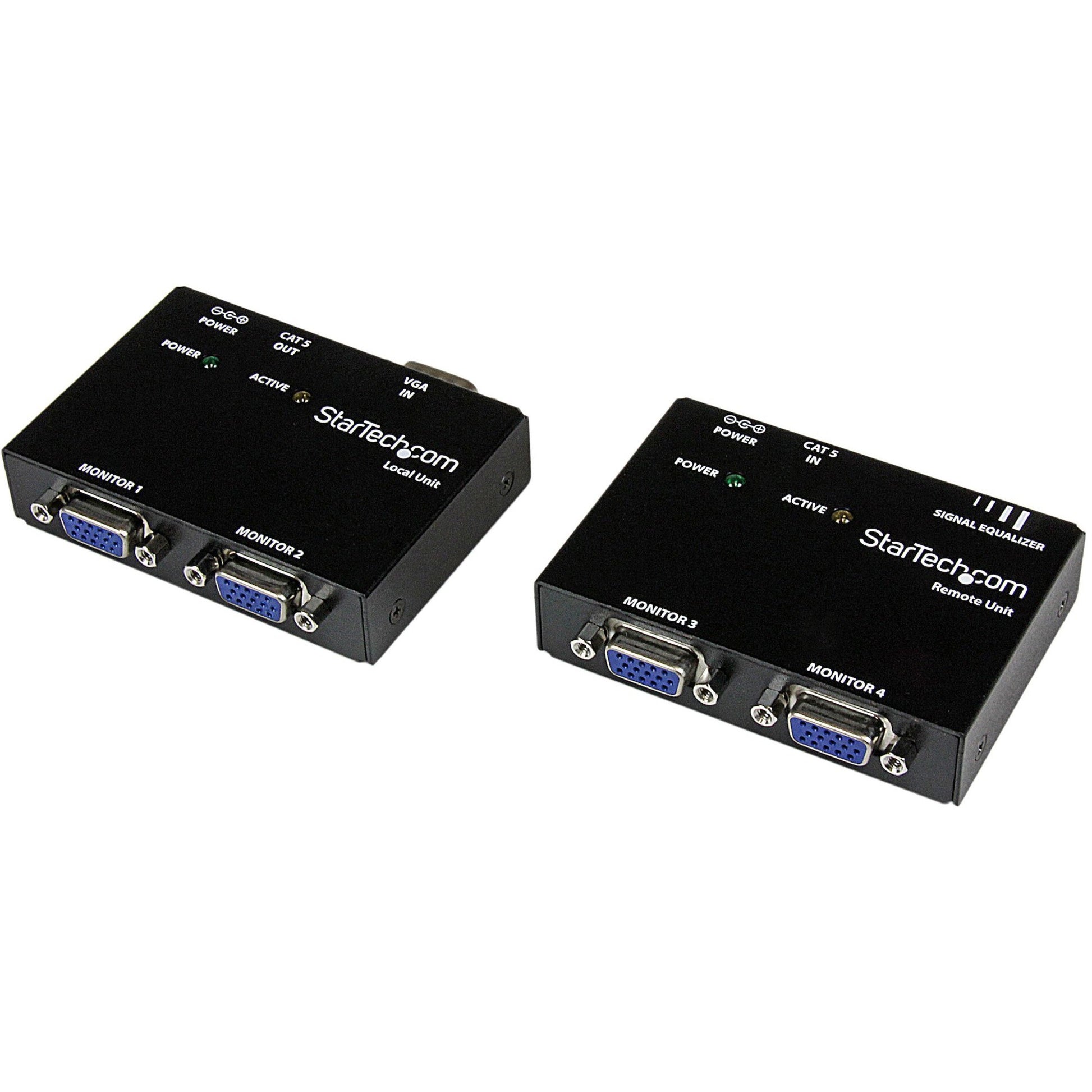

StarTech VGA Video Extender over CAT5 (ST121 Series) - ST121UTP
Key Features
- Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
- Extends video cables by up to 500 ft. (150m)
- Included mounting brackets
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
Product Overview
The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required.

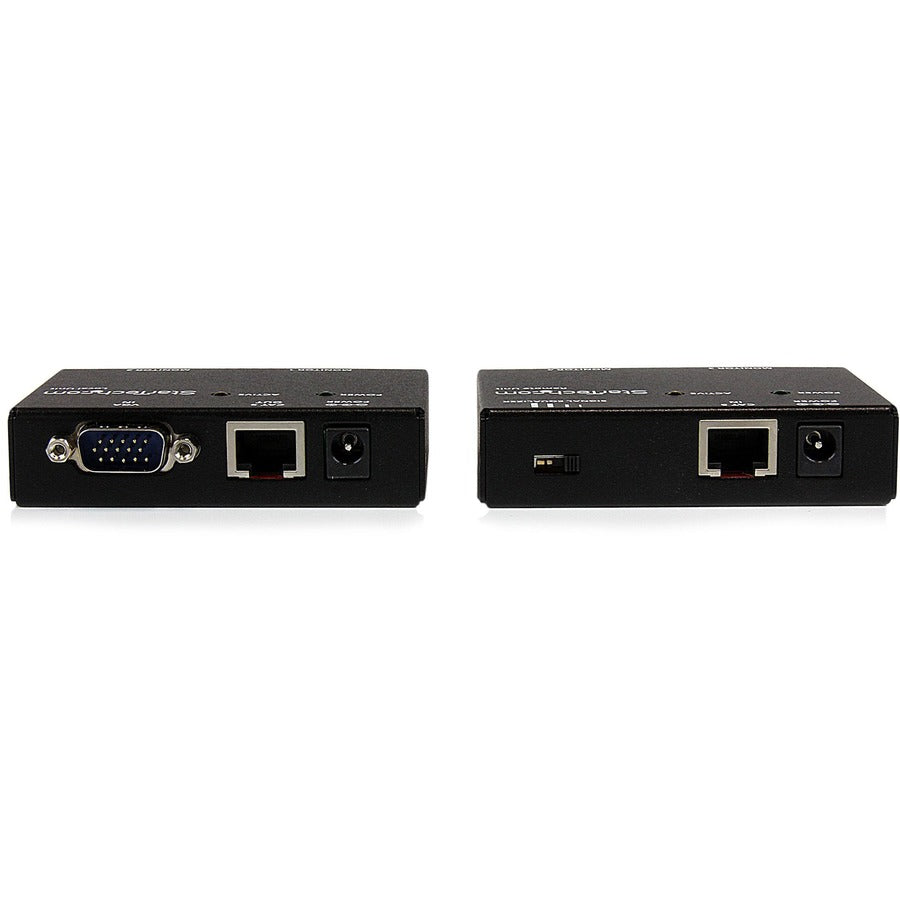

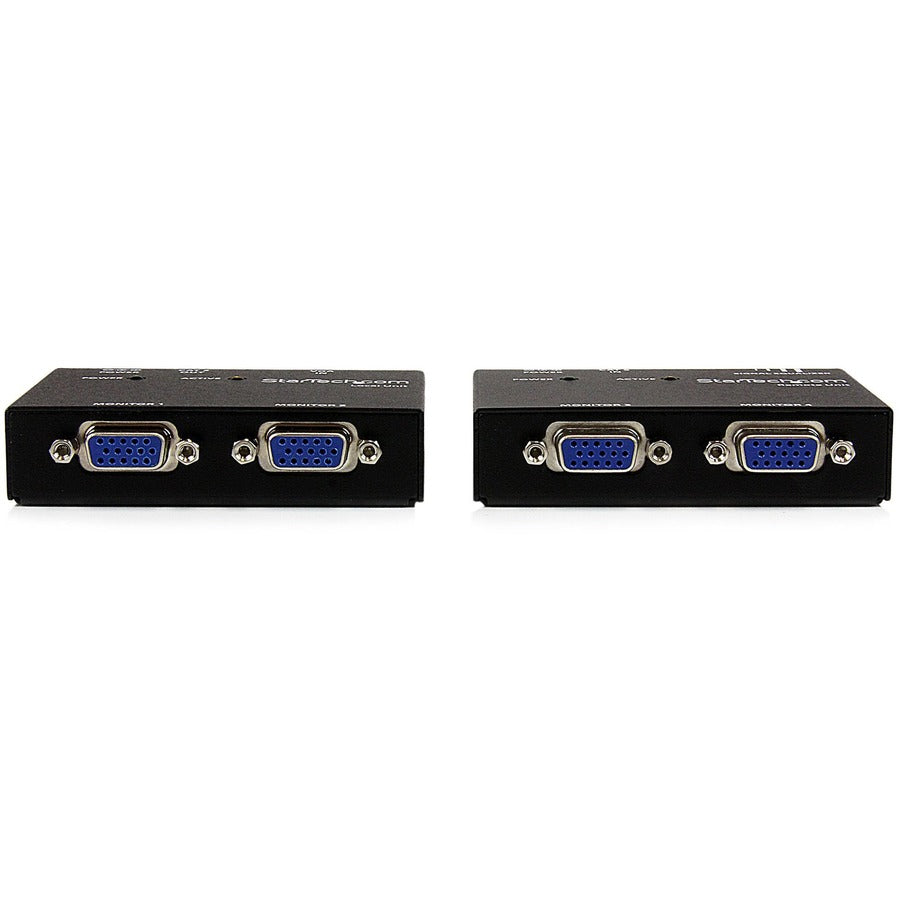

The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total.
The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: ST121UTP
- Brand Name: StarTech
- Product Name: VGA Video Extender over CAT5 (ST121 Series)
- Product Type: Video Extender Transmitter/Receiver
Technical Information
- Connectivity Technology: Wired
- Number of Input Devices Supported: 1
- Number of Output Devices Supported: 4
- Maximum Operating Distance: 500 ft
Video
- Graphics Modes: SXGA
- Maximum Video Resolution: 1280 x 1024
Interfaces/Ports
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 2
Media & Performance
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 5e
Physical Characteristics
- Transmitter Height: 0.80"
- Transmitter Width: 3.30"
- Transmitter Depth: 2.40"
- Receiver Height: 0.80"
- Receiver Width: 3.30"
- Receiver Depth: 2.40"
- Transmitter Weight (Approximate): 11.82 oz
- Receiver Weight (Approximate): 11.82 oz
Miscellaneous
- Package Contents:
- VGA Video Extender over CAT5 (ST121 Series)
- 1 x Mounting Bracket for Receiver (w/ screws)
- 2 x Sets Rubber Feet
- 2 x Power Adapter
- 1 x Instruction Manual
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
Warranty
- Limited Warranty: 2 Year
