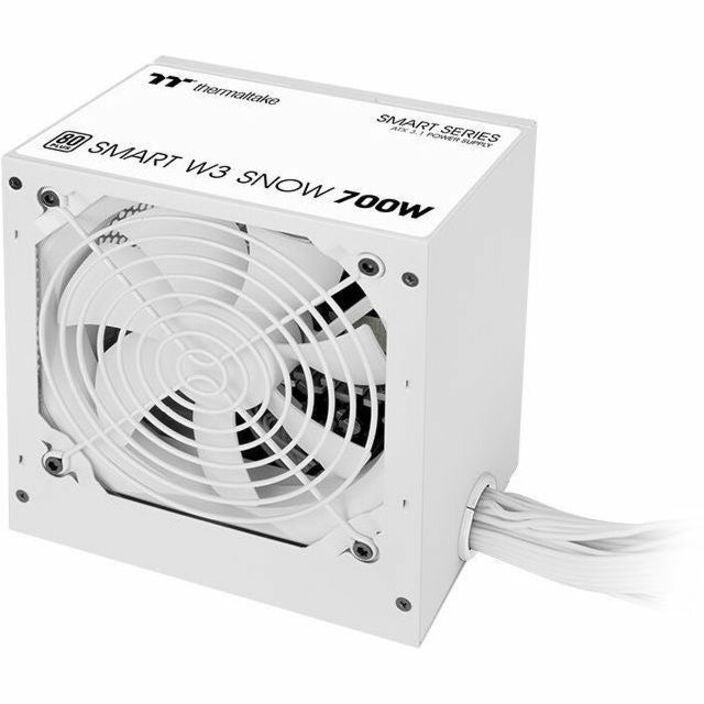

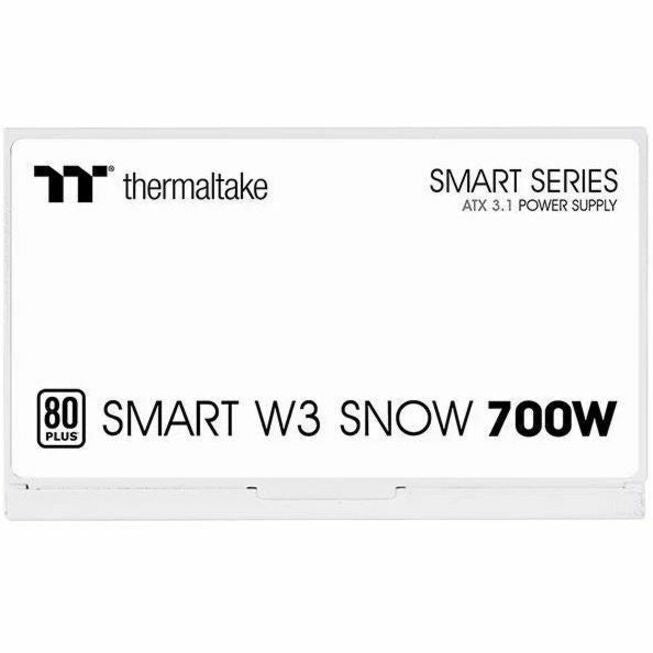

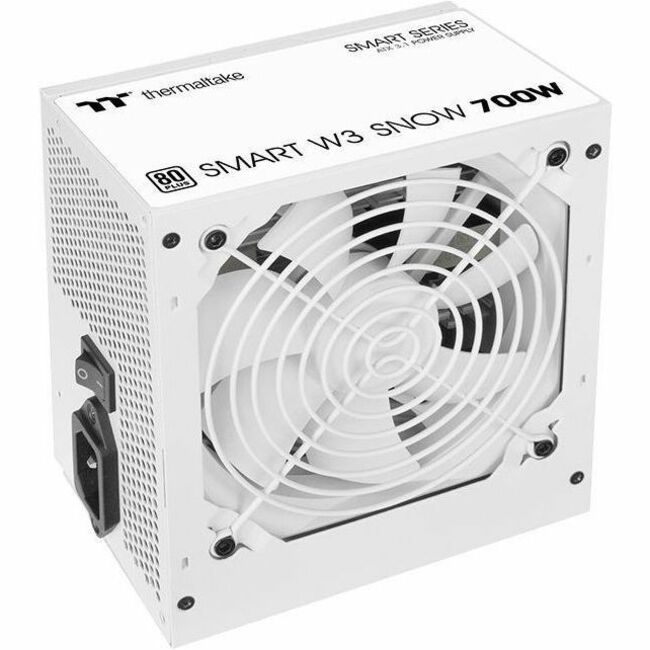

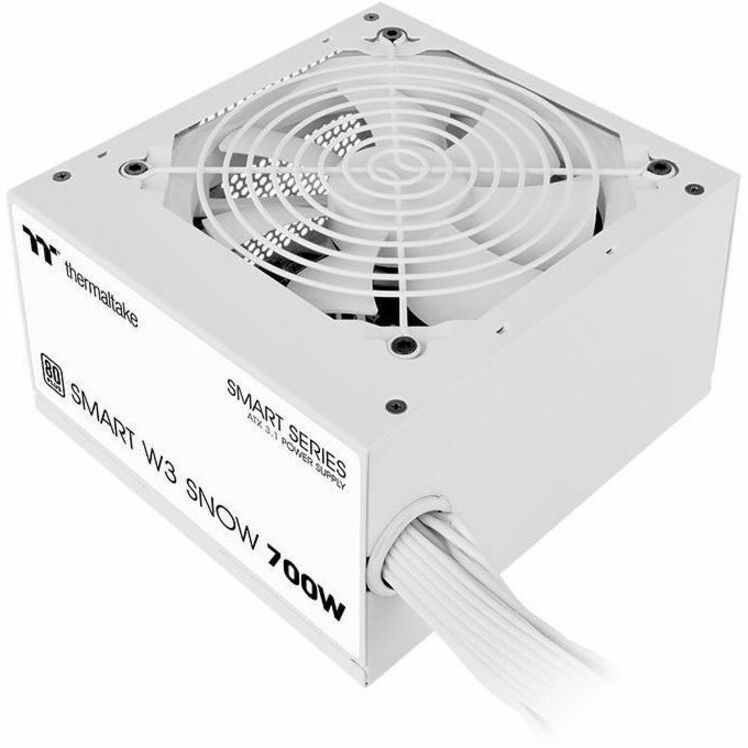

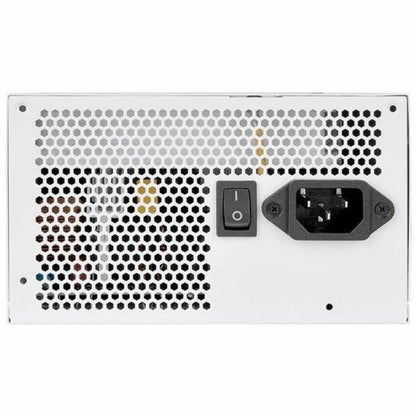

Thermaltake Smart W3 SP3-700AH2NLW 700W Power Supply - PS-SPW-0700NNFAWU-W
Key Features
- Delivers 3.3 V DC to ensure that your device is always ready to use
- Providing up to 700 W maximum output power
- Supplies power to the electrical load to keep up with the power requirements
Product Overview
Empowering with Efficiency and Stability
The Smart W3 Snow is certified by 80 PLUS efficiency and designed to meet ATX 3.1 standards. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.
ATX 3.1 Ready
Smart W3 Snow is fully compatible with ATX 3.1 specifications, which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.
- 2X Total Power Excursion
- 3X GPU Power Excursion
Stay Quiet

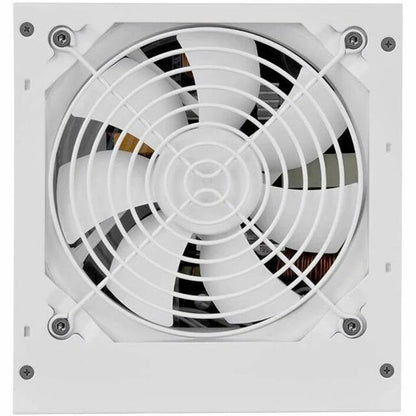

Ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

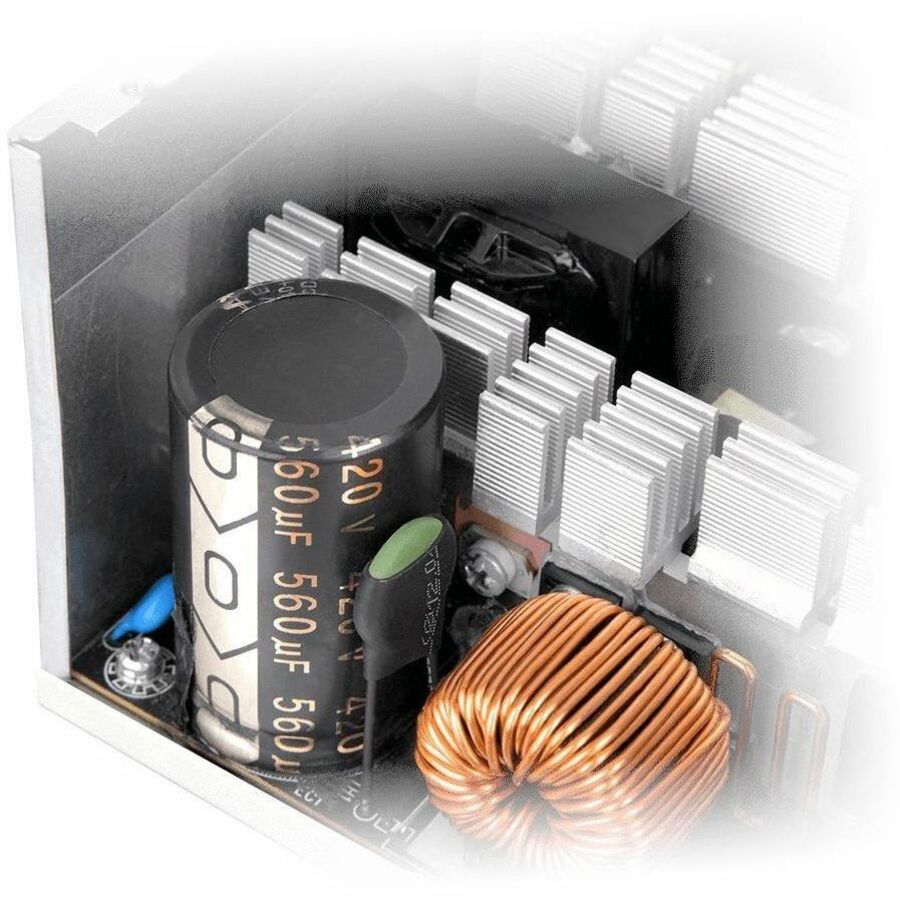

High Quality 105°C/221°F Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart W3 Snow is stable and reliable.

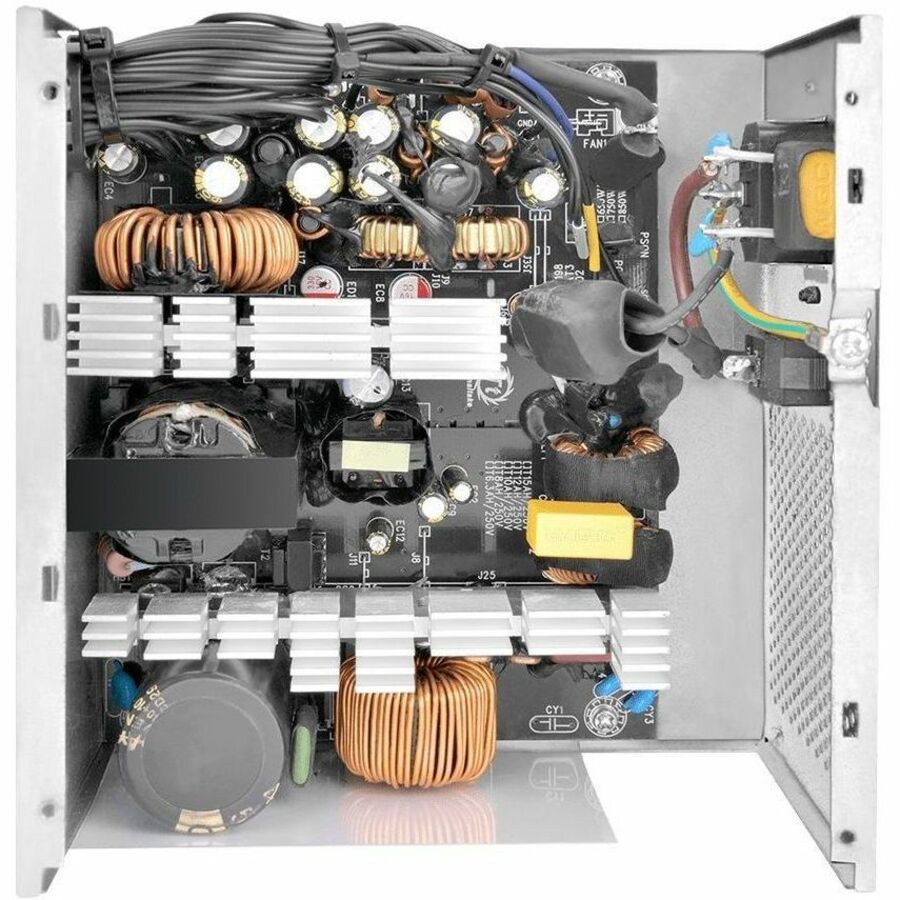

High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Non-Modular Soft Cable Design
Smart W3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
Built-in Industrial Grade Protection
To protect the hardware, Smart W3 Snow is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
80 PLUS Certified and Intel C6/C7 States Ready
Smart W3 series saves energy through its high energy efficiency up to 80% and is certified to 80 PLUS®. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.
General Information
- Manufacturer: Thermaltake Technology Co., Ltd
- Manufacturer Part Number: PS-SPW-0700NNFAWU-W
- Brand Name: Thermaltake
- Product Line: Smart W3
- Product Model: SP3-700AH2NLW
- Product Name: Smart W3 SP3-700AH2NLW 700W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX 3.1
- Efficiency: 80%
- Power Factor Correction (PFC): Active
- Number of Fans: 1
- Fan Bearing Type: Fluid Dynamic Bearing
- Fan Diameter: 120 mm
- Protection Type:
- Over Current
- Over Power
- Over Temperature
- Over Voltage
- Short Circuit
- Under Voltage
- Modular: No
Power Description

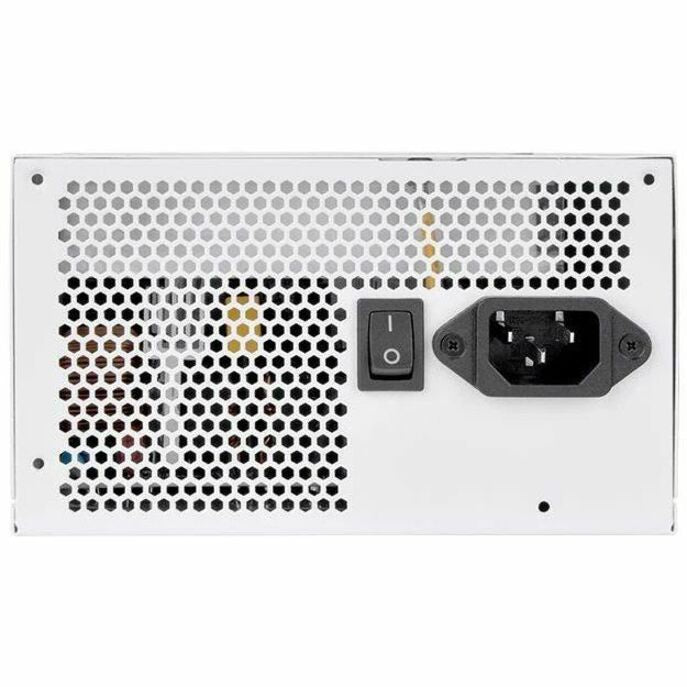

- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail:
- 3.3 V DC @ 18 A
- 5 V DC @ 18 A
- -12 V DC @ 0.3 A
- 5 V DC @ 3 A
- 12 V DC @ 58.3 A
- Output Power: 700 W
Interfaces/Ports
- Number of SATA Power Connectors: 4
- PCI Express Connector: Yes
- Number of (6+2 pin) PCI Express Power Connectors: 2
- Number of (4+4 pin) CPU Power Connectors: 2
Physical Characteristics
- Color Family: White
- Product Color: White
- Form Factor: Internal
- Height: 3.4"
- Width: 5.9"
- Depth: 5.5"
Environmental Conditions
- Minimum Operating Temperature: 41°F (5°C)
- Maximum Operating Temperature: 104°F (40°C)
Warranty
- Limited Warranty: 5 Year
