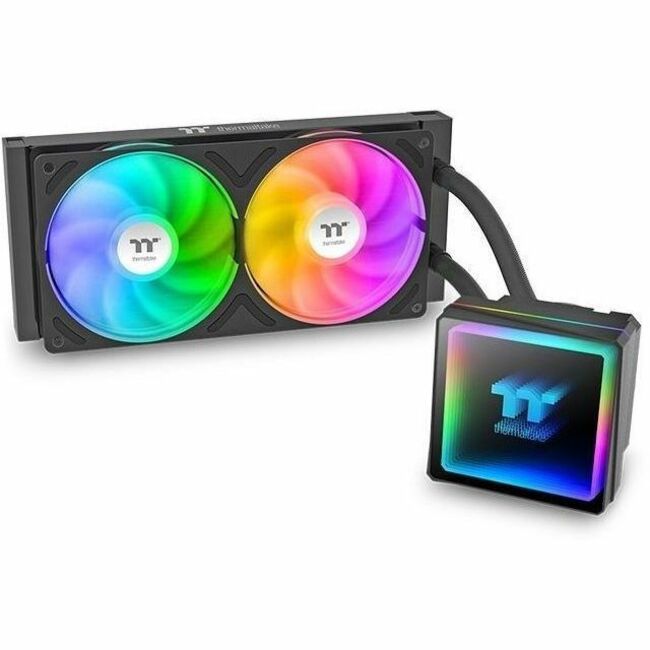

Thermaltake TH240 V3 ARGB Sync Cooling Fan/Radiator/Pump - CL-W465-PL12SW-A
Key Features
- 9.45" fan(s) with 2510 - 4 Pin / ARGB - 3Pin connector enables quick and stable connection with cpus
- Colorful argb LEDs add an ultra-modern style
- Cooling Fan/Radiator/Pump offers better protection with maximum cooling/heating efficiency and convenience
Product Overview

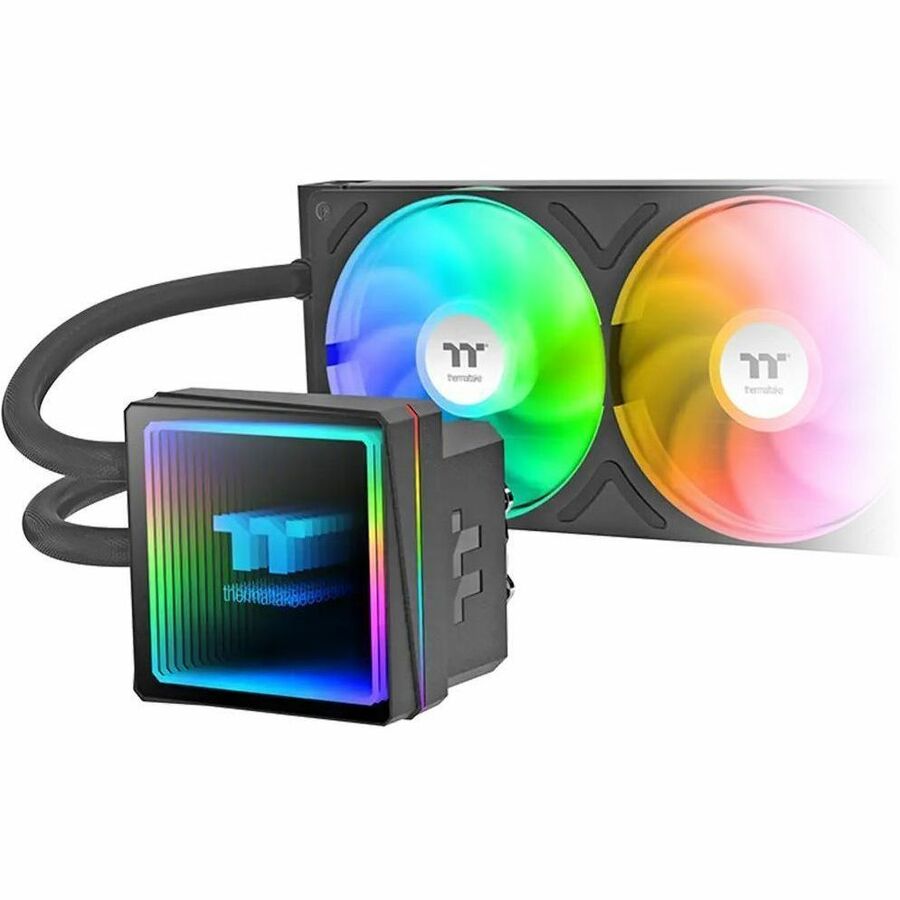

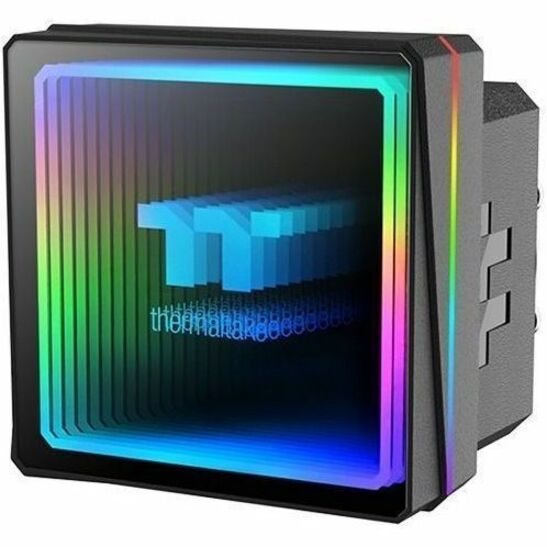

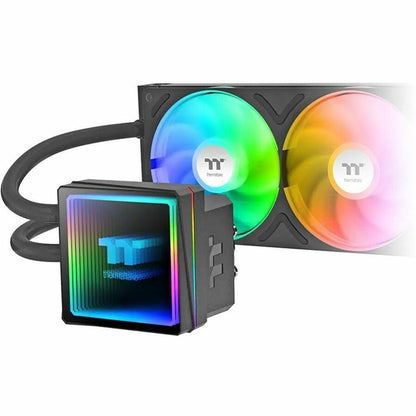

Detachable Design Meets Infinity Mirror Effects
The TH V3 ARGB Sync series features a striking square pump head with captivating infinity mirror effects. Its detachable top cover allows you to rotate and adjust the orientation with ease, ensuring the logo always faces the perfect direction regardless of your installation angle.
Say Goodbye to Excessive Cables

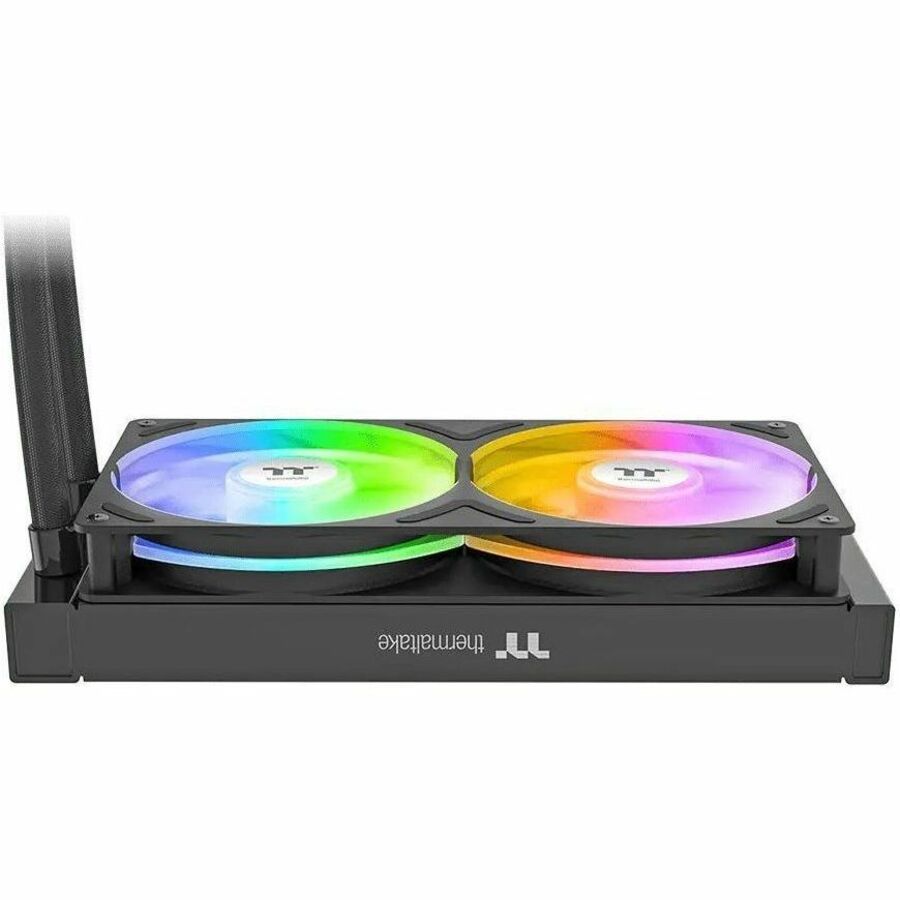

Engineered for optimized cable management, the single-frame fan design minimizes cable clutter, making installation faster and easier. It ensures a neat and sleek appearance, keeping your AIO liquid cooler looking professional.

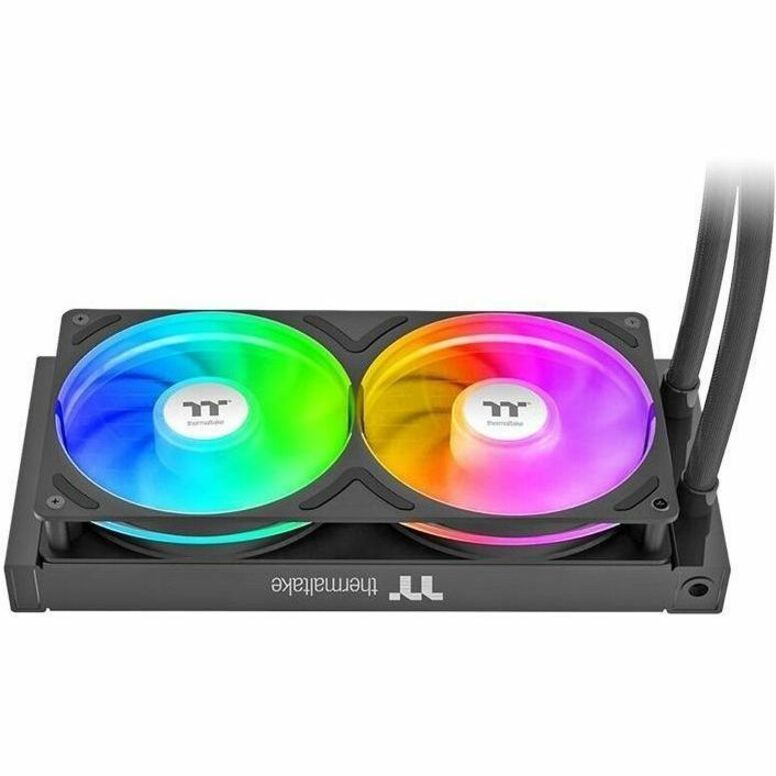

Elevate ARGB Fan Performance to the Next Level
TH240 V3 ARGB Sync AIO Liquid Cooler has a powerful 240mm PWM fan module, a single-frame unit combining two 120 mm fans. Each fan provides an airflow of 85.29 CFM with 3.86 mm-H2O static pressure while maintaining a noise level of 37.8 dB-A, offering exceptional cooling performance for your system.

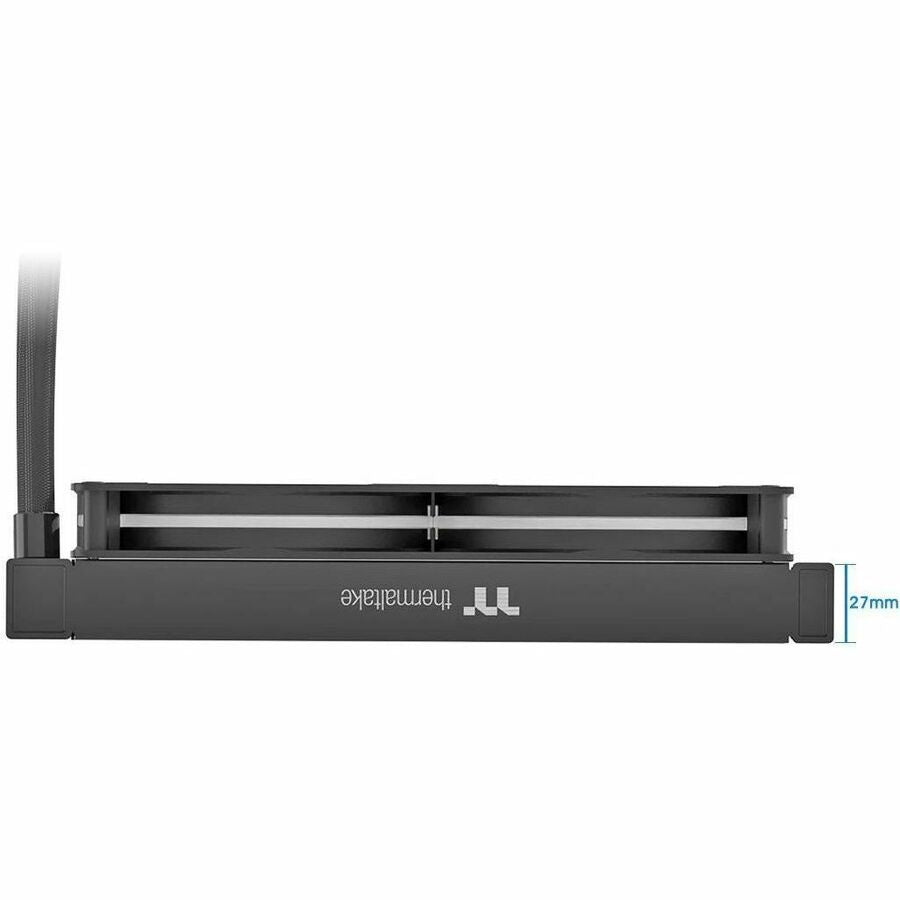

Enhanced Radiator with a Compact Design
The TH V3 ARGB Sync AIO Liquid Cooler series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.
Powerful Cooling with Advanced Pump

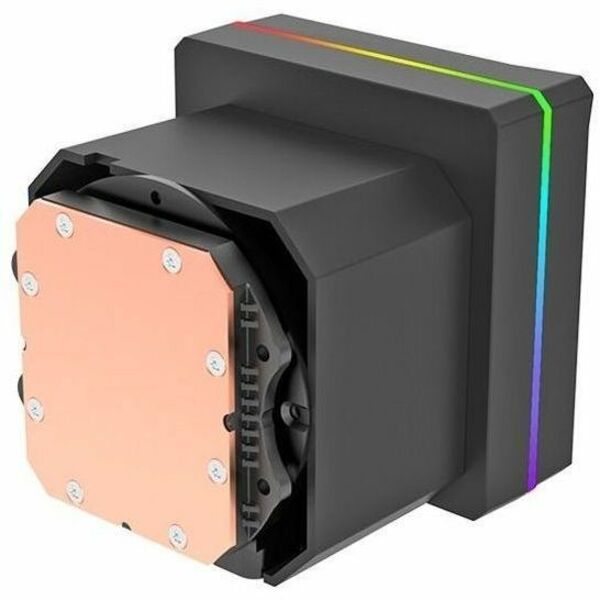

The high-quality pump enables maximum water circulation, keeping the copper plate consistently cool. Combined with a high-performance copper base plate, this design accelerates thermal conductivity and rapidly transfers heat away from your CPU.

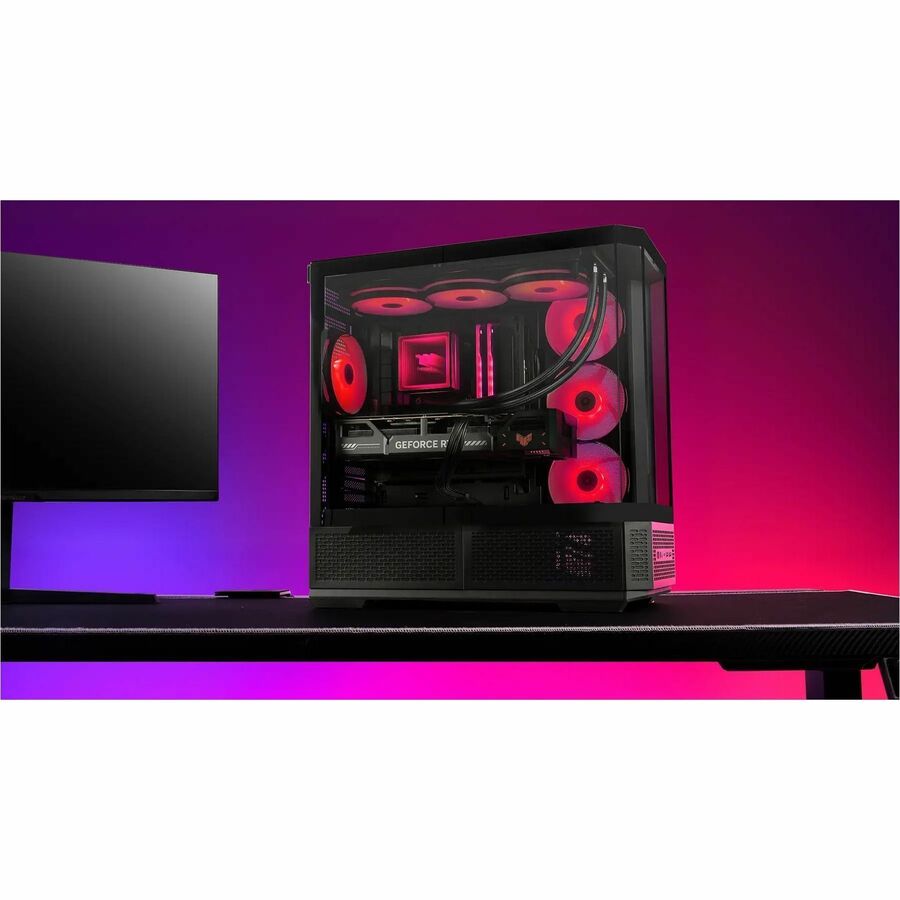

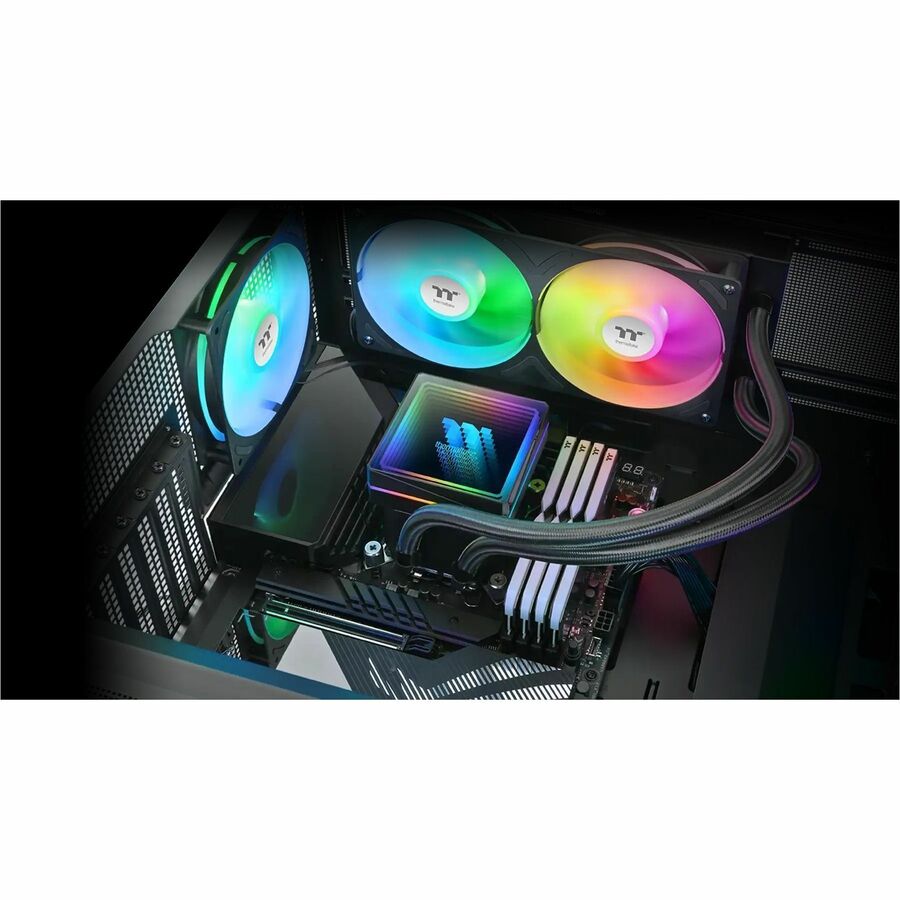

Spectacular Lighting Effects
Light up your system with stunning lighting effects through 5V motherboard sync software, providing great coverage of 16.8 million colors. The TH V3 ARGB Sync series supports ASUS, MSI, GIGABYTE, BIOSTAR, and ASROCK sync software. Immerse your build in vibrant illumination.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
General Information
- Manufacturer: Thermaltake Technology Co., Ltd
- Manufacturer Part Number: CL-W465-PL12SW-A
- Brand Name: Thermaltake
- Product Line: TH240 V3 ARGB Sync
- Product Name: TH240 V3 ARGB Sync Cooling Fan/Radiator/Pump
- Product Type: Cooling Fan/Radiator/Pump
Fan Information
- Number of Fans: 2
- Fan Speed (Min): 500 rpm
- Fan Speed (Max): 2500 rpm
- Maximum Airflow: 85.29 CFM
- Noise Levels (A-Weighted): 37.8 dB(A)
- LED Color: ARGB
- Maximum Air Pressure: 3.86mmH2O
- Pulse-width Modulation (PWM) Support: Yes
Heatsink Information
- Cooler Type: Liquid Cooler
- Compatible Intel Socket:
- R4 LGA-2066
- LGA 2011-v3
- R LGA-2011
- Socket LGA-1851
- LGA-1700
- B LGA-1366
- LGA-1200
- H LGA-1156
- H2 LGA-1155
- H4 LGA-1151
- H3 LGA-1150
- LGA-115X
- Compatible AMD Socket:
- AM5
- AM4
Interfaces/Ports
- Connectors: 2510 - 4 Pin / ARGB - 3Pin
Power Description
- Rated Current: 600 mA
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Radiator Material: Aluminum
- Maximum Fan Diameter: 9.45"
- Radiator Height: 10.91"
- Radiator Width: 4.72"
- Radiator Depth: 1.06"
- Fan Height: 9.45"
- Fan Width: 4.72"
- Fan Depth: 0.98"
- Weight (Approximate): 4.25 lb
Miscellaneous
- Features: Addressable RGB LED
- Application/Usage:
- CPU
- Motherboard
- PC
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
