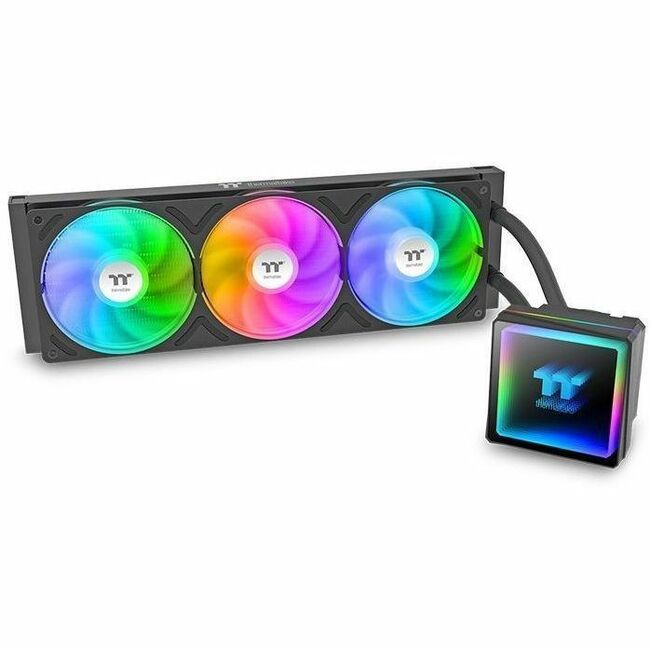

Thermaltake TH360 V3 ARGB Sync Cooling Fan/Radiator/Water Block/Pump - CL-W466-PL12SW-A
Key Features
- Colorful argb LEDs add an ultra-modern style
- Cooling Fan/Radiator/Water Block/Pump is the single answer to all your desired and heavy-duty cooling/heating needs
- The competent cooling system is specially designed for standard cpus
Product Overview

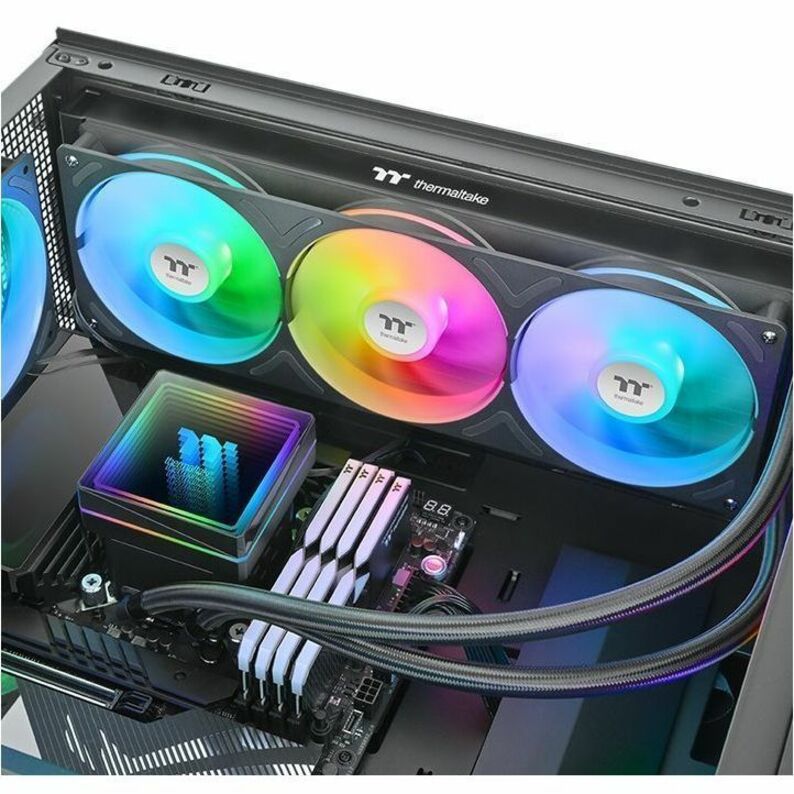

Detachable Design Meets Infinity Mirror Effects

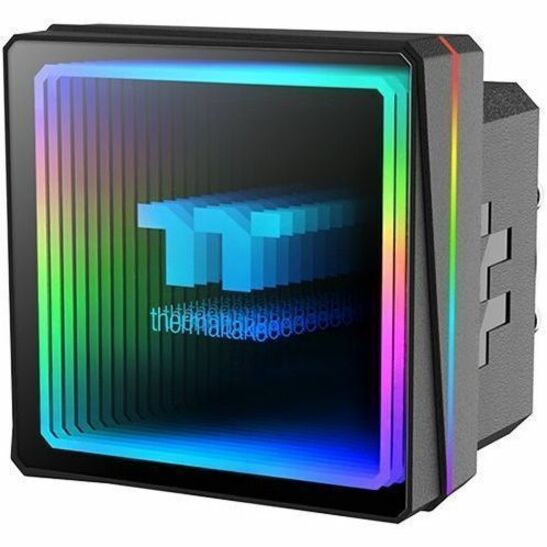

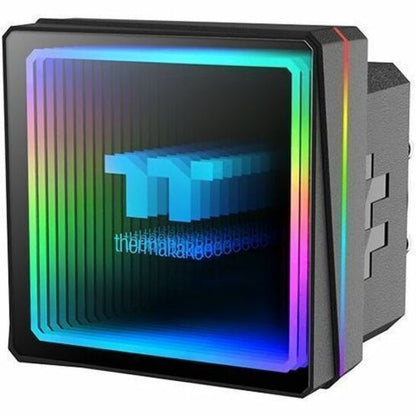

The TH V3 ARGB Sync series features a striking square pump head with captivating infinity mirror effects. Its detachable top cover allows you to rotate and adjust the orientation with ease, ensuring the logo always faces the perfect direction regardless of your installation angle.

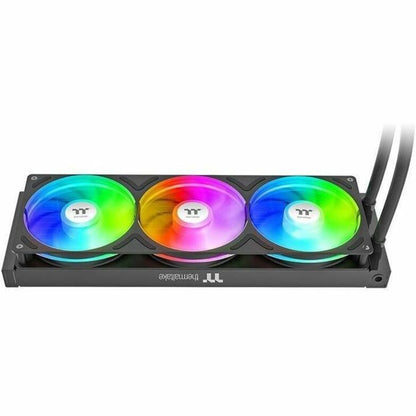

Enhanced Radiator with a Compact Design

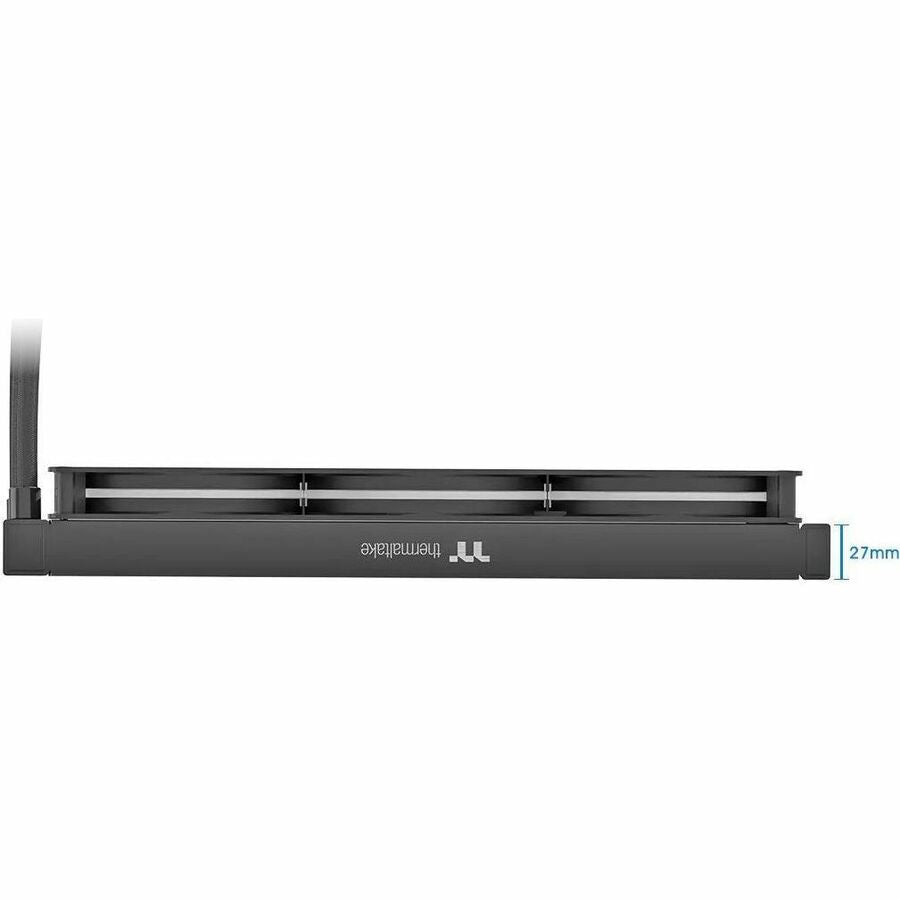

The TH V3 ARGB Sync AIO Liquid Cooler series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.
Powerful Cooling with Advanced Pump

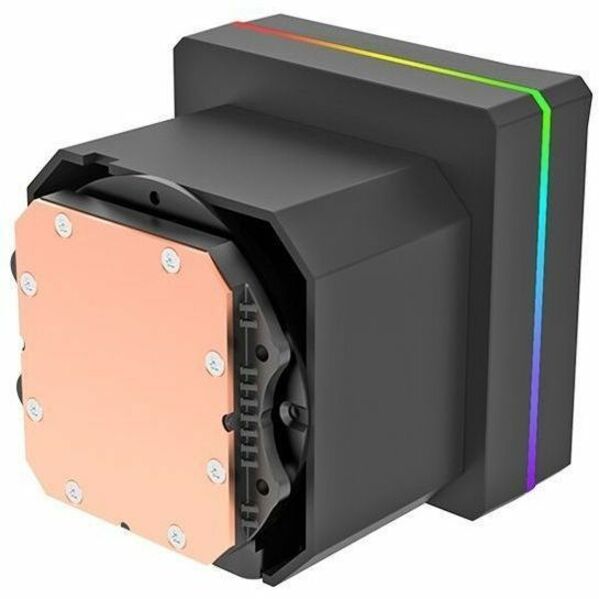

The high-quality pump enables maximum water circulation, keeping the copper plate consistently cool. Combined with a high-performance copper base plate, this design accelerates thermal conductivity and rapidly transfers heat away from your CPU.

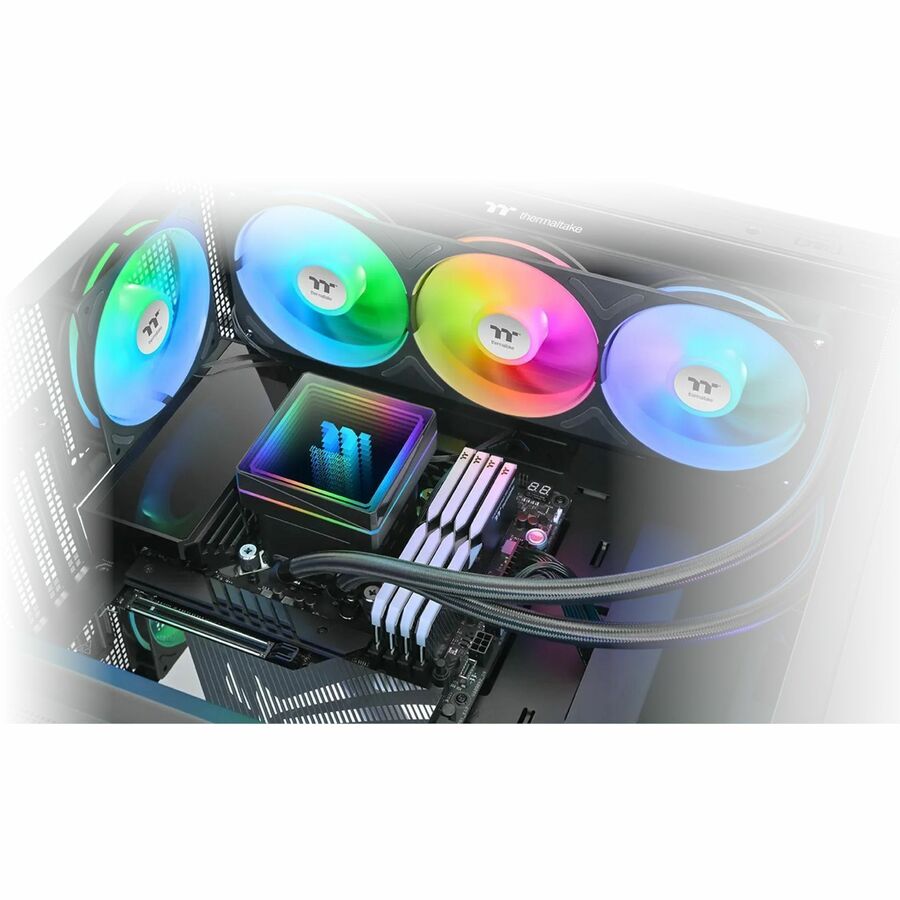

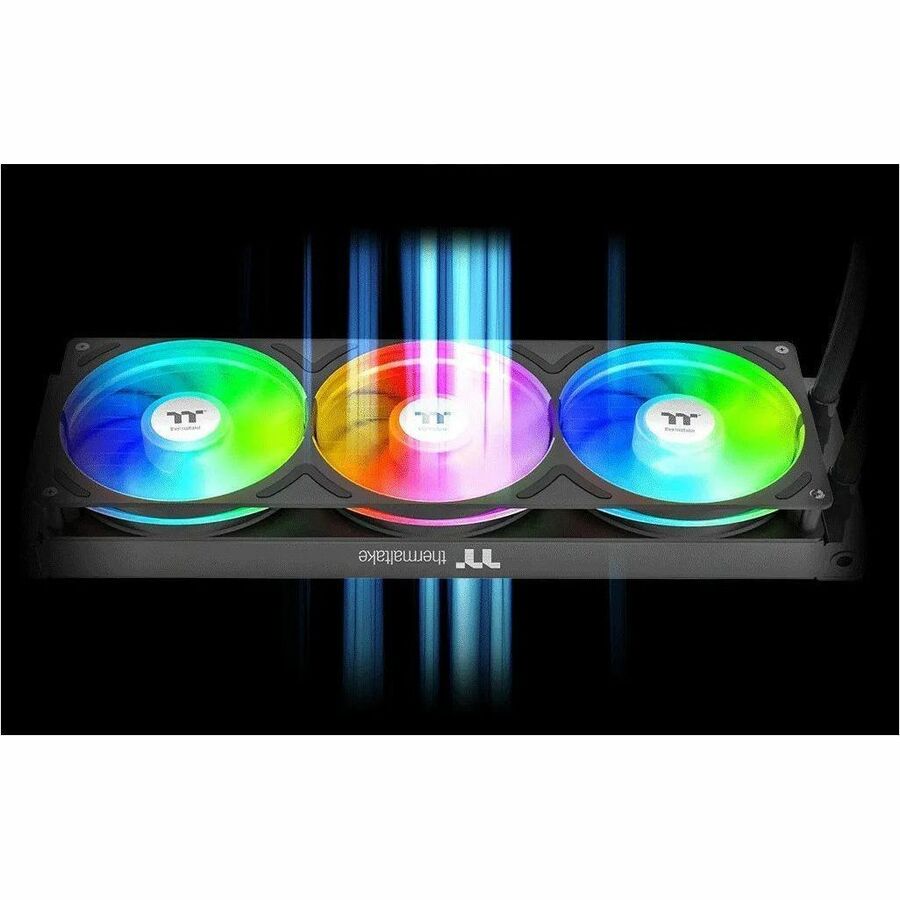

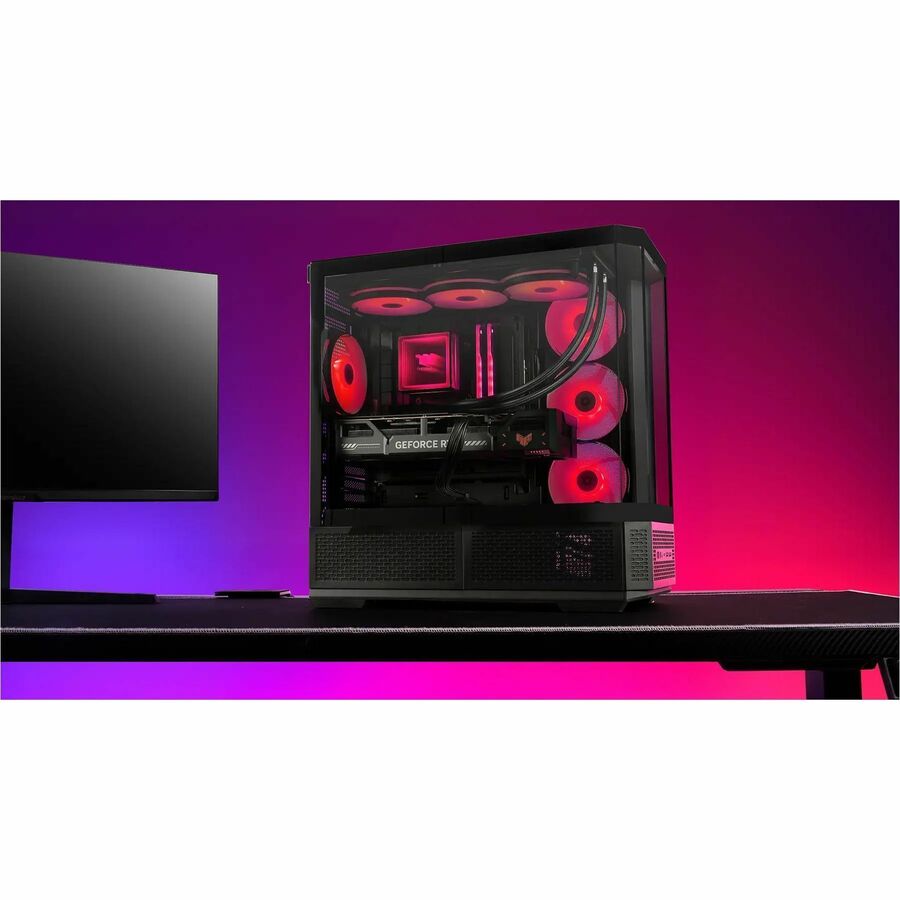

Spectacular Lighting Effects
Light up your system with stunning lighting effects through 5V motherboard sync software, providing great coverage of 16.8 million colors. The TH V3 ARGB Sync series supports ASUS, MSI, GIGABYTE, BIOSTAR, and ASROCK sync software. Immerse your build in vibrant illumination.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
General Information
- Manufacturer: Thermaltake Technology Co., Ltd
- Manufacturer Part Number: CL-W466-PL12SW-A
- Brand Name: Thermaltake
- Product Line: TH360 V3 ARGB Sync
- Product Name: TH360 V3 ARGB Sync Cooling Fan/Radiator/Water Block/Pump
- Product Type: Cooling Fan/Radiator/Water Block/Pump
Fan Information
- Number of Fans: 3
- Fan Speed (Min): 500 rpm
- Fan Speed (Max): 2500 rpm
- Maximum Airflow: 85.29 CFM
- Noise Levels (A-Weighted): 37.8 dB(A)
- LED Color: ARGB
- Maximum Air Pressure: 3.86mmH2O
- Pulse-width Modulation (PWM) Support: Yes
Heatsink Information
- Cooler Type: Liquid Cooler
- Compatible Intel Socket:
- R4 LGA-2066
- LGA 2011-v3
- R LGA-2011
- Socket LGA-1851
- LGA-1700
- B LGA-1366
- LGA-1200
- H LGA-1156
- H2 LGA-1155
- H4 LGA-1151
- H3 LGA-1150
- LGA-115X
- Compatible AMD Socket:
- AM5
- AM4
Interfaces/Ports
- Connectors: 2510 - 4 Pin / ARGB - 3Pin
Power Description
- Rated Current: 900 mA
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Maximum Fan Diameter: 14.17"
- Radiator Height: 15.63"
- Radiator Width: 4.72"
- Radiator Depth: 1.06"
- Fan Height: 14.17"
- Fan Width: 4.72"
- Fan Depth: 0.98"
- Weight (Approximate): 5.10 lb
Miscellaneous
- Application/Usage:
- CPU
- Motherboard
- PC
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
