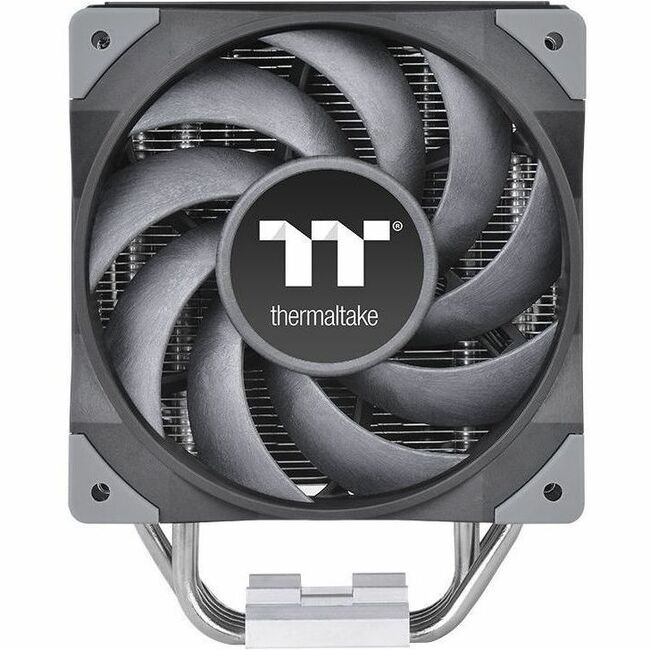

Thermaltake TOUGHAIR 510 CPU Cooler - CL-P075-AL12BL-A
Key Features
- The competent cooling system is specially designed for standard processors
- Up to 2000 rpm fan speed and heavy-duty shroud ensure safe and effective cooling
Product Overview
A single tower dual fan designed CPU cooler equipped with two optimized 120 mm high static pressure fan and a newly designed heat sink, guaranteeing its outstanding performance.

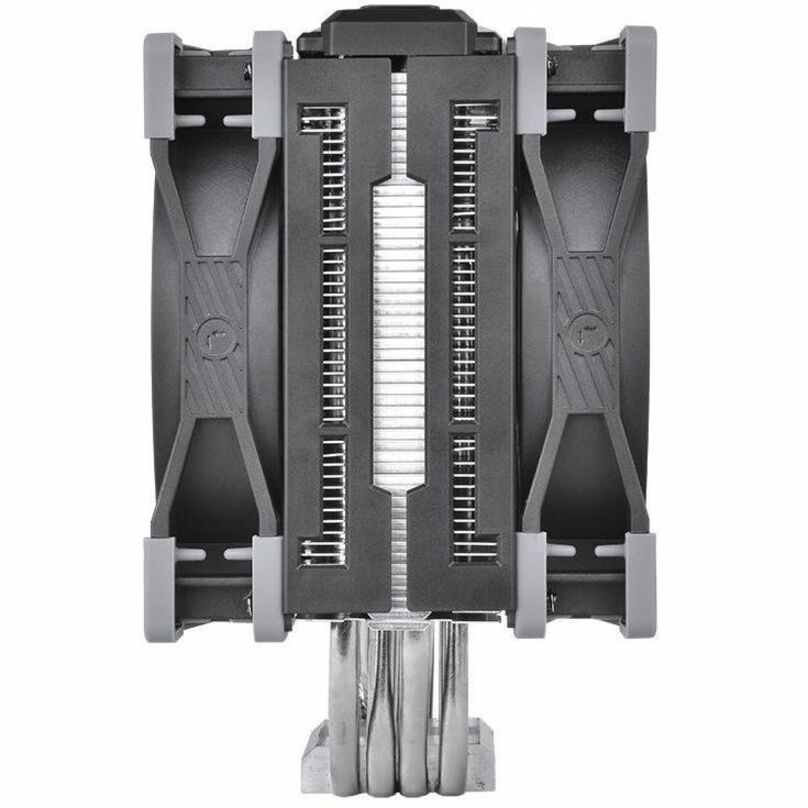

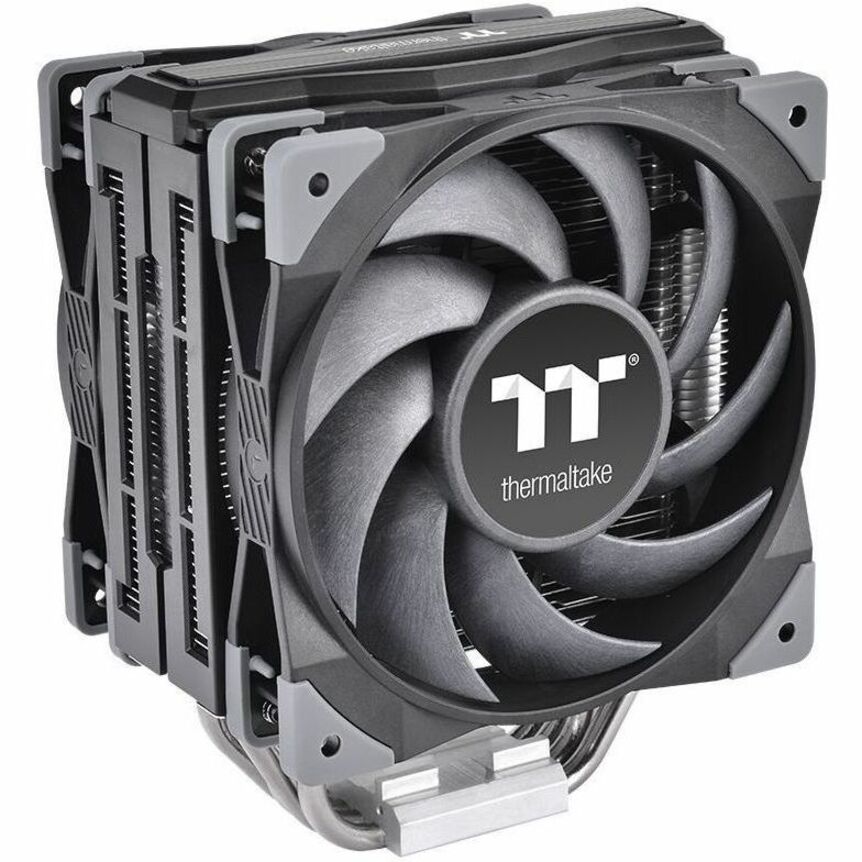

Single Tower Dual Fan Design
TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W.

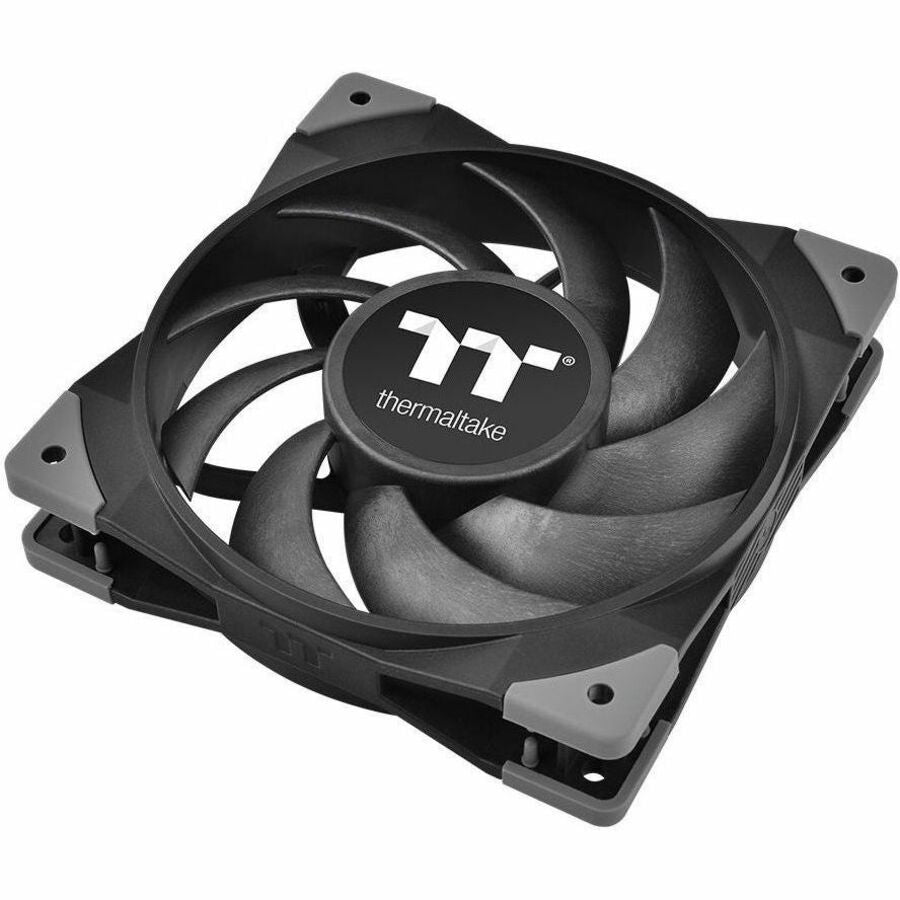

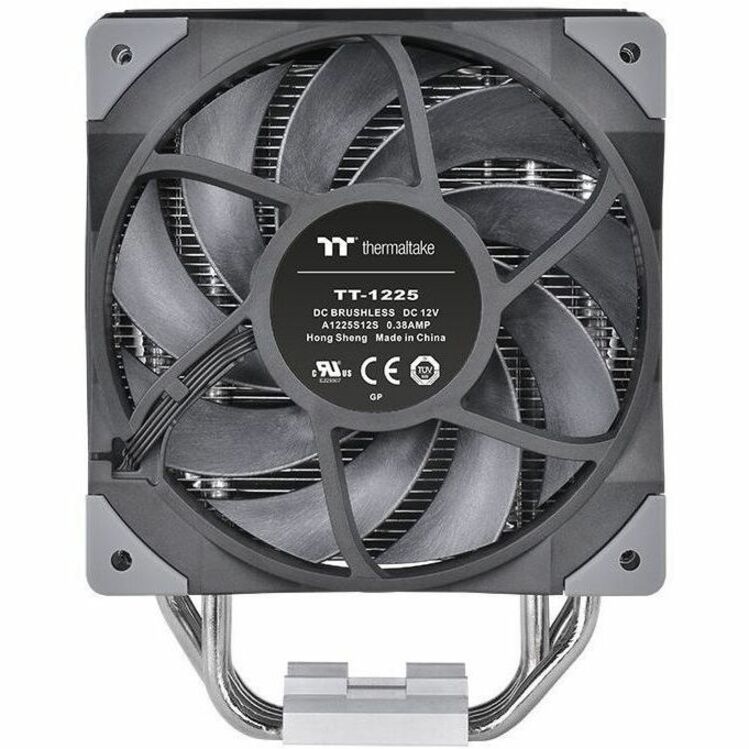

Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.
Asymmetric Fin Structure
The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.

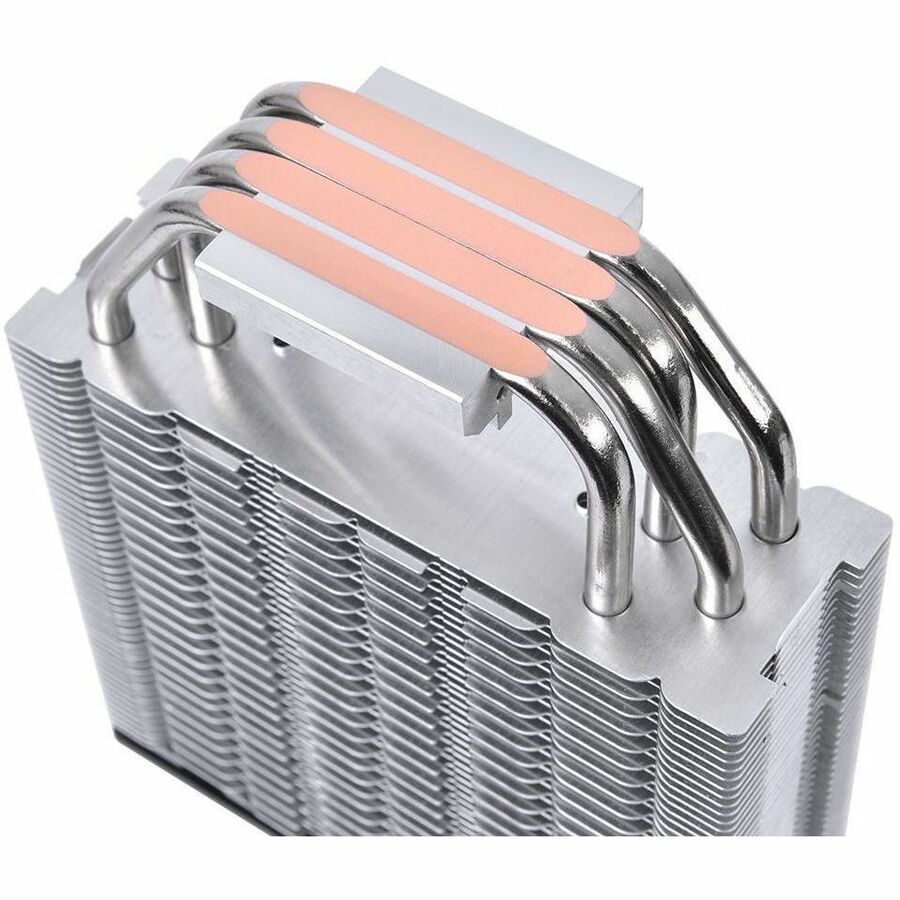

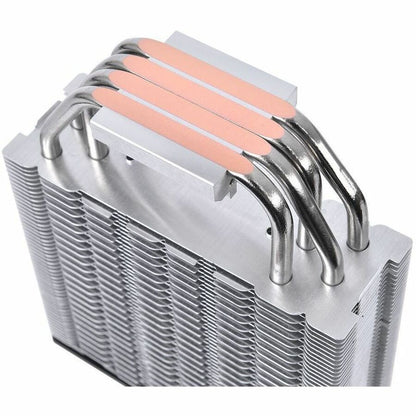

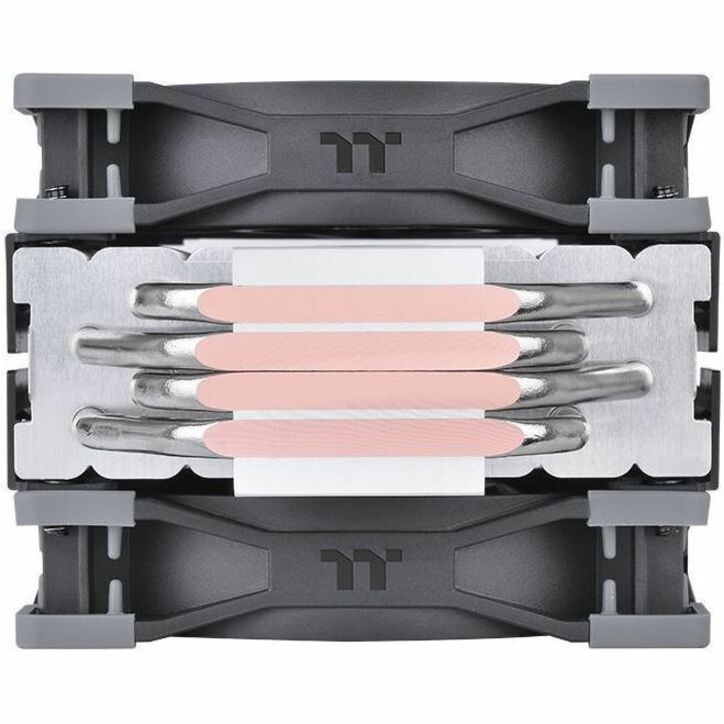

High-Performance U-shape copper heat pipes
4 x Ø6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.

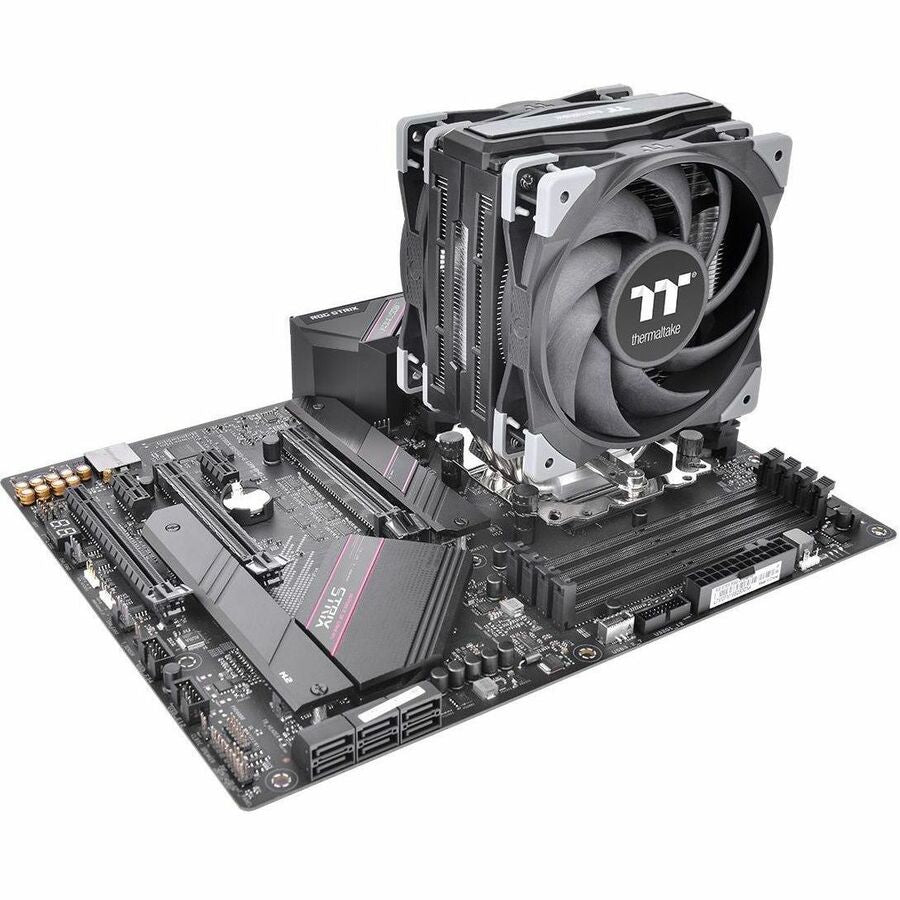

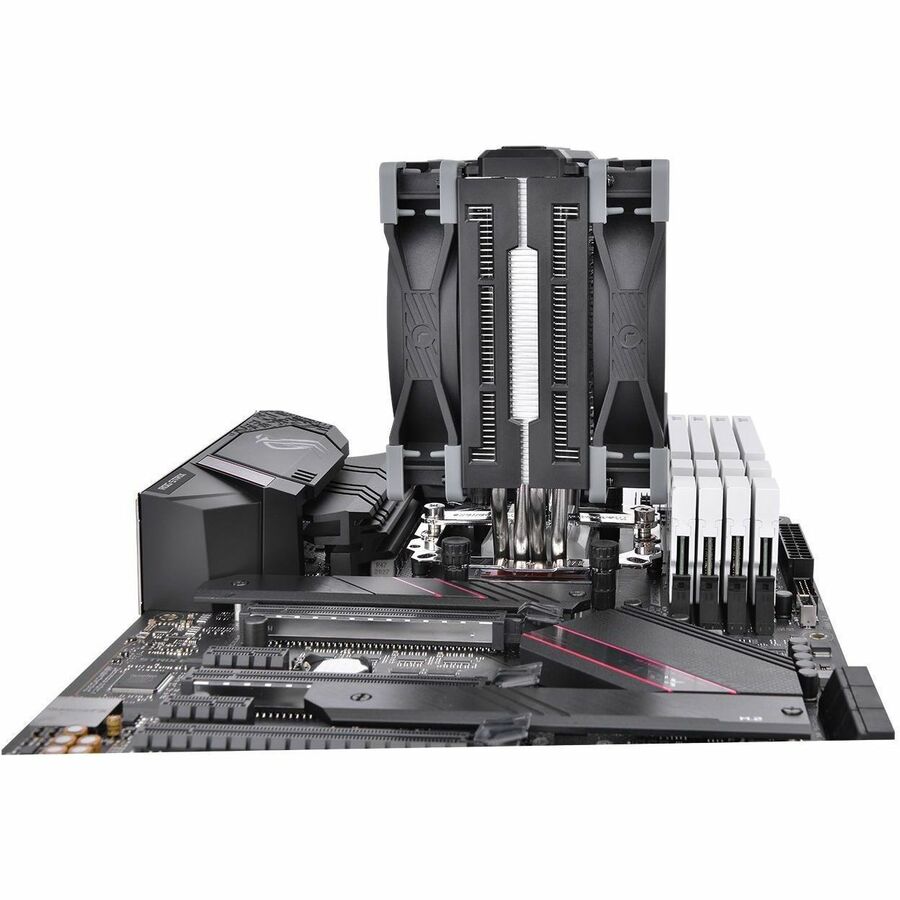

Universal Compatibility
TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models:
Intel LGA 1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
General Information
- Manufacturer: Thermaltake Technology Co., Ltd
- Manufacturer Part Number: CL-P075-AL12BL-A
- Brand Name: Thermaltake
- Product Line: TOUGHAIR 510
- Product Name: TOUGHAIR 510 CPU Cooler
- Product Type: Cooling Fan/Heatsink
Fan Information
- Number of Fans: 2
- Fan Speed (Min): 500 rpm
- Fan Speed (Max): 2000 rpm
- Maximum Airflow: 58.35 CFM
- Noise Levels (A-Weighted): 23.6 dB(A)
- Fan Life: 4.6 Year
- Maximum Air Pressure: 2.41mmH2O
Heatsink Information
- Cooler Type: Air
- Compatible Intel Socket:
- LGA-1700
- LGA-1200
- H LGA-1156
- H2 LGA-1155
- H4 LGA-1151
- H3 LGA-1150
- Compatible AMD Socket:
- AM4
- AM3+
- AM3 PGA-941
- AM2+ PGA-940
- AM2 PGA-940
- FM2
- FM1
Interfaces/Ports
- Connectors: 2510 - 4Pin
Power Description
- Rated Current: 480 mA
Physical Characteristics
- Product Color:
- Black
- Silver
- Heatsink Material:
- Aluminum
- Copper
- Maximum Fan Diameter: 4.72"
- Fan Height: 0.98"
- Fan Width: 4.72"
- Height: 6.3"
- Width: 3.9"
Miscellaneous
- Application/Usage: Processor
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
