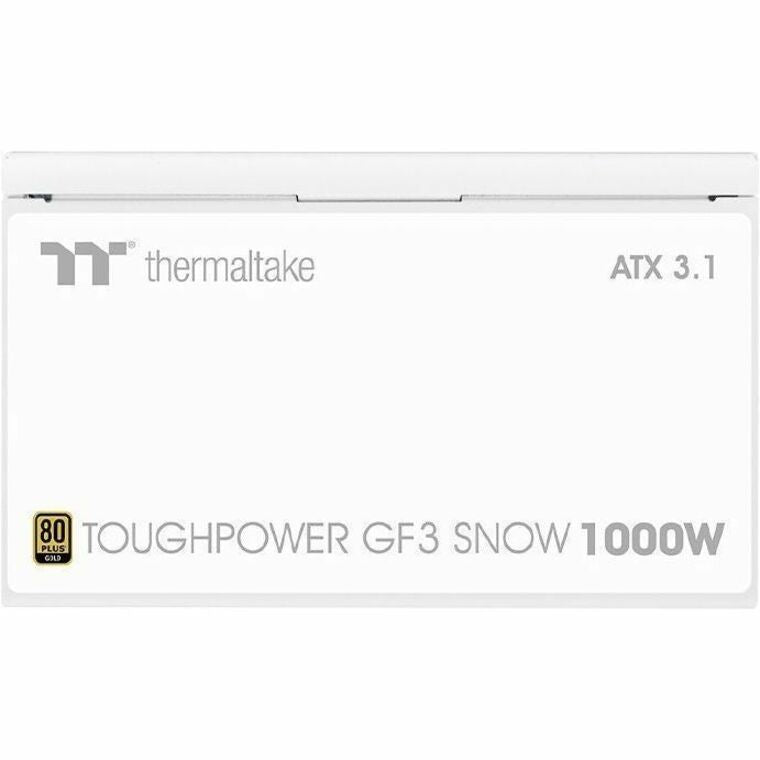

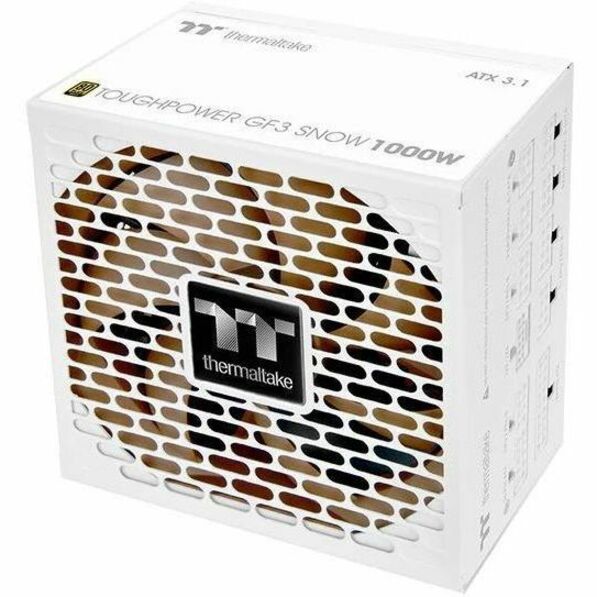

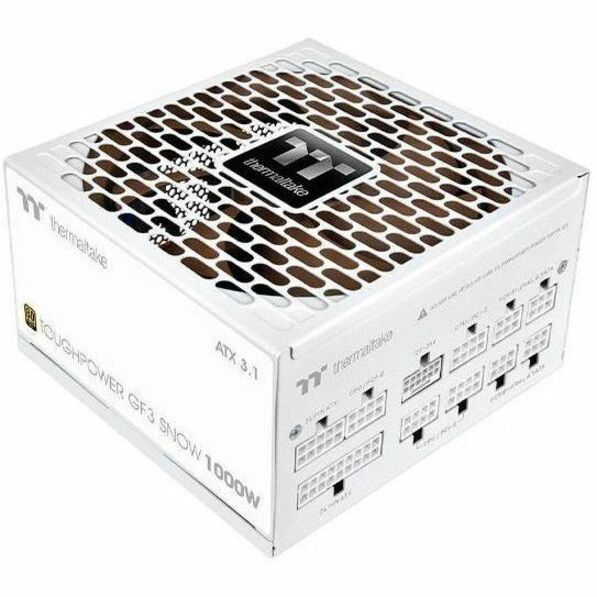

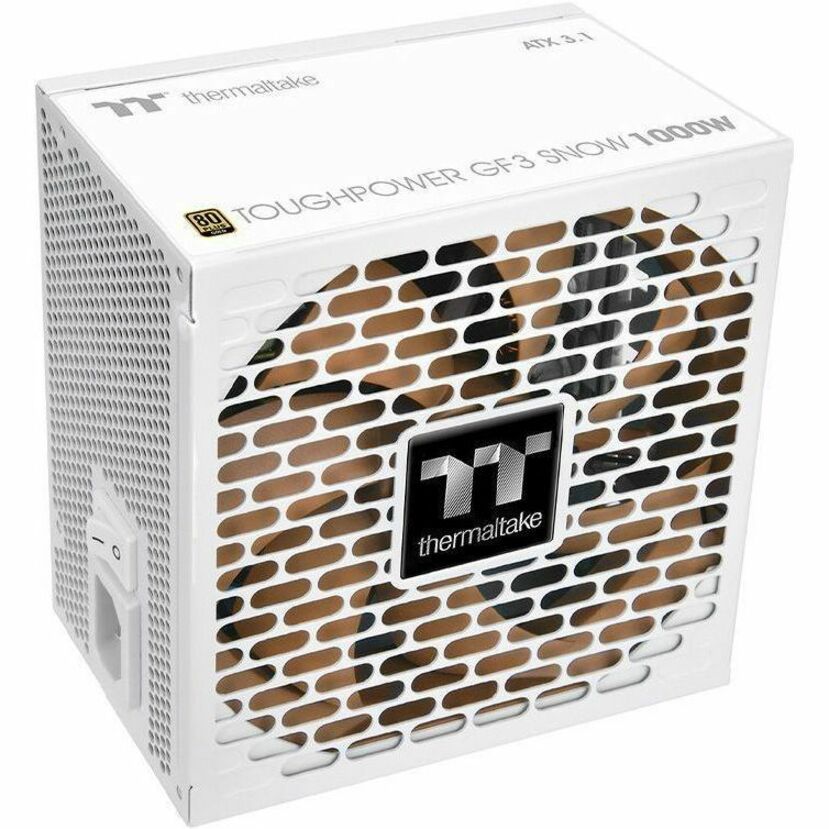

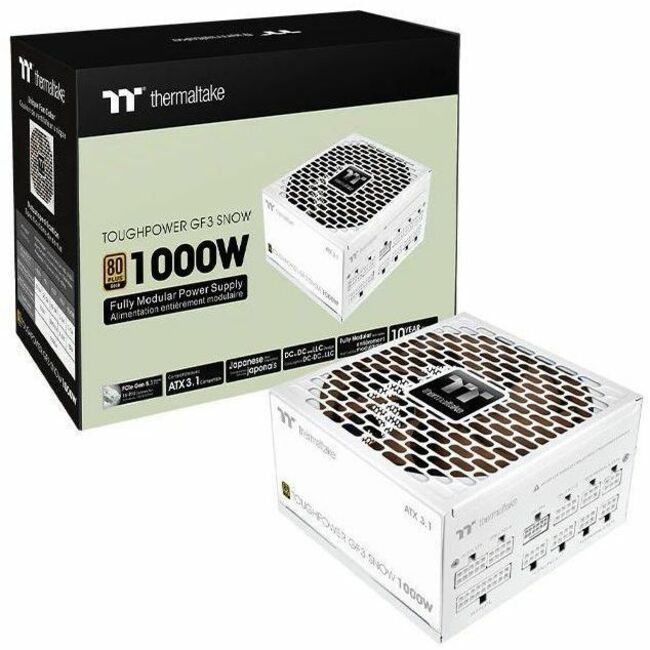

Thermaltake Toughpower GF3 1000W Power Supply - PS-TPD-1000FNFAGU-S
Key Features
- Delivers 3.3 V DC to ensure that your device is always ready to use
- Providing up to 1000 W maximum output power
- Supplies power to the electrical load to keep up with the power requirements
Product Overview
Next-Gen Ready with ATX 3.1 & PCIe Gen5.1
Built to meet Intel ATX 3.1 power supply requirements and equipped with a native 12+4pin PCIe Gen5.1 modular connector to support next-generation GPUs.

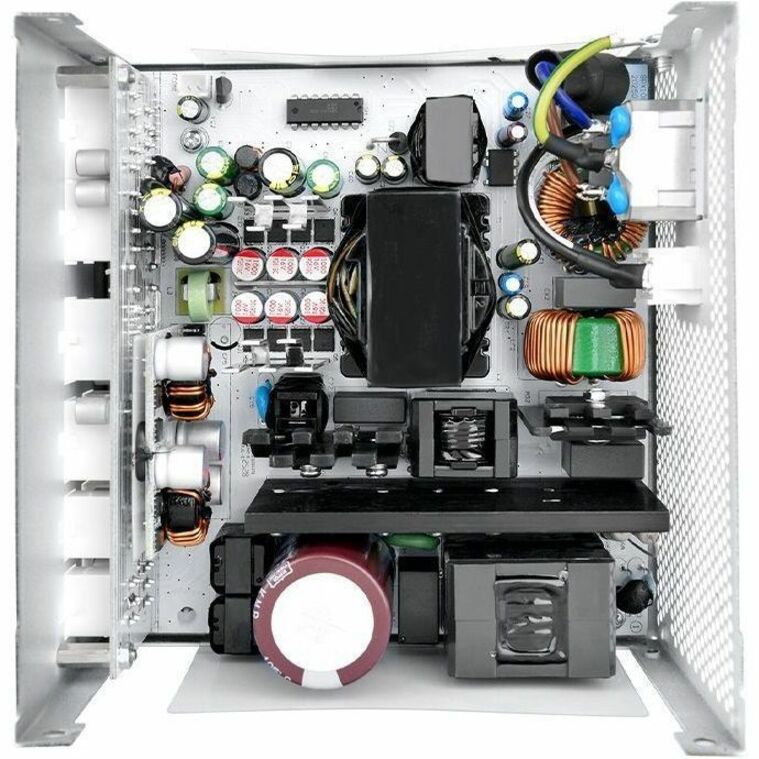

Premium Japanese 105°C Capacitors
All main capacitors are high-quality Japanese-made for long-lasting reliability and stability under heavy loads.
High Amperage Single +12V Rail & DC-DC + LLC Design
Provides stable and powerful +12V output with precise voltage regulation for high-performance systems.

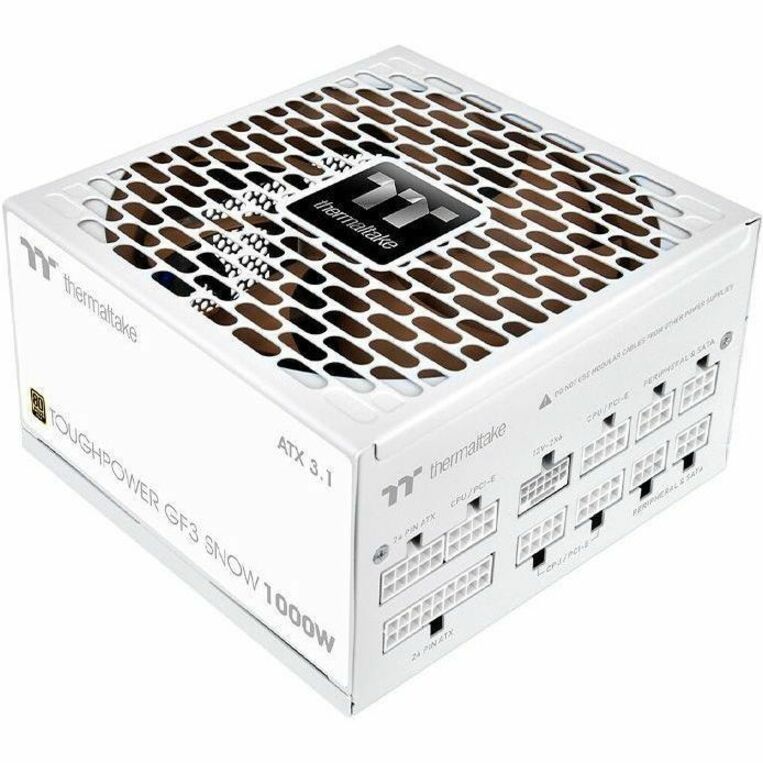

Fully Modular with Flat Cables
High efficiency Zero Cable platform with low-profile flat cables improves airflow and cable management.
Industry-Grade Safety Protections
Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
80 PLUS Gold Certified
Delivers up to 90% power conversion efficiency under real-world load conditions, reducing wasted energy and heat.
Eco & Power Standards Support
Supports Intel Deep Power Down C6/C7 states, ErP ready, and complies with Energy Star, RoHS, and WEEE standards.
General Information
- Manufacturer: Thermaltake Technology Co., Ltd
- Manufacturer Part Number: PS-TPD-1000FNFAGU-S
- Brand Name: Thermaltake
- Product Line: Toughpower GF3
- Product Series: GF
- Product Name: Toughpower GF3 1000W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX 3.1
- Efficiency: 90%
- Power Factor Correction (PFC): Active

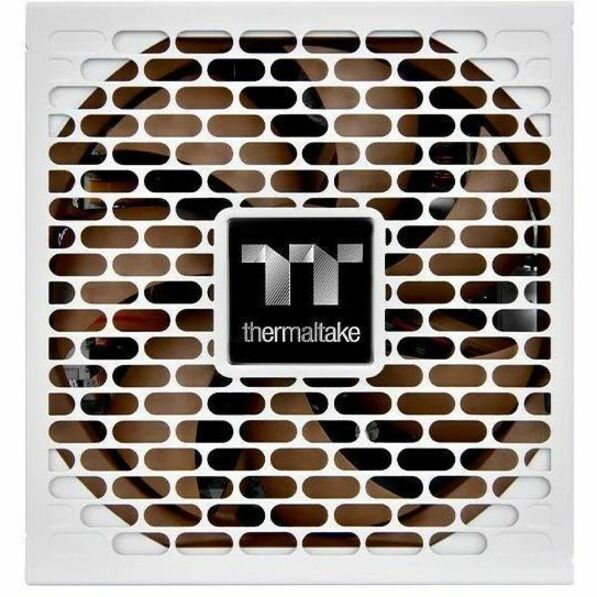

- Number of Fans: 1
- Fan Bearing Type: Fluid Dynamic Bearing
- Fan Diameter: 135 mm
- Protection Type:
- Over Current
- Over Voltage
- Under Voltage
- Over Power
- Short Circuit
- Over Temperature
- Modular: Yes
- Modular Type: Fully Modular
Power Description

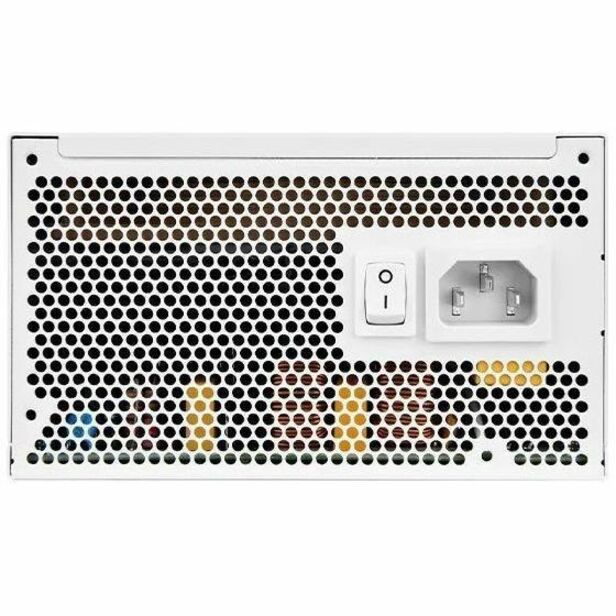

- Input Voltage:
- 100 V AC
- 240 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail:
- 3.3 V DC @ 20 A
- 5 V DC @ 20 A
- -12 V DC @ 0.3 A
- 5 V SB @ 2.5 A
- 12 V DC @ 83.3 A
- Output Current:
- 20 A
- 83.30 A
- 300 mA
- 2.50 A
- Output Power: 1000 W

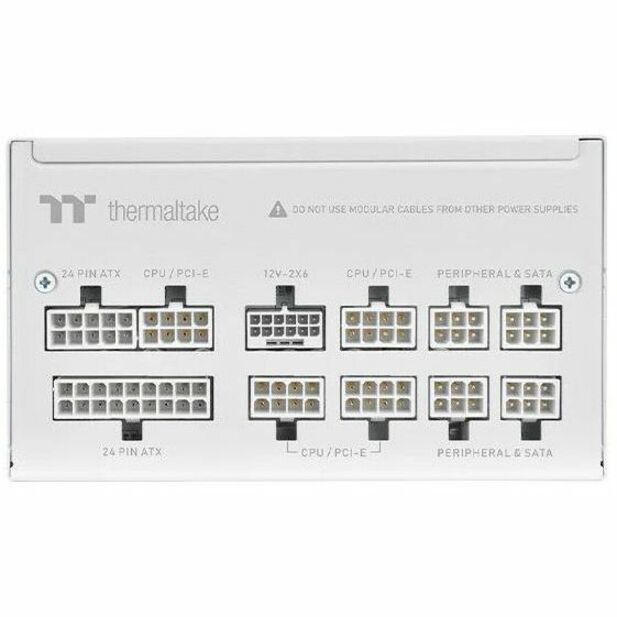

Interfaces/Ports
- Number of SATA Power Connectors: 6
- PCI Express Connector: Yes
- PCI Express Version: 5.1
- Number of (6+2 pin) PCI Express Power Connectors: 4
- Number of (4+4 pin) CPU Power Connectors: 2
Physical Characteristics
- Color Family: White
- Product Color: Snow
- Form Factor: ATX
- Height: 3.4"
- Width: 5.9"
- Depth: 5.5"
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
Miscellaneous
- Energy Star: Yes
- Energy Efficiency Certification: 80 Plus Gold
- Energy Efficiency Compliance: Energy-related Products Directive (ErP)
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 7 Year
