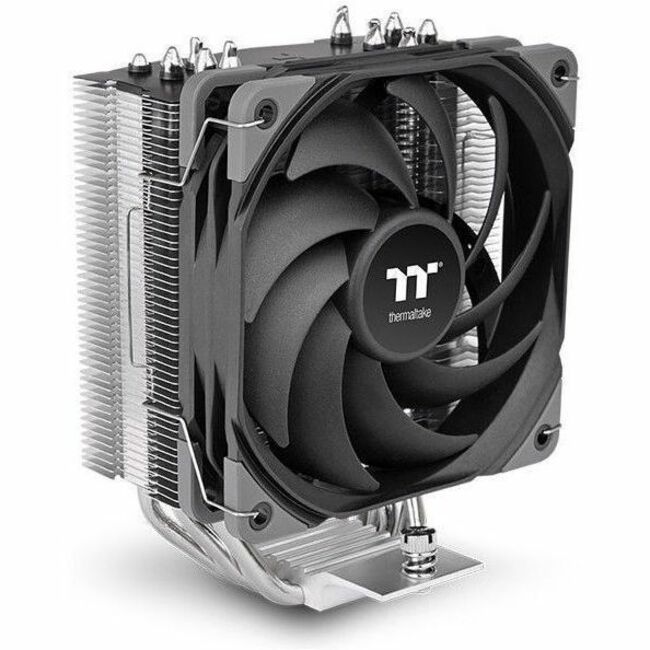

Thermaltake UX500 CPU Cooler - 1 Pack - CL-P150-AL12BL-A
Key Features
- Delivers a high airflow while keeping its noise minimal
- Fully compatible with standard cpus
- Hydraulic Bearing fan bearing type for maximum cooling/heating usability with added feasibility
Product Overview
Efficient Air Cooling Solution

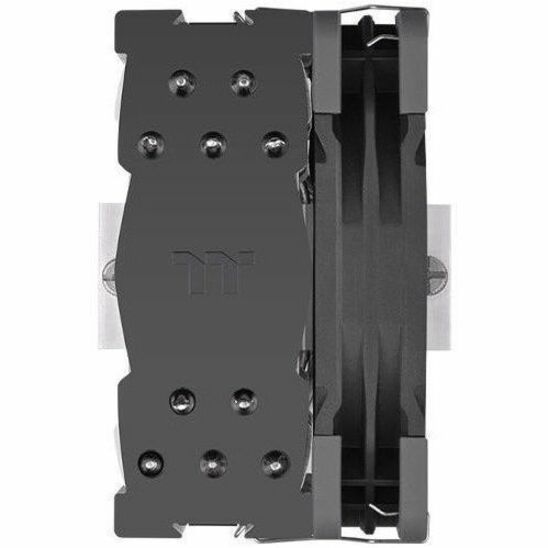

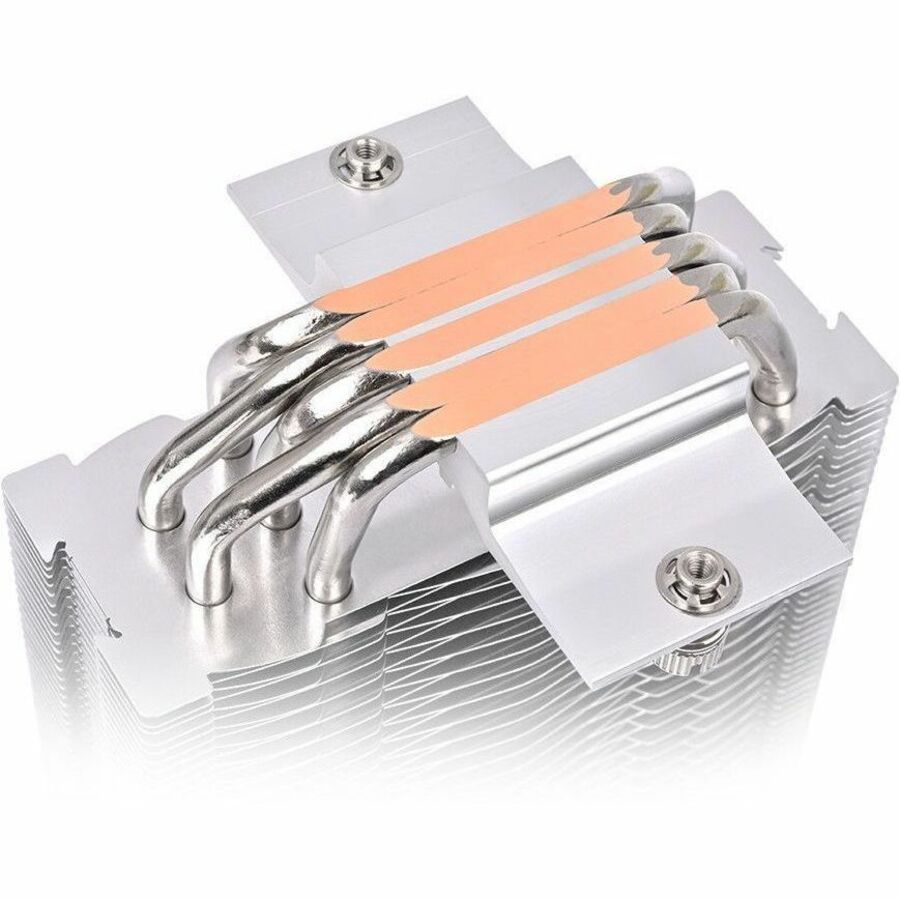

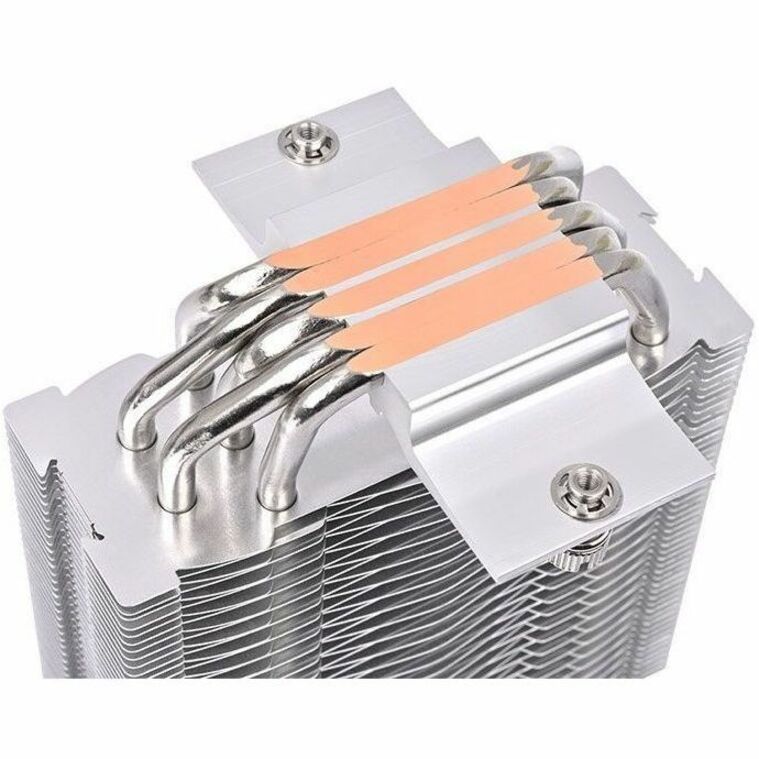

The UX500 features five Ø6mm U-shaped copper heat pipes in direct contact with the CPU for fast and reliable heat transfer. Its single-tower design, made with high-quality aluminum fins, ensures optimal heat dissipation, keeping your system cool and stable.
High Volume Airflow Design

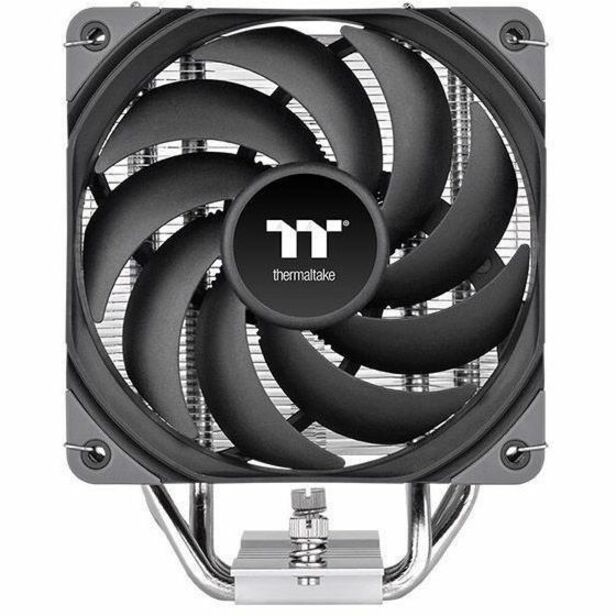

The 120mm high airflow fan provides an airflow of 62.72 CFM and a static pressure of 1.47 mm-H2O, while maintaining a noise level of 25.0 dB-A. It enables a large volume of air to pass through the heat sink, offering exceptional cooling performance.
Reliable Hydraulic Bearing
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance that lowers operation noise and enhance thermal efficiency. The seal cap prevents leakage of the lubricant and extends the lifespan of the unit.
Flexible Choice of Pairing Components
The UX500 heat pipes and fin stack construction were designed for exceptional RAM compatibility, enabling you to pair with the RAM of your choice.
Universal Socket Compatibility
The UX500 comes with universal brackets for Intel and AMD CPUs, including the latest LGA1851 and AM5 CPU sockets.
General Information
- Manufacturer: Thermaltake Technology Co., Ltd
- Manufacturer Part Number: CL-P150-AL12BL-A
- Brand Name: Thermaltake
- Product Model: UX500
- Product Name: UX500 CPU Cooler
- Packaged Quantity: 1 / Pack
- Product Type: Cooling Fan/Heatsink
Fan Information
- Number of Fans: 1
- Fan Bearing Type: Hydraulic Bearing
- Fan Speed (Min): 700 rpm
- Fan Speed (Max): 1800 rpm
- Maximum Airflow: 62.72 CFM
- Noise Levels (A-Weighted): 25 dB(A)
- Fan Life: 3.4 Year
- Maximum Air Pressure: 1.47mmH2O
- Pulse-width Modulation (PWM) Support: Yes
Heatsink Information
- Cooler Type: Air
- Number of Heat Pipes: 5
- Compatible Intel Socket:
- Socket LGA-1851
- LGA-1700
- LGA-1200
- H LGA-1156
- H2 LGA-1155
- H4 LGA-1151
- H3 LGA-1150
- Compatible AMD Socket:
- AM4
- AM5
- FM2
- FM1
- AM3 PGA-941
- AM3+
- AM2 PGA-940
- AM2+
Interfaces/Ports
- Connectors: 2510 - 4Pin
Power Description
- Rated Current: 400 mA
Physical Characteristics
- Heatsink Material:
- Aluminum
- Copper
- Maximum Fan Diameter: 4.72"
- Fan Height: 0.98"
- Fan Width: 4.72"
Miscellaneous
- Package Contents:
- UX500 CPU Cooler
- Universal Brackets for Intel and AMD CPUs
- Application/Usage:
- CPU
- Processor
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
