Thermaltake View 170 WS ARGB Snow Micro Chassis - CA-1Z4-00M6WN-WS
Key Features
- 3 bays mean more PC components can be added to enhance system's performance
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
Product Overview

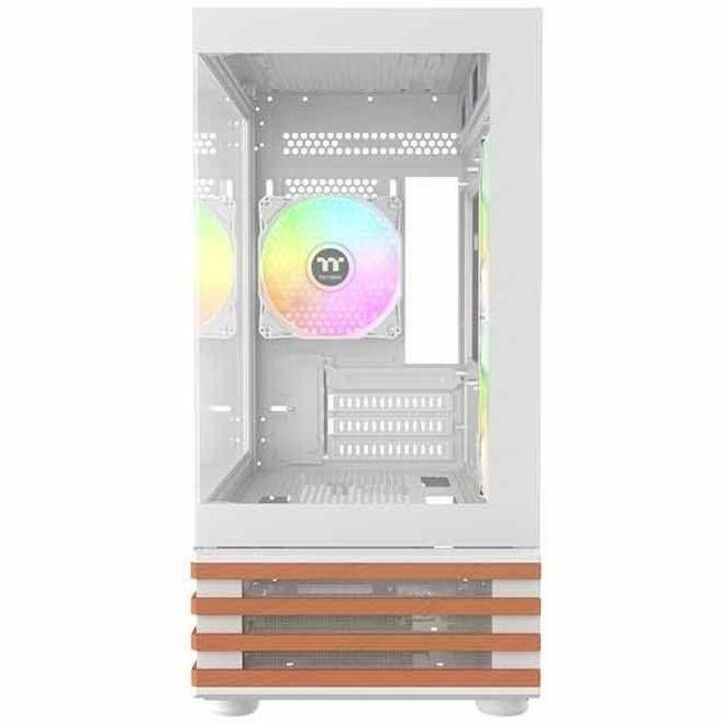

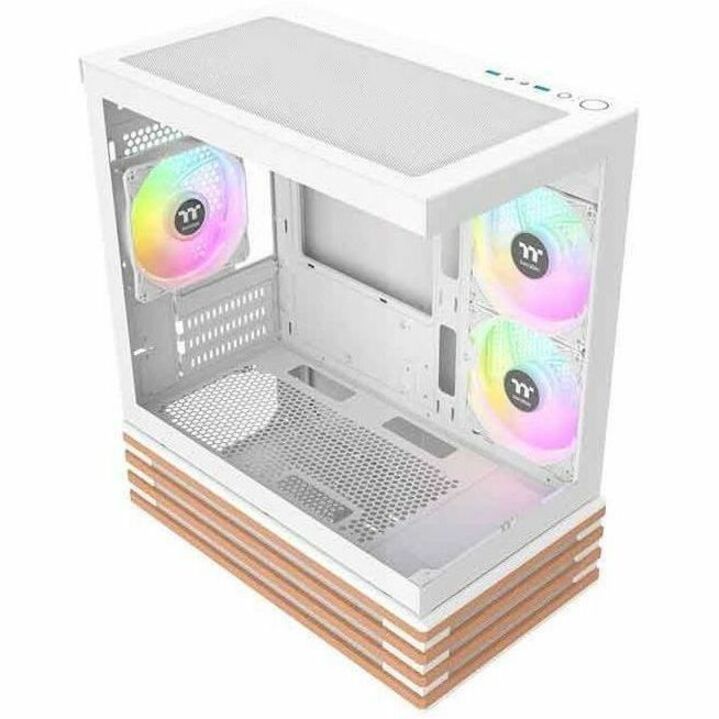

View 170 WS ARGB Snow Micro Chassis
Built for amazing views, the View 170 WS ARGB Snow Micro Chassis is an M-ATX case accented with stylish wood elements, featuring tempered glass front and left panels, and comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Additionally, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 WS ARGB Snow Micro Chassis.
Tempered Glass Front and Left Panels
The View 170 WS ARGB Snow Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
Up to a 280mm/240mm Radiator
Providing good cooling support, users can choose to place a 280mm/240mm radiator on the top of the View 170 WS ARGB Snow Micro Chassis.
Pre-installed Fan System

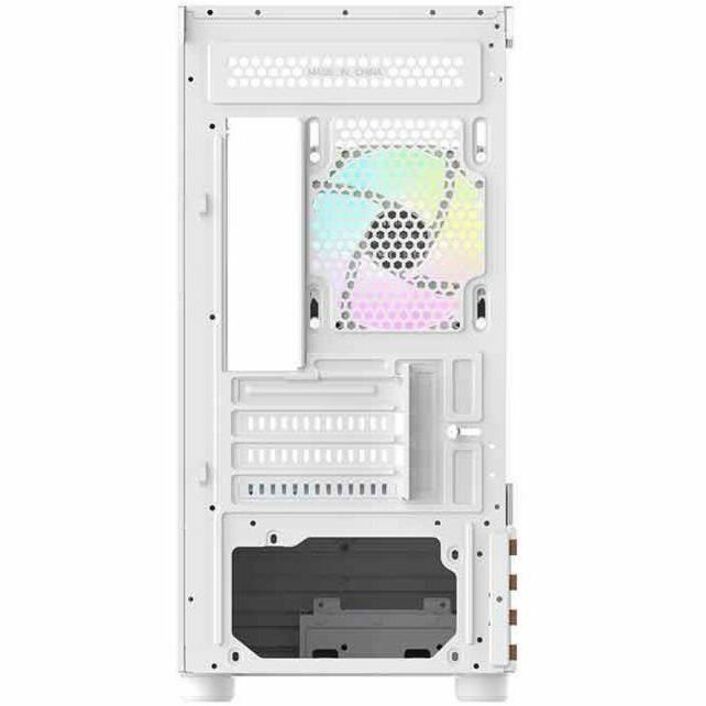

The View 170 WS ARGB Snow Micro Chassis comes with two 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear. It's fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Flexibility to Build Your Ideal PC
The View 170 WS ARGB Snow Micro Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 340mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan at the rear, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top, giving more options for high-end expansion!
Dimensions
CPU Cooler
Max height 160mm
Motherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
PSU
Max length 180mm
VGA
Length limitation 410mm (Without radiator) 340mm
Fan Capacity
- 120mm
- 140mm
Radiator Capacity:
- 120mm
- 140mm
- 240mm
- 280mm
How Much Storage Is Totally Up To You
For storage compatibility, the View 170 WS ARGB Snow Micro Chassis gives maximum support of up to two 2.5'' SSDs and one 3.5'' HDD in total.
Handy I/O Ports
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
General Information
- Manufacturer: Thermaltake Technology Co., Ltd
- Manufacturer Part Number: CA-1Z4-00M6WN-WS
- Brand Name: Thermaltake
- Product Line: View
- Product Model: View 170 WS ARGB
- Product Name: View 170 WS ARGB Snow Micro Chassis
- Product Type: Computer Case
Technical Information
- Motherboard Supported:
- Mini ITX
- Micro ATX
- Number of Fans Supported: 7
- Number of Fans Installed: 3
- Fan Size Supported:
- 4.72"
- 5.51"
- Installed Fan Size: 4.72"
- Installed Fan Size Details: 3 × 120mm
- Features: ARGB Fan
- Window Panel: Yes
- Window Panel Location:
- Front
- Left Side
Bays
- Number of Internal 3.5" Bays: 1
- Number of Internal 2.5" Bays: 2
- Number of Total Expansion Bays: 3
I/O Expansions
- Total Number of Expansion Slots: 4
Interfaces/Ports
- Total Number of USB Ports: 2
- USB Port Details: 2 x USB 3.0
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
Physical Characteristics
- Color Family: White
- Product Color: Snow
- Product Material:
- Tempered Glass
- SPCC
- Cooler Type: Fan Cooler
- Maximum CPU Cooler Height: 6.30"
- Maximum PSU Length: 7.09"
- Maximum GPU Length: 13.39"
- Height: 17.2"
- Width: 8.4"
- Depth: 15"
- Weight (Approximate): 10.25 lb
Warranty
- Limited Warranty: 3 Year
