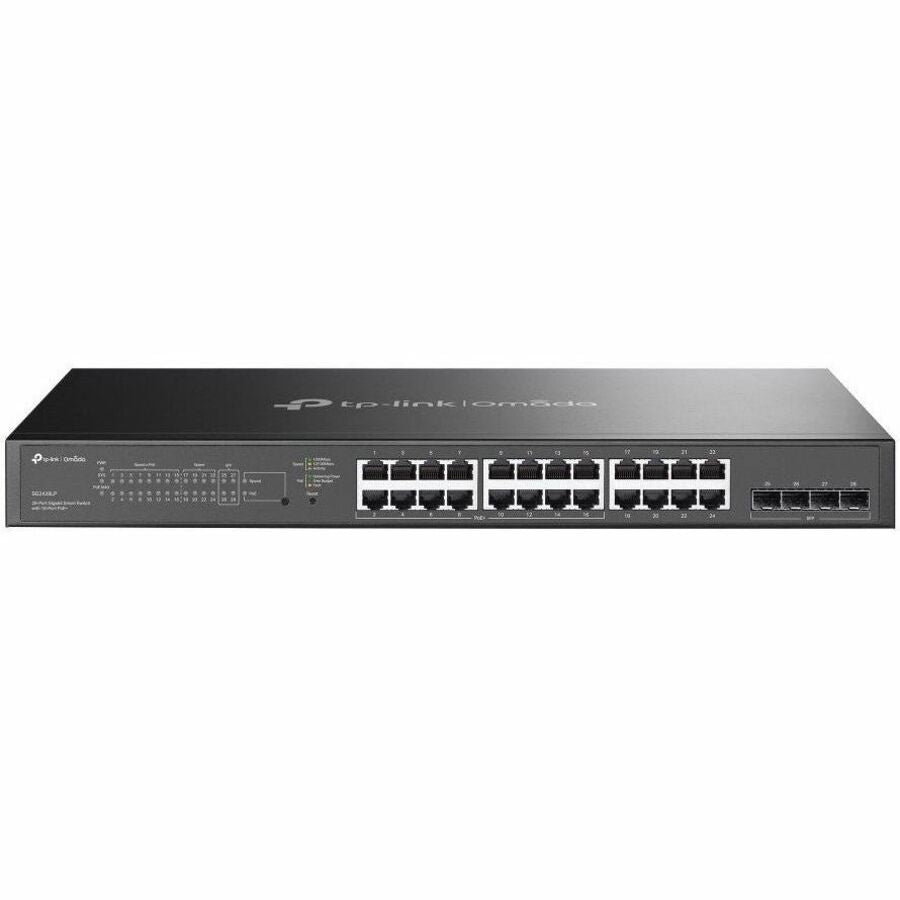

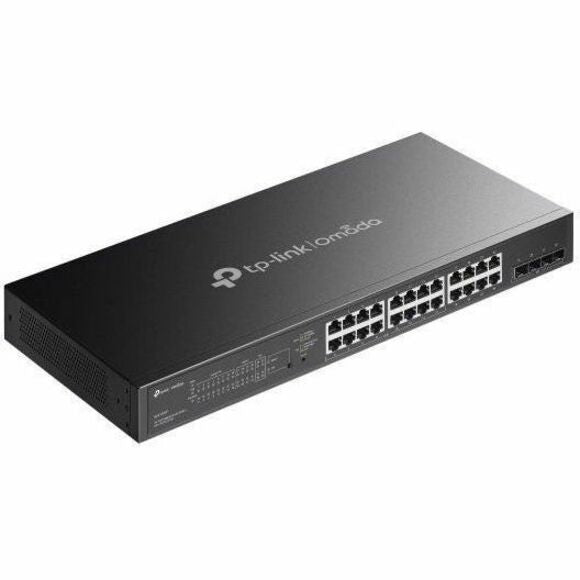

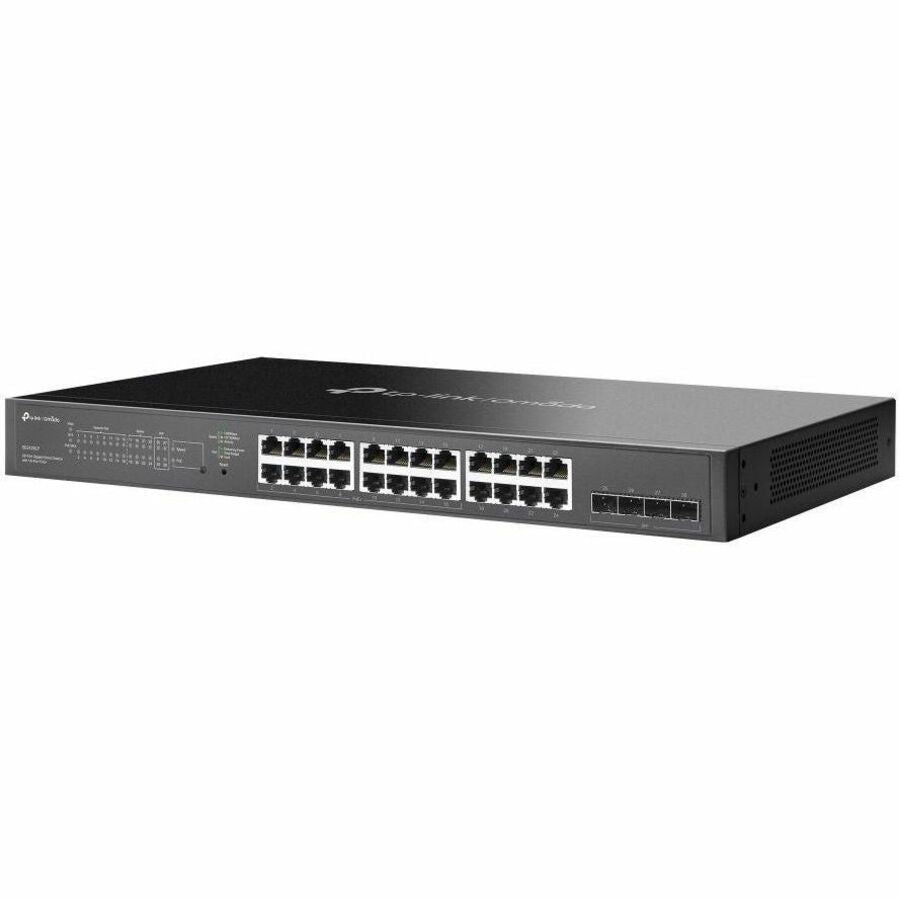

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ - SG2428LP
Key Features
- 150 W total PoE budget with up to 30 W PoE output per port
- 16× Gigabit 802.3af/at PoE+ ports
- 8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
- Centralized cloud management via the web or the Omada app
- Durable metal casing and rackmountable design
- Fanless design for quiet operation
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
Product Overview
24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
150 W Total PoE Budget
Fanless Design for Silent Operation
Zero-Touch Provisioning
Centralized Management
Omada App
Static Routing
Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios |Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: SG2428LP
- Brand Name: TP-Link
- Product Line: Omada
- Product Model: SG2428LP
- Product Name: Omada 28-Port Gigabit Smart Switch with 16-Port PoE+
- Product Type: Ethernet Switch
Technical Information
- Features:
- Fanless
- Zero-Touch Provisioning (ZTP)
- DHCP Snooping
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 16 × Gigabit Ethernet PoE+
- 8 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP (mini-GBIC)
- Number of SFP Slots: 4
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.1x
- IEEE 802.3x
- IEEE 802.1ab
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 150 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source: Power Supply
- Power Consumption: 184.70 W
Physical Characteristics
- Product Material: Metal
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.3"
- Depth: 8.7"
Miscellaneous
- Package Contents:
- Omada 28-Port Gigabit Smart Switch with 16-Port PoE+
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
