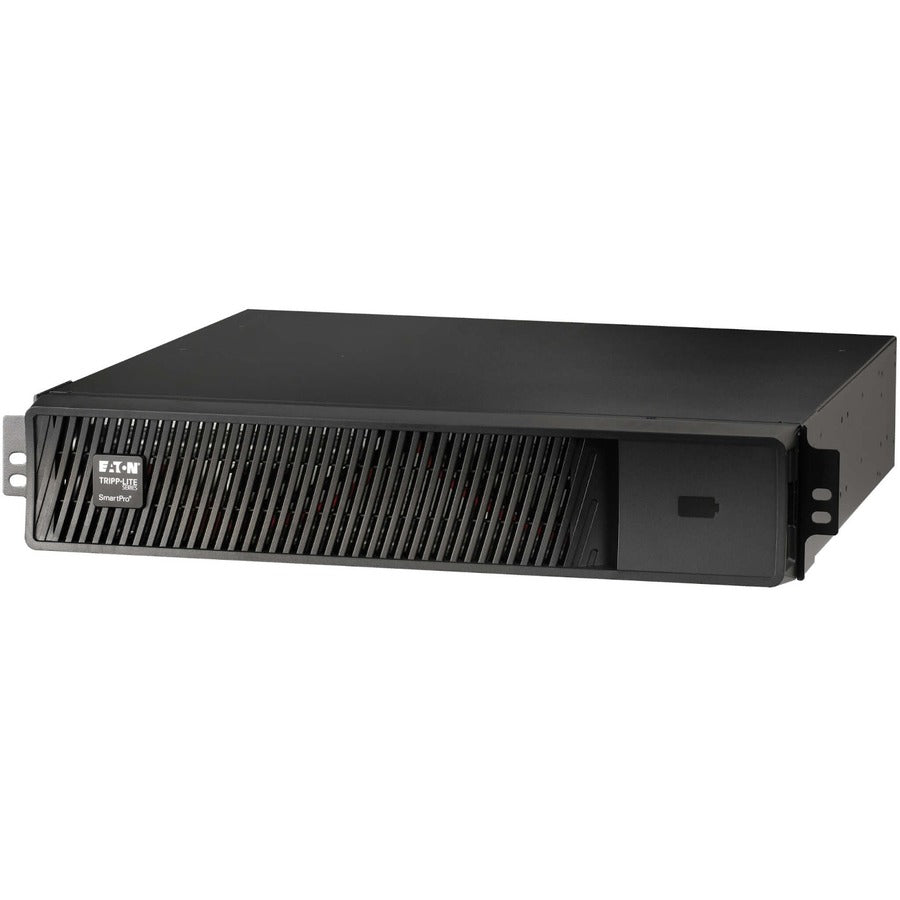

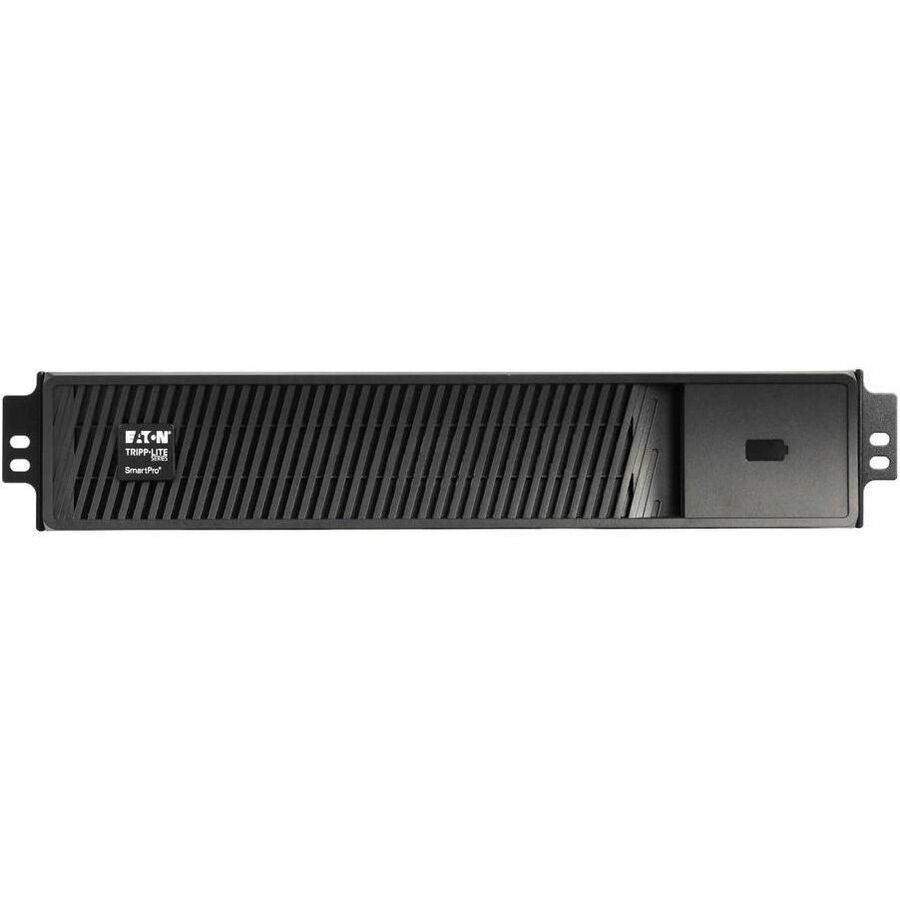

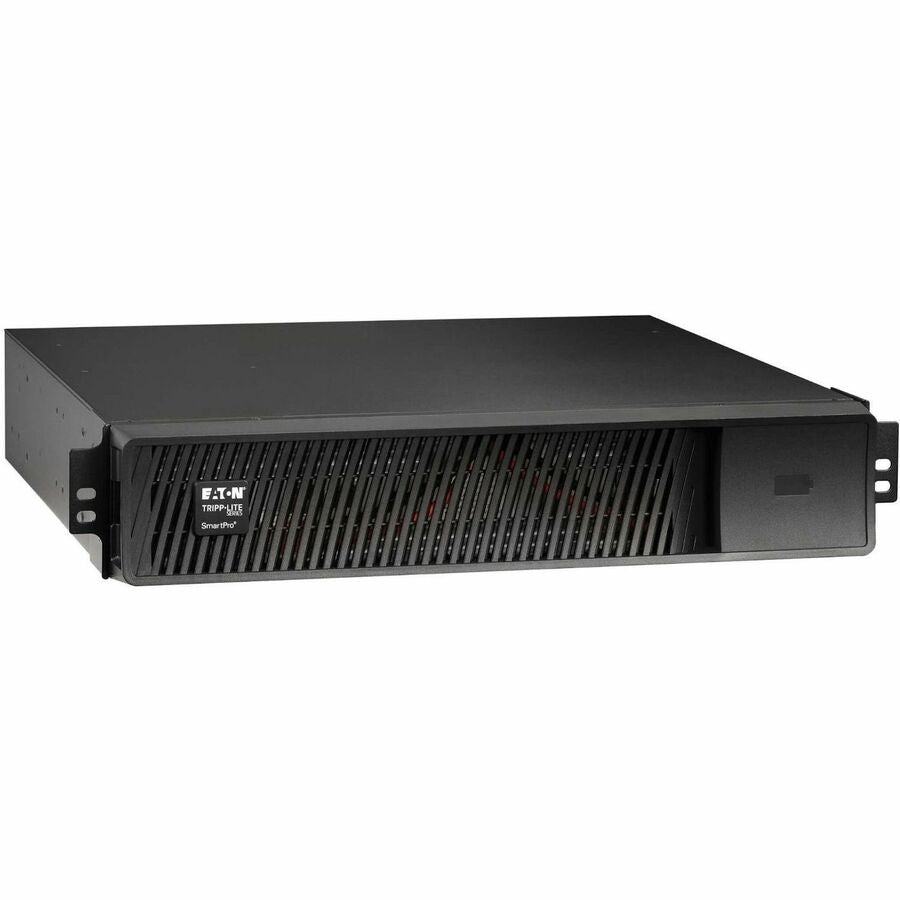

Tripp Lite by Eaton series 48V Extended Battery Module (EBM) for 750VA, 1000VA and 1500VA SmartPro UPS Systems, 2U Rack/Tower - BP48VRM2U
Key Features
- Connects to select expandablebEaton Tripp Lite series UPS systems for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime

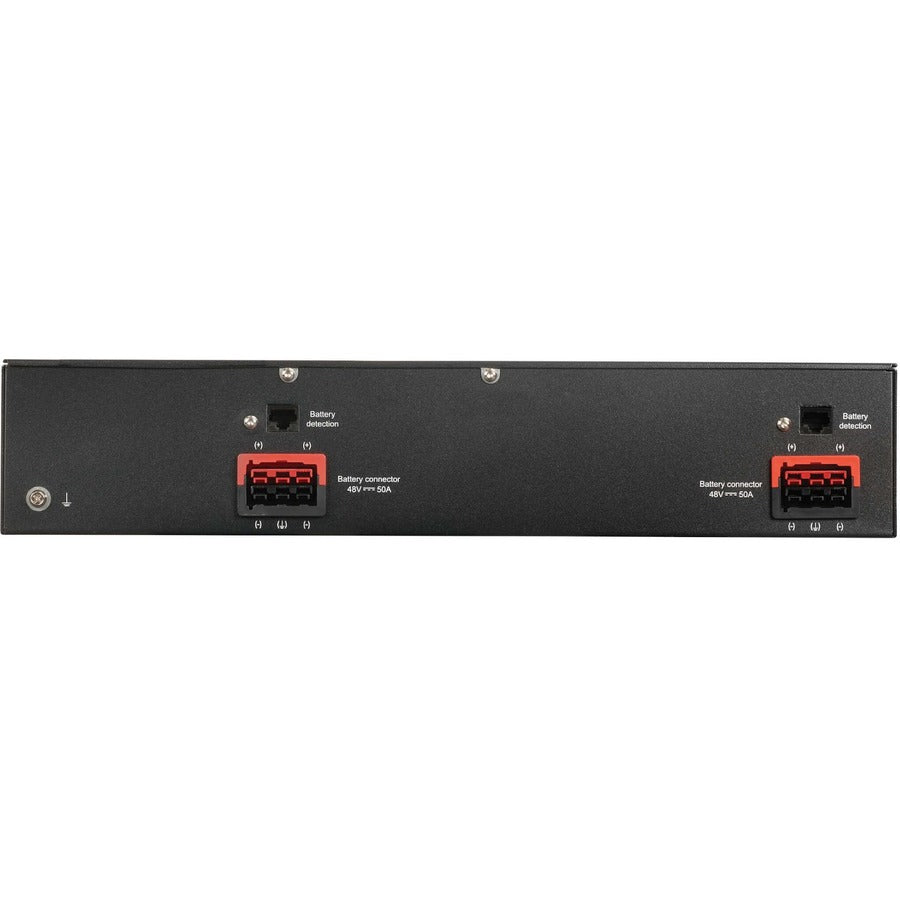

- Includes heavy-gauge cabling with high-current 48V DC connectors
- Supports 2U rack mounting or upright tower installation using included accessories
Product Overview
Features | Backup Battery Module Gives Your Compatible Eaton UPS System Extended RuntimeThe BP48VRM2U offers extended battery runtime when used in conjunction with Eaton Tripp Lite series 750VA, 1000VA and 1500VA SmartPro® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Supports 2U Rack or Tower Installation
This backup battery pack's multi-use form factor supports mounting in 2U of space in EIA-standard 19- inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands are also included for optional upright configuration.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: BP48VRM2U
- Brand Name: Tripp Lite series
- Product Series: Extended Battery Modules
- Product Model: BP48VRM2U
- Product Name: Extended Battery Modules BP48VRM2U UPS Battery Pack
- Product Type: UPS Battery Pack
Technical Information
- Battery Characteristics: Valve-regulated/User Replaceable
- Battery Chemistry: Lead Acid
- Hot Swappable: Yes
- Output Voltage: 48 V DC
Physical Characteristics
- Height: 3.4"
- Width: 17.2"
- Depth: 17.6"
Miscellaneous

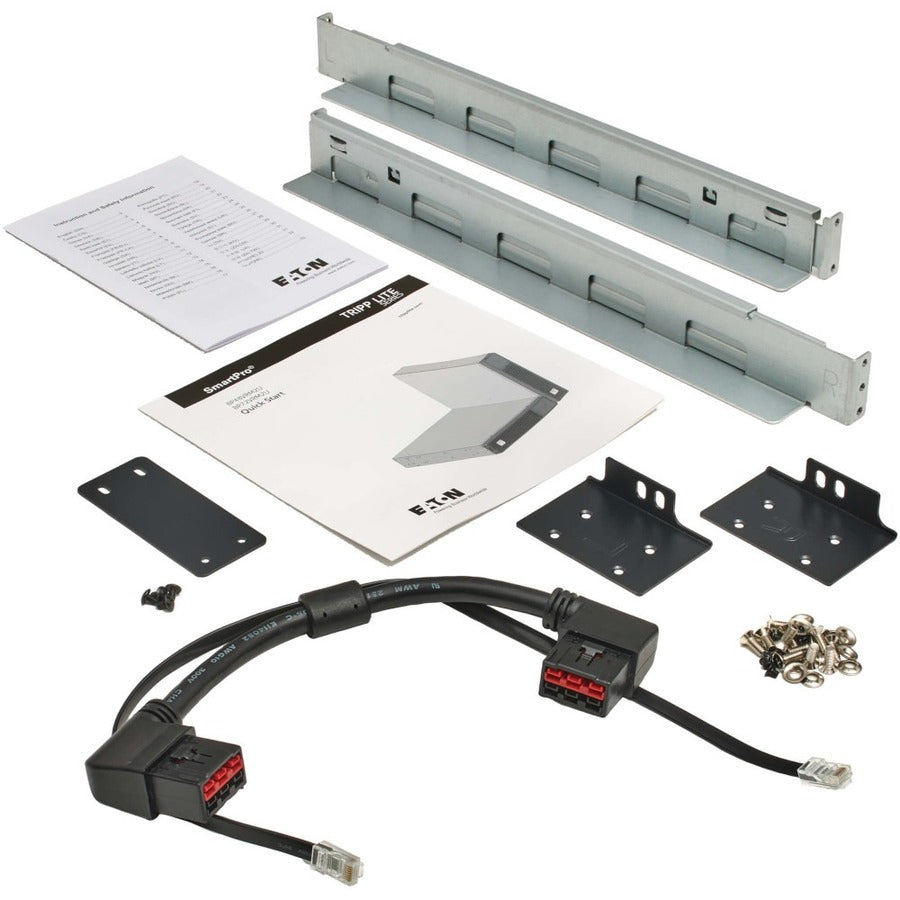

- Package Contents:
- Extended Battery Modules BP48VRM2U UPS Battery Pack
- External Battery Cable
- Rack-Mounting Hardware
- Tower Support Stands
- Quick Start Guide
- Compatibility:
- SMART750RMXL2U
- SMART750RMXL2UN
- SMART1000RMXL2U
- SMART1000RMX2UN
- SMART1500RMXL2U
- SMART1500RMXLN
- SMX1500XLRT2U
- SMX1500XLRT2UN
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 1 Year
