Tripp Lite by Eaton SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Small Rack Enclosure - SRW12UDP
Key Features
- Flow-through ventilation keeps equipment cool
- Locking steel cabinet vented at sides, front, top and bottom
- Maximum load capacity of 200 lb.
- Mounts to wall or rolls on floor (with optional SRCASTER)
- Secures 12U of 19 in. rack equipment up to 20.5 in. deep
Product Overview

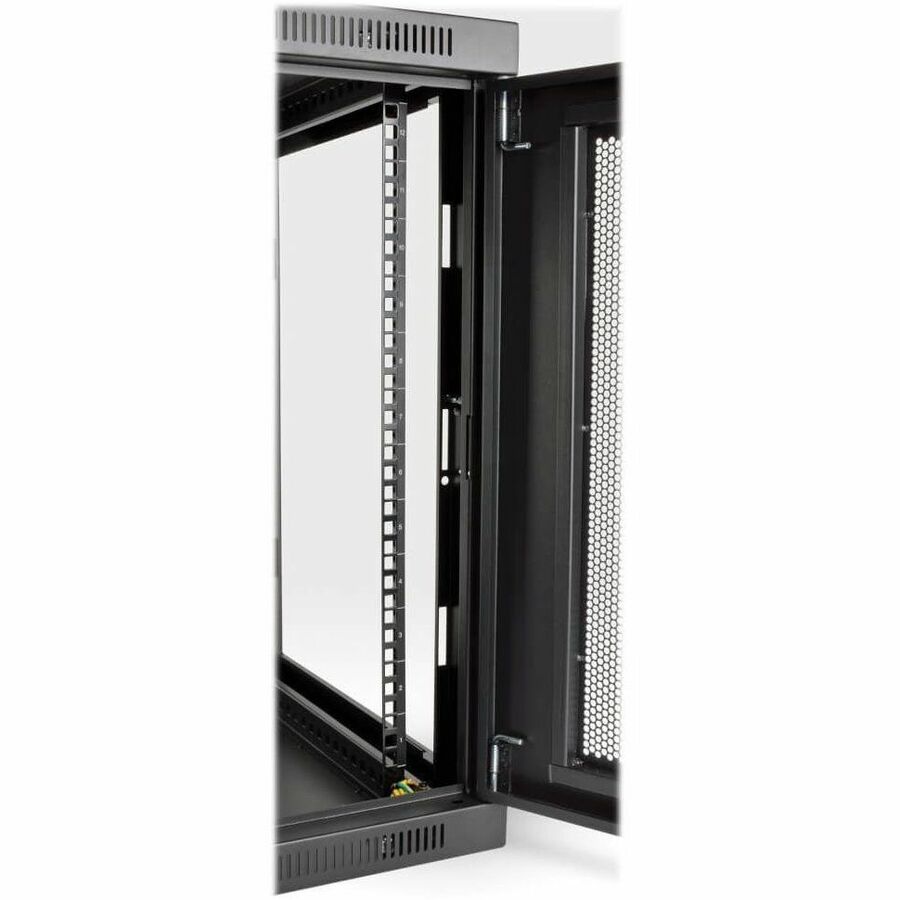

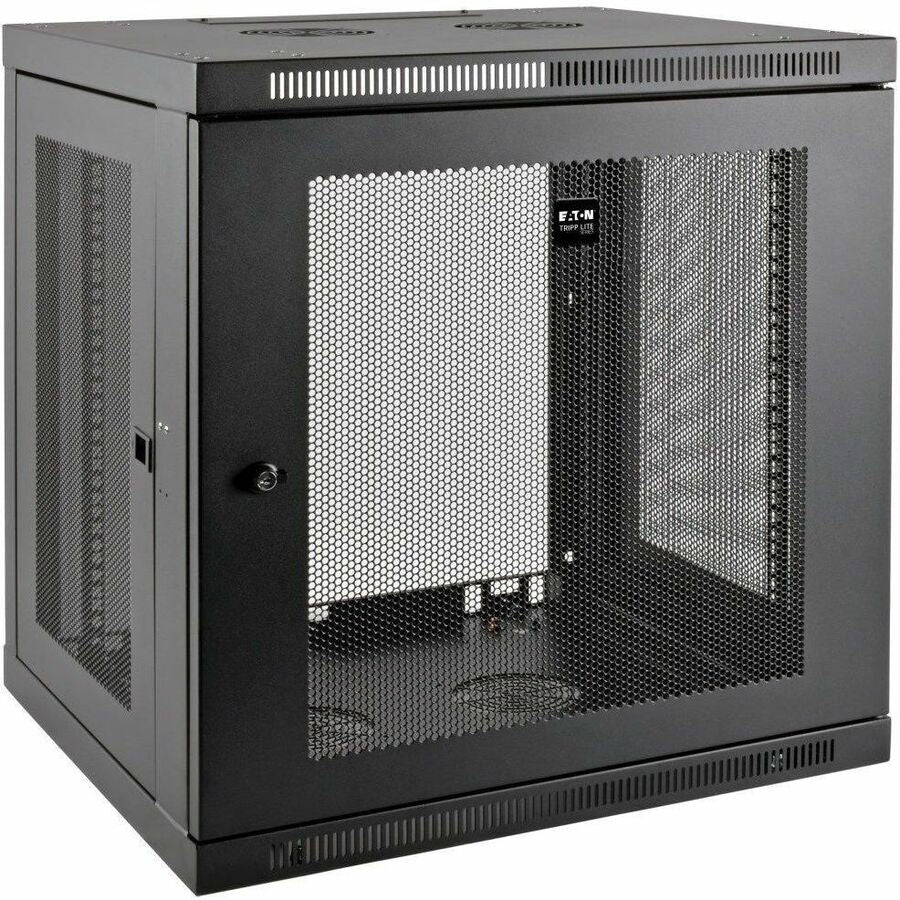

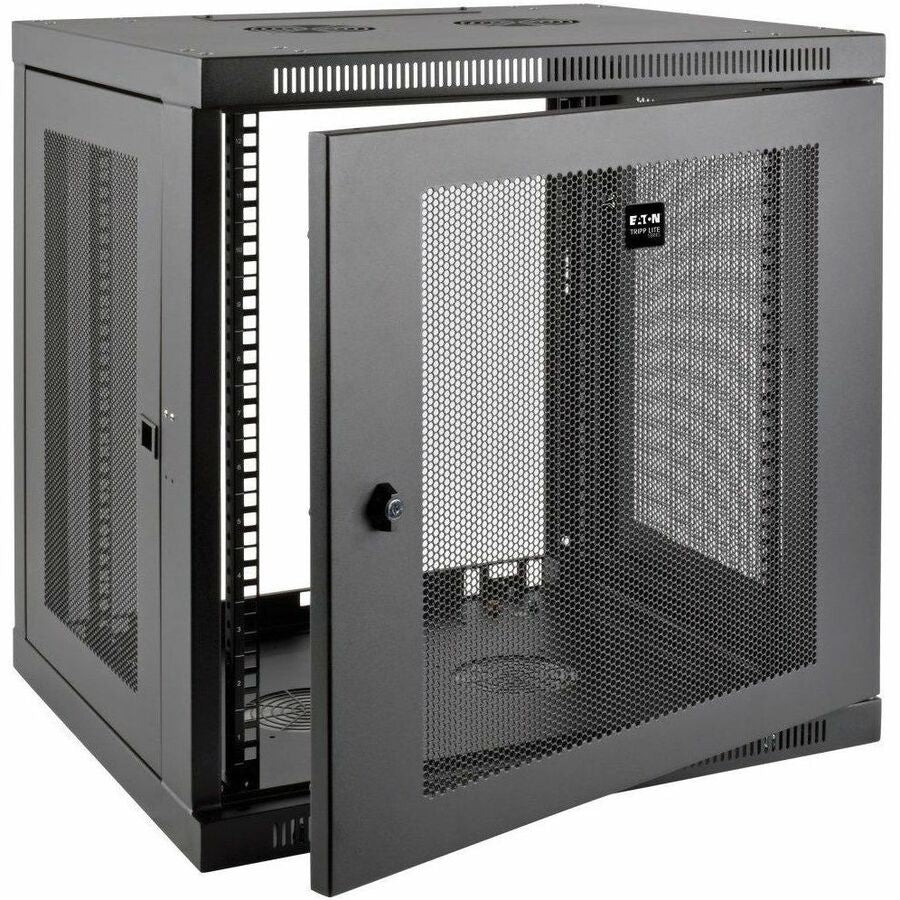

The SRW12UDP SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.To ensure your valuable equipment stays secure, the side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet toand keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

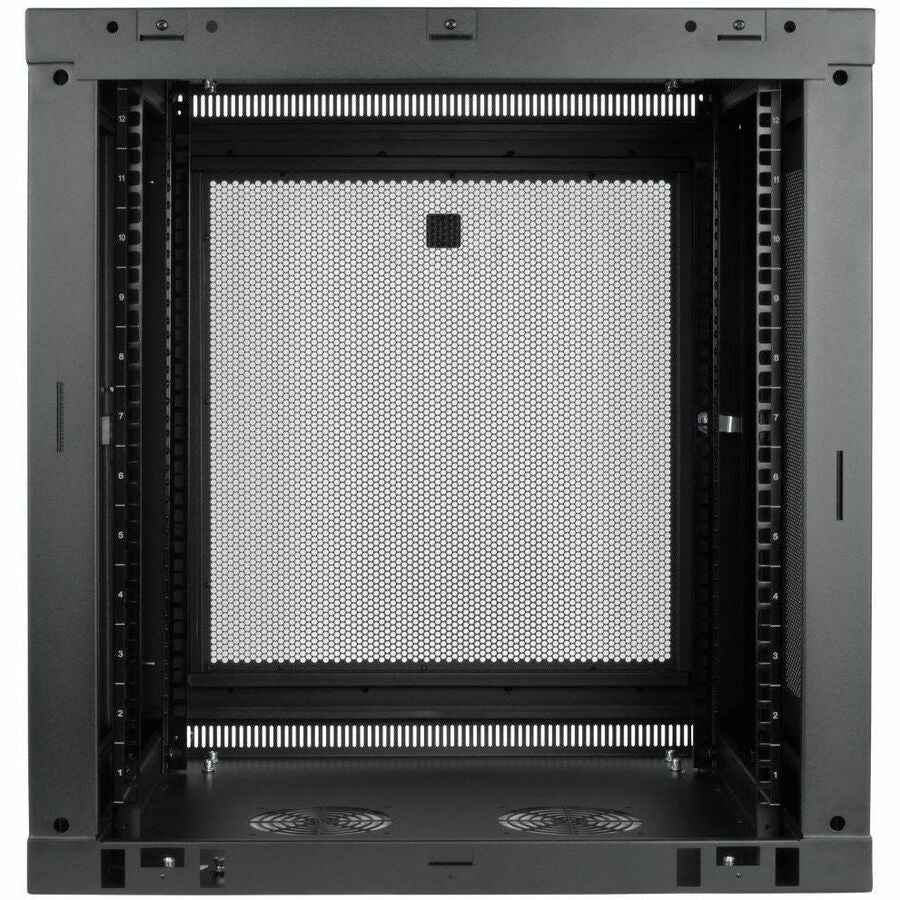

The SRW12UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as such as network switches and patch panels.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SRW12UDP
- Brand Name: Tripp Lite series
- Product Line: SmartRack
- Product Model: SRW12UDP
- Product Name: SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
- Product Type: Rack Cabinet
Technical Information
- Application/Usage:
- LAN Switch
- Patch Panel
- Features: Cable Management
Physical Characteristics
- Form Factor: Wall Mountable
- Color Family: Black
- Product Color: Black
- Product Material: Steel
- Maximum Weight Capacity: 200 lb
- Static/Stationary Weight Capacity: 200 lb
- Height: 25.1"
- Width: 23.6"
- Depth: 21.8"
- Rack Height: 12U
- Rack Width: 19"
- Rack Depth: 20.50"
- Weight (Approximate): 58.40 lb
Miscellaneous

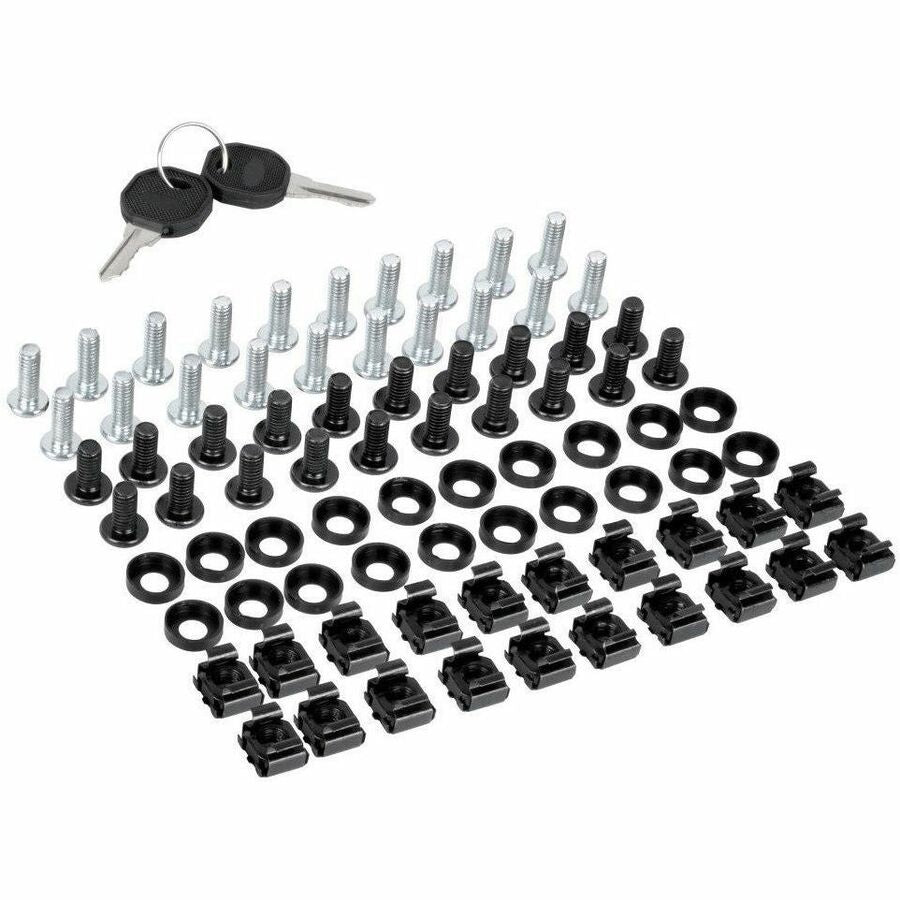

- Package Contents:
- SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
- 20 x M6 Screws
- 20 x M6 Cage Nuts
- 20 x M6 Washers
- 20 x 12-24 Screws
- 2 x Keys
- Owner's Manual
- Assembly Required: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
