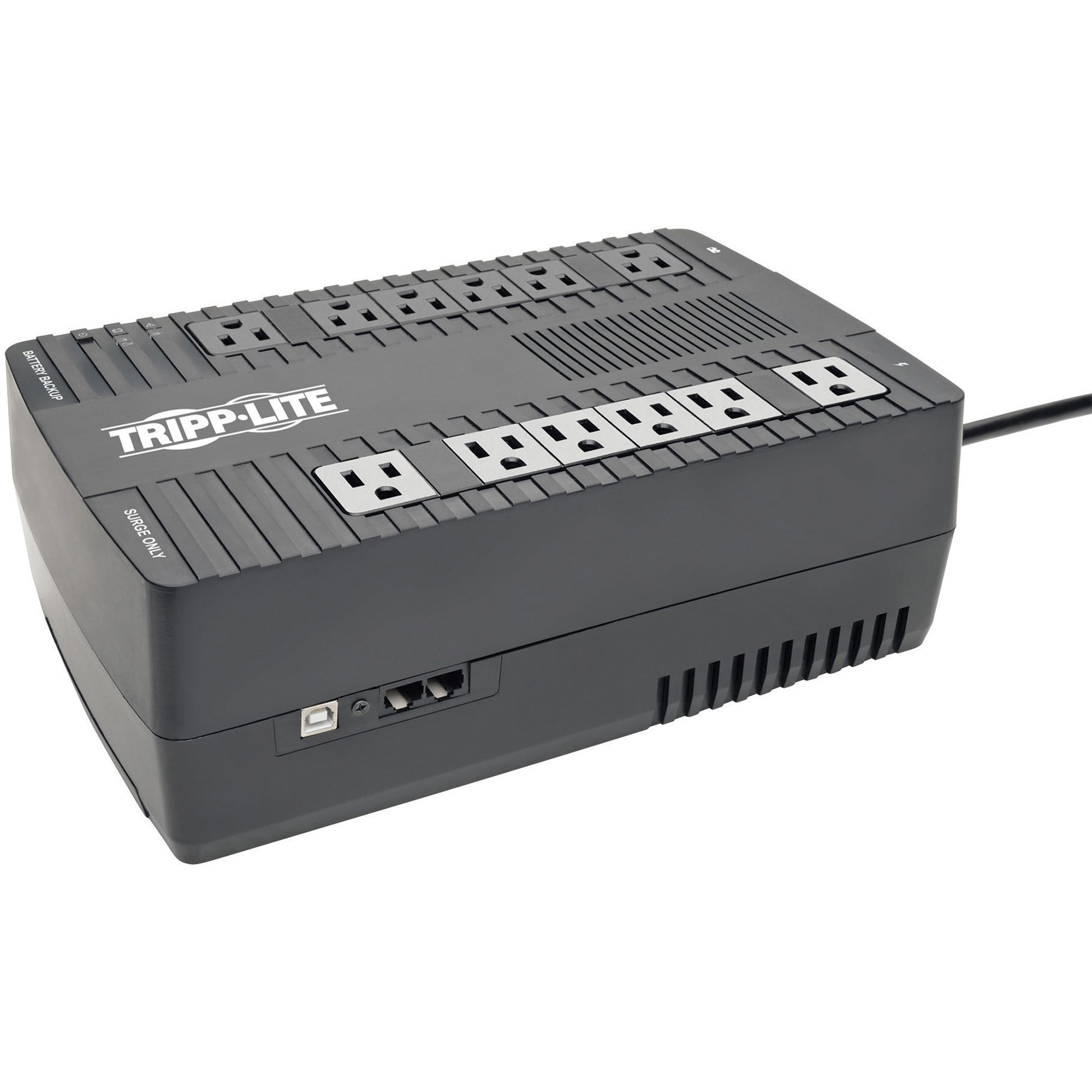

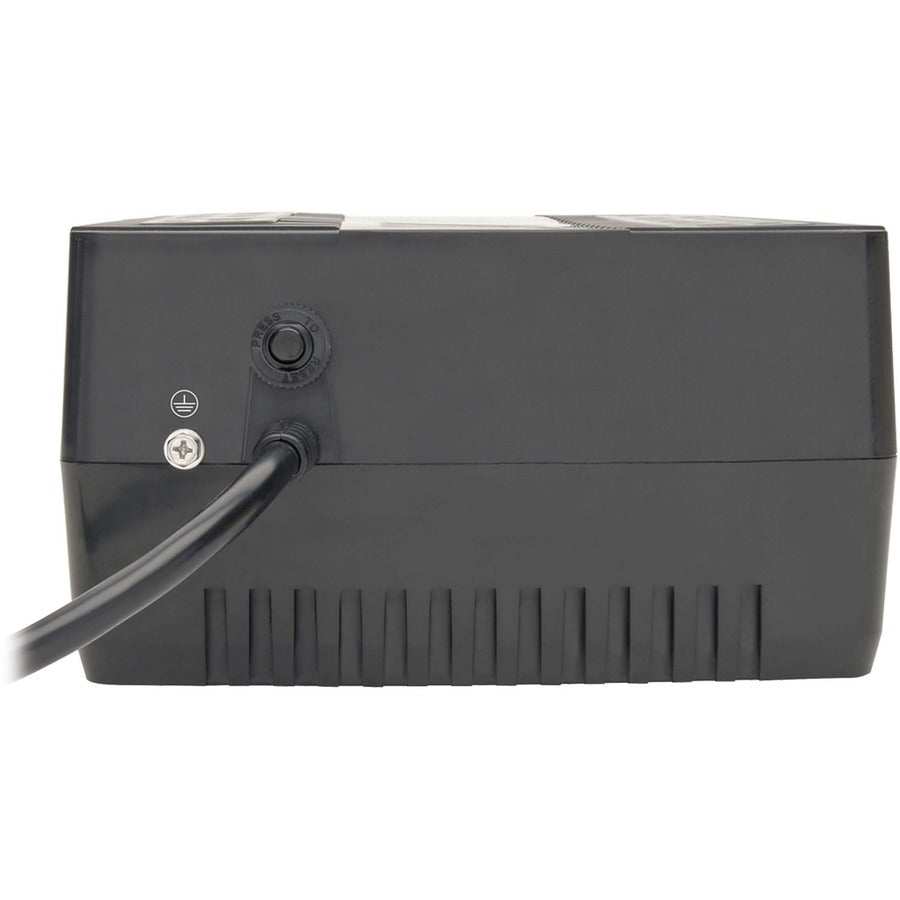

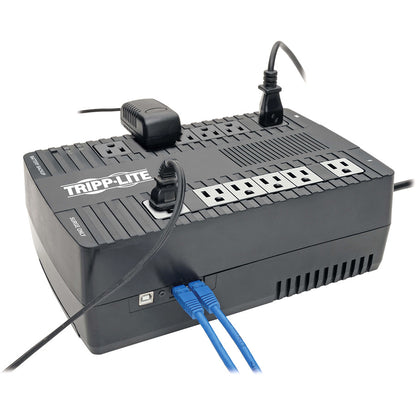

Tripp Lite by Eaton UPS 750VA 450W Line-Interactive UPS - 12 NEMA 5-15R Outlets AVR 120V 50/60 Hz USB Desktop/Wall Mount - AVR750U
Key Features
- $100,000 Ultimate Lifetime Insurance
- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- 3-year limited warranty
- High >96% efficiency with low BTU ratings saves electricity and lowers your energy costs
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
Product Overview
AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: AVR750U
- Brand Name: Tripp Lite series
- Product Series: AVR
- Product Name: AVR 750VA Desktop UPS
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- AVR Range: Boost +18% / Buck -15%
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 12 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Dataline Protection: RJ-11
- Transfer Time: 6 ms
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Energy Saving: Greater than 95% efficiency - GREEN UPS
- Application/Usage:
- Computer
- Router
- Printer
- TV
- Blu-ray Player
- Gaming Console
- ATM
- Security System
- Digital Signage
- Home/Office
- Media Center
- Home Theater
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 450 W
- Input Voltage: 120 V AC
- Input Current: 12 A
- Output Voltage:
- 110 V AC
- 115 V AC
- 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 316 J
Management
- Alarm:
- Battery Backup
- Low Battery
- Overload
- Replace Battery
- Fault
Controls/Indicators
- Status Indicators:
2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
Interfaces/Ports
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 12 V DC
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 11 Minute
- Typical Battery Recharge Time: 9 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Product Color: Black
- Height: 4.14"
- Width: 7.48"
- Depth: 12"
- Form Factor: Ultra-compact Desktop/Tower/Wall Mount
- Weight (Approximate): 15.84 lb
Miscellaneous
- Package Contents:
- AVR 750VA Desktop UPS
- USB cable
- Instruction manual
- Country of Origin: China
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year Lifetime
- Additional Warranty Information:
2-year warranty.
- 100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
