Ubiquiti Enterprise Campus 24 PoE (ECS-24-PoE)
Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections, hot-swappable modules, and advanced Layer 2/3 switching capabilities.

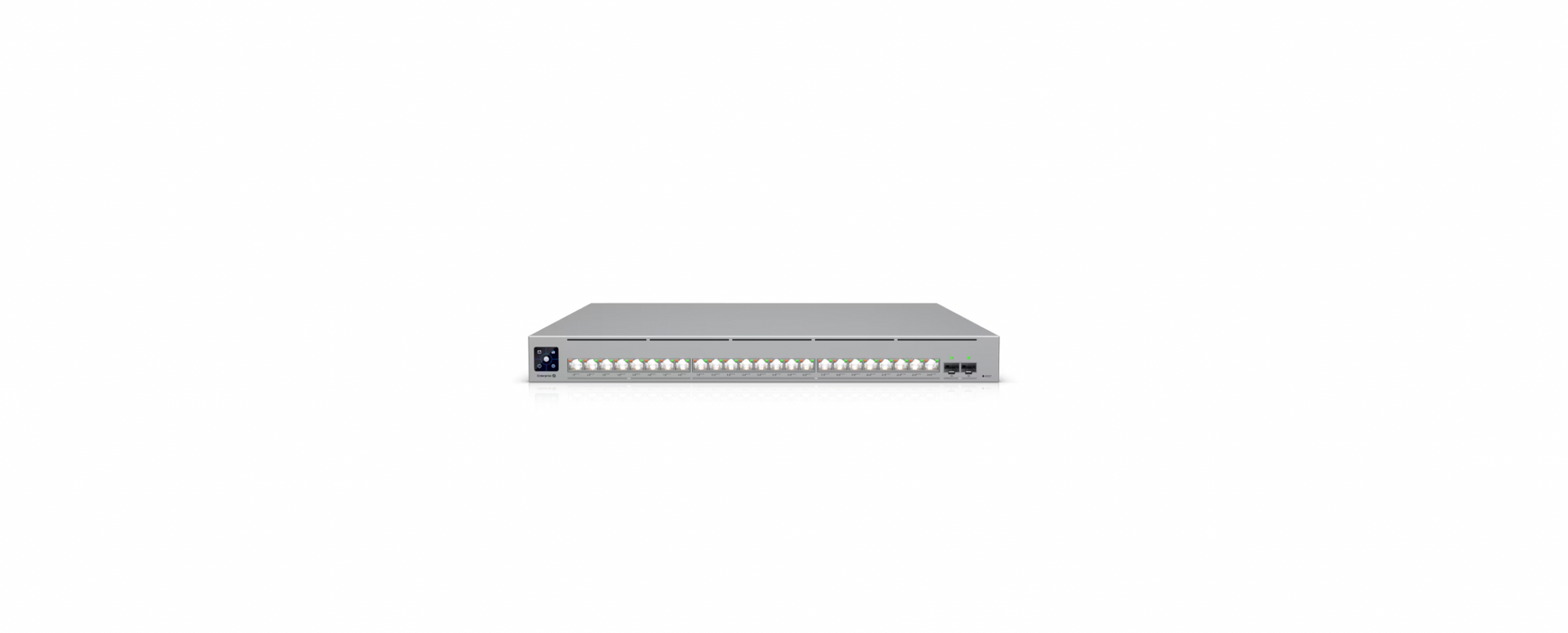

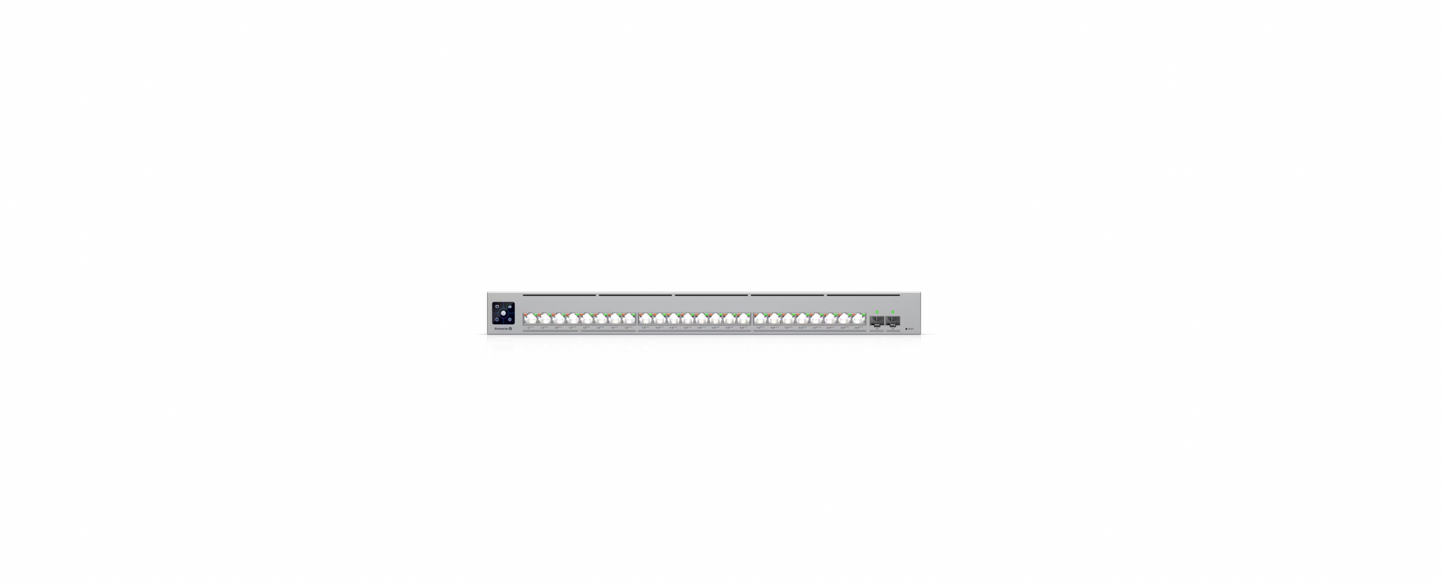

The Ubiquiti ECS 24 PoE is a rackmount 1U, full-depth switch built for high-availability campus and enterprise networks. It features (24) PoE+++ RJ45 ports—(8) 2.5 GbE and (16) 10 GbE—all supporting up to 90W per port, plus (2) 25G SFP28 uplinks. With a switching capacity of 460 Gbps and a total non-blocking throughput of 230 Gbps, it’s engineered for maximum performance and uptime.
This unit includes (2) hot-swappable power supplies and (4) hot-swappable fan modules. It is managed via UniFi Network (version 9.0.114 and later) and features a 1.3" touchscreen LCM for local system information.
Key Features:
• (8) 2.5 GbE RJ45 ports with PoE+++ support
• (16) 10 GbE RJ45 ports with PoE+++ support
• (2) 25G SFP28 uplinks
• Total Switching Capacity: 460 Gbps
• Non-Blocking Throughput: 230 Gbps
• Forwarding Rate: 342 Mpps
• Up to 90W per port (PoE+++)
• Total PoE Budget: Up to 2,250W (shared mode)
• Hot-swappable PSUs and fans
• 1.3" LCM touchscreen display
• Managed via UniFi Network (v9.0.114+)
Ideal For:
• Campus and enterprise core networks
• High-density PoE device deployments
• Environments requiring hot-swappable redundancy
• Integration with UniFi Aggregation switches
Key Highlights:
✅ Supports up to 90W PoE+++ per port across all 24 RJ45 ports
✅ Dual 25G SFP28 uplinks for high-speed backbone connectivity
✅ Full Layer 3 routing (DHCP server, relay, VLAN routing, static routes)
✅ Layer 2 switching: STP, RSTP, IGMP Snooping, MAC-based ACLs
✅ Fully modular: hot-swappable fans and power supplies for redundancy
Frequently Asked Questions:
Q: How many PoE ports does the ECS 24 PoE have?
A: All 24 RJ45 ports (8 × 2.5 GbE + 16 × 10 GbE) support PoE+++ up to 90W per port.
Q: What is the maximum PoE power availability?
A: Up to 2,250W total depending on AC input voltage and power module configuration.
Q: How is this switch managed?
A: It is managed via the UniFi Network application (version 9.0.114 or later).

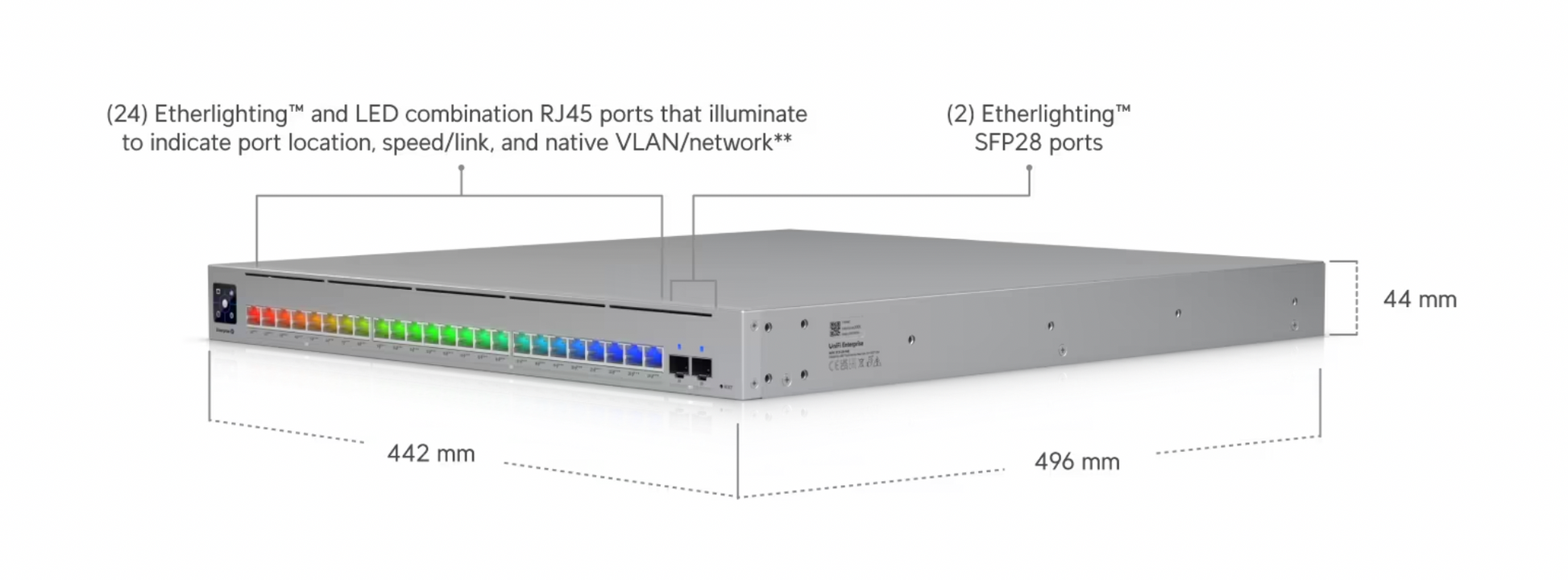

Dimensions:
442.4 x 43.7 x 496 mm
(17.4 x 1.7 x 19.5")

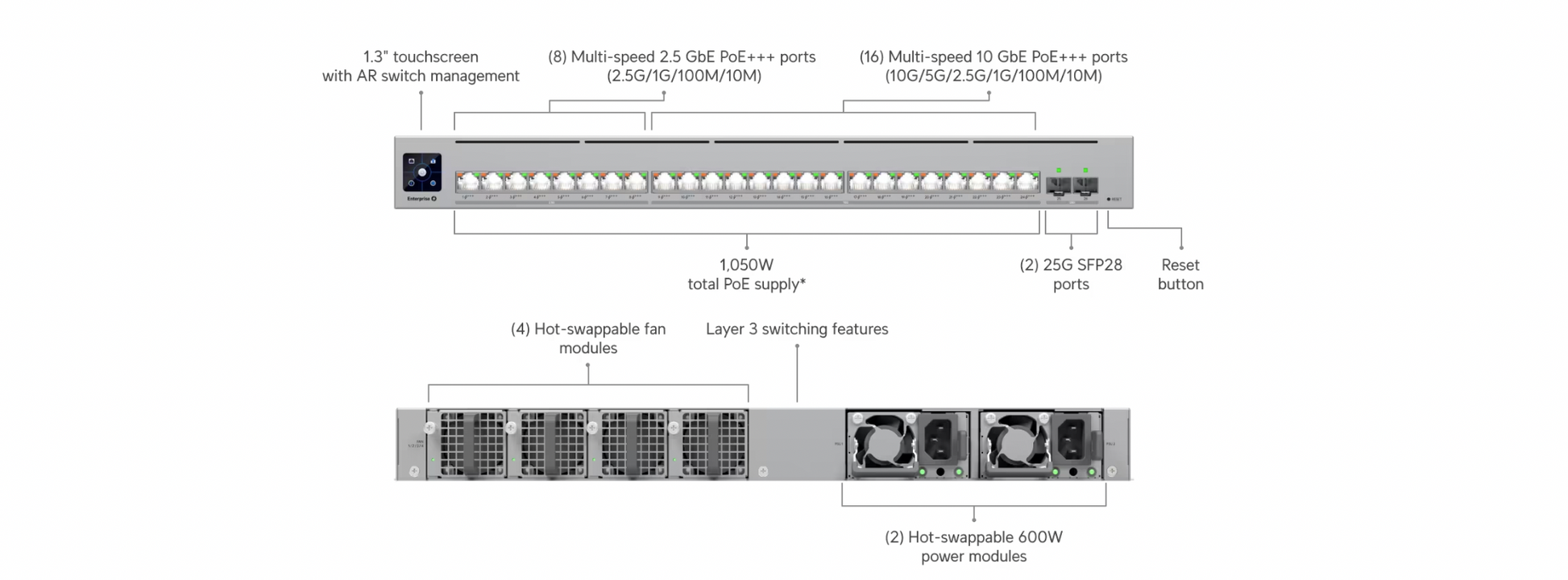

Port Layout:
2.5 GbE RJ45: 8 (All PoE+++)
(2.5G/1G/100M/10M)
10 GbE RJ45: 16 (All PoE+++)
(10G/5G/2.5G/1G/100M/10M)
25G SFP28: 2
(25G/10G/1G)
Max. PoE Output:
Up to PoE+++
Total PoE Availability:
100–240V AC Shared Mode: 1,050W with (2) 600W modules
100–240V AC Redundant Mode: 450W with (2) 600W modules
200–240V AC Shared Mode: 2,250W with (2) 1,200W modules
100–120V AC Shared Mode: 1,850W with (2) 1,200W modules
200–240V AC Redundant Mode: 1,050W with (2) 1,200W modules
100–120V AC Redundant Mode: 850W with (2) 1,200W modules
Redundancy:
(2) Hot-Swappable PSUs
(4) Hot-Swappable Fans
Layer 3:
✓
Form Factor:
Rack Mount (1U, Full-Depth)
Etherlighting™:
✓
Performance:
Switching Capacity: 460 Gbps
Total Non-Blocking Throughput: 230 Gbps
Forwarding Rate: 342 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 128,000
L3 Table Size:
- ARP Entries: 128,000
- IPv4 Routes: 256,000
Packet Buffer Size: 8 MB
Layer 3 Features:
DHCP Server (Local Networks) ✓
DHCP Relay ✓
Inter-VLAN Routing (Local Networks) ✓
Static Routing (Local Networks) ✓
Layer 2 Features:
LACP Port Aggregation ✓
STP & RSTP ✓
QoS (DSCP) ✓
Pro AV Profiles ✓
Advanced IGMP Configuration ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓
Hardware:
PoE Ports: 24 (PoE+++)
Max. PoE Wattage per Port by PSE:
- PoE: 15.4W
- PoE+: 30W
- PoE++: 60W
- PoE+++: 90W
Max. Power Consumption:
- 150W (Excluding PoE Output)
- 2400W (Including PoE Output)
Power:
Power Method: (2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method: (2) AC input, Hot-swappable power modules
Power Supply: (2) Hot-swappable AC/DC 600W power modules
Supported Voltage Range: 100–240V AC
Management:
Ethernet: AR
Weight:
Without mounting brackets: 9.46 kg (20.9 lb)
With mounting brackets: 9.56 kg (21.1 lb)
Enclosure Material:
SGCC steel
Supported Rack Depth:
482.6 mm (19") four-post racks
Post depths ranging from 650 to 1,000 mm (25.6–39.4")
LCM Display:
1.3" touchscreen
Fan Method:
(4) hot-swappable fan modules
ESD/EMP Protection:
Air: ± 30kV
Contact: ± 30kV
Ambient Operating Temperature:
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity:
10 to 90% noncondensing
Etherlighting™ LEDs:
Ethernet ✓
SFP28 ✓
System LEDs:
Ethernet ✓
System ✓
Certifications:
CE, FCC, IC
NDAA Compliant:
✓
Software:
Application Requirements:
UniFi Network (Version 9.0.114 and later)
