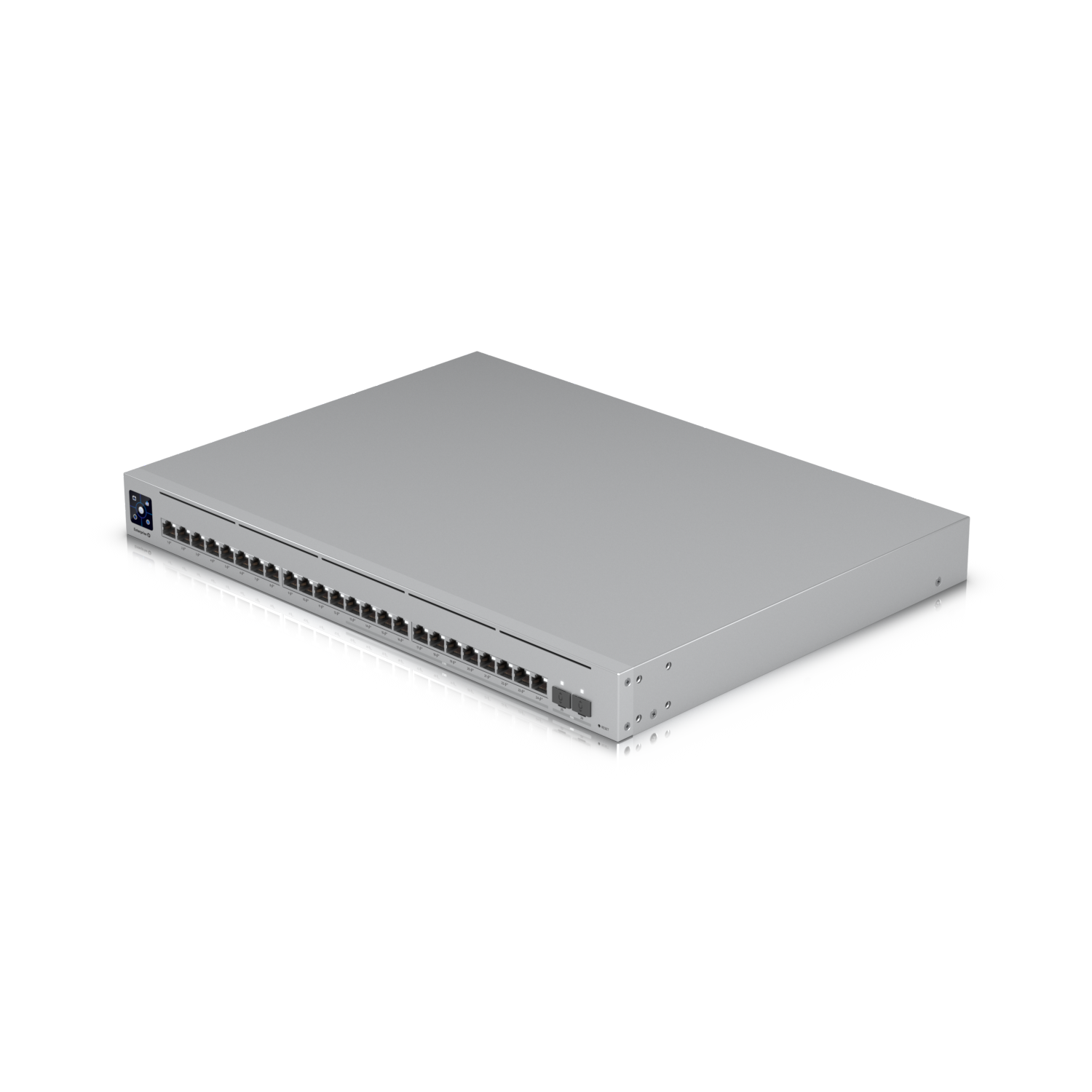

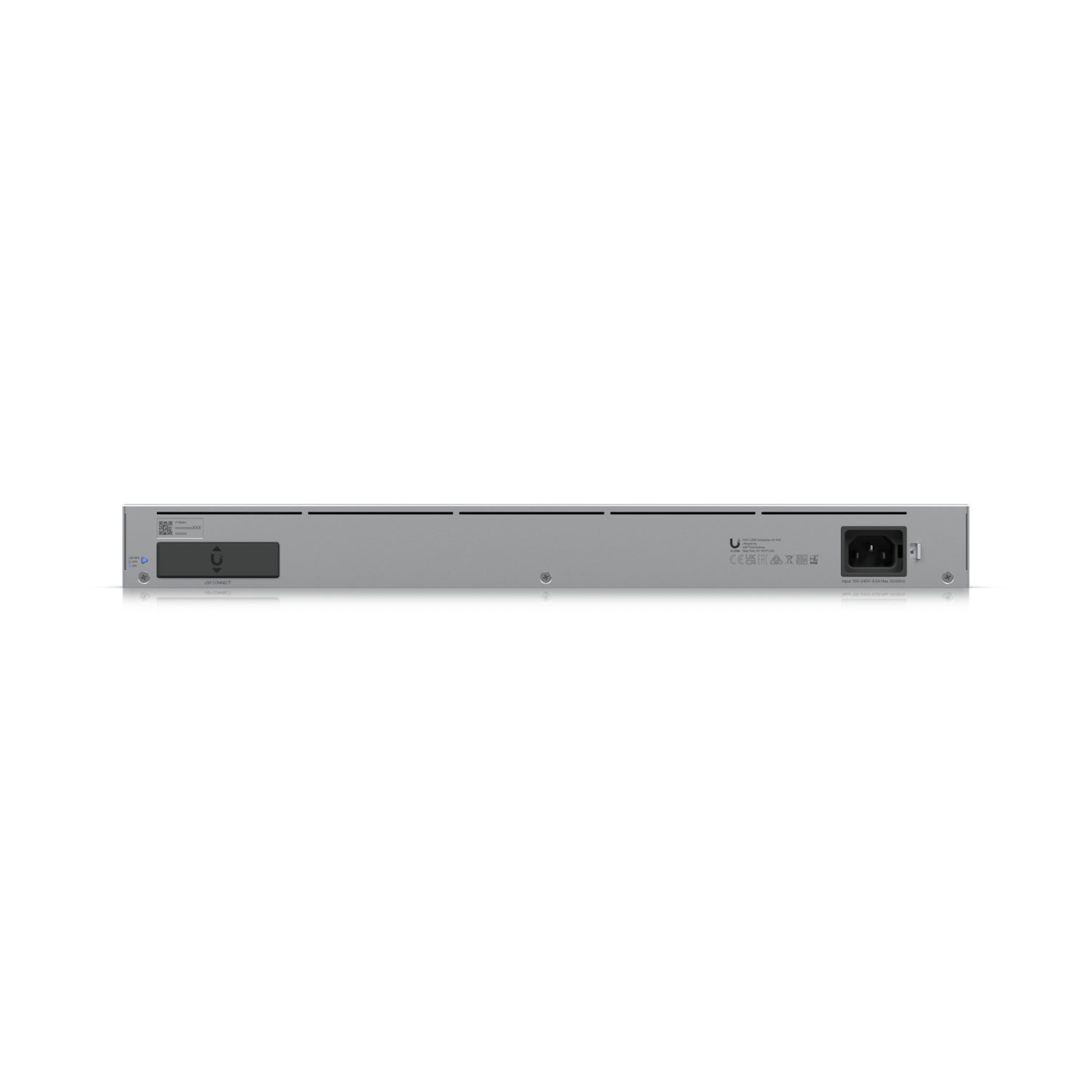

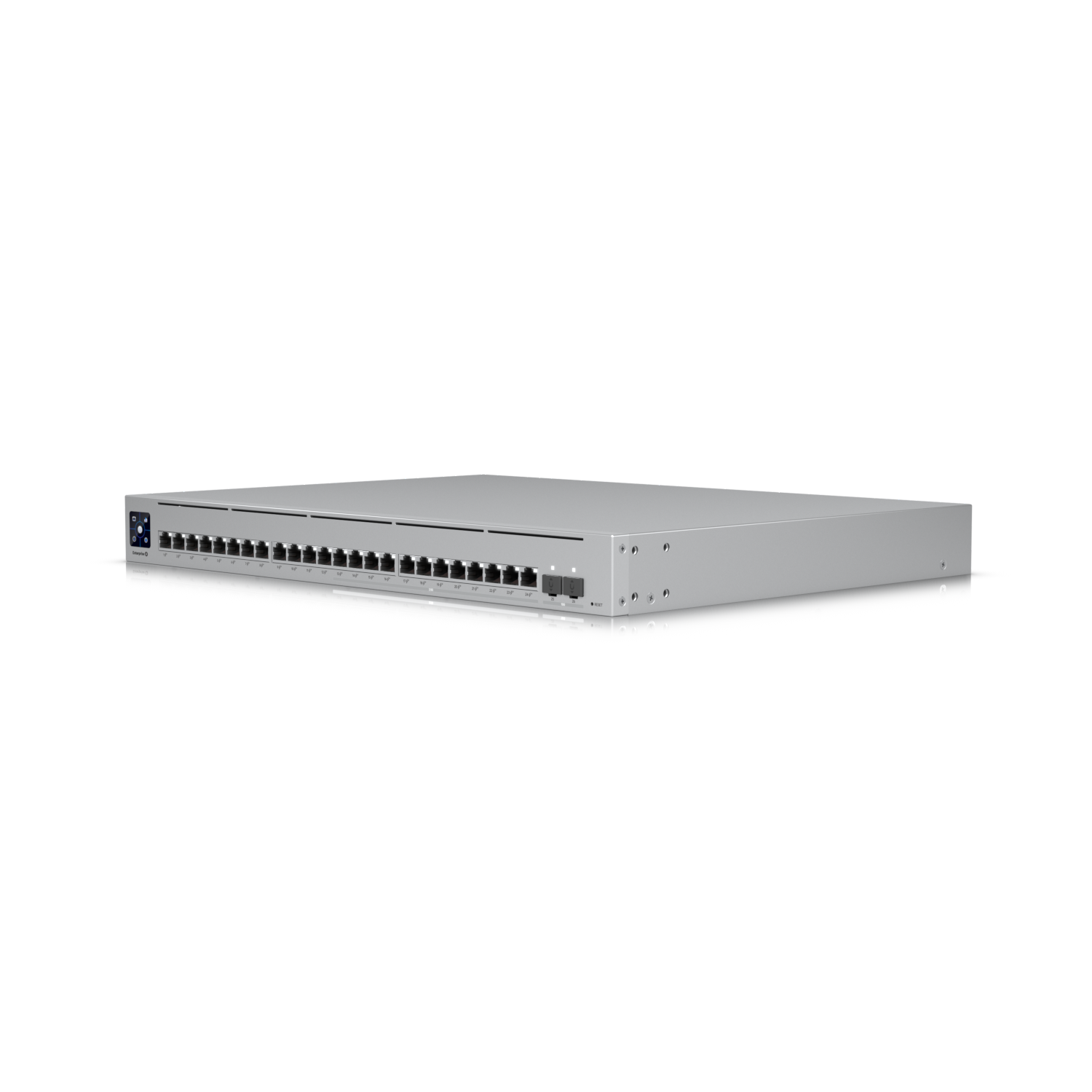

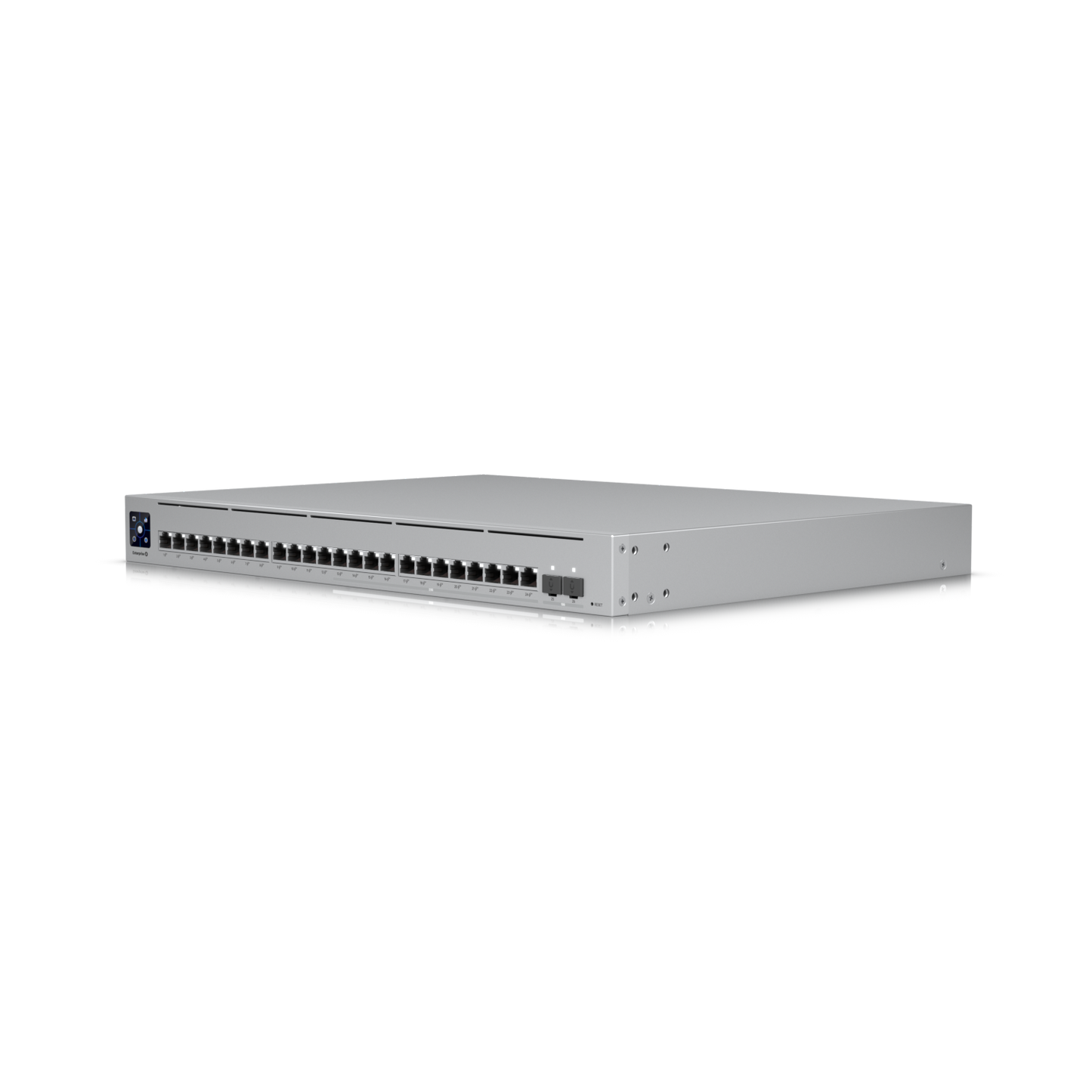

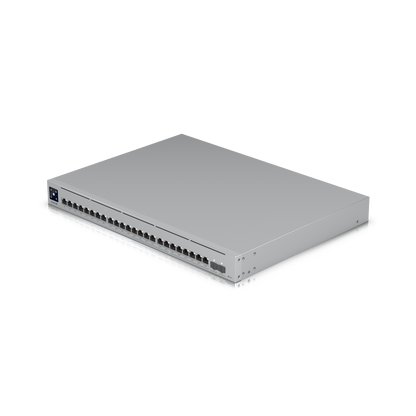

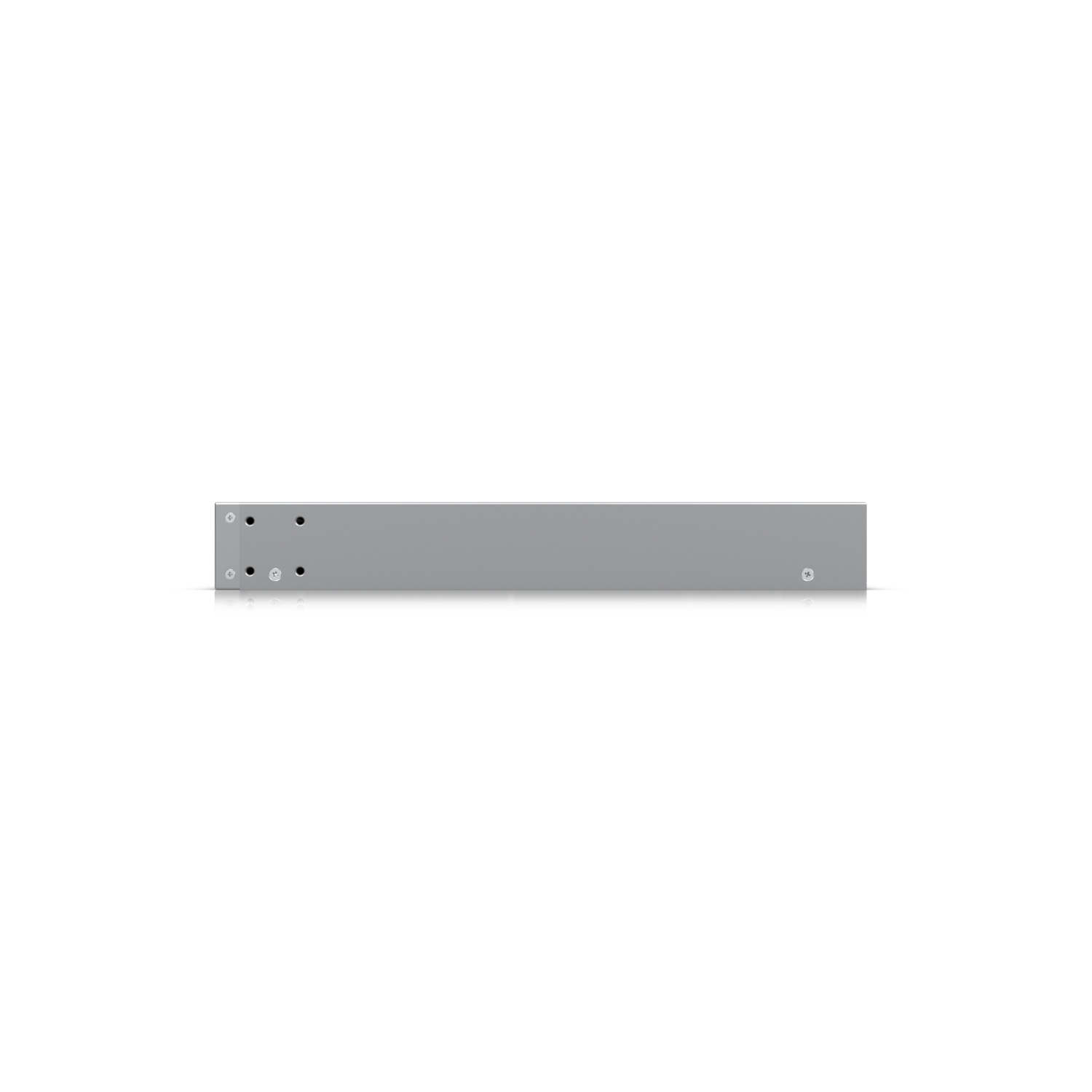

Ubiquiti Enterprise 24 PoE (USW-ENT-24-POE)

Ubiquiti Enterprise 24 PoE (USW-ENT-24-POE)

Regular price $949.99 USD
Regular price $999.99 USD Sale price $949.99 USD
Sale Sold out

FINAL SALE

 77 in stock

View full details

Ubiquiti USW-ENT-24-POE

High-performance 24-port UniFi switch with 2.5 GbE PoE+ support, Layer 3 routing, and dual 10G SFP+ uplinks—engineered for modern enterprise networks.

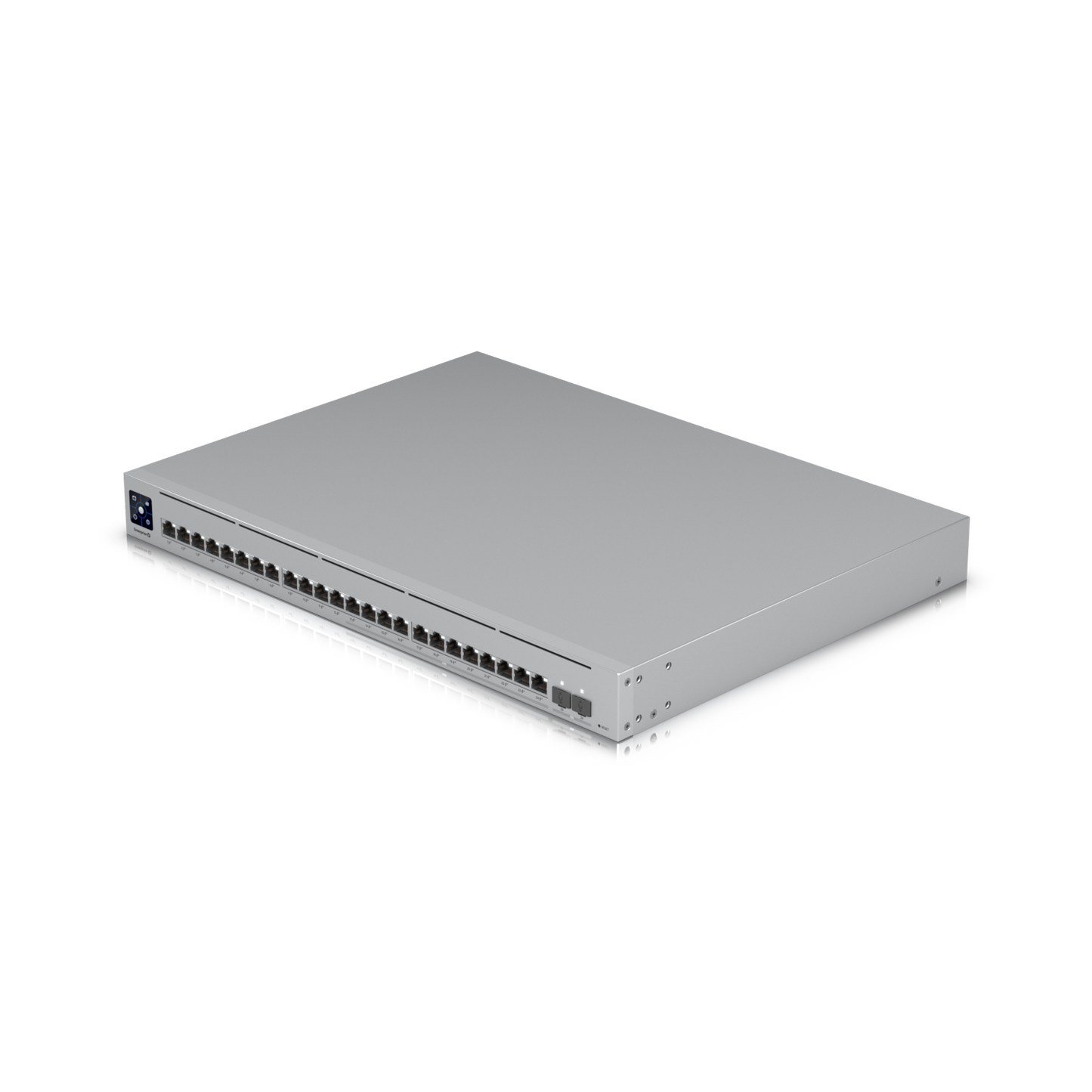

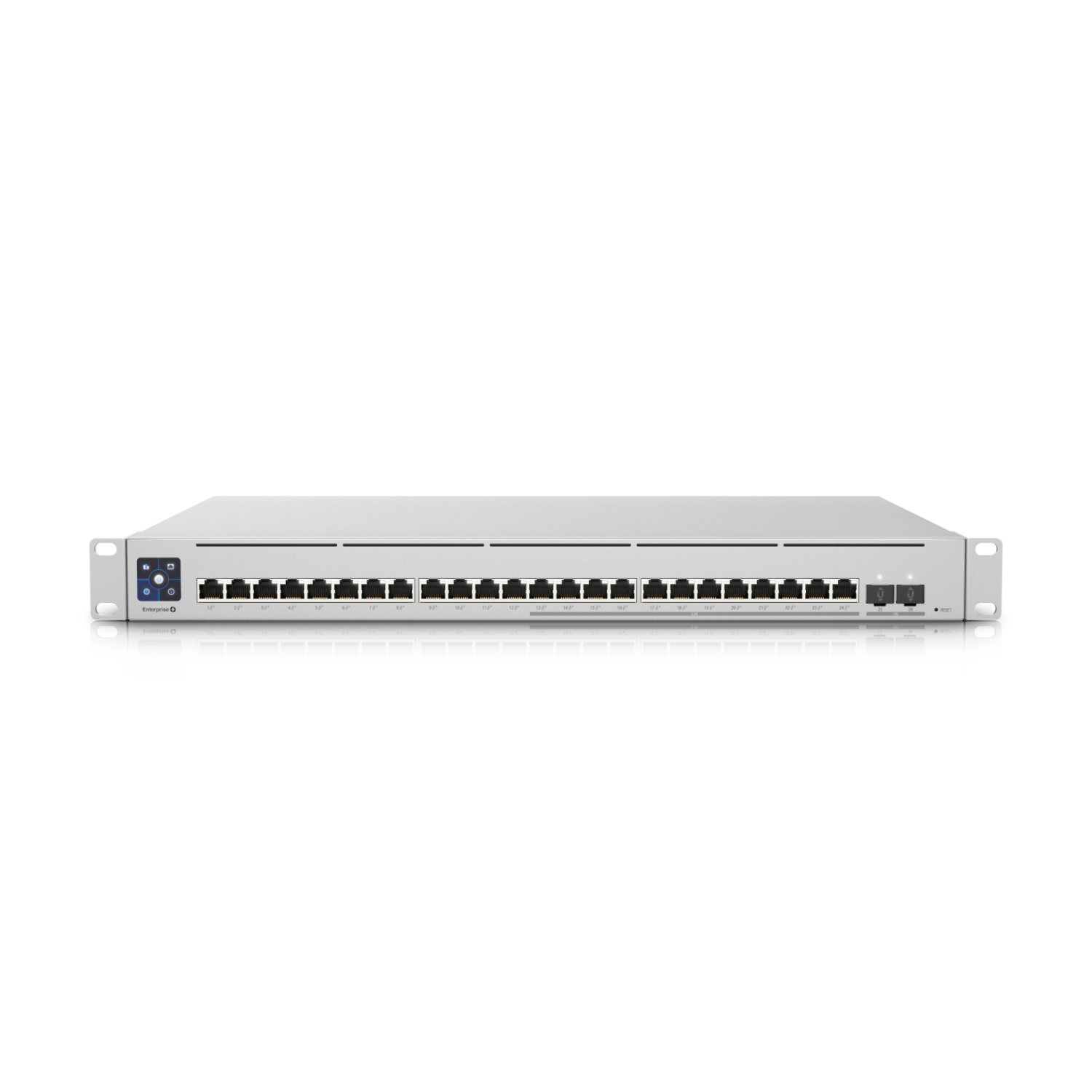

The USW-ENT-24-POE is a 1U rackmount Layer 3 switch featuring (24) PoE+ RJ45 ports—(12) 1G and (12) 2.5G—as well as (2) 10G SFP+ uplinks. With a total PoE budget of 400W, this switch supports a broad range of UniFi devices but is not compatible with the PoE++ power requirements of U7 and E7 Access Points. For those, we recommend using Enterprise Campus series switches.

This switch delivers a switching capacity of 124 Gbps and supports advanced Layer 2 and Layer 3 capabilities, including static routing, VLAN segmentation, and AV-ready multicast controls. It features a 1.3" touchscreen LCM for live system monitoring and is managed via UniFi Network version 5.14.12 or later.


Key Features:

• (24) PoE+ RJ45 ports (12 × 1G, 12 × 2.5G)
• (2) 10G SFP+ uplinks
• Up to 32W PoE+ per port
• 400W total PoE power budget
• Switching capacity: 124 Gbps
• Layer 3 managed via UniFi Network (v5.14.12+)
• 1.3" touchscreen LCM display
• Redundant DC power backup via USP RPS


Ideal For:

• Medium to large UniFi deployments
• 2.5G networks and PoE+ powered devices
• VLAN-based segmentation and inter-VLAN routing
• Pro AV, IP phones, and security infrastructure


Key Highlights:

✅ 24 PoE+ ports including high-speed 2.5G RJ45
✅ 400W total PoE budget, up to 32W per port
✅ Advanced Layer 3 routing, DHCP, and VLAN support
✅ 2x 10G SFP+ uplinks for uplink/backbone use
✅ 1U rackmount with integrated LCM and DC failover


Frequently Asked Questions:

Q: How many of the ports support 2.5G?
A: (12) ports support 2.5 GbE with PoE+ output.

Q: Is this switch compatible with UniFi U7 or E7 access points?
A: No, those require PoE++. Use Enterprise Campus switches instead.

Q: What is the total PoE power availability?
A: The switch provides up to 400W of shared PoE+ power.

Q: Does it support Layer 3 routing features?
A: Yes, including DHCP, static routing, and inter-VLAN routing.

Q: What software version is required for management?
A: UniFi Network version 5.14.12 or later is required.

Dimensions:

442 x 325 x 44 mm
(17.4 x 12.8 x 1.7")

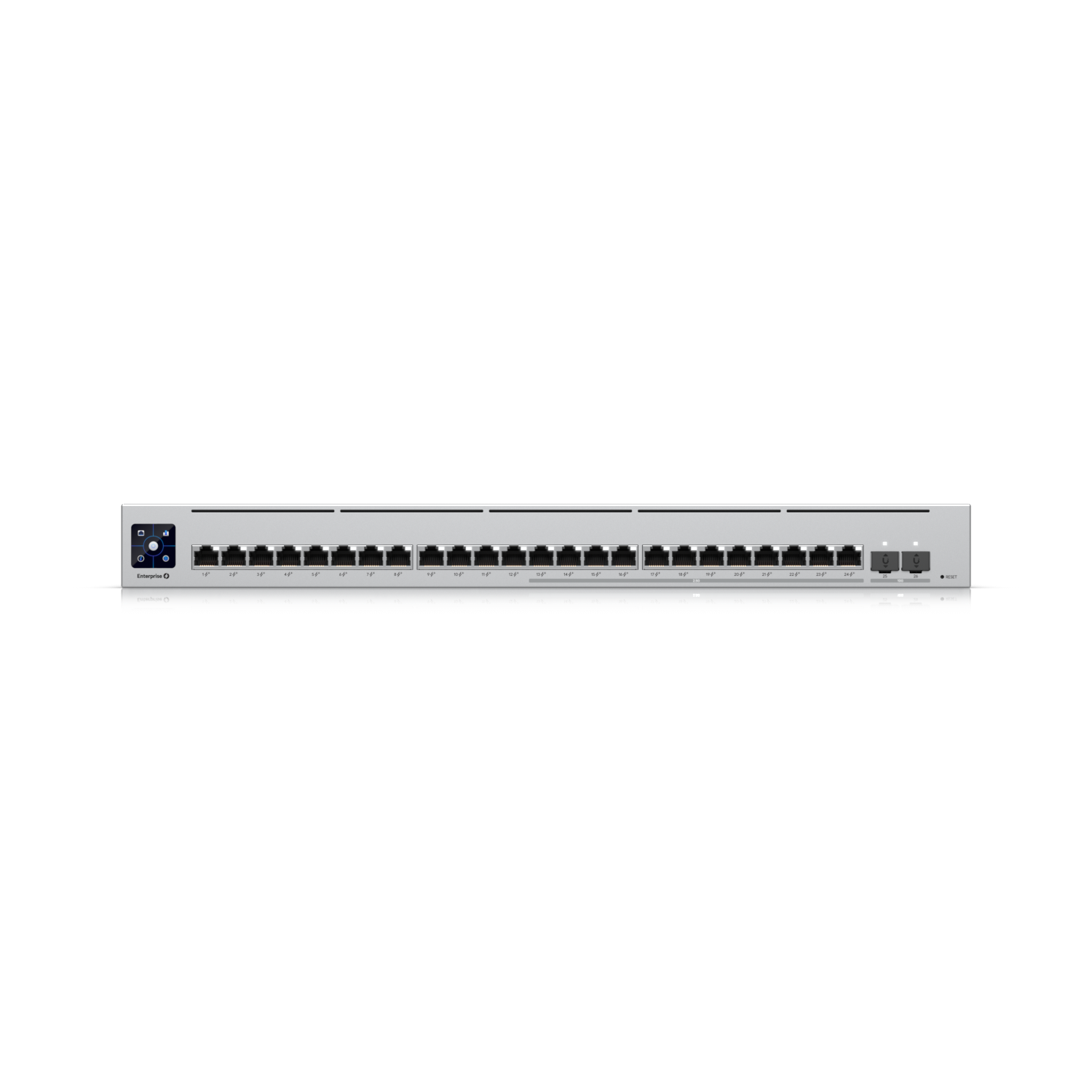

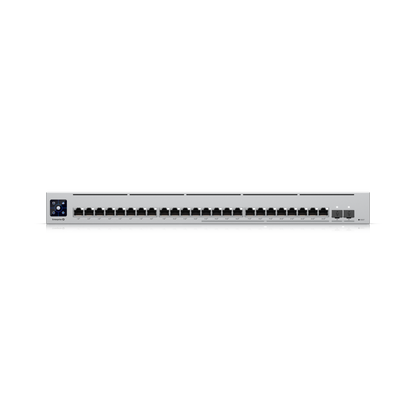

Port Layout:

1 GbE RJ45: 12 (All PoE+)
(1G/100M/10M)

2.5 GbE RJ45: 12 (All PoE+)
(2.5G/1G/100M/10M)

10G SFP+: 2

Max. PoE Output:

Up to PoE+

Total PoE Availability:

400W

Redundancy:

DC Power Backup

Layer 3:

Form Factor:

Rack mount (1U)

Performance:

Switching Capacity: 124 Gbps

Total Non-Blocking Throughput: 62 Gbps

Forwarding Rate: 92 Mpps

Supported VLANs: 1,000

MAC Address Table Size: 16,000

ARP Entries: 4,000

IPv4 Routes: 1,000

Packet Buffer Size: 2 MB

Layer 3 Features:

DHCP Server (Local Networks) ✓

DHCP Relay ✓

Inter-VLAN Routing (Local Networks) ✓

Static Routing (Local Networks) ✓

Layer 2 Features:

LACP Port Aggregation ✓

STP & RSTP ✓

QoS (DSCP) ✓

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓

Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓

IGMP Snooping ✓

802.1X Control ✓

MAC-Based ACLs & Device Isolation ✓

DHCP Snooping & Guarding ✓

Egress Rate Limit ✓

Flow Control ✓

Storm Control ✓

Multicast & Broadcast Rate Limiting ✓

MAC Address Blocking ✓

IP-Based ACLs & Network Isolation ✓

MAC-Based Port Restriction ✓

Port Isolation ✓

Port Mirroring ✓

Jumbo Frames ✓

LLDP-MED ✓

Voice VLAN ✓

Loop Protection ✓

Hardware:

PoE+ Ports: 24

Max. PoE Wattage per Port: 32W

Max. Power Consumption:

– 60W (Excluding PoE Output)

– 460W (Including PoE Output)

Power:

Power Method: (1) Universal input, 100—240V AC, 50/60 Hz

(1) USP RPS DC input

Power Input Method: AC input

Power Supply: AC/DC, internal, 550W

Supported Voltage Range: 100—240V AC

Management:

Ethernet
AR

Heat Dissipation (Excluding PoE Output):

204.72 BTU/hr

Weight:

Without mounting brackets: 5.1 kg (11.3 lb)

With mounting brackets: 5.2 kg (11.5 lb)

Enclosure Material:

SGCC steel

Mount Material:

SGCC steel

Supported Rack Depth:

400~1200 mm (15.7–47.2")

LCM Display:

1.3" touchscreen

ESD/EMP Protection:

Air: ± 16kV
Contact: ± 12kV

Ambient Operating Temperature:

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity:

10 to 90% noncondensing

Certifications:

CE, FCC, IC

NDAA Compliant:

Software:

Application Requirements:

UniFi Network Version 5.14.12 and later
